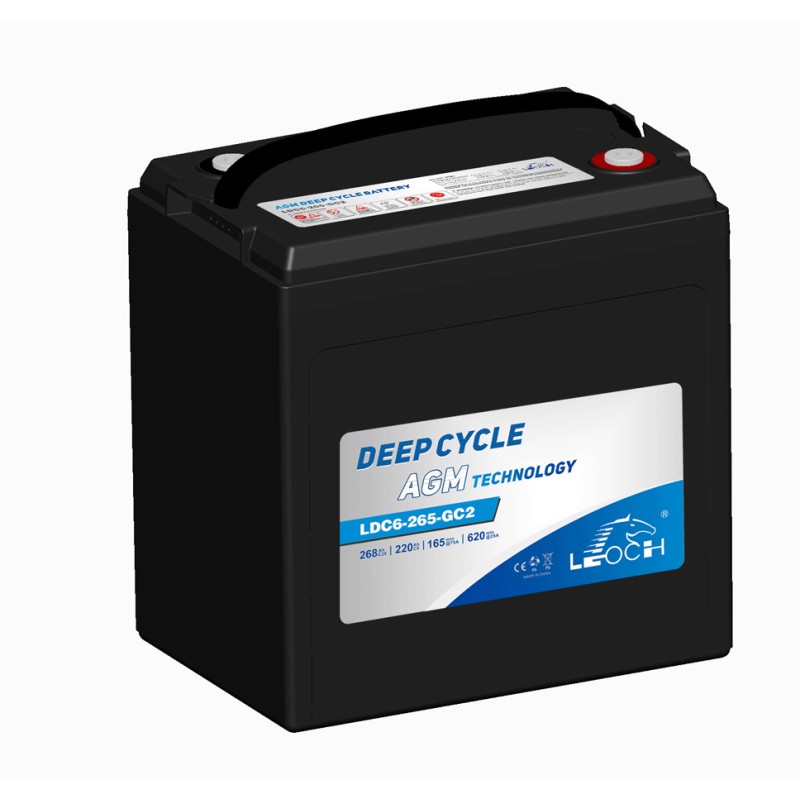

Leoch LDC6-265-GC2 · Golf cart battery 6V 268Ah AGM
Specifications
| Brand | Leoch |
|---|---|
| Part number | LDC6-265-GC2 |
| Voltage (V) | 6 |
| Capacity (C20) | 268Ah (c20) |
| Capacity (C5) | 220Ah (c5) |
| Technology | AGM |
| Length | 260.00 mm |
| Width | 180.00 mm |
| Height | 268.00 mm |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Leoch LDC6-265-GC2 6V 268Ah is a golf traction battery: thick plates and a high cycle count for daily course use. GC2 case.
Why this golf cart battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Voltage
6 V
Capacity
268 Ah
Dimensions
260×180×268 mm
Technology
AGM
Weight
32,9 kg
Model
LEOCH Deep Cycle LDC Series
Free quote, no obligation
Request a quote for your Golf cart battery Leoch LDC6-265-GC2 6V 268Ah AGM
- Reply in under 24 working hours
- Best price guaranteed
Golf cart battery Leoch LDC6-265-GC2 Deep Cycle LDC Series 268Ah 6V
6VVoltage
268AhCapacity
32.90kgWeight
The Leoch LDC6-265-GC2 is a 268 Ah, 6 V deep-cycle battery for golf carts and electric utility vehicles. Measuring 260 × 180 × 268 mm, it is the direct replacement for golf carts fitted from the factory with a 268 Ah battery of this format.
- AGM: faster recharging and better cycle resistance than a conventional battery.
- Reinforced plate construction for intensive use.
- Long service life in daily duty cycles.
- Standard format for golf carts and utility vehicles.
What the Leoch LDC6-265-GC2 is for
The Leoch LDC6-265-GC2 is designed for golf carts and electric utility vehicles: deep discharges every day and a full overnight recharge. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 32.90 kg and M8 terminals.
The Leoch LDC6-265-GC2: Deep Cycle LDC Series range and AGM technology
The LDC6-265-GC2 is part of the Leoch Deep Cycle LDC Series range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
In an AGM battery the electrolyte is absorbed in glass-fibre separators: there is no free liquid, it cannot spill and it can be mounted at an angle. That construction lowers internal resistance, speeds up recharging and multiplies cycle life compared with a conventional battery.
Dimensions, polarity and mounting
It has external dimensions of 260 × 180 × 268 mm and weighs 32.90 kg. It uses M8 terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
Why choose Leoch batteries
Leoch is one of the world's major manufacturers of lead-acid and lithium batteries, with deep-cycle, UPS, telecoms and automotive ranges produced in its own internationally certified plants. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
How to make it last longer
Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. Always replace all the batteries in the bank at once and use the charger specified by the vehicle manufacturer.
Manufacturer's warranty
The Leoch LDC6-265-GC2 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Delivery times and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-LEOCH-LDC6-265-GC2
Data sheet
- Brand
- LEOCH
- Reference
- LDC6-265-GC2
- Model
- Deep Cycle LDC Series
- Voltage (V)
- 6
- Length
- 260.00 mm
- Width
- 180.00 mm
- Height
- 268.00 mm
- Weight
- 32.9 Kgs
- Technology
- AGM
- Terminal type
- M8
- Capacity (C20)
- 268Ah (c20)
- Capacity (C5)
- 220Ah (c5)
- Case type
- GC2
Specific References
- MPN
- LDC6-265-GC2
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
How is the Leoch LDC6-265-GC2 battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Leoch LDC6-265-GC2 battery last?
Expected lifespan of the Leoch LDC6-265-GC2 is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 260×180×268 mm — also written as 260x180x268 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the LDC6-265-GC2 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
