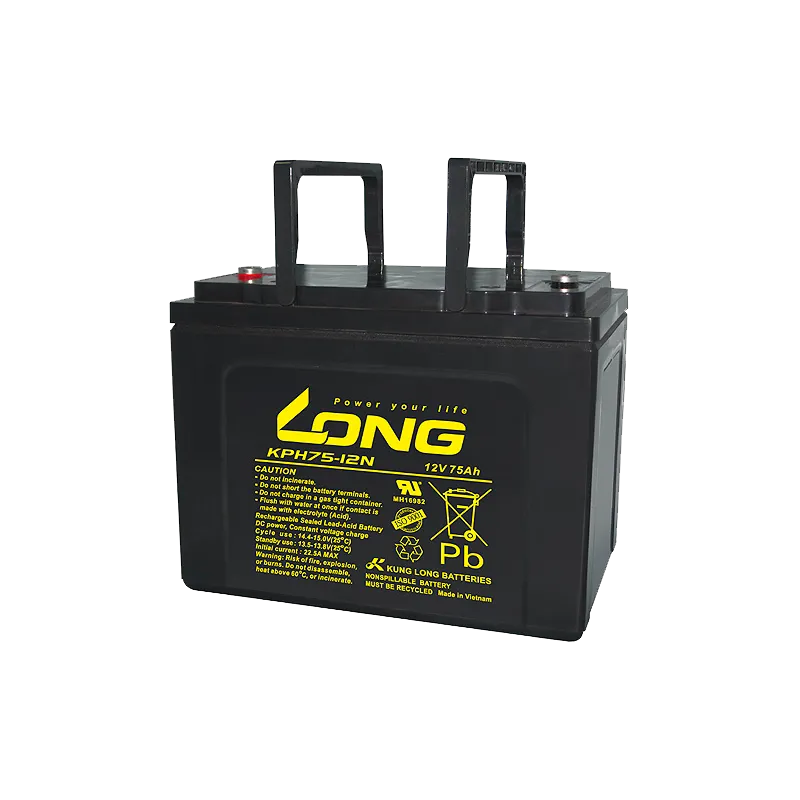

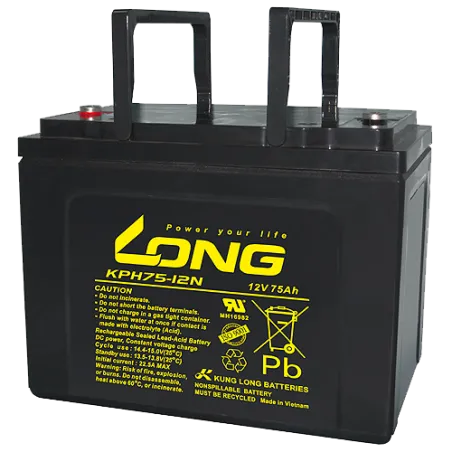

Long KPH75-12N · Stationary UPS battery 12V 75Ah AGM
Specifications
| Brand | LONG |
|---|---|
| Part number | KPH75-12N |
| Voltage (V) | 12 |
| Capacity (C20) | 75Ah (c20) |
| Capacity (C5) | 63.75Ah (c5) |
| Technology | AGM |
| Length | 260.00 cm |
| Width | 170.00 cm |
| Height | 207.00 cm |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Long KPH75-12N 12V 75Ah is a stationary battery for backup power systems: UPS, alarms, telecom and emergency lighting. Long float-life under permanent charge and instant response to mains outages with no noticeable voltage drop.
Why this stationary battery?
- Instant responsewhen the mains drop, no voltage dip
- Long life under 24/7 chargeoptimised for permanent service
- Compatible with your systemexisting UPS units and alarm control panels
Voltage
12 V
Capacity
75 Ah
Dimensions
260×170×207 mm
Technology
AGM
Weight
24,2 kg
Model
KPH Series
Free quote, no obligation
Request a quote for your Stationary UPS battery Long KPH75-12N 12V 75Ah AGM
- Reply in under 24 working hours
- Best price guaranteed

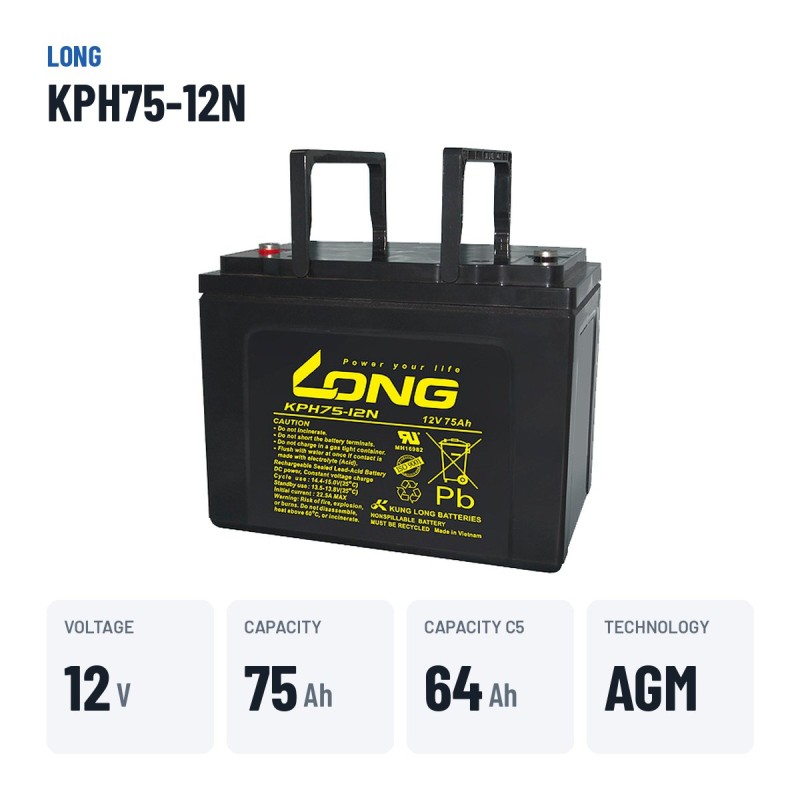

Stationary battery Long KPH75-12N KPH Series 75Ah 12V
12VVoltage
75AhCapacity
24.20kgWeight
Designed for UPS, alarms, telecoms and emergency lighting, the Long KPH75-12N from the KPH Series range offers 75 Ah with AGM technology on permanent float charge. Measuring 260 × 170 × 207 mm, it is the direct replacement for UPS, alarm and emergency systems fitted from the factory with a 75 Ah battery of this format.
- AGM: faster recharging and better cycle resistance than a conventional battery.
- Instant response to mains failures.
- Low self-discharge and high reliability.
- Standard format for UPS and emergency systems.
What the Long KPH75-12N is for
With 75 Ah, the Long KPH75-12N gives your UPS or emergency system the autonomy it needs. Replace all the batteries in the set at once. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 24.20 kg.
The Long KPH75-12N: KPH Series range and AGM technology
The KPH75-12N is part of the Long KPH Series range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
In an AGM battery the electrolyte is absorbed in glass-fibre separators: there is no free liquid, it cannot spill and it can be mounted at an angle. That construction lowers internal resistance, speeds up recharging and multiplies cycle life compared with a conventional battery.

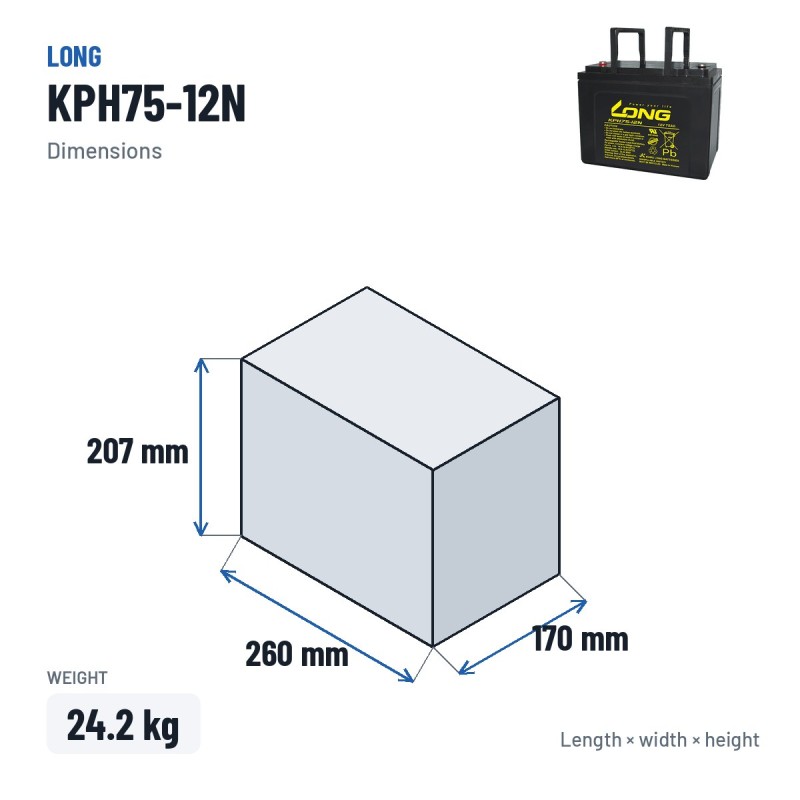

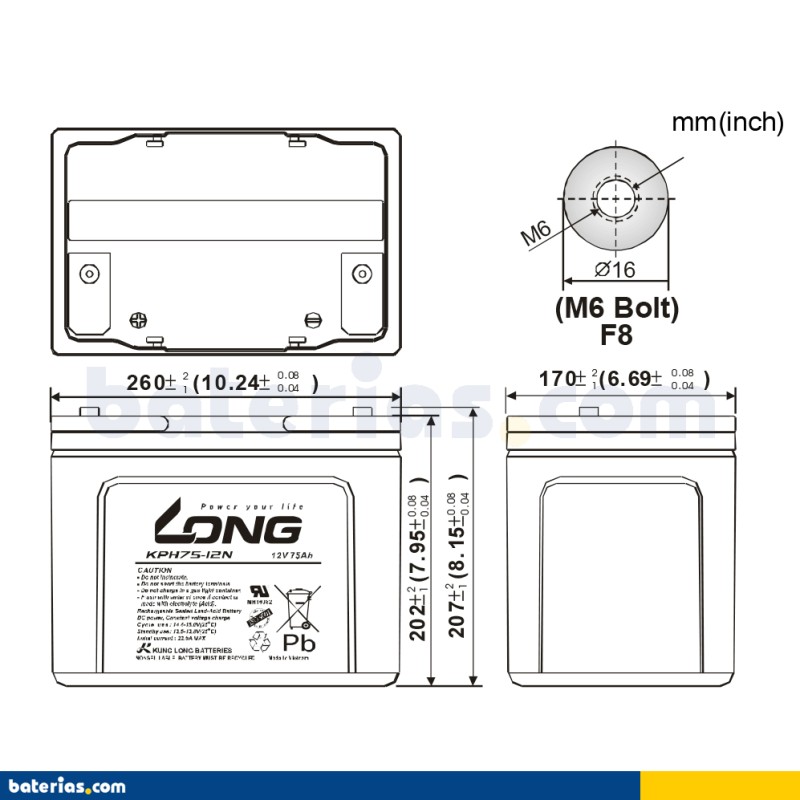

Will it fit your current battery tray?
It has external dimensions of 260 × 170 × 207 mm and weighs 24.20 kg. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
What Long does differently
Long (Kung Long Batteries) is one of the world's largest manufacturers of sealed VRLA batteries. Its AGM and GEL series for UPS, mobility, alarms and cycling are found in equipment worldwide as original equipment. We guarantee that every Long arrives new, charged and with the manufacturer's full warranty.
Usage and maintenance tips
Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. Replace all the batteries in the set at once and avoid environments continuously above 25 °C.
Warranty and coverage
The Long KPH75-12N comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
When you get it and how to return it
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-LONG-KPH75-12N
Data sheet
- Brand
- LONG
- Reference
- KPH75-12N
- Model
- KPH Series
- Voltage (V)
- 12
- Length
- 260.00 cm
- Width
- 170.00 cm
- Height
- 207.00 cm
- Weight
- 24.20 Kgs
- Technology
- AGM
- Capacity (C20)
- 75Ah (c20)
- Capacity (C5)
- 63.75Ah (c5)
Specific References
- MPN
- KPH75-12N
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is this battery AGM? What is it for?
Yes. The KPH75-12N from Long uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for devices with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How do I fit the KPH75-12N model in my device?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How many years does this battery last?
Expected lifespan of the Long KPH75-12N is 5 to 8 years in mild-climate device use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the KPH75-12N model?
Dimensions (length × width × height) are 260×170×207 mm — also written as 260x170x207 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which interchangeable batteries are there for this one?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
