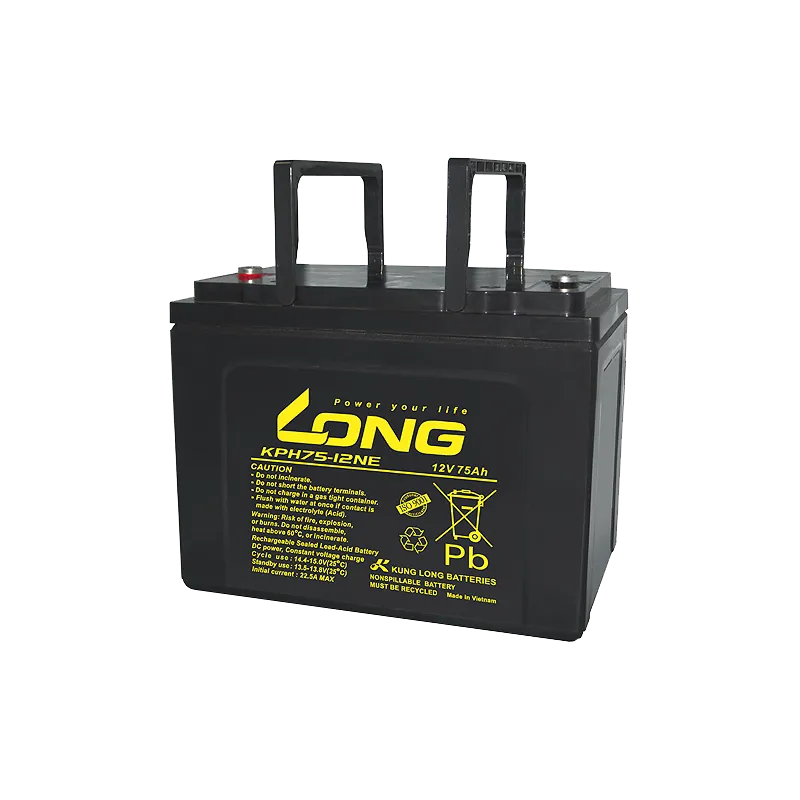

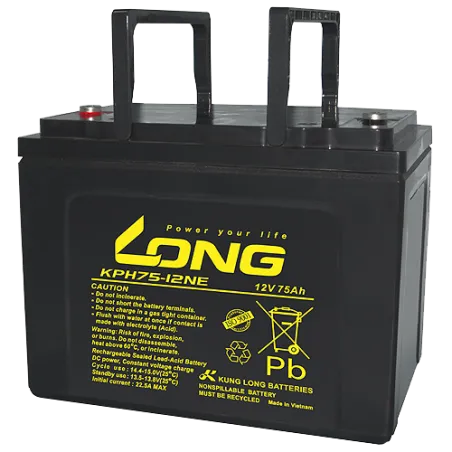

Long KPH75-12NE · Stationary UPS battery 12V 75Ah AGM
Specifications
| Brand | LONG |
|---|---|
| Part number | KPH75-12NE |
| Voltage (V) | 12 |
| Capacity (C20) | 75Ah (c20) |
| Capacity (C5) | 63.75Ah (c5) |
| Technology | AGM |
| Length | 260.00 cm |
| Width | 170.00 cm |
| Height | 207.00 cm |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Long KPH75-12NE 12V 75Ah is a stationary battery for backup power systems: UPS, alarms, telecom and emergency lighting. Long float-life under permanent charge and instant response to mains outages with no noticeable voltage drop.
Why this stationary battery?
- Instant responsewhen the mains drop, no voltage dip
- Long life under 24/7 chargeoptimised for permanent service
- Compatible with your systemexisting UPS units and alarm control panels
Voltage
12 V
Capacity
75 Ah
Dimensions
260×170×207 mm
Technology
AGM
Weight
24,4 kg
Model
KPH Series
Free quote, no obligation
Request a quote for your Stationary UPS battery Long KPH75-12NE 12V 75Ah AGM
- Reply in under 24 working hours
- Best price guaranteed
Stationary battery Long KPH75-12NE KPH Series 75Ah 12V
12VVoltage
75AhCapacity
24.40kgWeight
The 12 V, 75 Ah Long KPH75-12NE stationary battery from the KPH Series range with AGM technology is designed for UPS, alarms, telecoms and emergency lighting. It replaces the original battery without adaptation in UPS, alarm and emergency systems with a 260 × 170 × 207 mm format: same 75 Ah capacity.
- Sealed and gas-free: suitable for cabinets and offices.
- Maintenance-free for its whole service life.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
- Long float life under permanent charge.
What the Long KPH75-12NE is for
Designed for UPS, alarms, telecoms and emergency lighting, the Long KPH75-12NE is sealed, gas-free and suitable for technical cabinets and offices. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 24.40 kg.
The Long KPH75-12NE: KPH Series range and AGM technology
Within the Long catalogue, the KPH Series series groups the references designed for this use. The KPH75-12NE is the 75 Ah model of that family, with the same performance as its siblings in other sizes.
AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.
Will it fit your current battery tray?

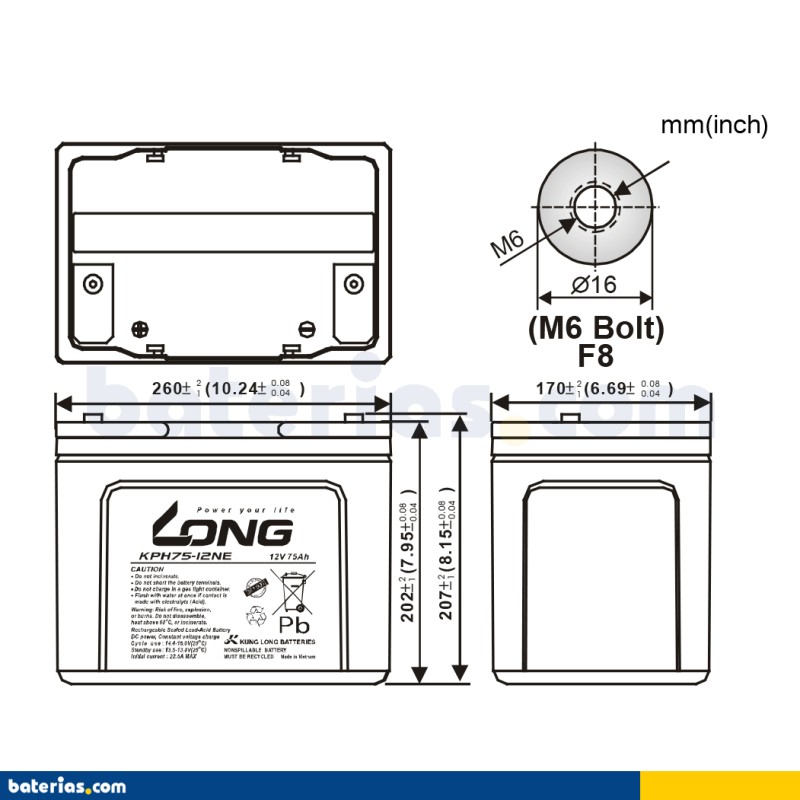

In terms of format, the Long KPH75-12NE measures 260 × 170 × 207 mm (length × width × height) and weighs 24.40 kg. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
Why choose Long batteries
Long batteries combine large-scale production with ISO quality standards and a batch-to-batch consistency that has made them the de-facto standard in backup systems and electric mobility. We guarantee that every Long arrives new, charged and with the manufacturer's full warranty.
Care and maintenance
Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. Check the float voltage of the UPS or charger: a voltage that is too high shortens the life of a sealed battery.
Warranty and coverage
The Long KPH75-12NE comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
When you get it and how to return it
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-LONG-KPH75-12NE
Data sheet
- Brand
- LONG
- Reference
- KPH75-12NE
- Model
- KPH Series
- Voltage (V)
- 12
- Length
- 260.00 cm
- Width
- 170.00 cm
- Height
- 207.00 cm
- Weight
- 24.40 Kgs
- Technology
- AGM
- Capacity (C20)
- 75Ah (c20)
- Capacity (C5)
- 63.75Ah (c5)
Specific References
- MPN
- KPH75-12NE
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the Long KPH75-12NE an AGM battery and what are the benefits of AGM?
Yes. The KPH75-12NE from Long uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for devices with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How do I fit the KPH75-12NE model in my device?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the KPH75-12NE model?
Expected lifespan of the Long KPH75-12NE is 5 to 8 years in mild-climate device use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the KPH75-12NE model?
Dimensions (length × width × height) are 260×170×207 mm — also written as 260x170x207 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the KPH75-12NE model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
