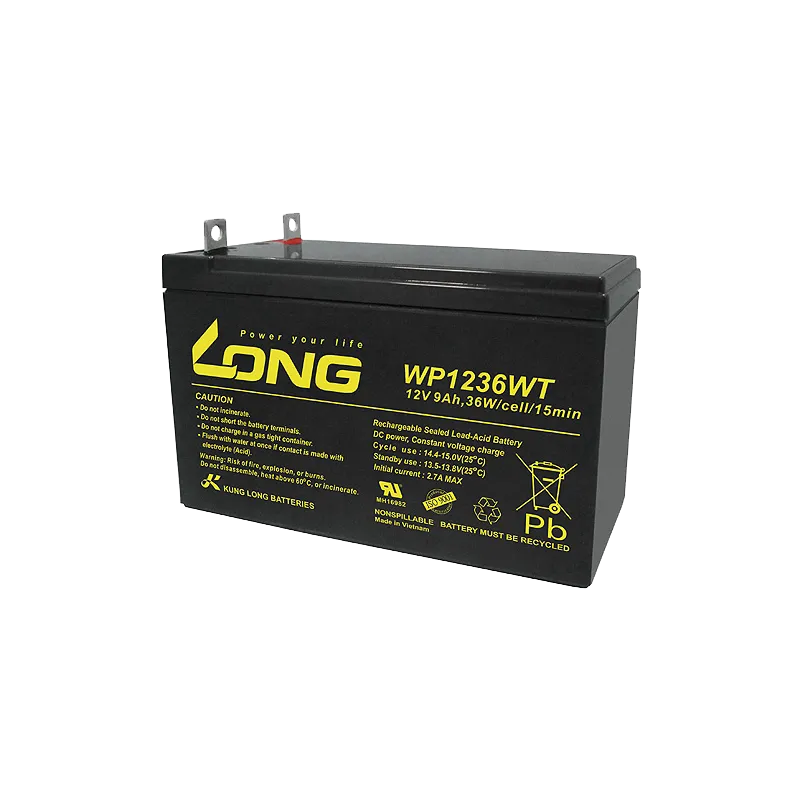

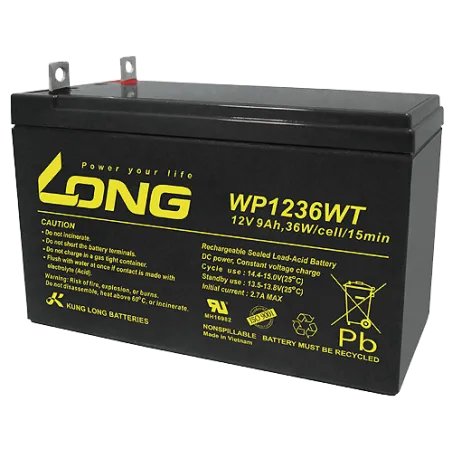

Long WP1236WT · Stationary UPS battery 12V 9Ah AGM

Batería Long WP1236WT 9Ah 36Wh - 1
search
  • Batería Long WP1236WT 9Ah 36Wh - 1
  • Batería Long WP1236WT 9Ah 36Wh - 2

This product is priced on demand to offer you the best available price at all times.

Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.

Thank you

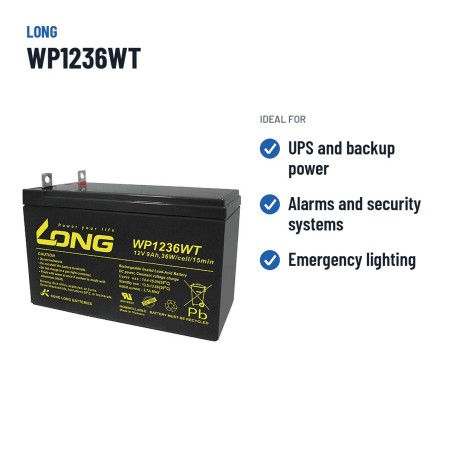

Long WP1236WT 12V 9Ah is a stationary battery for backup power systems: UPS, alarms, telecom and emergency lighting. Long float-life under permanent charge and instant response to mains outages with no noticeable voltage drop.

Why this stationary battery?

  • Instant responsewhen the mains drop, no voltage dip
  • Long life under 24/7 chargeoptimised for permanent service
  • Compatible with your systemexisting UPS units and alarm control panels

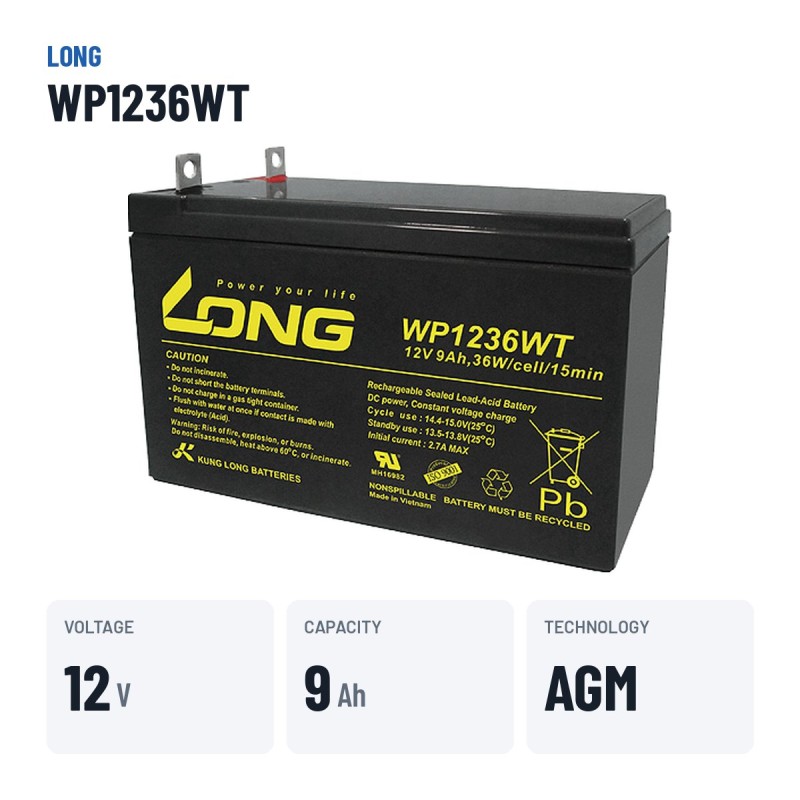

Voltage
12 V
Capacity
9 Ah C20

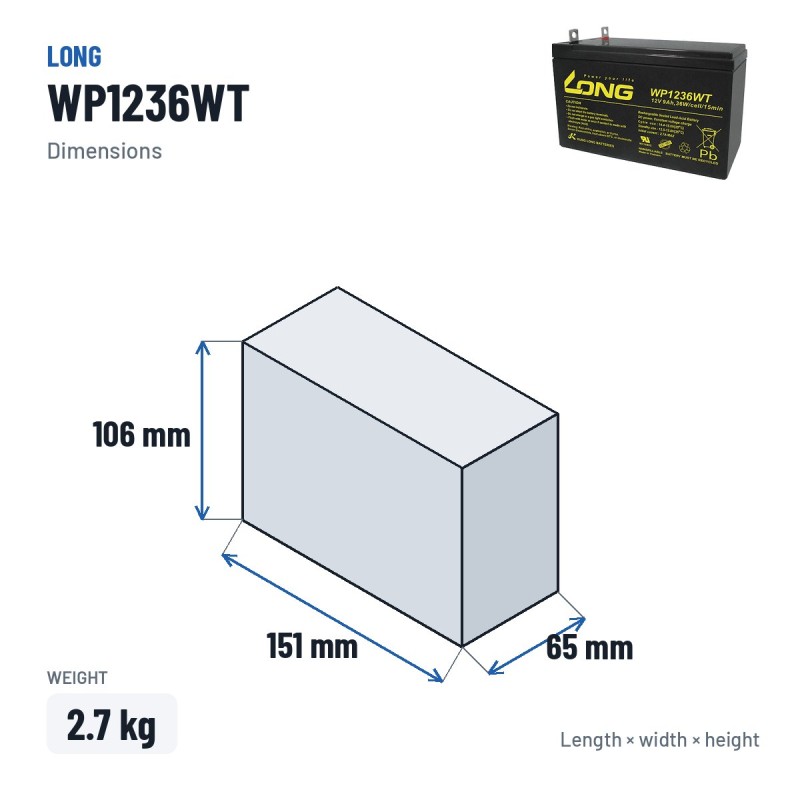

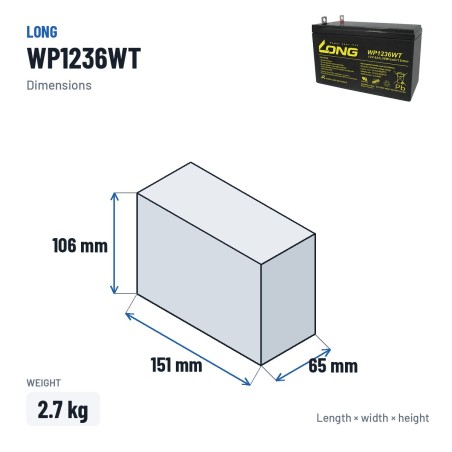

Dimensions
151×65×106 mm
Technology
AGM
Weight
2,7 kg
Model
WP WATT Series
Free quote, no obligation

Request a quote for your Stationary UPS battery Long WP1236WT 12V 9Ah AGM

  • Reply in under 24 working hours
  • Best price guaranteed
Attach photo (optional)
Photo of the old battery or vehicle documentation · Max. 3 · 8 MB · images or PDF
Logo Long

Stationary battery Long WP1236WT WP WATT Series 9Ah 12V

12VVoltage
9AhCapacity
2.70kgWeight

The 12 V, 9 Ah Long WP1236WT stationary battery from the WP WATT Series range with AGM technology is designed for UPS, alarms, telecoms and emergency lighting. It measures 151 × 65 × 106 mm, the format sought by anyone replacing a 9 Ah battery in UPS, alarm and emergency systems.

  • Maintenance-free for its whole service life.
  • Sealed and gas-free: suitable for cabinets and offices.
  • Long float life under permanent charge.
  • AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.

What the Long WP1236WT is for

With 9 Ah, the Long WP1236WT gives your UPS or emergency system the autonomy it needs. Replace all the batteries in the set at once. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 2.70 kg.

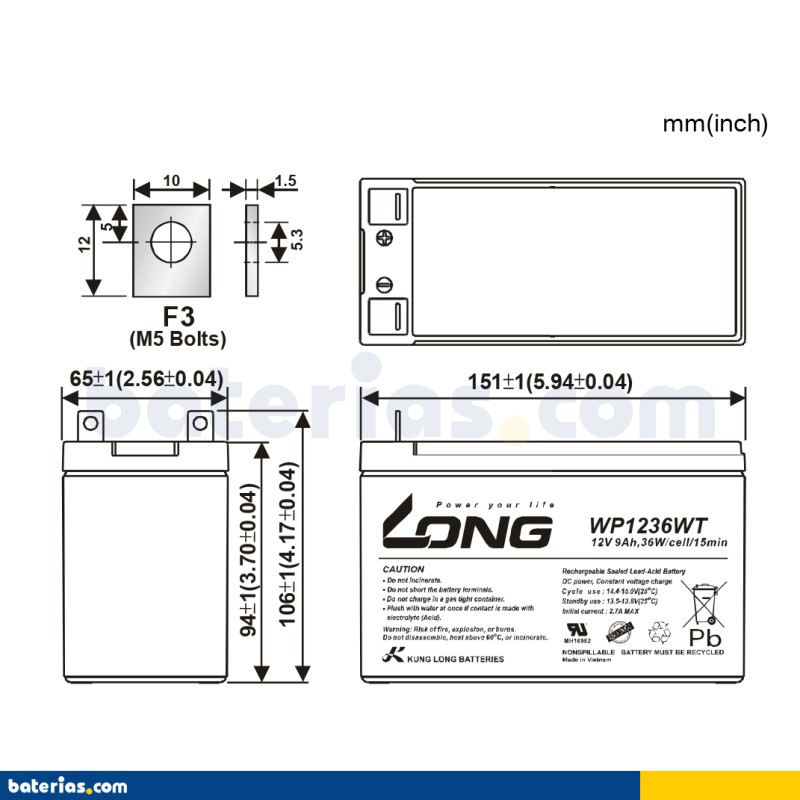

Size, terminals and hold-down of the Long WP1236WT

The Long WP1236WT is made in the 151 × 65 × 106 mm format and weighs 2.70 kg. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.

The Long WP1236WT: WP WATT Series range and AGM technology

The WP1236WT is part of the Long WP WATT Series range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.

In an AGM battery the electrolyte is absorbed in glass-fibre separators: there is no free liquid, it cannot spill and it can be mounted at an angle. That construction lowers internal resistance, speeds up recharging and multiplies cycle life compared with a conventional battery.

Why choose Long batteries

Long (Kung Long Batteries) is one of the world's largest manufacturers of sealed VRLA batteries. Its AGM and GEL series for UPS, mobility, alarms and cycling are found in equipment worldwide as original equipment. All the Long batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.

Manufacturer's warranty

The Long WP1236WT comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.

How to make it last longer

Check the float voltage of the UPS or charger: a voltage that is too high shortens the life of a sealed battery. Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators.

Shipping, delivery and returns

Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.

BCOM-LONG-WP1236WT

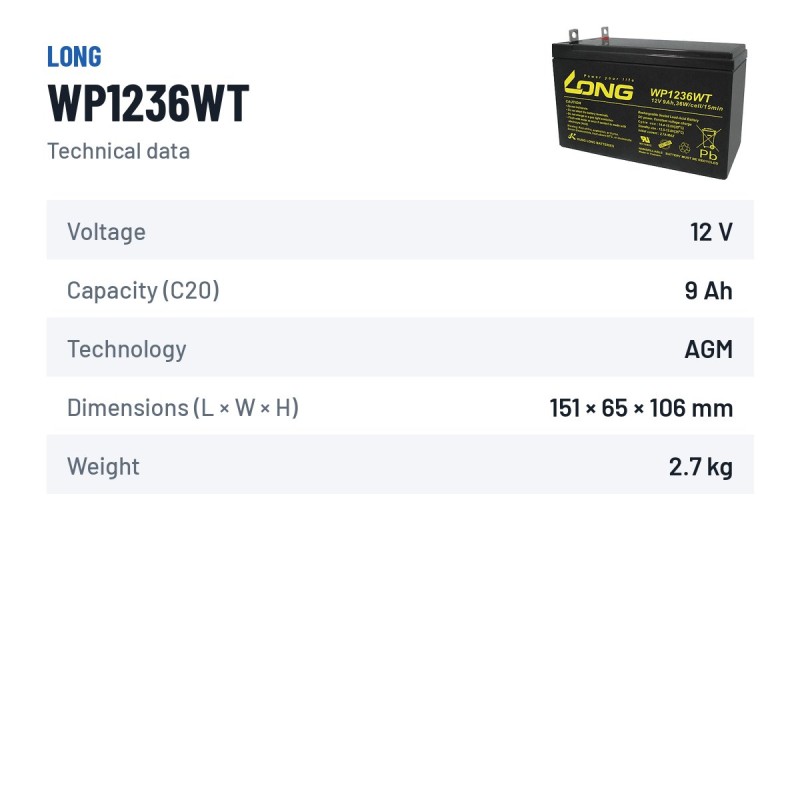

Data sheet

Brand
LONG
Reference
WP1236WT
Model
WP WATT Series
Voltage (V)
12
Length
151.00 cm
Width
65.00 cm
Height
106.00 cm
Weight
2.70 Kgs
Technology
AGM
Capacity (C20)
9Ah (c20)
Energy (Wh)
36

Specific References

MPN
WP1236WT

Recommended accessories — complement the Long WP1236WT with a charger or tester

How to change the battery

Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.

⏱ 10-15 min🛠 Tools: Screwdriver or small wrench (3-5 mm typical) · Protective gloves
  1. Step 1. Power off and unplug the device

    Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.

  2. Step 2. Locate the battery compartment

    Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.

  3. Step 3. Disconnect the negative (−) first

    With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.

  4. Step 4. Disconnect the positive (+) terminal

    Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.

  5. Step 5. Remove the old battery

    Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.

  6. Step 6. Fit the new battery

    Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.

  7. Step 7. Connect the positive (+) first

    On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.

  8. Step 8. Initial charge before first use

    Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.

Frequently asked questions

Is the Long WP1236WT an AGM battery and what are the benefits of AGM?

Yes. The WP1236WT from Long uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for devices with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.

How do I know if the WP1236WT model fits my device?

Three ways: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team for the WP1236WT; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)).

How is the Long WP1236WT battery installed in the vehicle?

In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.

What is the warranty period of this battery?

We provide 1 year of official manufacturer warranty against manufacturing defects. Coverage includes cell breakdowns, internal short-circuits and abnormal capacity decreases. Damage from misuse is excluded: prolonged overcharging, unsuitable chargers or a faulty alternator. Once the defect is verified by technical inspection, we replace the WP1236WT at no cost.

How long does Long WP1236WT delivery take?

In mainland Spain and Portugal it arrives in 24 h if you order before 6:00 pm and the battery is in stock — it leaves the same day and arrives the next business day. Afternoon or weekend orders ship the next business day. For Balearics, Canaries and other EU destinations, allow 2-5 days. Shipping cost is calculated in the cart based on destination and service (standard, express, cash on delivery). Tracking number is sent by email + SMS as soon as the parcel ships.

Can I return the Long WP1236WT battery if it doesn't fit or doesn't work?

Yes. You have 14 days from delivery to return it. In mainland Spain and Portugal returns are FREE — we cover the return shipping cost via prepaid label. In other EU countries the return shipping cost is the customer's. It must arrive in its original packaging with no signs of installation. If it was defective, the warranty covers replacement even after the 14-day period.

Where do I find the WP1236WT model online?

At baterias.com — authorised distributor with real stock, Express 24h delivery in mainland Spain and Portugal if you order before 6:00 pm, and full manufacturer warranty. Shipping cost is calculated in the cart based on destination and chosen service (standard, express, cash on delivery). Secure payment by card, Bizum, PayPal or bank transfer. If you choose at-home installation, our technician will take the used battery and dispose of it through an authorised collection point.

What is the service life of the WP1236WT model?

Expected lifespan of the Long WP1236WT is 5 to 8 years in mild-climate device use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.

What are the dimensions of the Long WP1236WT battery?

Dimensions (length × width × height) are 151×65×106 mm — also written as 151x65x106 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.

How much does the Long WP1236WT battery weigh?

It weighs 2,7 kg. Most of the weight is lead. If you plan to fit it yourself, use gloves and a carrying strap (AGM batteries are slightly heavier than conventional due to the absorbent glass-mat fibre).

Which batteries are equivalent to the Long WP1236WT?

Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.

Is the WP1236WT model better than its equivalents from other brands?

This battery and its equivalents from Bosch, Tudor or Exide are technically comparable: same dimensions, same voltage and same capacity. The differences are warranty (Varta and Bosch: 2 years; Tudor and Exide: 2 years on the equivalent line), manufacturing plant (Varta and Bosch share origin in the Clarios Group; Tudor and Exide belong to Exide Technologies) and price. For private use any of these brands will give 4-6 years of life. Compare them in the "Equivalents" section.

What do users say about the Long WP1236WT battery?

The product rating, when available, is shown on the product page next to the stars. You can also check our public Trustpilot profile at shop level (4.5/5 from 11,700+ verified reviews). Most-praised points: reliable cold start, lifespan above 5 years and fast delivery; most common complaints mention BMS-equipped devices that need OBD registration after fitting.
