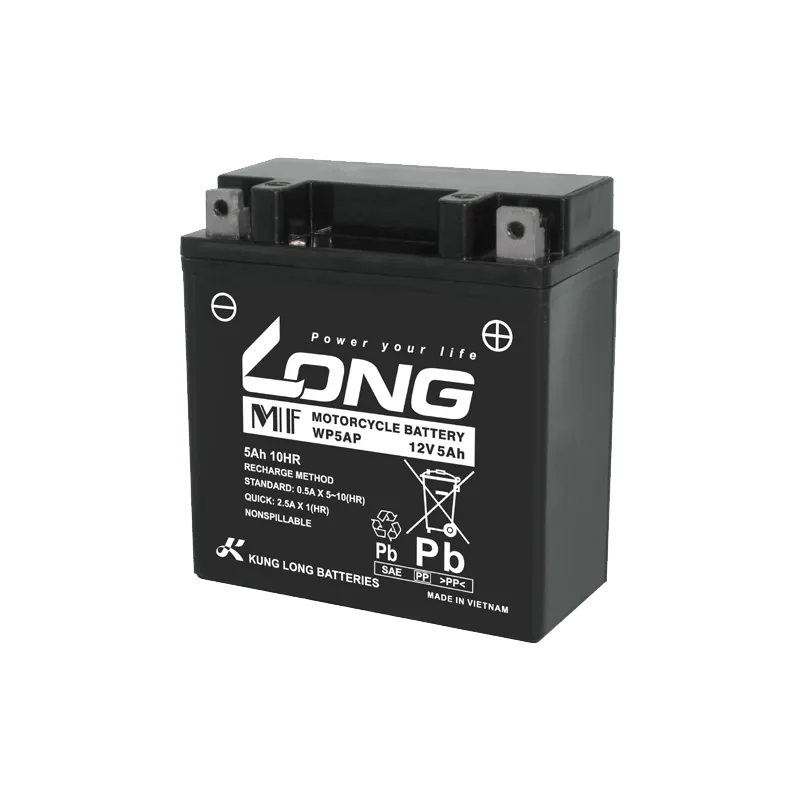

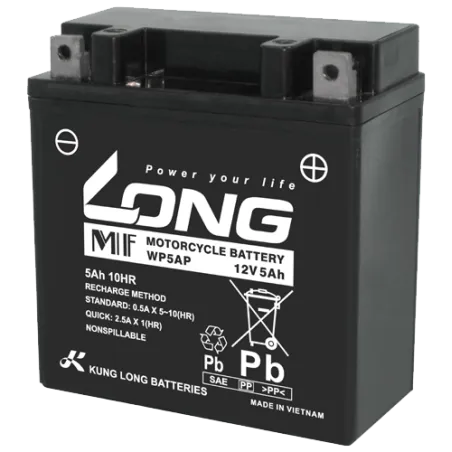

Long WP5AP Starting Series · Stationary UPS battery 5Ah AGM

Specifications

BrandLONG
Part numberWP5AP
Voltage (V)12
Capacity (C20)5Ah (c20)
Capacity (C5)4.25Ah (c5)
TechnologyAGM
Length120 mm
Width60 mm
Height130 mm
See the full specifications →

This product is priced on demand to offer you the best available price at all times.

Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.

Thank you

Long WP5AP 12V 5Ah is a stationary battery for backup power systems: UPS, alarms, telecom and emergency lighting. Long float-life under permanent charge and instant response to mains outages with no noticeable voltage drop.

Why this stationary battery?

  • Instant responsewhen the mains drop, no voltage dip
  • Long life under 24/7 chargeoptimised for permanent service
  • Compatible with your systemexisting UPS units and alarm control panels
Voltage
12 V
Capacity
5 Ah C20
Dimensions
120×60×130 mm
Technology
AGM
Weight
2 kg
Model
Starting Series

Where it fits: the Long WP5AP is one of our car batteries, belongs to our Long batteries and by capacity it sits among our 5Ah batteries.

Solve it now by chat Our assistant replies instantly about batteries, shipping and orders, and opens the request you need.
I prefer to fill in the form
Free quote, no obligation

Request a quote for your Stationary UPS battery Long WP5AP 12V 5Ah AGM

  • Reply in under 4 working hours
  • Best price guaranteed
Attach photo (optional)
Photo of the old battery or vehicle documentation · Max. 3 · 8 MB · images or PDF

The Long WP5AP in practice

When not to choose it

The only reason to rule it out is the case: if length or positive-terminal side differ from the original, do not force it however well the Ah match.

Logo Long

Car battery Long WP5AP Starting Series 5Ah 12V

12VVoltage
5AhCapacity
2kgWeight

The Long WP5AP from the Starting Series range delivers 5 Ah at 12 V: the usual specification for passenger cars with conventional starting, without a Start-Stop system. Measuring 120 × 60 × 130 mm, it is the direct replacement for cars fitted from the factory with a 5 Ah battery of this format.

In short: the Long WP5AP (5 Ah, 120 × 60 × 130 mm). It is an AGM battery for cars with Start-Stop and regenerative braking; if your car came with AGM, always replace it with another AGM.

  • AGM: faster recharging and better cycle resistance than a conventional battery.
  • Stable voltage for the vehicle electronics (ECU, sensors, climate control).
  • Low self-discharge: copes with long stops without losing charge.
  • Designed to last several years under normal daily use.

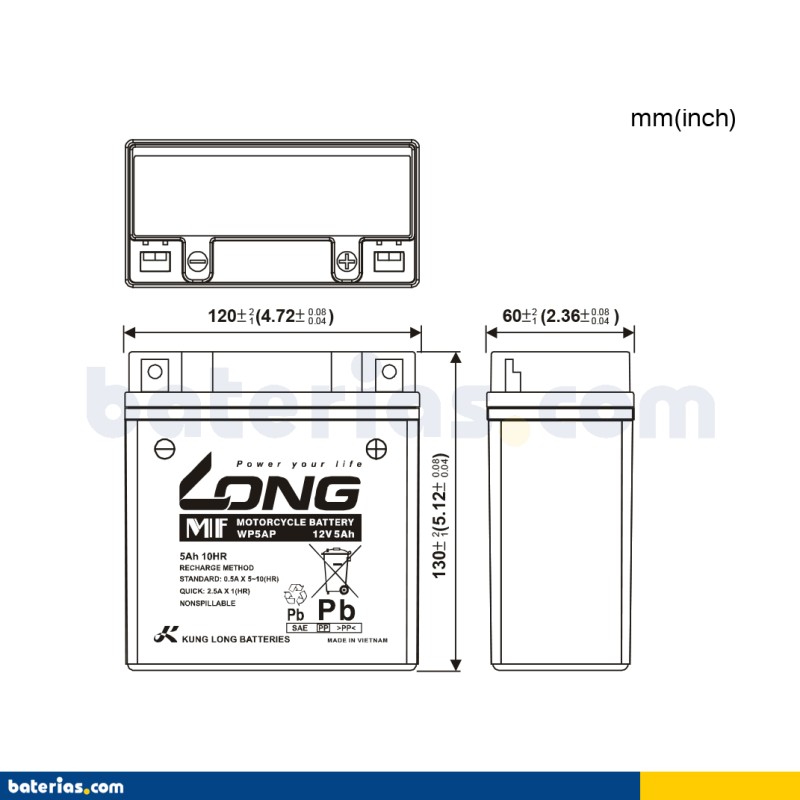

Dimensions, polarity and mounting

In terms of format, the Long WP5AP measures 120 × 60 × 130 mm (length × width × height) and weighs 2 kg. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.

What the Long WP5AP is for

With 5 Ah, the Long WP5AP is sized for passenger cars with conventional starting, without a Start-Stop system. It is a direct replacement for the original battery as long as dimensions and terminals match. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 2 kg.

The Long WP5AP: Starting Series range and AGM technology

The WP5AP is part of the Long Starting Series range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.

In an AGM battery the electrolyte is absorbed in glass-fibre separators: there is no free liquid, it cannot spill and it can be mounted at an angle. That construction lowers internal resistance, speeds up recharging and multiplies cycle life compared with a conventional battery.

Why choose Long batteries

Long (Kung Long Batteries) is one of the world's largest manufacturers of sealed VRLA batteries. Its AGM and GEL series for UPS, mobility, alarms and cycling are found in equipment worldwide as original equipment. We guarantee that every Long arrives new, charged and with the manufacturer's full warranty.

Manufacturer's warranty

The Long WP5AP comes with the manufacturer's official warranty against manufacturing defects; the exact period is stated in the brand's conditions. If it fails through a defect within the period, we replace it free of charge.

Care and maintenance

Keep the terminals clean and tight, and check that the resting voltage does not drop below 12.4 V: below that it is time to recharge. Avoid leaving lights or accessories on with the engine off: most batteries fail not through defects but through repeated deep discharges.

Delivery times and returns

Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 1 to 2 working days; for the Balearic Islands and the rest of the European Union allow 1 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.

  • Reference
    BCOM-LONG-WP5AP

Data sheet

  • Brand
    LONG
  • Reference
    WP5AP
  • Model
    Starting Series
  • Voltage (V)
    12
  • Length
    120 mm
  • Width
    60 mm
  • Height
    130 mm
  • Weight
    2.00 Kgs
  • Technology
    AGM
  • Capacity (C20)
    5Ah (c20)
  • Capacity (C5)
    4.25Ah (c5)

Specific References

  • MPN
    WP5AP

Download

Datasheet Long WP5AP

PDF datasheet of the Long WP5AP battery

Download (491.92KB)

Other 5Ah batteries: We stock 23 models of 5 Ah to compare by price, technology and cold cranking: see all 5Ah batteries. Same size (120 × 60 × 130 mm): batteries of 120 × 60 × 130 mm.

Recommended accessories — complement the Long WP5AP with a charger or tester

Fitting it yourself? Step-by-step guide to replacing the battery →

Frequently asked questions

Is the Long WP5AP an AGM battery and what are the benefits of AGM?

Yes. The Long WP5AP is AGM (Absorbent Glass Mat): sealed lead-acid, with the electrolyte absorbed in glass fibre. It tolerates heat better and handles more cycles than a conventional battery, which is why it is the required technology with advanced Start-Stop and regenerative braking.

Is the WP5AP model suitable for Start-Stop cars?

Yes, the AGM technology of the WP5AP is built for Start-Stop. AGM batteries support advanced Start-Stop and regenerative braking thanks to their higher cycle count. Basic Start-Stop: EFB. Start-Stop with regenerative braking: AGM, which withstands more cycles. Check the handbook for the technology the car manufacturer requires. It needs nothing to work, though on most modern cars registering it via OBD is advisable so the alternator adjusts its charging profile.

How do I fit the WP5AP model in my car?

Tool: a 10 mm spanner. Time: 15-30 minutes on almost every car, and up to double if the battery is not under the bonnet but in the boot or under a seat. Our blog guide covers it in detail; if the owner's handbook describes a different procedure, follow the manufacturer. The right order: engine off and key out; disconnect the negative (−) first, then the positive (+); release the hold-down clamp, lift out the old battery and seat the new one in the same position, keeping the polarity; reconnect the positive (+) first and the negative (−) last.

How long does the Long WP5AP battery last?

There is no exact figure: for a battery such as the Long WP5AP (AGM), a reasonable guide is 5 to 8 years in mild-climate car use with Start-Stop. Many factors play a part: how it is used (lots of short trips, for example), temperature (cold makes every start harder and intense heat evaporates the electrolyte), the condition of the alternator and charging system, power drawn with the engine off and maintenance, as well as the type of car and whether it has Start-Stop.

What size is this battery?

Its dimensions are 120×60×130 mm, also written 120x60x130 mm; the height already includes the terminals. Check the room available in your car, because a single millimetre too much can stop the clamp from closing.

Will the Long WP5AP battery fit my car?

For your own vehicle: type your number plate into the finder (DGT/DVLA/KBA identify model and engine), check the "Compatible vehicles" tab below, listing vehicles verified by our technical team, or message us on WhatsApp with make, model, engine and year; we reply during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). Always cross-check with what the car manufacturer states in the owner's handbook.

Which batteries are equivalent to the Long WP5AP?

A direct equivalent needs what this WP5AP offers: 120×60×130 mm, the same Ah and CCA and AGM technology. Technology matters too: in Start-Stop cars, an EFB cannot be replaced with a conventional battery. The options at the same level are in the "Equivalents" section of this page.

What advantages does the Long WP5AP AGM battery offer over an EFB?

In an AGM (Absorbent Glass Mat) battery the electrolyte is held in a glass-fibre mat: no spills, and many more charge/discharge cycles than a conventional battery. Compared with an EFB it resists tilted positions, heavy vibration and extreme temperatures better, and it is the recommended option where there is regenerative braking (BMW EfficientDynamics, Mercedes Eco, Audi MHEV, Land Rover ECO, Volvo i-Stop).

Do I need to register the Long WP5AP on the car after installation?

It is not strictly necessary on most cars, because the alternator detects the change and adapts the charge. The advisable step is to register it via OBD: the charging profile is optimum from the first minute and the battery lasts longer, especially on brands with sophisticated BMS (BMW, Mercedes, Audi, Volvo, Land Rover). Any garage with an OBD scanner can do it in a few minutes. If you prefer to do it yourself: VCDS / Carista (VAG), Bimmercode (BMW) or iCarsoft. If you do not register the WP5AP, it will keep starting fine while the alternator adjusts the profile over a few days.
