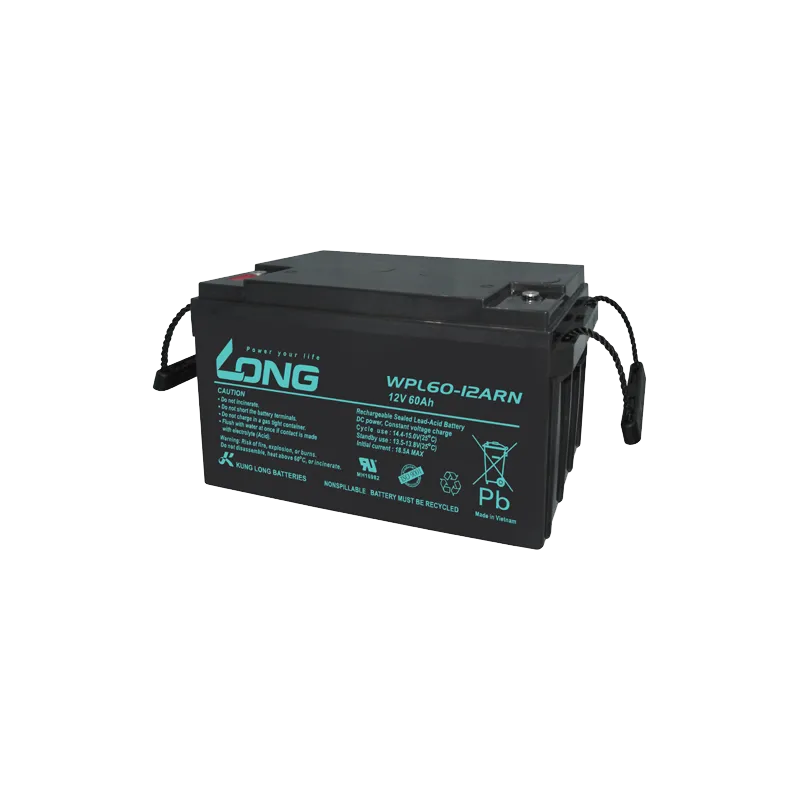

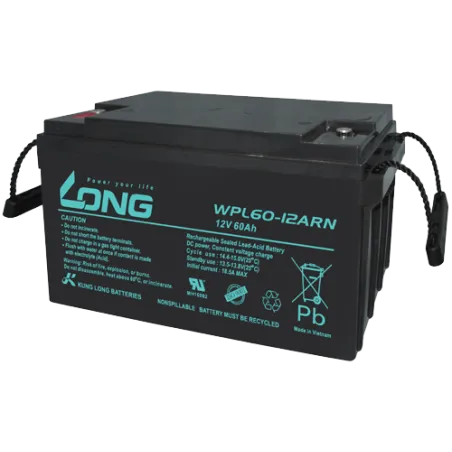

Long WPL60-12ARN · Stationary UPS battery 12V 60Ah AGM

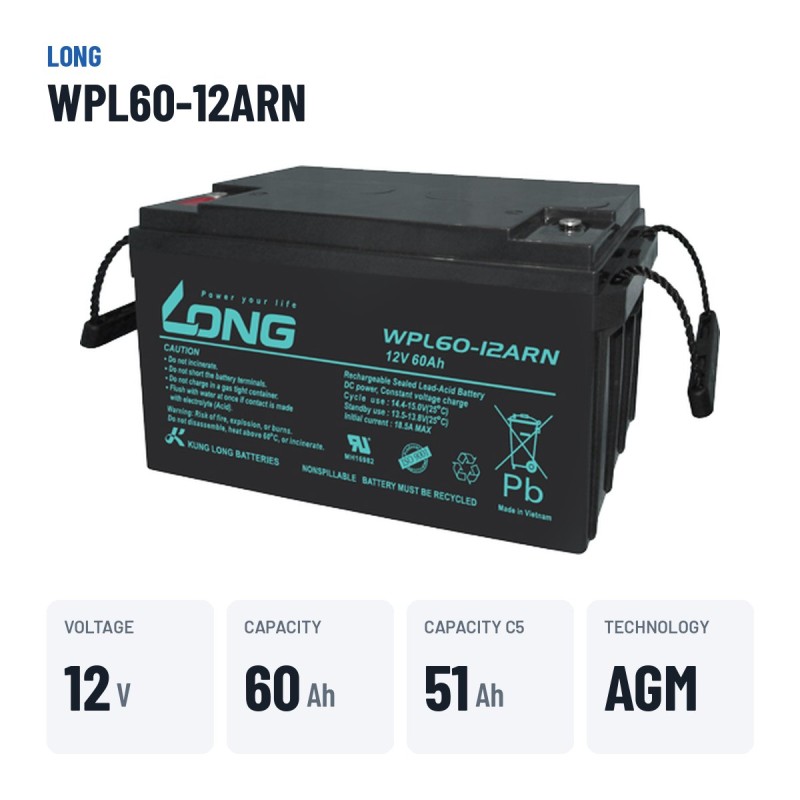

Specifications
| Brand | LONG |
|---|---|
| Part number | WPL60-12ARN |
| Voltage (V) | 12 |
| Capacity (C20) | 60Ah (c20) |
| Capacity (C5) | 51Ah (c5) |
| Technology | AGM |
| Length | 350.00 cm |
| Width | 167.00 cm |
| Height | 179.00 cm |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you

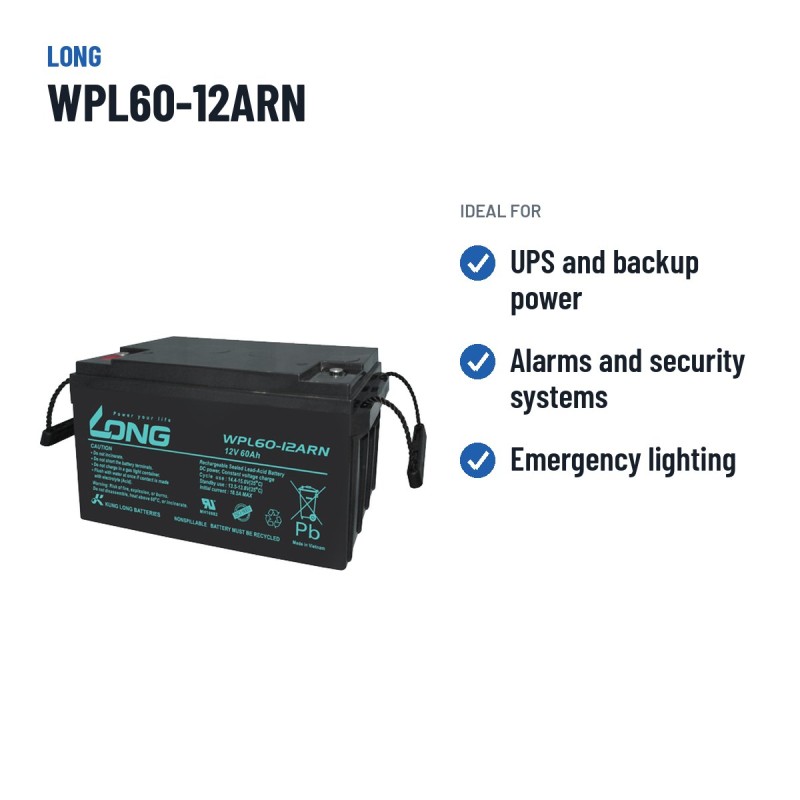

Long WPL60-12ARN 12V 60Ah is a stationary battery for backup power systems: UPS, alarms, telecom and emergency lighting. Long float-life under permanent charge and instant response to mains outages with no noticeable voltage drop.
Why this stationary battery?
- Instant responsewhen the mains drop, no voltage dip
- Long life under 24/7 chargeoptimised for permanent service
- Compatible with your systemexisting UPS units and alarm control panels
Voltage
12 V
Capacity
60 Ah
Dimensions
350×167×179 mm
Technology
AGM
Weight
20,5 kg
Model
WPL Series
Free quote, no obligation
Request a quote for your Stationary UPS battery Long WPL60-12ARN 12V 60Ah AGM
- Reply in under 24 working hours
- Best price guaranteed
Stationary battery Long WPL60-12ARN WPL Series 60Ah 12V
12VVoltage
60AhCapacity
20.50kgWeight
The 12 V, 60 Ah Long WPL60-12ARN stationary battery from the WPL Series range with AGM technology is designed for UPS, alarms, telecoms and emergency lighting. It measures 350 × 167 × 179 mm, the format sought by anyone replacing a 60 Ah battery in UPS, alarm and emergency systems.
- Maintenance-free for its whole service life.
- Sealed and gas-free: suitable for cabinets and offices.
- Long float life under permanent charge.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
Will it fit your current battery tray?

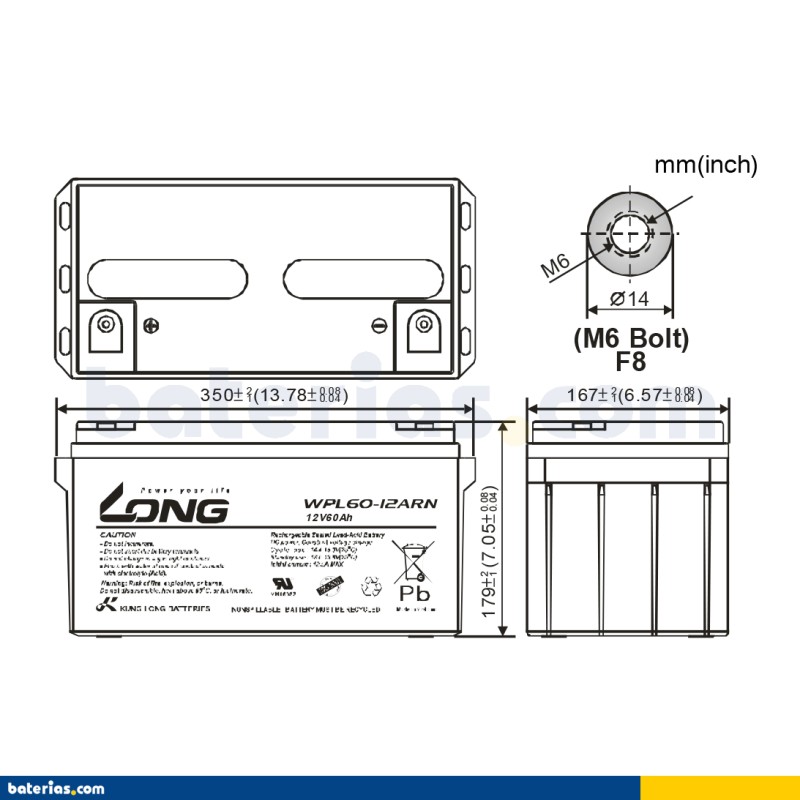

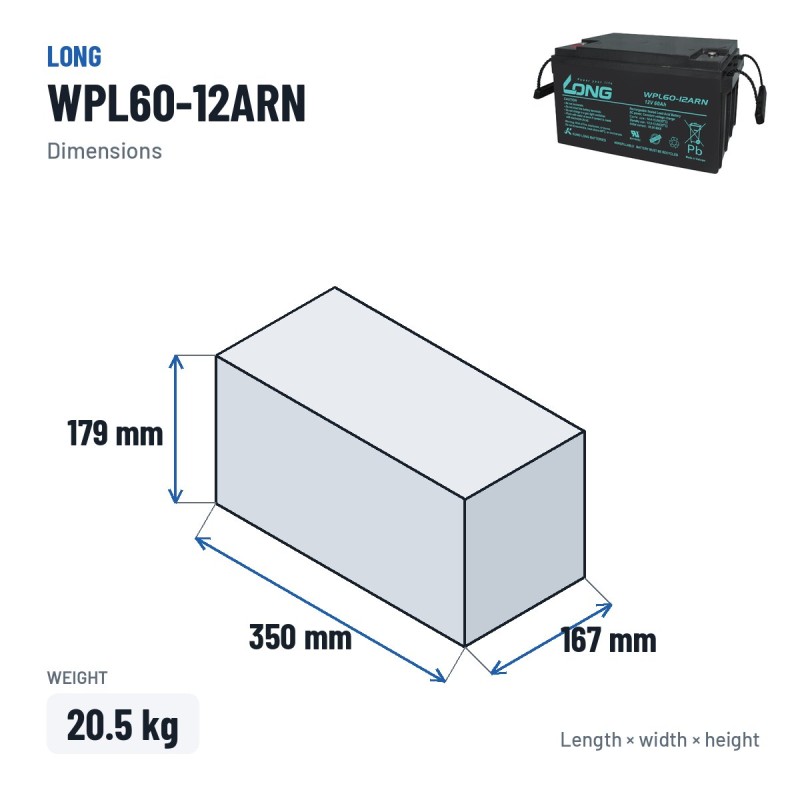

In terms of format, the Long WPL60-12ARN measures 350 × 167 × 179 mm (length × width × height) and weighs 20.50 kg. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
What the Long WPL60-12ARN is for
With 60 Ah, the Long WPL60-12ARN gives your UPS or emergency system the autonomy it needs. Replace all the batteries in the set at once. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 20.50 kg.
The Long WPL60-12ARN: WPL Series range and AGM technology
The WPL60-12ARN is part of the Long WPL Series range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.
Long: the maker behind the WPL60-12ARN
Long (Kung Long Batteries) is one of the world's largest manufacturers of sealed VRLA batteries. Its AGM and GEL series for UPS, mobility, alarms and cycling are found in equipment worldwide as original equipment. We guarantee that every Long arrives new, charged and with the manufacturer's full warranty.
Official warranty
The Long WPL60-12ARN comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
How to make it last longer
Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. Replace all the batteries in the set at once and avoid environments continuously above 25 °C.
When you get it and how to return it
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-LONG-WPL60-12ARN

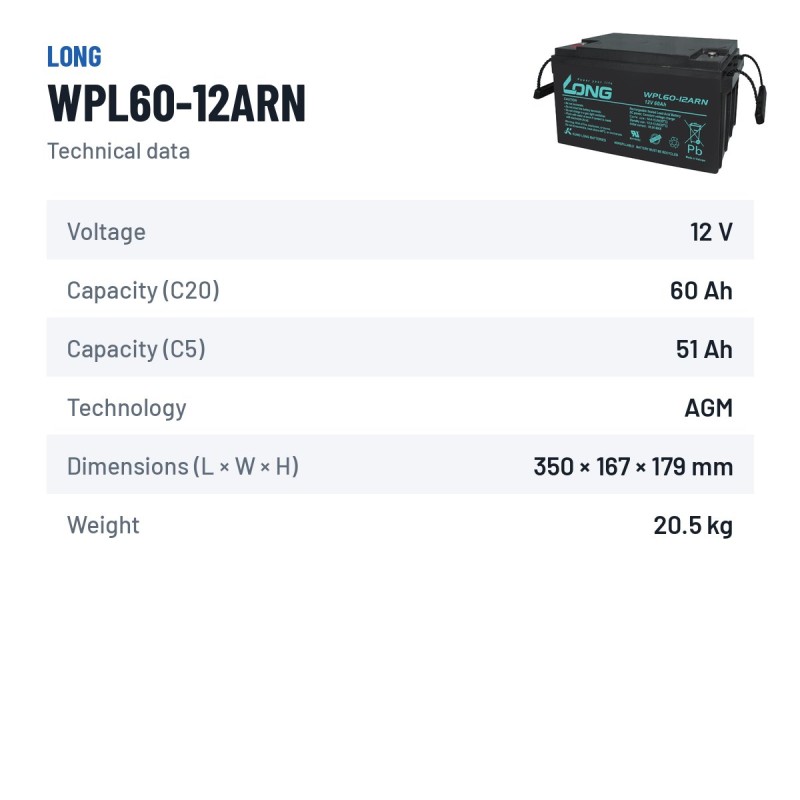

Data sheet
- Brand
- LONG
- Reference
- WPL60-12ARN
- Model
- WPL Series
- Voltage (V)
- 12
- Length
- 350.00 cm
- Width
- 167.00 cm
- Height
- 179.00 cm
- Weight
- 20.50 Kgs
- Technology
- AGM
- Capacity (C20)
- 60Ah (c20)
- Capacity (C5)
- 51Ah (c5)
Specific References
- MPN
- WPL60-12ARN
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the WPL60-12ARN model AGM? What does this technology offer?
Yes. The WPL60-12ARN from Long uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for devices with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How is the Long WPL60-12ARN battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the WPL60-12ARN model?
Expected lifespan of the Long WPL60-12ARN is 5 to 8 years in mild-climate device use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Long WPL60-12ARN battery?
Dimensions (length × width × height) are 350×167×179 mm — also written as 350x167x179 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Long WPL60-12ARN?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
