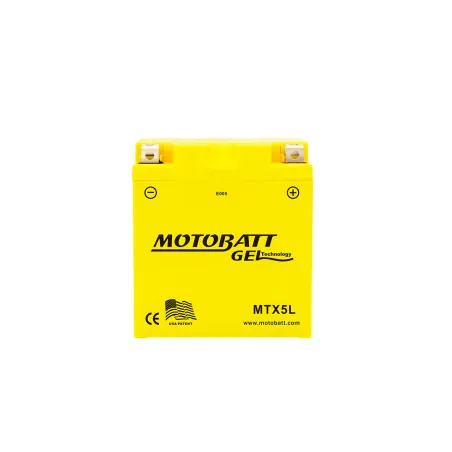

Motobatt MTX5L · Motorcycle battery 12V 5Ah 70A GEL
Specifications
| Brand | MOTOBATT |
|---|---|
| Part number | MTX5L |
| Voltage (V) | 12 |
| Capacity (C20) | 5 |
| Capacity (C10) | 5Ah (c10) |
| Cold cranking amps (EN) | 70A |
| Technology | GEL |
| Length | 113.00 mm |
| Width | 70.00 mm |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Motobatt MTX5L 12V 5Ah 70A is a motorcycle starter battery with standard JIS code (the one on your bike's original label). Ready to use, sealed and vibration-resistant. Fits any model that takes the same JIS reference — the code your mechanic recognises at a glance.
Why this motorcycle battery?
- Same JIS referenceas your bike's original — fits first time
- Sealed and ready to useno acid handling, no refills
- Survives winter storageholds charge through long off-season
Voltage
12 V
Capacity
5 Ah
Cold cranking
70 A
Dimensions
113×70×106 mm
Technology
GEL
Weight
2,07 kg
Model
MOTOBATT SUPER GEL
Mfr. reference
MTX5L
Free quote, no obligation
Request a quote for your Motorcycle battery Motobatt MTX5L 12V 5Ah 70A GEL
- Reply in under 24 working hours
- Best price guaranteed
Motorcycle battery Motobatt MTX5L Super GEL 5Ah 70A 12V
12VVoltage
5AhCapacity
70ACold cranking
2.07kgWeight
With 5 Ah at 12 V and 70 A of cold cranking current (EN), the Motobatt MTX5L with GEL technology replaces the original battery of motorcycles, scooters, quads and personal watercraft. Its 113 × 70 × 106 mm make it the exact replacement for the 5 Ah battery fitted as standard to many motorcycles.
- Compact and lightweight format.
- Holds its charge through winter storage.
- Sealed and ready to fit, no acid handling.
- GEL: excellent resistance to deep discharge and long cycle life.
Size, terminals and hold-down of the Motobatt MTX5L
It has external dimensions of 113 × 70 × 106 mm and weighs 2.07 kg. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
What the Motobatt MTX5L is for
Designed for motorcycles, scooters, quads and personal watercraft, the Motobatt MTX5L replaces the original battery of bikes that use this code or format. Check the position of the positive terminal before ordering. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 2.07 kg.
The Motobatt MTX5L: Super GEL range and GEL technology
Within the Motobatt catalogue, the Super GEL series groups the references designed for this use. The MTX5L is the 5 Ah model of that family, with the same performance as its siblings in other sizes.
GEL technology fixes the acid in a solid gel. That removes maintenance and leaks and gives very long cycle life, in exchange for slightly slower recharging and lower peak current than an AGM.
What Motobatt does differently
Motobatt is the motorcycle battery specialist with Quadflex technology: four terminals that let you connect the battery in any position and a sealed AGM construction ready to fit. All the Motobatt batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Official warranty
The Motobatt MTX5L comes with the manufacturer's official warranty. The warranty does not cover discharge through prolonged inactivity: if the bike stands for months, use a trickle charger.
How to make it last longer
Check the resting voltage before the season (above 12.6 V on a charged battery) and make sure the terminals are clean and tight. Avoid repeated cranking attempts on a cold bike for long: if it does not start on the third try, let the battery rest for a minute.
When you get it and how to return it
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-MOTOBATT-MTX5L
Data sheet
- Brand
- MOTOBATT
- Reference
- MTX5L
- Model
- MOTOBATT SUPER GEL
- Voltage (V)
- 12
- Length
- 113.00 mm
- Width
- 70.00 mm
- Height
- 106.00 mm
- Weight
- 2.07 Kgs
- Technology
- GEL
- Cold cranking amps (EN)
- 70A
- Capacity (C20)
- 5
- Capacity (C10)
- 5Ah (c10)
Specific References
- MPN
- MTX5L
Recommended accessories
How to change the battery
Guide to replace your motorcycle battery in 10-15 minutes. Motorcycle batteries are light (2-5 kg) and usually need an 8 mm wrench.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery compartment
On motorcycles it is usually under the seat, in the rear cowl or behind a side panel. Check the manual — access varies a lot between models.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the hold-down clamp or the straps that secure it. Lift the battery carefully — typical weight 2-5 kg. Check the terminals are not corroded before fitting the new one.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
Is the MTX5L model a gel battery? Where is it used?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How is the Motobatt MTX5L battery installed in the vehicle?
In most motorcycles it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On motorcycles with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the MTX5L model?
Expected lifespan of the Motobatt MTX5L is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the MTX5L model?
Dimensions (length × width × height) are 113×70×106 mm — also written as 113x70x106 mm — following the European DIN standard. Always measure the space in your motorcycle before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Motobatt MTX5L battery fit my motorcycle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The MTX5L typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which interchangeable batteries are there for this one?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop motorcycles. See the "Equivalents" section to view recommended options at the same performance level.
