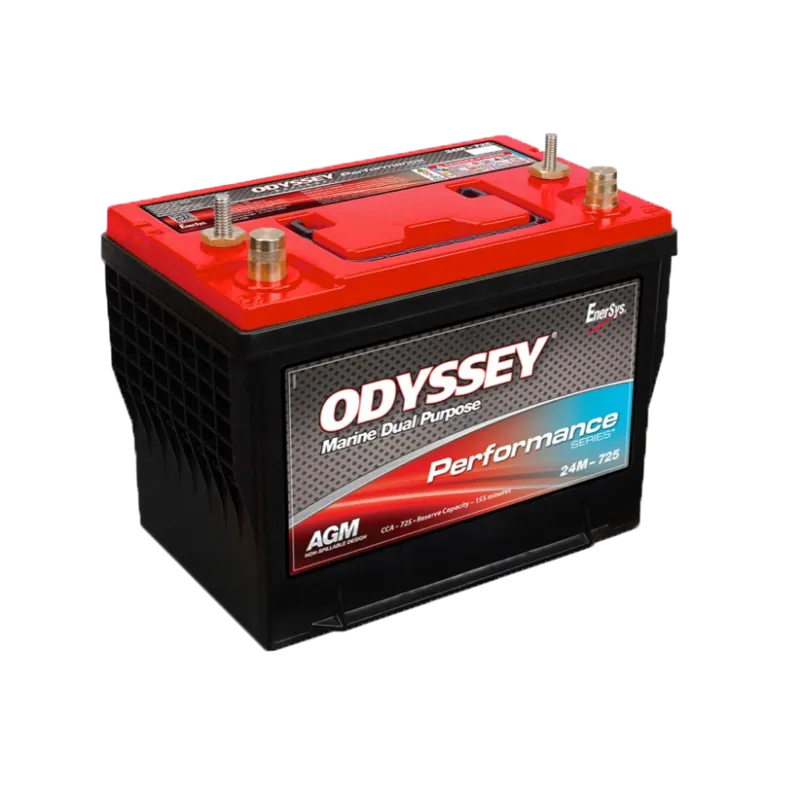

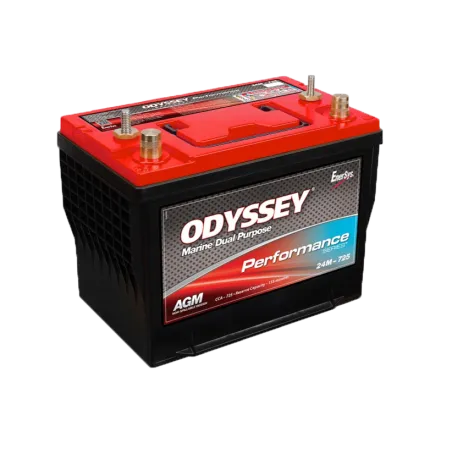

Odyssey ODP-AGM24M · Marine battery 63Ah 725A AGM

Specifications

BrandODYSSEY
Part numberODP-AGM24M
Capacity (C20)63Ah (c20)
Capacity (C10)58Ah (c10)
Cold cranking amps (EN)725
TechnologyAGM
Length277 mm
Width173 mm
Height224 mm
See the full specifications →

This product is priced on demand to offer you the best available price at all times.

Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.

Thank you

Odyssey ODP-AGM24M 63Ah 725A is a marine battery with reinforced anti-vibration case for moorings and offshore use. Tolerates the typical daily cycles on a boat (engine start + night-time services such as lights, sonar, fridge) and holds voltage even when the hull is rolling in open sea.

Why this marine battery?

  • Marine designbuilt for boat swell and vibration
  • Dual functionstarts the engine and powers onboard services
  • Sealed and safemaintenance-free even when the boat rolls
Capacity
63 Ah C20
Cold cranking
725 A SAE
Dimensions
277×173×224 mm
Technology
AGM
Polarity
Positive on the left
Weight
23,3 kg
Model
ODP

Where it fits: the Odyssey ODP-AGM24M is one of our boat batteries, belongs to our Odyssey batteries and by capacity it sits among our 63Ah batteries.

Solve it now by chat Our assistant replies instantly about batteries, shipping and orders, and opens the request you need.
I prefer to fill in the form
Free quote, no obligation

Request a quote for your Marine battery Odyssey ODP-AGM24M 63Ah 725A AGM

  • Reply in under 4 working hours
  • Best price guaranteed
Attach photo (optional)
Photo of the old battery or vehicle documentation · Max. 3 · 8 MB · images or PDF

The Odyssey ODP-AGM24M in practice

ODP-AGM24M vs Odyssey ODX-AGM34M

The Odyssey ODP-AGM24M offers 63 Ah and 725 A cold cranking in a 277 × 173 × 224 mm case. The Odyssey ODX-AGM34M, same brand and technology, goes up to 65 Ah and 880 A Going up is only worth it if the tray allows it and the car cranks lazily in the cold; in normal use this one is plenty.

Logo Odyssey

Marine battery Odyssey ODP-AGM24M ODP 63Ah 725A

63AhCapacity
725ACold cranking
23.30kgWeight

The Odyssey ODP-AGM24M with AGM technology is a marine battery with 63 Ah and 725 A of cold cranking current (EN) for motor and sailing boats, both for engine starting and onboard services. It replaces the original battery without adaptation in boats with a 277 × 173 × 224 mm format: same 63 Ah capacity and the positive terminal on the left.

  • AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
  • Reinforced case against vibration and swell.
  • Powers onboard services: lights, sounder, GPS, fridge.
  • Tolerates the daily cycling of a boat in season.

What the Odyssey ODP-AGM24M is for

On board, the Odyssey ODP-AGM24M provides 63 Ah with a case reinforced against vibration and swell. Keep the terminals clean and protected from salt humidity. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 23.30 kg and M terminals.

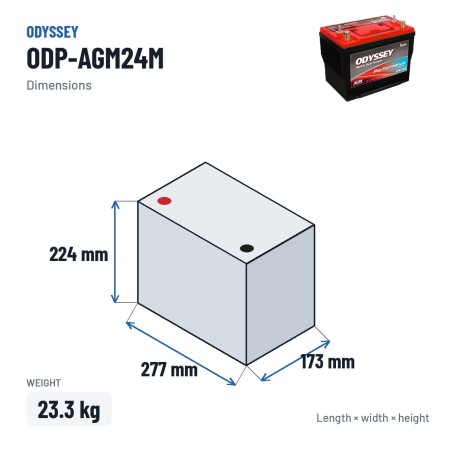

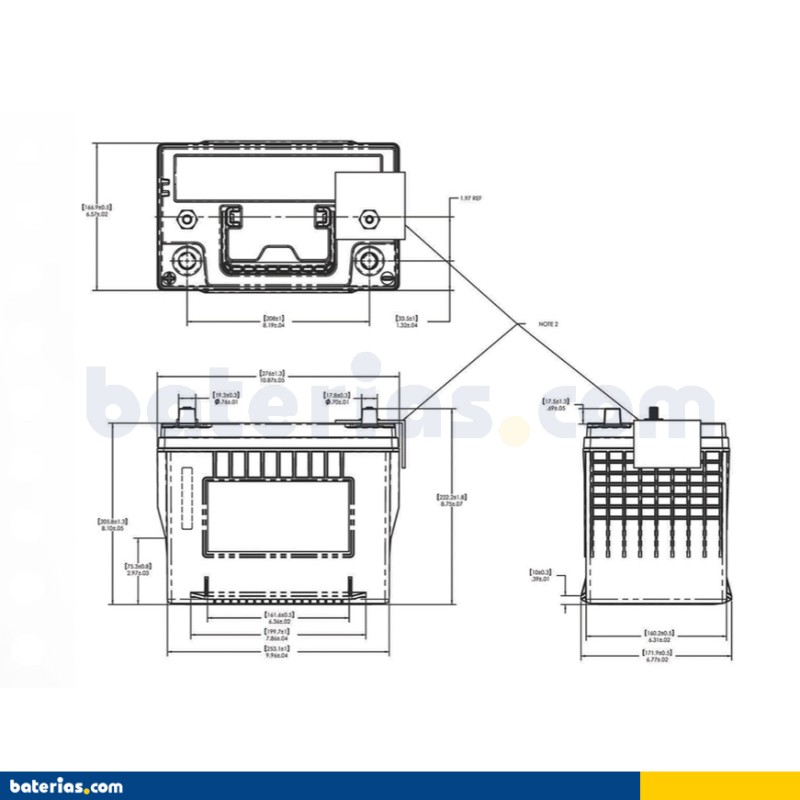

Dimensions, polarity and mounting

In terms of format, the Odyssey ODP-AGM24M measures 277 × 173 × 224 mm (length × width × height) and weighs 23.30 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses M terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.

The Odyssey ODP-AGM24M: ODP range and AGM technology

Within the Odyssey catalogue, the ODP series groups the references designed for this use. The ODP-AGM24M is the 63 Ah model of that family, with the same performance as its siblings in other sizes.

AGM (Absorbent Glass Mat) technology seals the electrolyte in glass microfibre. The result is a maintenance-free battery that is highly vibration-resistant and able to withstand deep discharges that would ruin a classic lead-acid battery.

What Odyssey does differently

Odyssey, part of the EnerSys group, makes thin-plate pure-lead (TPPL) batteries: extreme cranking, total vibration resistance and very long service life in motorsport, 4x4, marine and demanding vehicles. All the Odyssey batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.

Warranty and coverage

The Odyssey ODP-AGM24M comes with the manufacturer's official warranty against manufacturing defects. Deep discharge from winter lay-up without charging is not covered.

How to make it last longer

Protect the terminals with dielectric grease and check the fixing: vibration and swell loosen connections. Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators.

When you get it and how to return it

Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 1 to 2 working days, the islands and the rest of the EU in 1 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.

  • Reference
    BCOM-ODYSSEY-ODP-AGM24M

Data sheet

  • Brand
    ODYSSEY
  • Reference
    ODP-AGM24M
  • Model
    ODP
  • Length
    277 mm
  • Width
    173 mm
  • Height
    224 mm
  • Weight
    23.30 Kgs
  • Technology
    AGM
  • Terminal layout
    Positive terminal on the left
  • Terminal type
    M
  • Cold cranking amps (EN)
    725
  • Capacity (C20)
    63Ah (c20)
  • Capacity (C10)
    58Ah (c10)

Specific References

  • UPC
    635241140651
  • MPN
    ODP-AGM24M

Download

Datasheet Odyssey ODP-AGM24M

PDF datasheet of the Odyssey ODP-AGM24M battery

Download (2.1MB)

Other 63Ah batteries: We stock 5 models of 63 Ah to compare by price, technology and cold cranking: see all 63Ah batteries.

Recommended accessories — complement the Odyssey ODP-AGM24M with a charger or tester

Frequently asked questions

Is the ODP-AGM24M model AGM? What does this technology offer?

Yes. The Odyssey ODP-AGM24M is AGM (Absorbent Glass Mat): sealed lead-acid, with the electrolyte absorbed in glass fibre. Compared with a conventional battery it withstands more charge/discharge cycles and handles heat better.

In what position can it be installed on the boat?

Being AGM, it is sealed and does not spill: it can be mounted tilted (never upside down) and copes well with vibration and wave impacts. Secure it firmly and keep the terminals away from water.

What size is this battery?

Check the room available in your boat, because a single millimetre too much can stop the clamp from closing. Its dimensions are 277×173×224 mm, also written 277x173x224 mm; the height already includes the terminals.

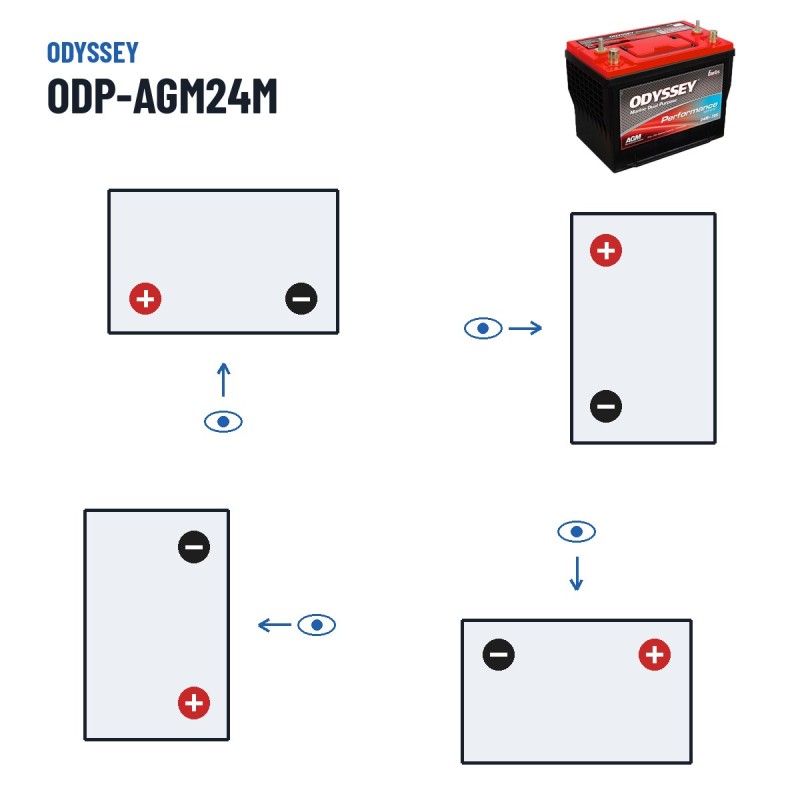

What polarity does the Odyssey ODP-AGM24M battery have?

Polarity of the Odyssey ODP-AGM24M: positive on the left. Seen from the front, terminals towards you, the positive (+) is the post with the red ring. A change of polarity from the original means longer cables or a reconfigured system and can cause a short circuit: check it before ordering.
