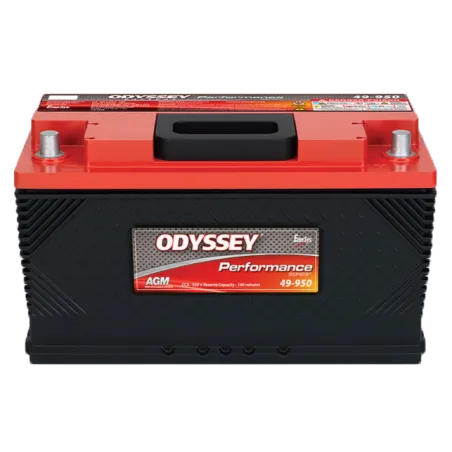

Odyssey ODP-AGM49-H8-L5 · Car battery 94Ah 950A AGM

Yes, it is AGM. In an AGM battery such as the ODP-AGM49-H8-L5, the electrolyte is not free but absorbed in a glass-fibre mat inside a sealed lead-acid battery. It is the technology required by cars with advanced Start-Stop and regenerative braking. It withstands more cycles than a conventional battery and copes better with heat.

Yes: being AGM, the Odyssey ODP-AGM49-H8-L5 is designed for Start-Stop cars. AGM batteries support advanced Start-Stop and regenerative braking thanks to their higher cycle count. It needs nothing to work, though on most modern cars registering it via OBD is advisable so the alternator adjusts its charging profile. As a rule: EFB for basic Start-Stop, AGM when there is also regenerative braking (more cycles); in any case, what the car manufacturer specifies.

Before you start, check the car handbook: the manufacturer's procedure always comes first. Our full step-by-step guide is on the blog. Allow 15-30 minutes and a 10 mm spanner for a L5 case like this one. If the car keeps its battery in the boot or under a seat, it can take up to twice as long. The right order: engine off and key out; disconnect the negative (−) first, then the positive (+); release the hold-down clamp, lift out the old battery and seat the new one in the same position (positive on the left), keeping the polarity; reconnect the positive (+) first and the negative (−) last. If the car has Start-Stop or BMS: a) the technology must match the original (AGM or EFB) or be higher, because a conventional battery would fail within months; b) undo the negative cable at its nut, leaving the IBS sensor in place; c) it is advisable to register the battery via OBD so the alternator applies the proper charging profile.

As a guide, you can expect the Odyssey ODP-AGM49-H8-L5 to last 5 to 8 years in mild-climate car use with Start-Stop, although the real figure may be higher or lower. It can vary considerably with usage (short or long journeys), temperature, the condition of the alternator and charging system, power drawn with the engine off and maintenance, plus the car itself and Start-Stop. Cold demands more at every start and intense heat evaporates the electrolyte.

Measure your car's battery tray first; if the battery exceeds it by even a millimetre, the hold-down clamp may not close. Length × width × height: 353x175x188 mm (L5 case). Height is measured to the top of the terminals.

On the Odyssey ODP-AGM49-H8-L5, the polarity is positive on the left. It must match your current battery: reversed polarity means lengthening cables or reconfiguring the system, with a risk of short circuit. To check, stand the battery in front of you with the terminals nearest you: the positive (+) is the one with the red ring.

Not sure? Try your number plate in the finder (DGT/DVLA/KBA detect model and engine) or the "Compatible vehicles" tab, checked by our technical team; if your car is not there, send us make, model, engine and year on WhatsApp and we will reply during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). If our table and the car handbook disagree, go with what the manufacturer says.

To replace the Odyssey ODP-AGM49-H8-L5 without modifications, the other battery must be identical in size (L5 case), polarity, Ah and CCA. Not just any technology will do: an EFB cannot be replaced with a conventional battery in Start-Stop cars. The "Equivalents" section further down lists the recommended alternatives.

For regenerative braking systems such as BMW EfficientDynamics, Mercedes Eco, Audi MHEV, Land Rover ECO or Volvo i-Stop, AGM is the recommendation; it also copes better than an EFB with tilting, vibration and extreme temperatures. Many more charge/discharge cycles than a conventional battery and no leaks: that is what AGM technology brings, with the electrolyte absorbed in glass fibre. This ODP-AGM49-H8-L5 delivers 950 A cold cranking (EN).

Advisable, yes; essential, on most cars, no. Registering it via OBD makes the alternator charge with the optimum profile from the first minute and extends battery life, which matters most on brands with sophisticated BMS such as BMW, Mercedes, Audi, Volvo or Land Rover. A workshop only needs an OBD scanner and a few minutes. DIY apps: VCDS / Carista (VAG), Bimmercode (BMW), iCarsoft. Even if you do not register the Odyssey ODP-AGM49-H8-L5, the car will start correctly; the profile adjusts within a few days.
