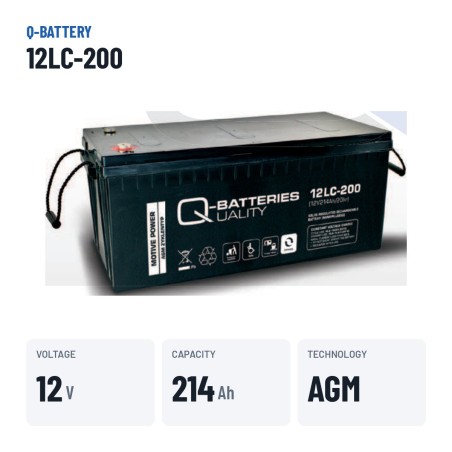

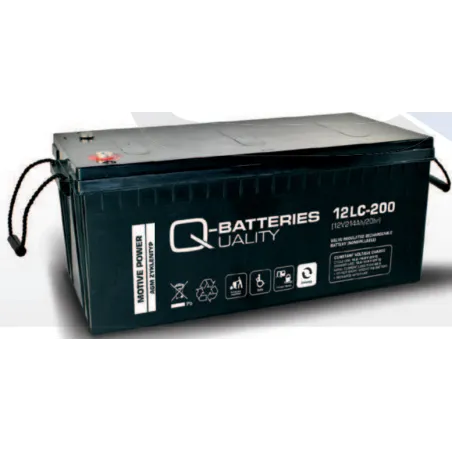

Q-battery 12LC-200 · Wheelchair battery 12V 214Ah AGM
Specifications
| Brand | Q-battery |
|---|---|
| Part number | 12LC-200 |
| Voltage (V) | 12 |
| Capacity (C20) | 214Ah (c20) |
| Technology | AGM |
| Length | 522.00 cm |
| Width | 240.00 cm |
| Height | 240.00 cm |
| Weight | 60.00 Kgs |
€686.70
VAT included
Q-battery 12LC-200 12V 214Ah is a deep-cycle battery for wheelchairs and mobility scooters, optimised to be discharged and recharged daily down to 80 % DOD without losing range.
Why this wheelchair battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
214 Ah
Dimensions
522×240×240 mm
Technology
AGM
Weight
60 kg
Model
AGM DEEP CYCLE BATTERY
Mobility battery Q-Battery 12LC-200 AGM Deep Cycle Battery 214Ah 12V
12VVoltage
214AhCapacity
60kgWeight
The 12 V, 214 Ah Q-Battery 12LC-200 from the AGM Deep Cycle Battery range with AGM technology is the standard replacement for power wheelchairs, mobility scooters and light electric vehicles. It replaces the original battery without adaptation in power wheelchairs and mobility scooters with a 522 × 240 × 240 mm format: same 214 Ah capacity.
- Thousands of useful cycles over its lifetime.
- Standard replacement format for wheelchairs and scooters.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
- Designed to be discharged and recharged daily without losing capacity.

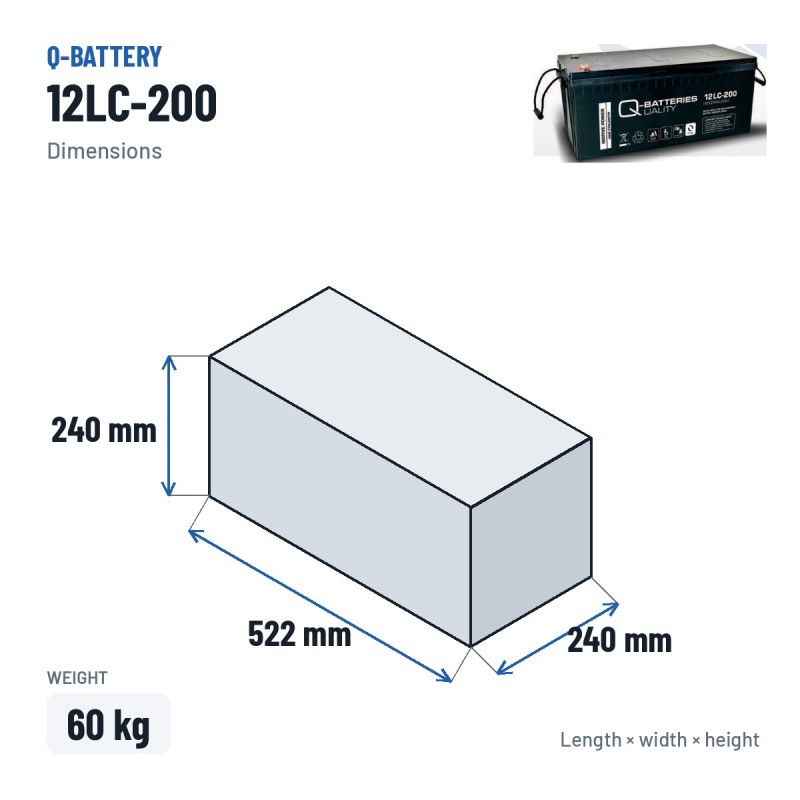

Will it fit your current battery tray?
In terms of format, the Q-Battery 12LC-200 measures 522 × 240 × 240 mm (length × width × height) and weighs 60 kg. It uses F12 terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.

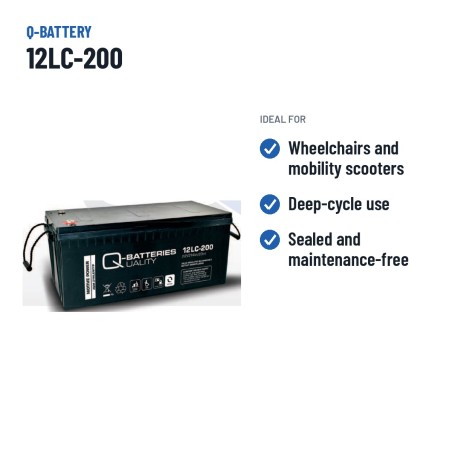

What the Q-Battery 12LC-200 is for
The Q-Battery 12LC-200 is the usual replacement in power wheelchairs, mobility scooters and light electric vehicles. Recharge after each use and avoid leaving it discharged for days. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 60 kg and F12 terminals.
The Q-Battery 12LC-200: AGM Deep Cycle Battery range and AGM technology
The 12LC-200 is part of the Q-Battery AGM Deep Cycle Battery range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
In an AGM battery the electrolyte is absorbed in glass-fibre separators: there is no free liquid, it cannot spill and it can be mounted at an angle. That construction lowers internal resistance, speeds up recharging and multiplies cycle life compared with a conventional battery.
What Q-Battery does differently
Q-Battery specialises in AGM and GEL VRLA batteries for UPS, telecoms, solar and deep cycling, with long-life and tubular-plate series for industrial use. All the Q-Battery batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Official warranty
The Q-Battery 12LC-200 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
How to make it last longer
Use the original charger or one compatible with the battery technology (AGM/GEL) and always replace both batteries in the set together. Recharge the wheelchair or scooter after each use and do not leave it discharged for days: lead sulphates and loses capacity.
Delivery times and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-Q-BATTERY-12LC-200
Data sheet
- Brand
- Q-Battery
- Reference
- 12LC-200
- Model
- AGM DEEP CYCLE BATTERY
- Voltage (V)
- 12
- Length
- 522.00 cm
- Width
- 240.00 cm
- Height
- 240.00 cm
- Weight
- 60.00 Kgs
- Technology
- AGM
- Terminal type
- F12
- Capacity (C20)
- 214Ah (c20)
Specific References
- EAN13
- 4250889611576
- MPN
- 12LC-200
Codes and references Q-battery 12LC-200
| Brand | Q-battery |
|---|---|
| Manufacturer range | AGM DEEP CYCLE BATTERY |
| Manufacturer reference (MPN) | 12LC-200 |
| EAN-13 barcode | 4250889611576 |
| Dimensions (length × width × height) | 522 × 240 × 240 mm (522x240x240) |
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is this battery AGM? What is it for?
Yes. The 12LC-200 from Q-battery uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for devices with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How is the Q-battery 12LC-200 battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Q-battery 12LC-200 battery last?
Expected lifespan of the Q-battery 12LC-200 is 5 to 8 years in mild-climate device use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Q-battery 12LC-200 battery?
Dimensions (length × width × height) are 522×240×240 mm — also written as 522x240x240 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Q-battery 12LC-200?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
