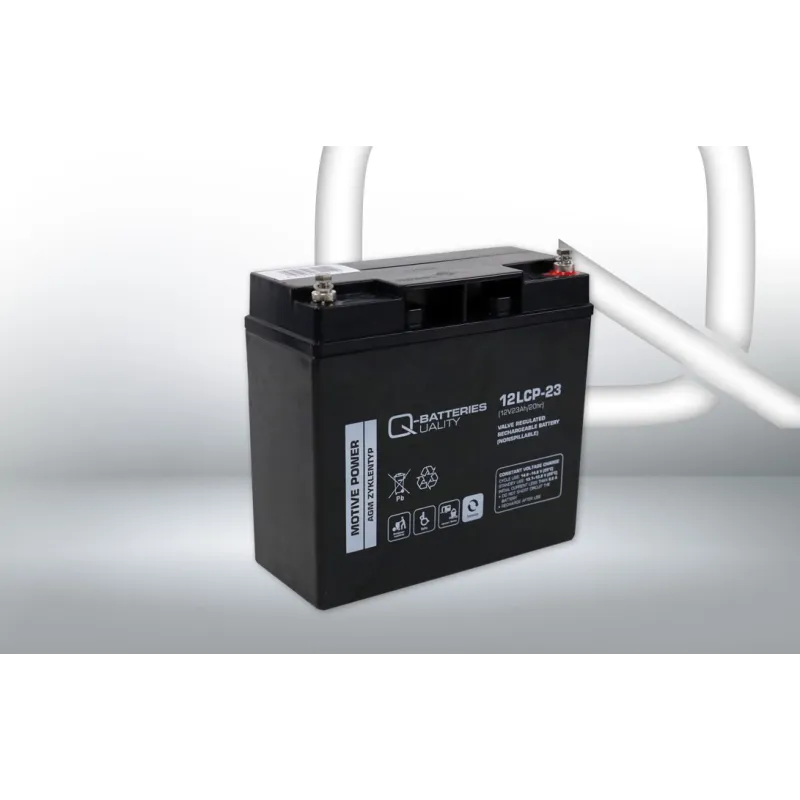

Q-battery 12LCP-23-M5 · Wheelchair battery 12V 23Ah AGM
Specifications
| Brand | Q-battery |
|---|---|
| Part number | 12LCP-23-M5 |
| Voltage (V) | 12 |
| Capacity (C20) | 23Ah (c20) |
| Technology | AGM |
| Length | 181.00 cm |
| Width | 77.00 cm |
| Height | 167.00 cm |
| Weight | 6.00 Kgs |
€83.95
VAT included
Q-battery 12LCP-23-M5 12V 23Ah is a deep-cycle battery for wheelchairs and mobility scooters, optimised to be discharged and recharged daily down to 80 % DOD without losing range.
Why this wheelchair battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
23 Ah
Dimensions
181×77×167 mm
Technology
AGM
Weight
6 kg
Model
AGM DEEP CYCLE BATTERY
Mobility battery Q-Battery 12LCP-23-M5 AGM Deep Cycle Battery 23Ah 12V
12VVoltage
23AhCapacity
6kgWeight
The Q-Battery 12LCP-23-M5 with AGM technology delivers 23 Ah at 12 V with the cycle life that power wheelchairs, mobility scooters and light electric vehicles demand. It measures 181 × 77 × 167 mm, the format sought by anyone replacing a 23 Ah battery in power wheelchairs and mobility scooters.
- Designed to be discharged and recharged daily without losing capacity.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
- Standard replacement format for wheelchairs and scooters.
- Thousands of useful cycles over its lifetime.
Dimensions, polarity and mounting
It has external dimensions of 181 × 77 × 167 mm and weighs 6 kg. It uses F13 terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
What the Q-Battery 12LCP-23-M5 is for
The Q-Battery 12LCP-23-M5 is designed for power wheelchairs, mobility scooters and light electric vehicles. Wheelchairs and scooters normally use two identical batteries in series: replace them together. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 6 kg and F13 terminals.
The Q-Battery 12LCP-23-M5: AGM Deep Cycle Battery range and AGM technology
The AGM Deep Cycle Battery is the Q-Battery range the 12LCP-23-M5 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
In an AGM battery the electrolyte is absorbed in glass-fibre separators: there is no free liquid, it cannot spill and it can be mounted at an angle. That construction lowers internal resistance, speeds up recharging and multiplies cycle life compared with a conventional battery.
Q-Battery: the maker behind the 12LCP-23-M5
The Q-Battery catalogue runs from small alarm batteries to large traction monoblocs, always with sealed, maintenance-free technology. All the Q-Battery batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Manufacturer's warranty
The Q-Battery 12LCP-23-M5 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Care and maintenance
Recharge the wheelchair or scooter after each use and do not leave it discharged for days: lead sulphates and loses capacity. Use the original charger or one compatible with the battery technology (AGM/GEL) and always replace both batteries in the set together.
Delivery times and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-Q-BATTERY-12LCP-23-M5
Data sheet
- Brand
- Q-Battery
- Reference
- 12LCP-23-M5
- Model
- AGM DEEP CYCLE BATTERY
- Voltage (V)
- 12
- Length
- 181.00 cm
- Width
- 77.00 cm
- Height
- 167.00 cm
- Weight
- 6.00 Kgs
- Technology
- AGM
- Terminal type
- F13
- Capacity (C20)
- 23Ah (c20)
Specific References
- MPN
- 12LCP-23-M5
This product has no reviews yet. If you own it, tell us how it has gone: it will help whoever is looking at it now.
Comparison: Q-battery BATTERY-12LCP-23-M5 vs equivalents
The Q-battery BATTERY-12LCP-23-M5 is interchangeable with these equivalent references: BATTERY-12LCP-19 (Q-battery), BATTERY-12LCP-23 (Q-battery).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Q-battery
BATTERY-12LCP-23-M5
This battery
|
12V 23Ah | AGM | €83.95 |
Q-battery
BATTERY-12LCP-19
|
12V 19Ah | AGM | €74.70 |
Q-battery
BATTERY-12LCP-23
|
12V 23Ah | AGM | €88.70 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the Q-battery 12LCP-23-M5 an AGM battery and what are the benefits of AGM?
Yes. The 12LCP-23-M5 from Q-battery uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for devices with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How is the Q-battery 12LCP-23-M5 battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Q-battery 12LCP-23-M5 battery last?
Expected lifespan of the Q-battery 12LCP-23-M5 is 5 to 8 years in mild-climate device use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the 12LCP-23-M5 model?
Dimensions (length × width × height) are 181×77×167 mm — also written as 181x77x167 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which interchangeable batteries are there for this one?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
