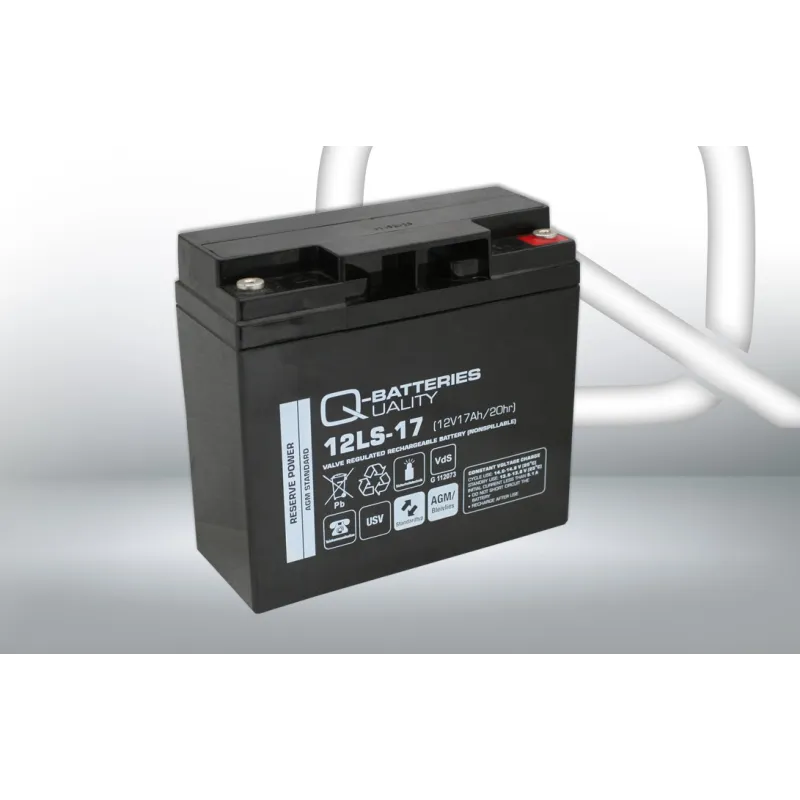

Q-battery 12LS-17 · Stationary UPS battery 17Ah AGM

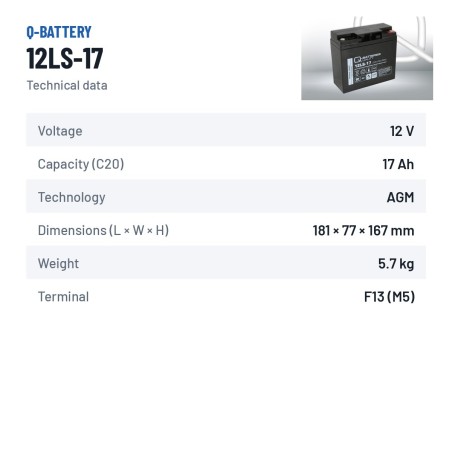

Specifications

BrandQ-battery
Part number12LS-17
Voltage (V)12
Capacity (C20)17Ah (c20)
TechnologyAGM
Length181 mm
Width77 mm
Height167 mm
Weight5.70 Kgs
See the full specifications →
Price: €72.80
VAT included
Quantity

Brand: Q-battery batteries Part number: 12LS-17

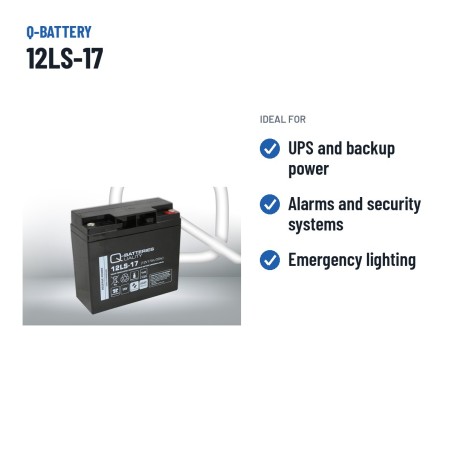

Q-battery 12LS-17 12V 17Ah is a stationary battery for backup power systems: UPS, alarms, telecom and emergency lighting. Long float-life under permanent charge and instant response to mains outages with no noticeable voltage drop.

Why this stationary battery?

  • Instant responsewhen the mains drop, no voltage dip
  • Long life under 24/7 chargeoptimised for permanent service
  • Compatible with your systemexisting UPS units and alarm control panels

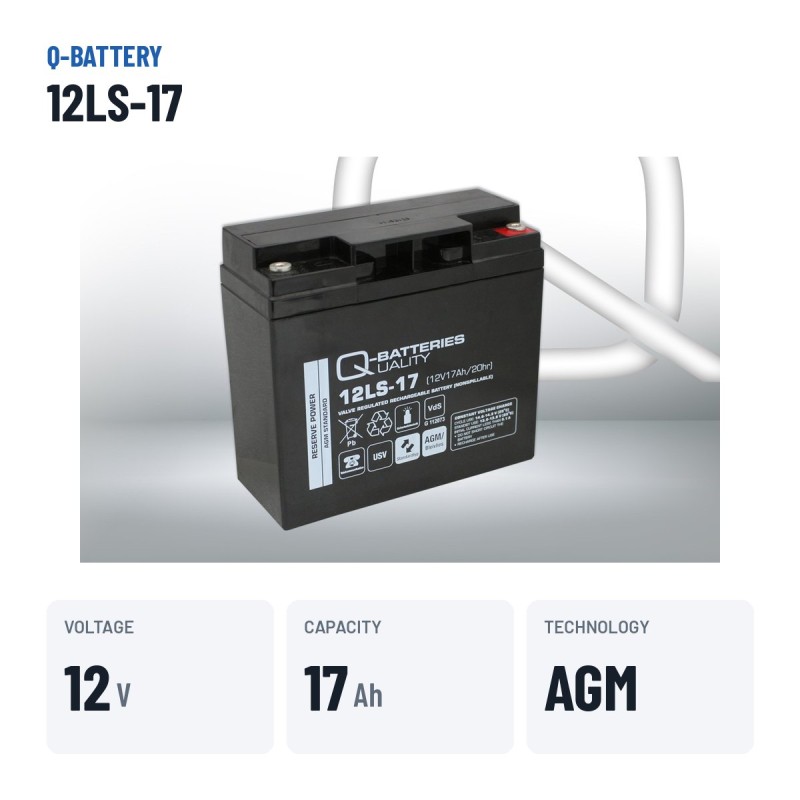

Voltage
12 V
Capacity
17 Ah C20
Dimensions
181×77×167 mm
Technology
AGM
Weight
5,7 kg
Model
AGM STANDARD

Where it fits: the Q-battery 12LS-17 is one of our batteries for ups / ups, belongs to our Q-battery batteries and by capacity it sits among our 17Ah batteries.

Logo Q-Battery

Stationary battery Q-Battery 12LS-17 17Ah 12V

12VVoltage
17AhCapacity
5.70kgWeight

The 12 V, 17 Ah Q-Battery 12LS-17 stationary battery with AGM technology is designed for UPS, alarms, telecoms and emergency lighting. It measures 181 × 77 × 167 mm, the format sought by anyone replacing a 17 Ah battery in UPS, alarm and emergency systems.

In short: the Q-battery 12LS-17 (17 Ah, 181 × 77 × 167 mm). Verified equivalent alternatives: Q-battery 12LSX-7 F1 and Ritar RT12180.

  • Long float life under permanent charge.
  • AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
  • Maintenance-free for its whole service life.
  • Sealed and gas-free: suitable for cabinets and offices.

What the Q-Battery 12LS-17 is for

Designed for UPS, alarms, telecoms and emergency lighting, the Q-Battery 12LS-17 is sealed, gas-free and suitable for technical cabinets and offices. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 5.70 kg, F13 (M5) terminals and G112073 hold-down.

Technology inside the Q-Battery 12LS-17

Within the Q-Battery catalogue, the 12LS-17 is the 17 Ah model designed for this application.

AGM (Absorbent Glass Mat) technology seals the electrolyte in glass microfibre. The result is a maintenance-free battery that is highly vibration-resistant and able to withstand deep discharges that would ruin a classic lead-acid battery.

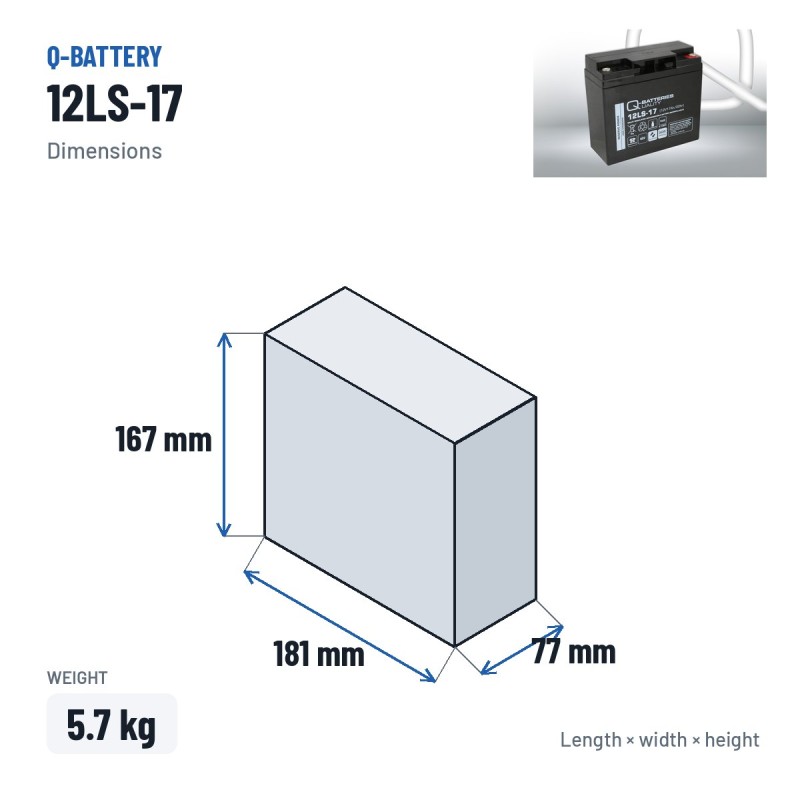

Dimensions, polarity and mounting

The Q-Battery 12LS-17 is made in the 181 × 77 × 167 mm format and weighs 5.70 kg. It uses a G112073 hold-down and F13 (M5) terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.

What Q-Battery does differently

Q-Battery specialises in AGM and GEL VRLA batteries for UPS, telecoms, solar and deep cycling, with long-life and tubular-plate series for industrial use. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.

How to make it last longer

Check the float voltage of the UPS or charger: a voltage that is too high shortens the life of a sealed battery. Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators.

Manufacturer's warranty

The Q-Battery 12LS-17 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.

When you get it and how to return it

Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 1 to 2 working days; for the Balearic Islands and the rest of the European Union allow 1 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.

  • Reference
    BCOM-Q-BATTERY-12LS-17

Data sheet

  • Brand
    Q-Battery
  • Reference
    12LS-17
  • Model
    AGM STANDARD
  • Voltage (V)
    12
  • Length
    181 mm
  • Width
    77 mm
  • Height
    167 mm
  • Weight
    5.70 Kgs
  • Technology
    AGM
  • Terminal type
    F13 (M5)
  • Hold-down
    G112073
  • Capacity (C20)
    17Ah (c20)

Specific References

  • MPN
    12LS-17

Download

Datasheet Q-Battery 12LS-17

PDF datasheet of the Q-Battery 12LS-17 battery

Download (616.48KB)

Q-battery BATTERY-12LS-17: best-selling equivalent or higher-spec batteries — alternatives with the same dimensions, Ah and CCA

The Q-battery BATTERY-12LS-17 is interchangeable with these equivalent references: BATTERY-12LSX-7 F1 (Q-battery), RT12180 (Ritar), BATTERY-12LS-18 (Q-battery).

Product Specifications Technology Price
Q-battery BATTERY-12LS-17 Q-battery BATTERY-12LS-17 This battery 12V 17Ah AGM 72,80 €
Q-battery BATTERY-12LSX-7 F1 Q-battery BATTERY-12LSX-7 F1 Same range 12V 17Ah AGM 38,80 € −34,00 €

Q-battery BATTERY-12LS-17 vs Q-battery BATTERY-12LSX-7 F1

Same range · −34,00 €

Sister reference of the BATTERY-12LS-17, practically identical on paper. Compared with the BATTERY-12LS-17 it has the same Ah and cranking power. It costs 34,00 € less. Choose by price and availability: in real use you will not notice a difference.

BATTERY-12LS-17BATTERY-12LSX-7 F1
Capacity17 Ah17 Ah
Cold cranking (EN)——
TechnologyAGMAGM
Dimensions (mm)181 × 77 × 167181 × 77 × 167
Positive terminal——
Price72,80 €38,80 €
Q-battery BATTERY-12LS-18 Q-battery BATTERY-12LS-18 Bigger sister 12V 18Ah AGM 72,80 € same price

Q-battery BATTERY-12LS-17 vs Q-battery BATTERY-12LS-18

Bigger sister · same price

Same family as the BATTERY-12LS-17, one step up in performance. Compared with the BATTERY-12LS-17 it has 1 Ah more. It costs the same. More capacity means more runtime: worth it if your equipment takes the size and had that capacity or more; otherwise the BATTERY-12LS-17 does the job.

BATTERY-12LS-17BATTERY-12LS-18
Capacity17 Ah18 Ah
Cold cranking (EN)——
TechnologyAGMAGM
Dimensions (mm)181 × 77 × 167181 × 77 × 167
Positive terminal——
Price72,80 €72,80 €
Ritar RT12180 Ritar RT12180 Ritar equivalent 12V 18Ah AGM 63,95 € −8,85 €

Q-battery BATTERY-12LS-17 vs Ritar RT12180

Ritar equivalent · −8,85 €

It is the verified Ritar equivalent for the BATTERY-12LS-17 tray. Compared with the BATTERY-12LS-17 it has 1 Ah more. It costs 8,85 € less. Decide by price, brand preference and availability: both fit and crank the same.

BATTERY-12LS-17RT12180
Capacity17 Ah18 Ah
Cold cranking (EN)——
TechnologyAGMAGM
Dimensions (mm)181 × 77 × 167181 × 77 × 167
Positive terminal——
Price72,80 €63,95 €

Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.

Other 17Ah batteries: We stock 3 models of 17 Ah to compare by price, technology and cold cranking: see all 17Ah batteries. Same size (181 × 77 × 167 mm): batteries of 181 × 77 × 167 mm.

Recommended accessories — complement the Q-battery BATTERY-12LS-17 with a charger or tester

Frequently asked questions

Is the 12LS-17 model AGM? What does this technology offer?

Yes, it is AGM. In an AGM battery such as the 12LS-17, the electrolyte is not free but absorbed in a glass-fibre mat inside a sealed lead-acid battery. Compared with a conventional battery it withstands more charge/discharge cycles and handles heat better.

What size is this battery?

Measure the battery tray before ordering: a one-millimetre difference is enough for the hold-down clamp not to close. It measures 181×77×167 mm in length × width × height, with the terminals included in the height.

Q-battery BATTERY-12LS-17 or Q-battery BATTERY-12LSX-7 F1: which one to choose?

Sister reference of the BATTERY-12LS-17, practically identical on paper. Compared with the BATTERY-12LS-17 it has the same Ah and cranking power. It costs 34,00 € less. Choose by price and availability: in real use you will not notice a difference.

Q-battery BATTERY-12LS-17 or Q-battery BATTERY-12LS-18: which one to choose?

Same family as the BATTERY-12LS-17, one step up in performance. Compared with the BATTERY-12LS-17 it has 1 Ah more. It costs the same. More capacity means more runtime: worth it if your equipment takes the size and had that capacity or more; otherwise the BATTERY-12LS-17 does the job.
