Ritar EV12-75 · Mobility scooter battery 75Ah 470A AGM

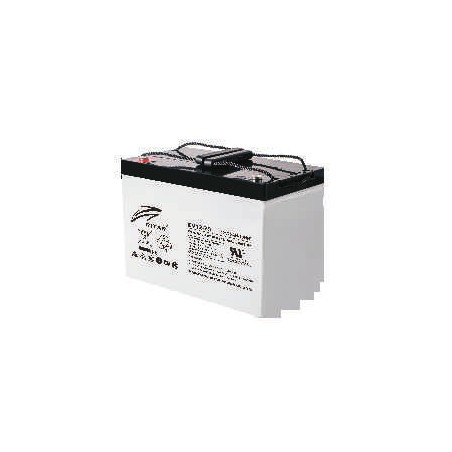

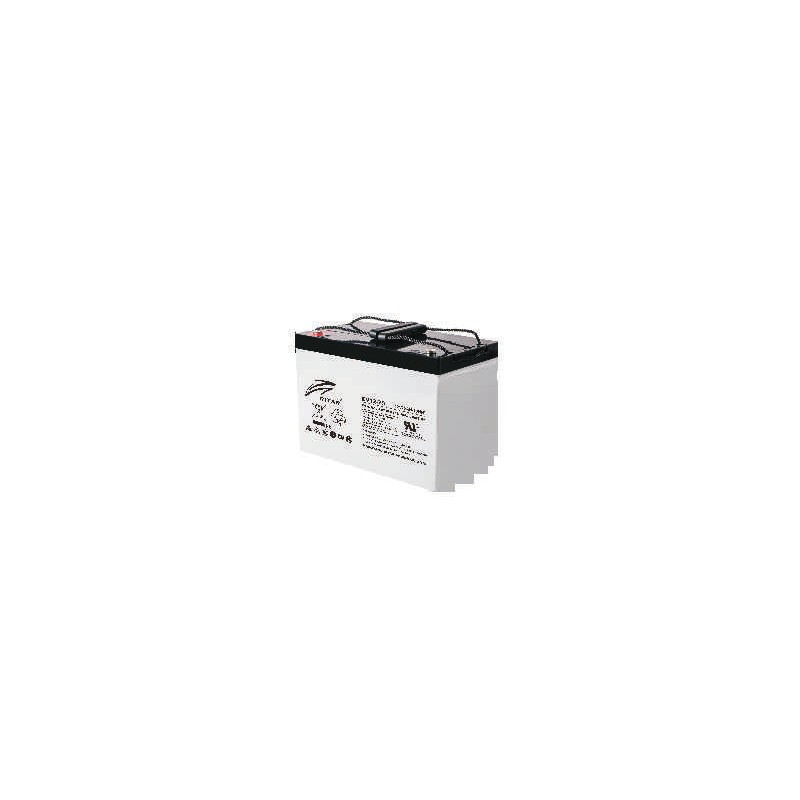

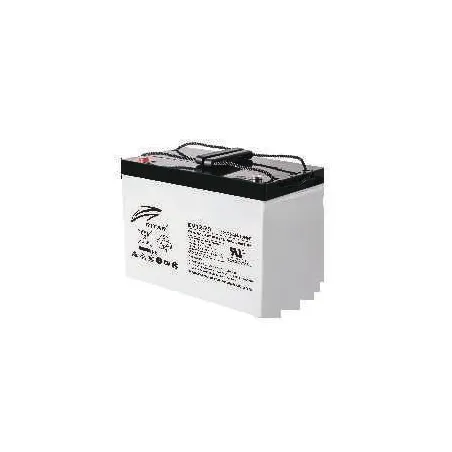

Mobility scooter battery Ritar EV12-75 12V 75Ah 470A AGM images
Specifications
| Brand | RITAR |
|---|---|
| Part number | EV12-75 |
| Voltage (V) | 12 |
| Capacity (C20) | 75Ah (c20) |
| Capacity (C5) | 65.5Ah (c5) |
| Technology | AGM |
| Length | 260.00 mm |
| Width | 169.00 mm |
| Height | 216.00 mm |
Ritar EV12-75 12V 75Ah 470A is a deep-cycle battery for mobility scooters, built to discharge and recharge daily without losing range. 260×169×216 mm case, 22.5 kg.
Why this mobility battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Where it fits: the Ritar EV12-75 is one of our batteries for mobility scooters, belongs to our Ritar batteries and by capacity it sits among our 75Ah batteries.
The Ritar EV12-75 in practice
EV12-75 vs Ritar EV12-90
The Ritar EV12-75 offers 75 Ah and 0 A cold cranking in a 260 × 169 × 216 mm case. The Ritar EV12-90, same brand and technology, goes up to 90 Ah and 0 A with 47 mm more length and costs €28.52 more. The difference shows on diesels and in hard winters; for a daily-driven petrol car the extra is not needed.
Battery RITAR EV12-75 75Ah 470A 12V EV
Why choose a ritar battery?
Ritar batteries provide durability, high energy and have had a cadmium-free manufacturing process and environmentally friendly since Ritar adopted ecological technology and facilities (Eco-Friendly), to minimize the environmental impact.Know more about the Ritar brand
Ritar Power is a professional battery manufacturer that is quoted in Nasdaq and produces a wide range of batteries in agm, gel, lithium, etc. technologies.Today Ritar covers the manufacture of batteries, the battery charger, the phone screen, etc.and has become a large -scale business group.It is a high -tech company based in the Nanshan district, Shenzhen in China and has more than 2000 employees, which produce a complete range of AGM, gel, deep cycle, lead carbon, OPZV, opzs, acid batteriesof traction (DIN / BS) and lithium batteries for all types of industrial applications such as solar systems, UPS, telecommunications, data centers, rail traffic, motor vehicles, etc.Ritar factories are equipped with advanced automatic production lines and adopt advanced test measures, including a series of innovative production technologies that have obtained national patents.Each production stage is well planned and controlled to minimize the percentage of defects.Strictly 100% inspection made by IQC, IPQC, OQC.
The Ritar EV series
Ritar’s EV series is designed for the frequent deep discharge of electric vehicles: a patented deep-cycle active material formula, strong Pb-Ca-Sn cadmium-free grids, thick plates and a high-performance AGM separator. Over 300 cycles at 100 % depth of discharge. Sealed (VRLA) and maintenance-free, with self-discharge below 3 % per month. The whole series at Ritar EV batteries.
This model
260×169×216 mm case, 22.5 kg. 12 V and 75 Ah, 470 A cold cranking (CCA) and a maximum discharge current of 750 A for 5 seconds.
Ideal for
- Mobility scooter
- Electric wheelchair
- Medical equipment
- Robotics
- Electric vehicle
Technical data
| Brand | RITAR |
|---|---|
| Model | EV |
| Part no. | EV12-75 |
| Capacity | 75Ah |
| Voltage | 12V |
| Cold cranking (CCA) | 470A |
| Technology | AGM |
| Dimensions (mm) | 260x169x216 |
| Weight | 22.50 kg |
| Terminal type | BOLT-M6 |
| C20 capacity | 75 Ah |
| C10 capacity | 75 Ah |
| C5 capacity | 65.5 Ah |
| C3 capacity | 58.2 Ah |
| Internal resistance | 7 mΩ |
| Max. discharge (5 s) | 750 A |
| Max. charging current | 22.5 A |
| Height without terminal | 211 mm |
| Terminal | F15(M6)/F11(M6) |
-
-
ReferenceBCOM-RITAR-EV12-75
Data sheet
-
BrandRITAR
-
ReferenceEV12-75
-
ModelEV
-
Voltage (V)12
-
Length260.00 mm
-
Width169.00 mm
-
Height216.00 mm
-
Weight22.5 Kgs
-
TechnologyAGM
-
Terminal typeM6
-
Capacity (C20)75Ah (c20)
-
Capacity (C5)65.5Ah (c5)
Specific References
-
MPNEV12-75
Ritar EV12-75: alternatives with the same dimensions
Batteries from our catalogue with the same dimensions, voltage and technology as the Ritar EV12-75 and a similar capacity, sorted by sales. They are not manufacturer-approved equivalents: check the polarity and capacity of your original battery.
| Product | Specifications | Technology | Price | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ritar
EV12-75
This battery
|
12V 75Ah | AGM | 153,26 € | |||||||||||||||||||||
Leoch
LDC12-90C
Same size |
12V 90Ah | AGM | 177,39 € +24,13 € | |||||||||||||||||||||
| ||||||||||||||||||||||||
| EV12-75 | LDC12-90C | |
|---|---|---|
| Capacity | 75 Ah | 90 Ah |
| Cold cranking (EN) | — | — |
| Technology | AGM | AGM |
| Dimensions (mm) | 260 × 169 × 216 | 260 × 168 × 214 |
| Positive terminal | — | — |
| Price | 153,26 € | 177,39 € |
Automatic selection by dimensions (±3 mm), voltage, technology and capacity (−10 % / +20 %). Official manufacturer warranty on every option.
Other 75Ah batteries: We stock 26 models of 75 Ah to compare by price, technology and cold cranking: see all 75Ah batteries.
Recommended accessories
Frequently asked questions
Is the Ritar EV12-75 an AGM battery and what are the benefits of AGM?
Yes. The EV12-75 from Ritar uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for devices with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
What are the measurements of the EV12-75 model?
Dimensions (length × width × height) are 260×169×216 mm — also written as 260x169x216 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Ritar EV12-75 or Leoch LDC12-90C: which one to choose?
Same case and same technology as the EV12-75: an alternative by size, not an official equivalent. Compared with the EV12-75 it has 15 Ah more. It costs 24,13 € more. If the polarity matches and your equipment had a similar capacity, it works as a replacement; if in doubt, ask us with your model.
