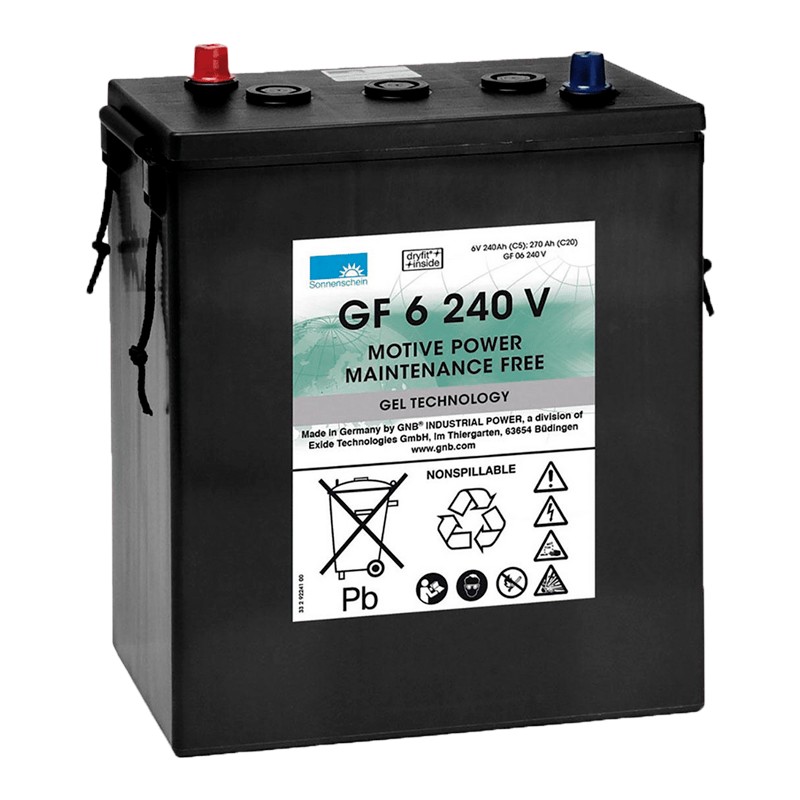

Sonnenschein GF06240V · Traction battery 6V 270Ah GEL
Specifications
| Brand | Sonnenschein |
|---|---|
| Part number | GF06240V |
| Voltage (V) | 6V |
| Capacity (C20) | 270Ah (c20) |
| Capacity | 270Ah |
| Technology | GEL |
| Weight | 48,00 |
| Terminal type | AP |
| EAN | 3661024500043 |
€707.10
VAT included
Sonnenschein GF06240V 6V 270Ah is a traction battery for industrial electric vehicles: forklifts, pallet trucks, elevating platforms, cleaning machines (scrubbers) and golf buggies. Built for deep discharges and 8-hour continuous work cycles.
Why this traction battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Voltage
6 V
Capacity
270 Ah
Dimensions
310×181×360 mm
Technology
Gel
Weight
48 kg
Model
GEL - GF -V Sonnenschein Traction range 700 cycles
Traction battery Sonnenschein GF06240V 270Ah 6V
6VVoltage
270AhCapacity
48kgWeight
With 270 Ah with GEL technology, the Sonnenschein GF06240V supports continuous duty cycles in forklifts, pallet trucks, stackers and aerial work platforms. It replaces the original battery without adaptation in forklifts and pallet trucks with a 310 × 181 × 360 mm format: same 270 Ah capacity.
- GEL technology: gelled electrolyte, fully sealed and maintenance-free.
- Built for 8-hour continuous duty cycles.
- High tolerance to vibration and industrial use.
- Long service life in fleets and warehouses.
What the Sonnenschein GF06240V is for
The Sonnenschein GF06240V is designed for forklifts, pallet trucks, stackers and aerial work platforms: continuous duty cycles and repeated deep discharges. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 48 kg and AP terminals.
Dimensions, polarity and mounting
In terms of format, the Sonnenschein GF06240V measures 310 × 181 × 360 mm (length × width × height) and weighs 48 kg. It uses AP terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
Technology inside the Sonnenschein GF06240V
Sonnenschein builds the GF06240V to the same standards as the rest of its catalogue; what changes between references is capacity, format and terminal position.
GEL technology fixes the acid in a solid gel. That removes maintenance and leaks and gives very long cycle life, in exchange for slightly slower recharging and lower peak current than an AGM.
What Sonnenschein does differently
Sonnenschein batteries with dryfit® technology have equipped power wheelchairs, cleaning machines and industrial vehicles for decades thanks to their reliability and cycle life. We guarantee that every Sonnenschein arrives new, charged and with the manufacturer's full warranty.
Warranty and coverage
The Sonnenschein GF06240V comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
How to make it last longer
Replace the complete set at once and watch the operating temperature in hot warehouses. GEL batteries need lower charging voltages: always use a charger with a GEL mode so as not to damage the electrolyte.
Shipping, delivery and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BATERIAS-SONNENSCHEIN-GF06240V
Data sheet
- Weight
- 48,00
- Technology
- GEL
- Terminal type
- AP
- Capacity (C20)
- 270Ah (c20)
- Voltage (V)
- 6V
- Capacity
- 270Ah
Specific References
- EAN13
- 3661024500043
- MPN
- GF06240V
Codes and references Sonnenschein GF06240V
| Brand | Sonnenschein |
|---|---|
| Manufacturer part number (MPN) | GF06240V |
| EAN-13 barcode | 3661024500043 |
| Dimensions (length × width × height) | 310 × 181 × 360 mm (310x181x360) |
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the GF06240V model a gel battery? Where is it used?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How do I change this battery step by step?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Sonnenschein GF06240V battery last?
Expected lifespan of the Sonnenschein GF06240V is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Sonnenschein GF06240V battery?
Dimensions (length × width × height) are 310×181×360 mm — also written as 310x181x360 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the GF06240V model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
