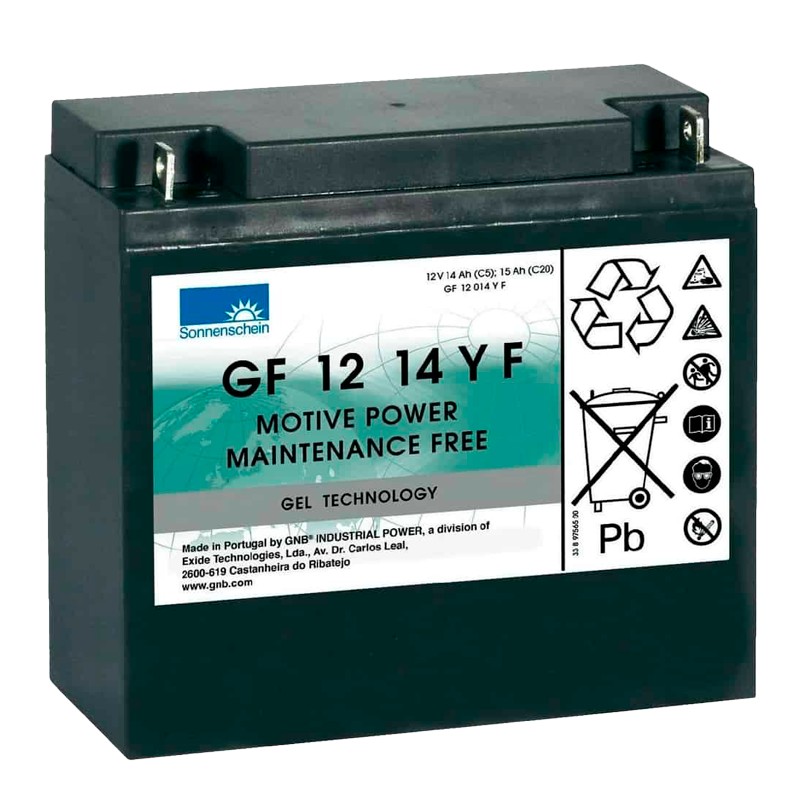

Sonnenschein GF12014YF · Deep-cycle battery 12V 15Ah GEL
Specifications
| Brand | Sonnenschein |
|---|---|
| Part number | GF12014YF |
| Voltage (V) | 12V |
| Capacity (C20) | 15Ah (c20) |
| Capacity | 15Ah |
| Technology | GEL |
| Weight | 6,00 |
| Terminal type | F3 |
| EAN | 3660766462749 |
€181.20
VAT included
Sonnenschein GF12014YF 12V 15Ah is a deep-cycle battery optimised for repeated discharges down to 80 % DOD and thousands of life cycles. Ideal when the battery discharges and recharges daily rather than just cranking the engine (mobility scooters, backup systems, golf, pallet trucks).
Why this deep-cycle battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
15 Ah
Dimensions
181×76×167 mm
Technology
Gel
Weight
6 kg
Model
GEL - GF -Y Sonnenschein Cyclic range 450 cycles
Mobility battery Sonnenschein GF12014YF 15Ah 12V
12VVoltage
15AhCapacity
6kgWeight
Designed for power wheelchairs, mobility scooters and light electric vehicles, the Sonnenschein GF12014YF offers 15 Ah of deep-cycle capacity with GEL technology. Measuring 181 × 76 × 167 mm, it is the direct replacement for power wheelchairs and mobility scooters fitted from the factory with a 15 Ah battery of this format.
- No maintenance, no water top-ups.
- Approved for air and sea transport (VRLA).
- GEL: excellent resistance to deep discharge and long cycle life.
- Sealed AGM/GEL: safe indoors and in transport.
Will it fit your current battery tray?
The Sonnenschein GF12014YF is made in the 181 × 76 × 167 mm format and weighs 6 kg. It uses F3 terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
What the Sonnenschein GF12014YF is for
The Sonnenschein GF12014YF is the usual replacement in power wheelchairs, mobility scooters and light electric vehicles. Recharge after each use and avoid leaving it discharged for days. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 6 kg and F3 terminals.
Technology inside the Sonnenschein GF12014YF
Within the Sonnenschein catalogue, the GF12014YF is the 15 Ah model designed for this application.
A GEL battery is the choice when cycle resistance and safety matter most: no gases, no liquid and thousands of partial discharges in its lifetime.
What Sonnenschein does differently
Sonnenschein batteries with dryfit® technology have equipped power wheelchairs, cleaning machines and industrial vehicles for decades thanks to their reliability and cycle life. We guarantee that every Sonnenschein arrives new, charged and with the manufacturer's full warranty.
Official warranty
The Sonnenschein GF12014YF comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Usage and maintenance tips
GEL batteries need lower charging voltages: always use a charger with a GEL mode so as not to damage the electrolyte. Recharge the wheelchair or scooter after each use and do not leave it discharged for days: lead sulphates and loses capacity.
Delivery times and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BATERIAS-SONNENSCHEIN-GF12014YF
Data sheet
- Weight
- 6,00
- Technology
- GEL
- Terminal type
- F3
- Capacity (C20)
- 15Ah (c20)
- Voltage (V)
- 12V
- Capacity
- 15Ah
Specific References
- EAN13
- 3660766462749
- MPN
- GF12014YF
Codes and references Sonnenschein GF12014YF
| Brand | Sonnenschein |
|---|---|
| Manufacturer reference (MPN) | GF12014YF |
| EAN-13 barcode | 3660766462749 |
| Dimensions (length × width × height) | 181 × 76 × 167 mm (181x76x167) |
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the GF12014YF model a gel battery? Where is it used?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How is the Sonnenschein GF12014YF battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How many years does this battery last?
Expected lifespan of the Sonnenschein GF12014YF is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Sonnenschein GF12014YF battery?
Dimensions (length × width × height) are 181×76×167 mm — also written as 181x76x167 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the GF12014YF model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
