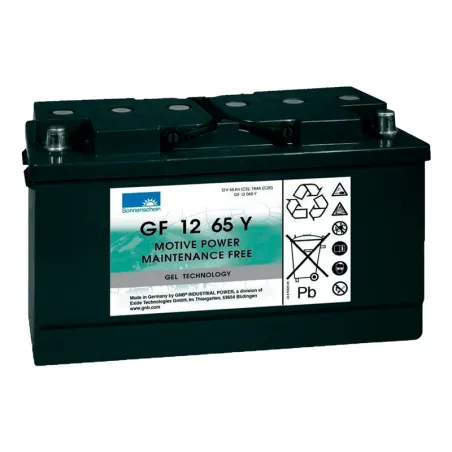

Sonnenschein GF12065Y · Deep-cycle battery 12V 78Ah GEL
Specifications
| Brand | Sonnenschein |
|---|---|
| Part number | GF12065Y |
| Voltage (V) | 12V |
| Capacity (C20) | 78Ah (c20) |
| Capacity | 78Ah |
| Technology | GEL |
| Weight | 27,00 |
| Terminal type | AP |
| EAN | 3660766462930 |
€390.10
VAT included
Sonnenschein GF12065Y 12V 78Ah is a deep-cycle battery optimised for repeated discharges down to 80 % DOD and thousands of life cycles. Ideal when the battery discharges and recharges daily rather than just cranking the engine (mobility scooters, backup systems, golf, pallet trucks).
Why this deep-cycle battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
78 Ah
Dimensions
353×175×190 mm
Technology
Gel
Weight
27 kg
Model
GEL - GF -Y Sonnenschein Cyclic range 450 cycles

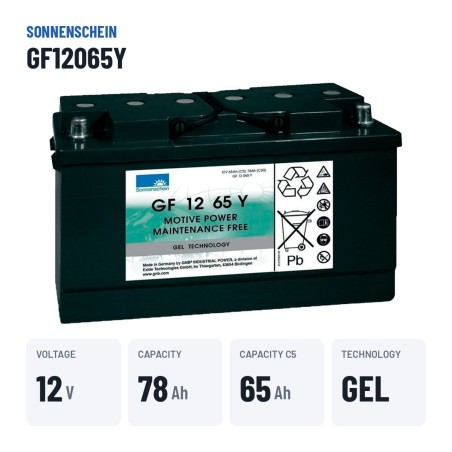

Mobility battery Sonnenschein GF12065Y 78Ah 12V
12VVoltage
78AhCapacity
27kgWeight
The Sonnenschein GF12065Y with GEL technology delivers 78 Ah at 12 V with the cycle life that power wheelchairs, mobility scooters and light electric vehicles demand. Its 353 × 175 × 190 mm make it the exact replacement for the 78 Ah battery fitted as standard to many power wheelchairs and mobility scooters.
- Sealed AGM/GEL: safe indoors and in transport.
- GEL: excellent resistance to deep discharge and long cycle life.
- Approved for air and sea transport (VRLA).
- No maintenance, no water top-ups.

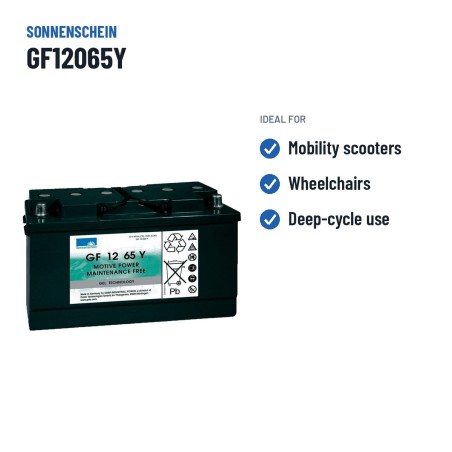

What the Sonnenschein GF12065Y is for
The Sonnenschein GF12065Y is designed for power wheelchairs, mobility scooters and light electric vehicles. Wheelchairs and scooters normally use two identical batteries in series: replace them together. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 27 kg and AP terminals.
Size, terminals and hold-down of the Sonnenschein GF12065Y

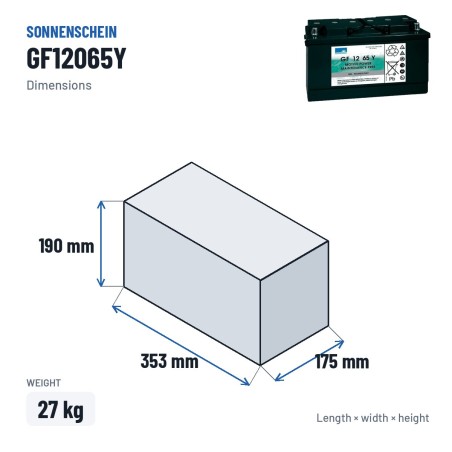

In terms of format, the Sonnenschein GF12065Y measures 353 × 175 × 190 mm (length × width × height) and weighs 27 kg. It uses AP terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
Technology inside the Sonnenschein GF12065Y
Within the Sonnenschein catalogue, the GF12065Y is the 78 Ah model designed for this application.
A GEL battery is the choice when cycle resistance and safety matter most: no gases, no liquid and thousands of partial discharges in its lifetime.
What Sonnenschein does differently
Sonnenschein batteries with dryfit® technology have equipped power wheelchairs, cleaning machines and industrial vehicles for decades thanks to their reliability and cycle life. All the Sonnenschein batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Official warranty
The Sonnenschein GF12065Y comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Care and maintenance
Use the original charger or one compatible with the battery technology (AGM/GEL) and always replace both batteries in the set together. GEL batteries need lower charging voltages: always use a charger with a GEL mode so as not to damage the electrolyte.
Delivery times and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BATERIAS-SONNENSCHEIN-GF12065Y
Data sheet
- Weight
- 27,00
- Technology
- GEL
- Terminal type
- AP
- Capacity (C20)
- 78Ah (c20)
- Voltage (V)
- 12V
- Capacity
- 78Ah
Specific References
- EAN13
- 3660766462930
- MPN
- GF12065Y
Codes and references Sonnenschein GF12065Y
| Brand | Sonnenschein |
|---|---|
| Manufacturer reference (MPN) | GF12065Y |
| EAN-13 barcode | 3660766462930 |
| European case size (EN 50342-2) | L5 |
| Dimensions (length × width × height) | 353 × 175 × 190 mm (353x175x190) |
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the Sonnenschein GF12065Y a GEL battery? What is GEL used for?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How do I change this battery step by step?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Sonnenschein GF12065Y battery last?
Expected lifespan of the Sonnenschein GF12065Y is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Sonnenschein GF12065Y battery?
Dimensions (length × width × height) are 353×175×190 mm — also written as 353x175x190 mm and correspond to the European L5 case size — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which interchangeable batteries are there for this one?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
