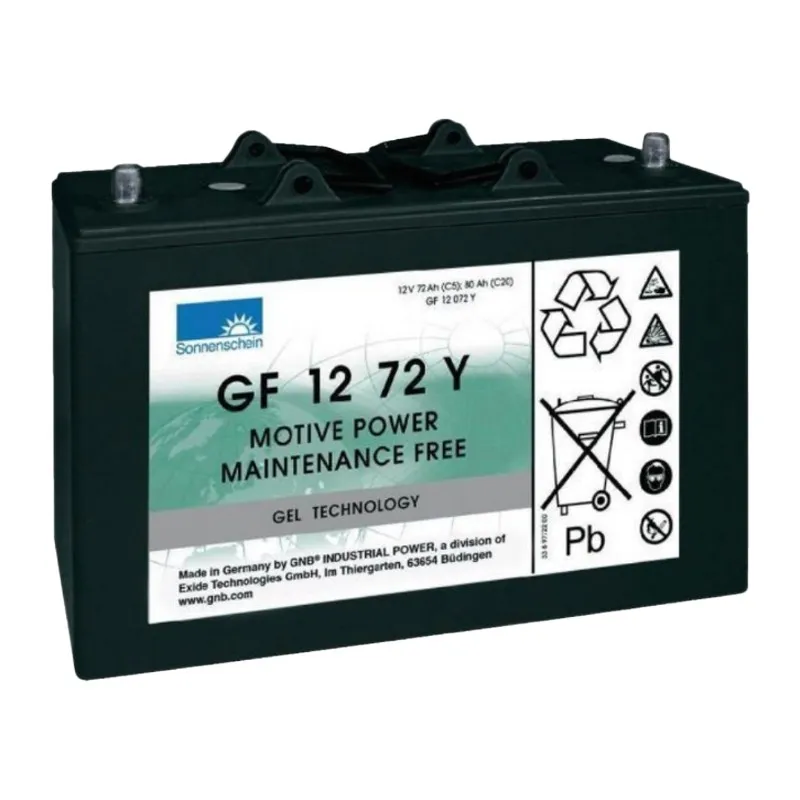

Sonnenschein GF12072Y · Deep-cycle battery 12V 80Ah GEL
Specifications
| Brand | Sonnenschein |
|---|---|
| Part number | GF12072Y |
| Voltage (V) | 12V |
| Capacity (C20) | 80Ah (c20) |
| Capacity | 80Ah |
| Technology | GEL |
| Weight | 33,00 |
| Terminal type | AP |
| EAN | 3660766462800 |
€414.95
VAT included
Sonnenschein GF12072Y 12V 80Ah is a deep-cycle battery built to be discharged and recharged daily without losing capacity. Its reinforced grid and AGM/GEL separator extend the number of useful cycles well beyond a conventional starter battery.
Why this deep-cycle battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime

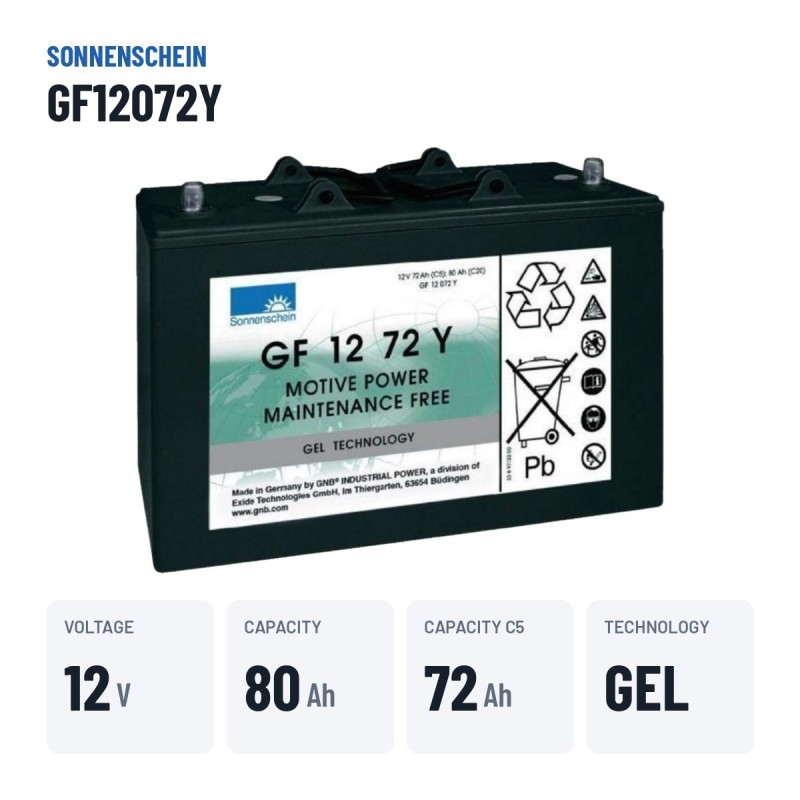

Voltage
12 V
Capacity
80 Ah
Dimensions
330×171×235 mm
Technology
Gel
Weight
33 kg
Model
GEL - GF -Y Sonnenschein Cyclic range 450 cycles
Mobility battery Sonnenschein GF12072Y 80Ah 12V
12VVoltage
80AhCapacity
33kgWeight
The 12 V, 80 Ah Sonnenschein GF12072Y with GEL technology is the standard replacement for power wheelchairs, mobility scooters and light electric vehicles. Measuring 330 × 171 × 235 mm, it is the direct replacement for power wheelchairs and mobility scooters fitted from the factory with a 80 Ah battery of this format.
- No maintenance, no water top-ups.
- Approved for air and sea transport (VRLA).
- GEL: excellent resistance to deep discharge and long cycle life.
- Sealed AGM/GEL: safe indoors and in transport.

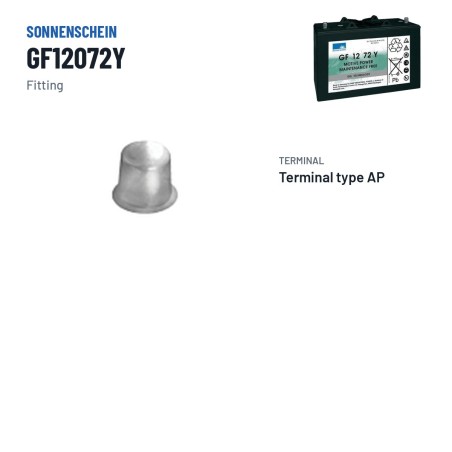

Size, terminals and hold-down of the Sonnenschein GF12072Y
It has external dimensions of 330 × 171 × 235 mm and weighs 33 kg. It uses AP terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.

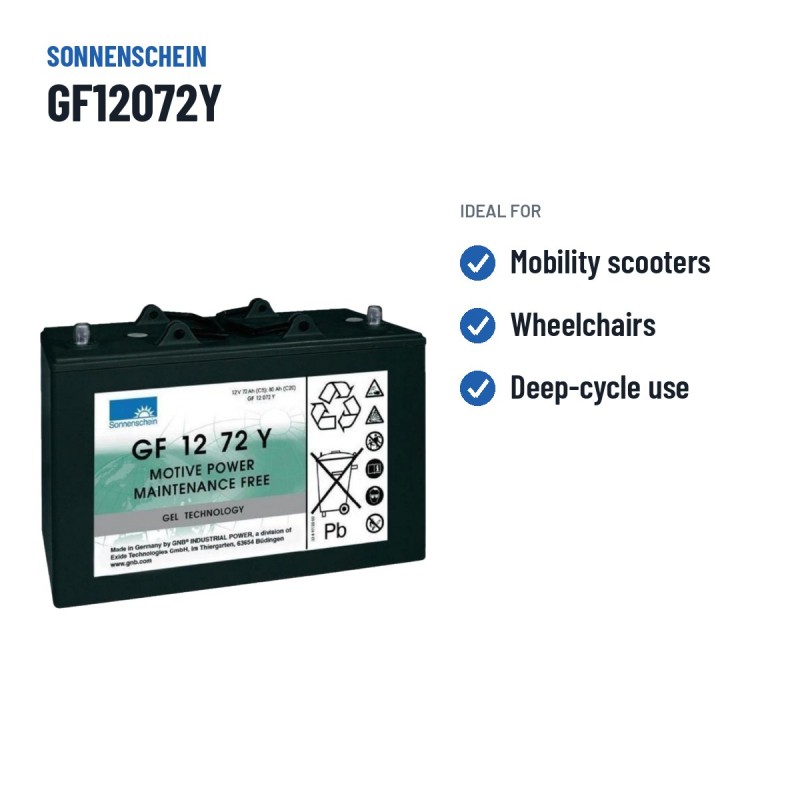

What the Sonnenschein GF12072Y is for
The Sonnenschein GF12072Y is designed for power wheelchairs, mobility scooters and light electric vehicles. Wheelchairs and scooters normally use two identical batteries in series: replace them together. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 33 kg and AP terminals.
Technology inside the Sonnenschein GF12072Y
The GF12072Y is one of the Sonnenschein references for this type of use; it shares the same manufacturing and quality-control criteria as the rest of the brand's catalogue.
In a GEL battery the electrolyte is gelled with silica: it is fully sealed, cannot spill and tolerates deep discharge very well. It is the preferred technology in electric mobility, marine service and heavy-cycling applications.
What Sonnenschein does differently
Sonnenschein batteries with dryfit® technology have equipped power wheelchairs, cleaning machines and industrial vehicles for decades thanks to their reliability and cycle life. We guarantee that every Sonnenschein arrives new, charged and with the manufacturer's full warranty.
Warranty and coverage
The Sonnenschein GF12072Y comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Care and maintenance
Use the original charger or one compatible with the battery technology (AGM/GEL) and always replace both batteries in the set together. GEL batteries need lower charging voltages: always use a charger with a GEL mode so as not to damage the electrolyte.
Delivery times and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BATERIAS-SONNENSCHEIN-GF12072Y
Data sheet
- Weight
- 33,00
- Technology
- GEL
- Terminal type
- AP
- Capacity (C20)
- 80Ah (c20)
- Voltage (V)
- 12V
- Capacity
- 80Ah
Specific References
- EAN13
- 3660766462800
- MPN
- GF12072Y
Codes and references Sonnenschein GF12072Y
| Brand | Sonnenschein |
|---|---|
| Manufacturer reference (MPN) | GF12072Y |
| EAN-13 barcode | 3660766462800 |
| Dimensions (length × width × height) | 330 × 171 × 235 mm (330x171x235) |
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is this battery GEL? What is the typical use?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How is the Sonnenschein GF12072Y battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Sonnenschein GF12072Y battery last?
Expected lifespan of the Sonnenschein GF12072Y is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the GF12072Y model?
Dimensions (length × width × height) are 330×171×235 mm — also written as 330x171x235 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the GF12072Y model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
