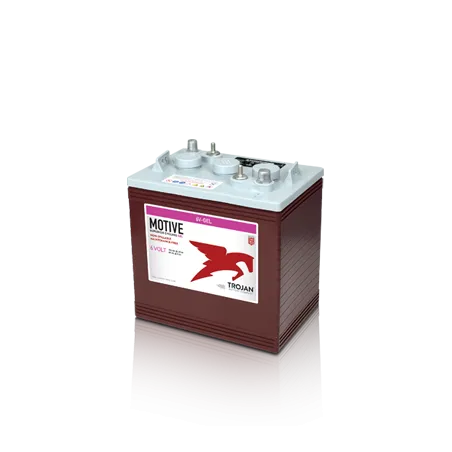

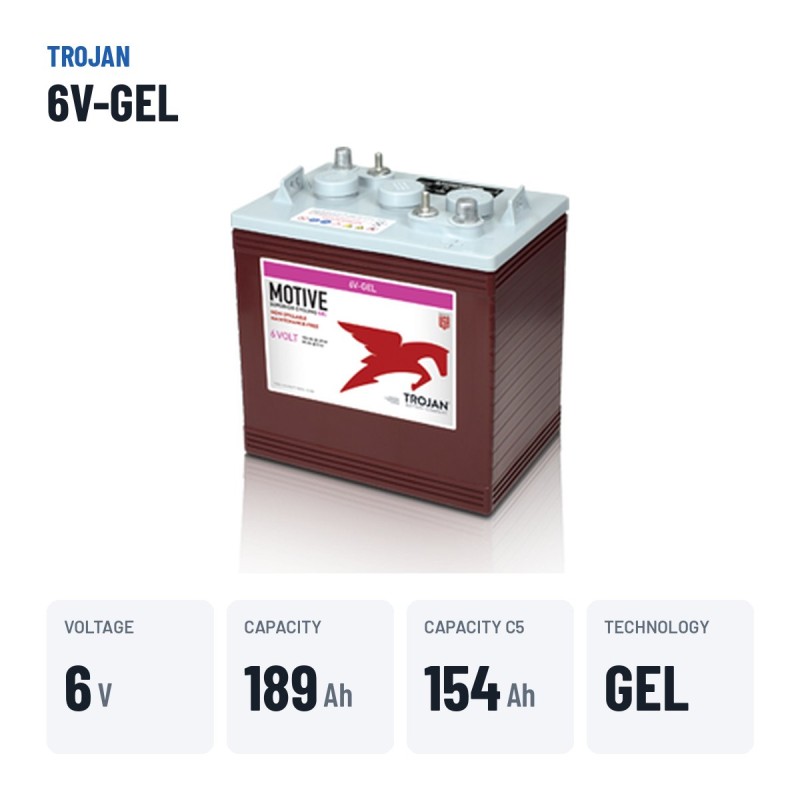

Trojan 6V-GEL · Solar battery 6V 189Ah GEL
Specifications
| Brand | TROJAN |
|---|---|
| Part number | 6V-GEL |
| Voltage (V) | 6 |
| Capacity (C20) | 189Ah (c20) |
| Capacity (C5) | 154Ah (c5) |
| Technology | GEL |
| Length | 260.00 mm |
| Width | 181.00 mm |
| Height | 275.00 mm |
€805.10
VAT included
4,88/5★★★★★8 reviewsVerified purchases
- ★★★★★Ruben IbaÑez:
Gracias a baterias.com pude elegir la batería más adecudada para mi vehículo
- ★★★★★Hector Marquez:
Gracias por asesorarme con la instalación de mi batería
- ★★★★★Cristian Mendez:
MRW me entregó en menos de un día. Increíble
Trojan 6V-GEL 6V 189Ah is a solar battery designed for PV systems with daily charge/discharge cycles. Tolerates extreme temperatures well, with low self-discharge during winter shutdowns or between stays at vacation homes.
Why this solar battery?
- Designed for solar systemsoptimised for daily charge/discharge cycles
- Handles extreme temperaturesin technical rooms or outdoor installs
- Minimal self-dischargewhen left idle over winter or holidays
Voltage
6 V
Capacity
189 Ah
Dimensions
260×181×275 mm
Technology
GEL
Weight
31 kg
Model
TROJAN GEL
Solar battery Trojan 6V-GEL 189Ah 6V
6VVoltage
189AhCapacity
31kgWeight
The 6 V, 189 Ah Trojan 6V-GEL solar battery with GEL technology is designed for off-grid photovoltaic installations and storage systems. It replaces the original battery without adaptation in off-grid PV systems with a 260 × 181 × 275 mm format: same 189 Ah capacity.
- GEL technology: gelled electrolyte, fully sealed and maintenance-free.
- Optimised for daily charge and discharge cycles.
- Good tolerance to extreme temperatures.
- Long life on float and moderate cycling.

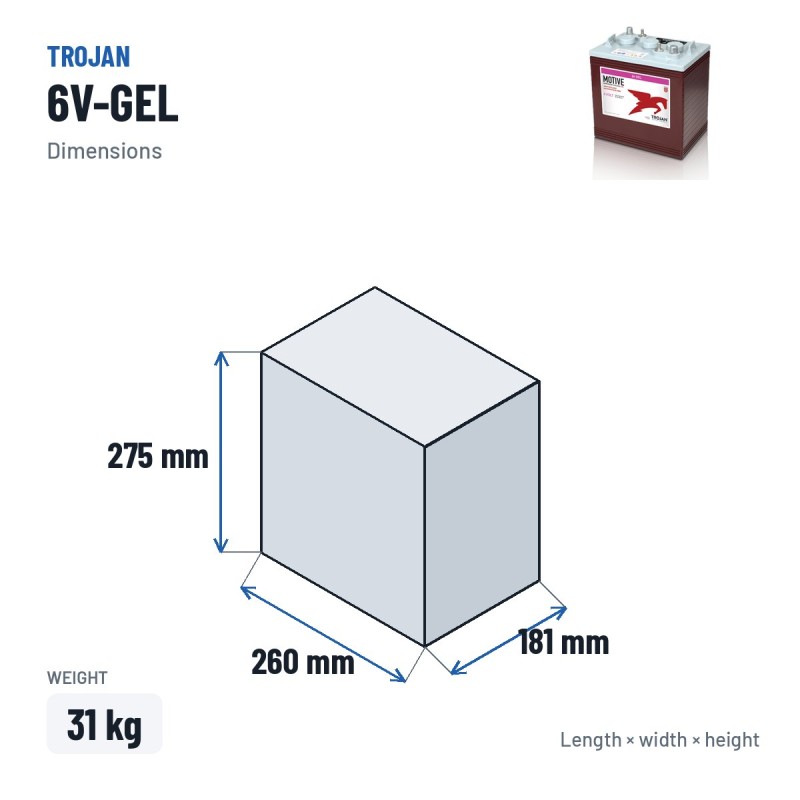

Dimensions, polarity and mounting
It has external dimensions of 260 × 181 × 275 mm and weighs 31 kg. It uses 6 terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.

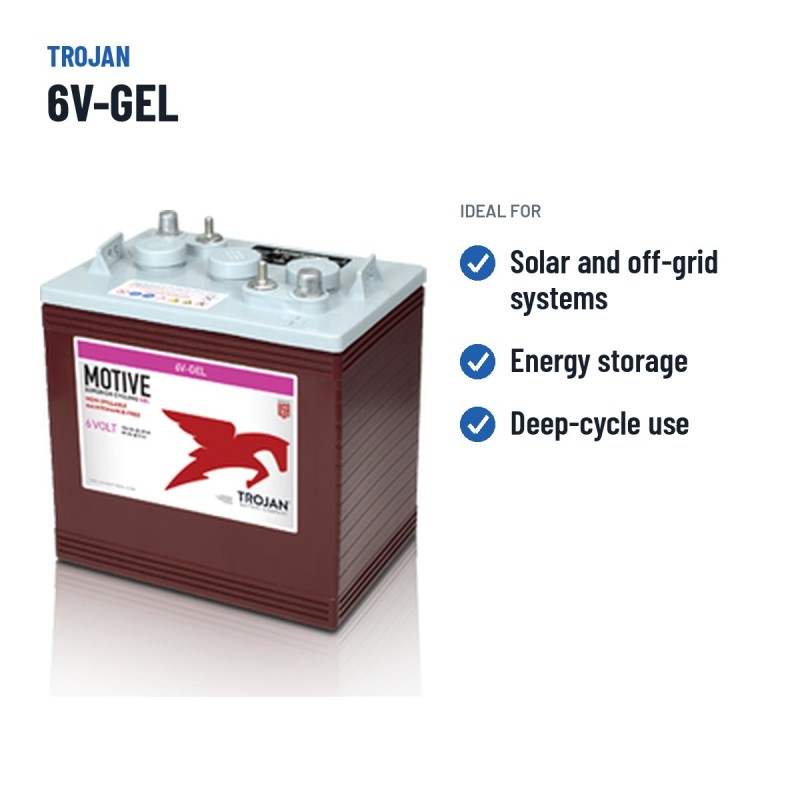

What the Trojan 6V-GEL is for
The Trojan 6V-GEL is designed for off-grid photovoltaic installations and storage systems. Size the capacity so as not to discharge more than 50% daily and you will greatly extend its life. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 31 kg and 6 terminals.
Technology inside the Trojan 6V-GEL
Trojan builds the 6V-GEL to the same standards as the rest of its catalogue; what changes between references is capacity, format and terminal position.
A GEL battery is the choice when cycle resistance and safety matter most: no gases, no liquid and thousands of partial discharges in its lifetime.
What Trojan does differently
Trojan Battery is the world reference in deep-cycle batteries: golf carts, cleaning machines, aerial platforms and solar systems rely on its T2 technology and longevity. All the Trojan batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Manufacturer's warranty
The Trojan 6V-GEL comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
How to make it last longer
GEL batteries need lower charging voltages: always use a charger with a GEL mode so as not to damage the electrolyte. In the darker months, check the voltage periodically and avoid full discharges.
When you get it and how to return it
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-TROJAN-6V-GEL

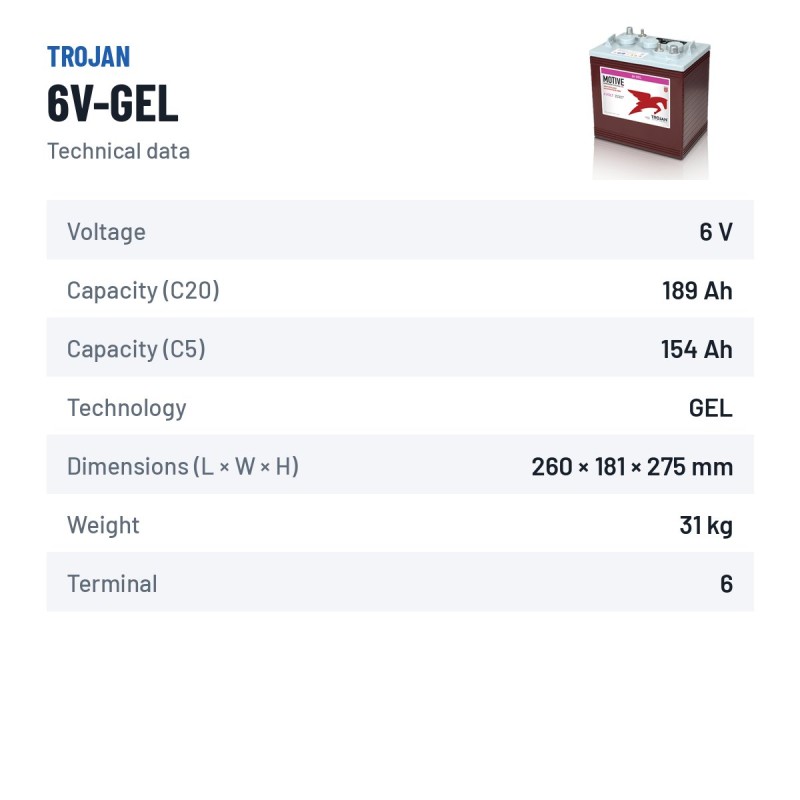

Data sheet
- Brand
- TROJAN
- Reference
- 6V-GEL
- Model
- TROJAN GEL
- Voltage (V)
- 6
- Length
- 260.00 mm
- Width
- 181.00 mm
- Height
- 275.00 mm
- Weight
- 31 Kgs
- Technology
- GEL
- Terminal type
- 6
- Capacity (C20)
- 189Ah (c20)
- Capacity (C5)
- 154Ah (c5)
Specific References
- EAN13
- 8404653001346
- MPN
- 6V-GEL
4,88/5
Verified purchasesLatest verified reviews
★★★★★Ruben IbaÑez
23/06/2026Me ayudaron en la elección de mi batería
Gracias a baterias.com pude elegir la batería más adecudada para mi vehículo
★★★★★Hector Marquez
06/02/2026Me ayudaron con la instalación
Gracias por asesorarme con la instalación de mi batería
★★★★★Cristian Mendez
04/02/2026Llega al día siguiente
MRW me entregó en menos de un día. Increíble
★★★★★Victor Manuel Benitez
26/10/2025Buen asesoramiento
Gracias a baterias.com pude elegir la bateria más adecudada para mi vehículo
Codes and references Trojan 6V-GEL
| Brand | Trojan |
|---|---|
| Manufacturer range | TROJAN GEL |
| Manufacturer reference (MPN) | 6V-GEL |
| EAN-13 barcode | 8404653001346 |
| Dimensions (length × width × height) | 260 × 181 × 275 mm (260x181x275) |
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the Trojan 6V-GEL a GEL battery? What is GEL used for?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How do I fit the 6V-GEL model in my device?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the 6V-GEL model?
Expected lifespan of the Trojan 6V-GEL is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the 6V-GEL model?
Dimensions (length × width × height) are 260×181×275 mm — also written as 260x181x275 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the 6V-GEL model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
