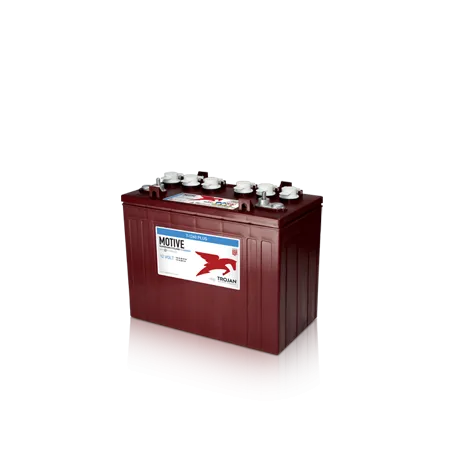

Trojan T-1260 · Golf cart battery 12V 140Ah
Specifications
| Brand | TROJAN |
|---|---|
| Part number | T-1260 |
| Voltage (V) | 12 |
| Capacity (C20) | 140Ah (c20) |
| Capacity (C5) | 113Ah (c5) |
| Technology | Lead-acid |
| Length | 329.00 mm |
| Width | 181.00 mm |
| Height | 272.00 mm |
€493.80
VAT included
Trojan T-1260 12V 140Ah is a golf traction battery: thick plates and a high cycle count for daily course use.
Why this golf cart battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Voltage
12 V
Capacity
140 Ah
Dimensions
329×181×272 mm
Technology
Lead-acid
Weight
35 kg
Model
TROJAN ciclo profundo - T2 Technology
Buen asesoramiento en la instalación
Francisco Jose GarridoAnímo a que llameís, la atención es gratuita y muy buena.
Marcos FernandezPedí la batería un jueves a las 5 y me llegó el viernes a las 7
Felipe Gallego
Reviews originally written in Spanish
Golf cart battery Trojan T-1260 ciclo profundo - T2 Technology 140Ah 12V
12VVoltage
140AhCapacity
35kgWeight
The 12 V, 140 Ah Trojan T-1260 from the ciclo profundo - T2 Technology range with conventional lead-acid technology is designed for golf carts and electric utility vehicles. Its 329 × 181 × 272 mm make it the exact replacement for the 140 Ah battery fitted as standard to many golf carts.
- Standard format for golf carts and utility vehicles.
- Long service life in daily duty cycles.
- Reinforced plate construction for intensive use.
- Good balance of capacity, cranking power and price.
Will it fit your current battery tray?
In terms of format, the Trojan T-1260 measures 329 × 181 × 272 mm (length × width × height) and weighs 35 kg. It uses 1 terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
What the Trojan T-1260 is for
With 140 Ah, the Trojan T-1260 forms part of the battery banks of golf carts and electric utility vehicles. Always replace the complete set to avoid imbalance. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 35 kg and 1 terminals.
The Trojan T-1260: ciclo profundo - T2 Technology range and conventional lead-acid technology
Within the Trojan catalogue, the ciclo profundo - T2 Technology series groups the references designed for this use. The T-1260 is the 140 Ah model of that family, with the same performance as its siblings in other sizes.
In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.
Trojan: the maker behind the T-1260
Trojan Battery is the world reference in deep-cycle batteries: golf carts, cleaning machines, aerial platforms and solar systems rely on its T2 technology and longevity. All the Trojan batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Manufacturer's warranty
The Trojan T-1260 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Care and maintenance
On batteries with filler caps, check the electrolyte level and top up only with distilled water. Always replace all the batteries in the bank at once and use the charger specified by the vehicle manufacturer.
When you get it and how to return it
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-TROJAN-T-1260
Data sheet
- Brand
- TROJAN
- Reference
- T-1260
- Model
- TROJAN Deep Cycle - T2 Technology
- Voltage (V)
- 12
- Length
- 329.00 mm
- Width
- 181.00 mm
- Height
- 272.00 mm
- Weight
- 35 Kgs
- Technology
- Lead-acid
- Terminal type
- 1
- Capacity (C20)
- 140Ah (c20)
- Capacity (C5)
- 113Ah (c5)
Specific References
- MPN
- T-1260
5,00/5
Latest reviews
Reviews originally written in Spanish
★★★★★Francisco Jose Garrido
06/07/2026Gracias por la ayuda
Buen asesoramiento en la instalación
★★★★★Marcos Fernandez
08/02/2026Me ayudaron paso a paso
Anímo a que llameís, la atención es gratuita y muy buena.
★★★★★Felipe Gallego
23/01/2026Muy rápido
Pedí la batería un jueves a las 5 y me llegó el viernes a las 7
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
How do I change this battery step by step?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the T-1260 model?
Expected lifespan of the Trojan T-1260 is 4 to 6 years in regular device use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Trojan T-1260 battery?
Dimensions (length × width × height) are 329×181×272 mm — also written as 329x181x272 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the T-1260 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
