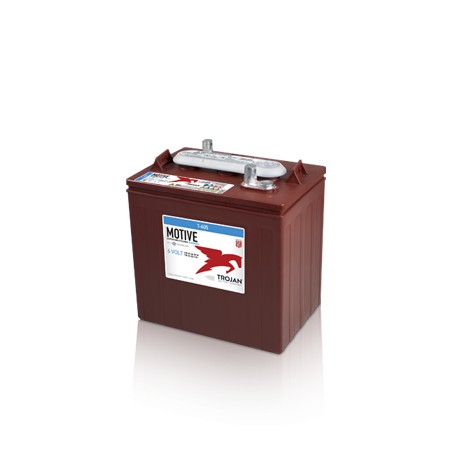

Trojan T-605 · Golf cart battery 6V 210Ah
Specifications
| Brand | TROJAN |
|---|---|
| Part number | T-605 |
| Voltage (V) | 6 |
| Capacity (C20) | 210Ah (c20) |
| Capacity (C5) | 175Ah (c5) |
| Technology | Lead-acid |
| Length | 262.00 mm |
| Width | 181.00 mm |
| Height | 281.00 mm |
€265.50
VAT included
4,85/5★★★★★31 reviewsVerified purchases
- ★★★★★Luis Miguel Castillo:
Buen asesoramiento en la instalación
- ★★★★★Jordi Ferrer:
Pedí la batería un jueves a las 5 y me llegó el viernes a las 7
- ★★★★★Diego Lopez:
Anímo a que llameís, la atención es gratuita y muy buena.
Trojan T-605 6V 210Ah is a golf traction battery: thick plates and a high cycle count for daily course use.
Why this golf cart battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Voltage
6 V
Capacity
210 Ah
Dimensions
262×181×281 mm
Technology
Lead-acid
Weight
26 kg
Model
TROJAN ciclo profundo - T2 Technology
Golf cart battery Trojan T-605 ciclo profundo - T2 Technology 210Ah 6V
6VVoltage
210AhCapacity
26kgWeight
With 210 Ah with conventional lead-acid technology, the Trojan T-605 from the ciclo profundo - T2 Technology range withstands the daily deep discharges of golf carts and electric utility vehicles. Measuring 262 × 181 × 281 mm, it is the direct replacement for golf carts fitted from the factory with a 210 Ah battery of this format.
- Good balance of capacity, cranking power and price.
- Reinforced plate construction for intensive use.
- Long service life in daily duty cycles.
- Standard format for golf carts and utility vehicles.
What the Trojan T-605 is for
Designed for golf carts and electric utility vehicles, the Trojan T-605 withstands intensive seasonal use with a reinforced plate construction. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 26 kg and 1 2 3 terminals.
Will it fit your current battery tray?
The Trojan T-605 is made in the 262 × 181 × 281 mm format and weighs 26 kg. It uses 1 2 3 terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
The Trojan T-605: ciclo profundo - T2 Technology range and conventional lead-acid technology
Within the Trojan catalogue, the ciclo profundo - T2 Technology series groups the references designed for this use. The T-605 is the 210 Ah model of that family, with the same performance as its siblings in other sizes.
The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.
What Trojan does differently
Trojan Battery is the world reference in deep-cycle batteries: golf carts, cleaning machines, aerial platforms and solar systems rely on its T2 technology and longevity. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Warranty and coverage
The Trojan T-605 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Usage and maintenance tips
Recharge the set fully after each round and avoid routine discharges below 20%. On batteries with filler caps, check the electrolyte level and top up only with distilled water.
When you get it and how to return it
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-TROJAN-T-605
Data sheet
- Brand
- TROJAN
- Reference
- T-605
- Model
- TROJAN Deep Cycle - T2 Technology
- Voltage (V)
- 6
- Length
- 262.00 mm
- Width
- 181.00 mm
- Height
- 281.00 mm
- Weight
- 26 Kgs
- Technology
- Lead-acid
- Terminal type
- 1 2 3
- Capacity (C20)
- 210Ah (c20)
- Capacity (C5)
- 175Ah (c5)
Specific References
- EAN13
- 8404653001360
- MPN
- T-605
4,85/5
Verified purchasesLatest verified reviews
★★★★★Luis Miguel Castillo
06/05/2026Gracias por su ayuda
Buen asesoramiento en la instalación
★★★★★Jordi Ferrer
01/01/2026No tardó nada
Pedí la batería un jueves a las 5 y me llegó el viernes a las 7
★★★★★Diego Lopez
28/12/2025Se preocupan por asesorarte de la mejor manera
Anímo a que llameís, la atención es gratuita y muy buena.
Codes and references Trojan T-605
| Brand | Trojan |
|---|---|
| Manufacturer range | TROJAN Deep Cycle - T2 Technology |
| Manufacturer reference (MPN) | T-605 |
| EAN-13 barcode | 8404653001360 |
| Dimensions (length × width × height) | 262 × 181 × 281 mm (262x181x281) |
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
How do I fit the T-605 model in my device?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Trojan T-605 battery last?
Expected lifespan of the Trojan T-605 is 4 to 6 years in regular device use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Trojan T-605 battery?
Dimensions (length × width × height) are 262×181×281 mm — also written as 262x181x281 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Trojan T-605?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
