Tudor TA755 · Car battery 12V 75Ah 630A
Specifications
| Brand | TUDOR |
|---|---|
| Part number | TA755 |
| Voltage (V) | 12 |
| Capacity (C20) | 75Ah (c20) |
| Technology | Lead-acid |
| Length | 270.00 mm |
| Width | 173.00 mm |
| Height | 222.00 mm |
| Terminal layout | Positive terminal on the left |
€98.80
VAT included
Polarity: positive on the left. Check it matches your current battery before buying.
4,78/5★★★★★36 reviewsVerified purchases
- ★★★★★Andres NuÑez:
Todo bien, excepto el envío que me tardó 2 días
- ★★★★★Lucas Herrera:
La atención telefónica fue excelente. En otros sitios ni me cogían el teléfono
- ★★★★★Miguel Perez:
Me atendieron muy bien
Tudor TA755 12V 75Ah 630A is a passenger car battery with factory-guaranteed cranking power and extended service life. OEM quality at white-label prices: calcium-silver grids, low self-discharge and compatible with all modern electrical systems.
Why this car battery?
- Original-equipment qualitywithout dealership prices
- Lasts 4 to 6 yearsbuy once instead of twice
- Real human tech supportif you have any doubts before buying
Voltage
12 V
Capacity
75 Ah
Cold cranking
630 A
Dimensions
270×173×222 mm
Technology
Lead-acid
Polarity
Positive on the left
Weight
17,4 kg
Model
TUDOR HIGH TECH

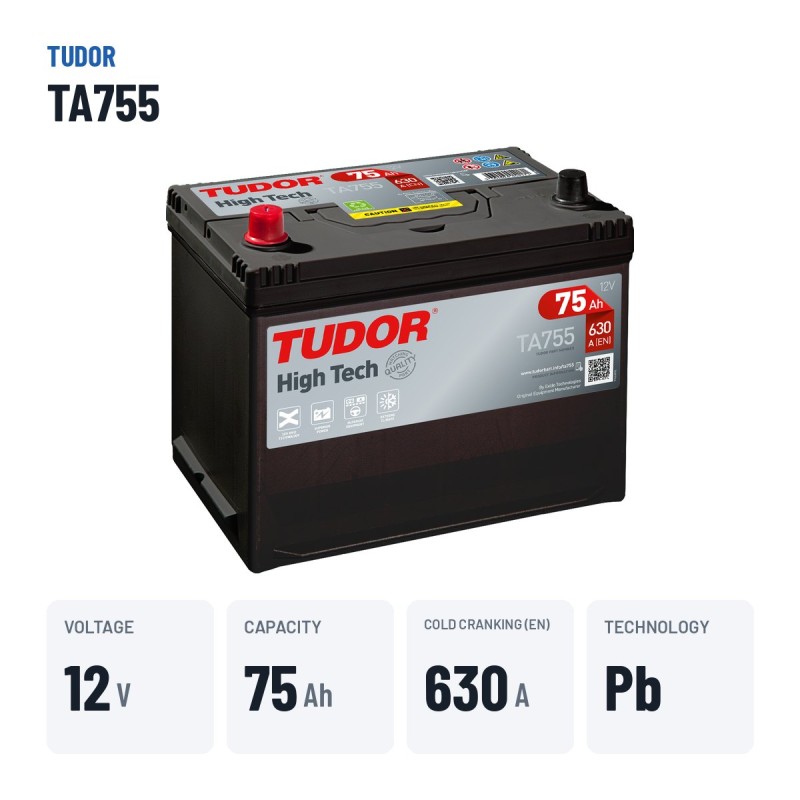

Car battery Tudor TA755 High Tech 75Ah 630A 12V
12VVoltage
75AhCapacity
630ACold cranking
17.40kgWeight
The Tudor TA755 car battery is rated at 12 V, 75 Ah and 630 A of cold cranking current (EN) from the High Tech range, and is designed for passenger cars with conventional starting, without a Start-Stop system. Its 270 × 173 × 222 mm and the positive terminal on the left make it the exact replacement for the 75 Ah battery fitted as standard to many cars.
- Stable voltage for the vehicle electronics (ECU, sensors, climate control).
- Good balance of capacity, cranking power and price.
- Designed to last several years under normal daily use.
- Low self-discharge: copes with long stops without losing charge.
What the Tudor TA755 is for
The Tudor TA755 covers the needs of passenger cars with conventional starting, without a Start-Stop system: reliable starting, stable voltage for the electronics and a service life of several years in daily use. Check that it matches your current battery in size and terminal position. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 17.40 kg.
Dimensions, polarity and mounting

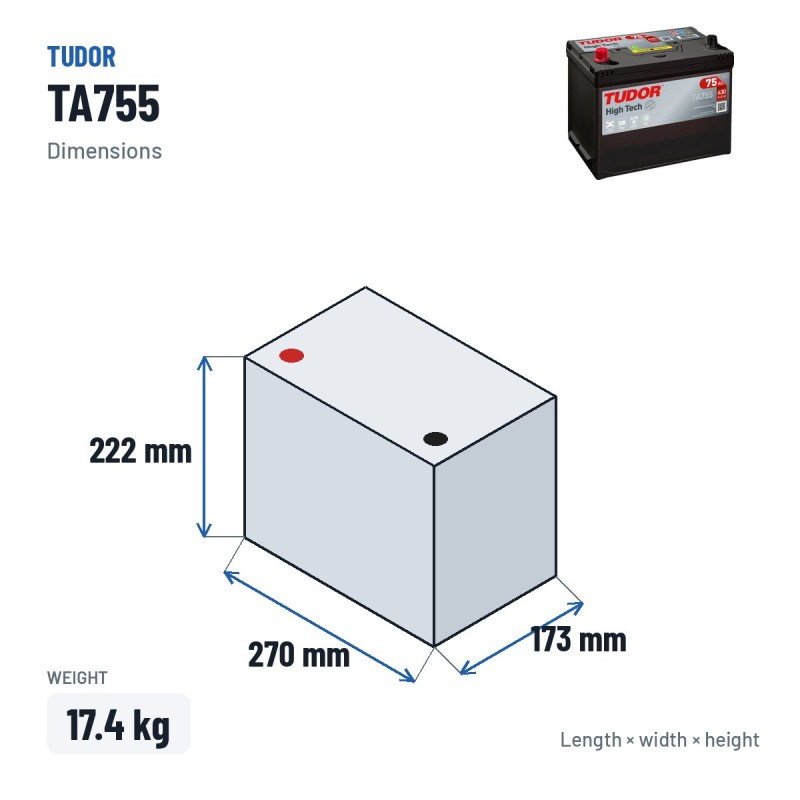

It has external dimensions of 270 × 173 × 222 mm and weighs 17.40 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
Tudor: the maker behind the TA755
Tudor is Spain's historic battery brand, today part of the Exide group. Its car, truck, motorcycle and leisure ranges are built with the same technology and controls as the group's original-equipment references. All the Tudor batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
The Tudor TA755: High Tech range and conventional lead-acid technology
The TA755 is part of the Tudor High Tech range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.
How to make it last longer
Keep the terminals clean and tight, and check that the resting voltage does not drop below 12.4 V: below that it is time to recharge. In normal daily use the alternator keeps the battery charged; if the car stands for weeks, a maintenance charge once a month prevents deep discharge.
Warranty and coverage
The Tudor TA755 comes with the manufacturer's official warranty against manufacturing defects; the exact period is stated in the brand's conditions. If it fails through a defect within the period, we replace it free of charge.
When you get it and how to return it
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-TUDOR-TA755

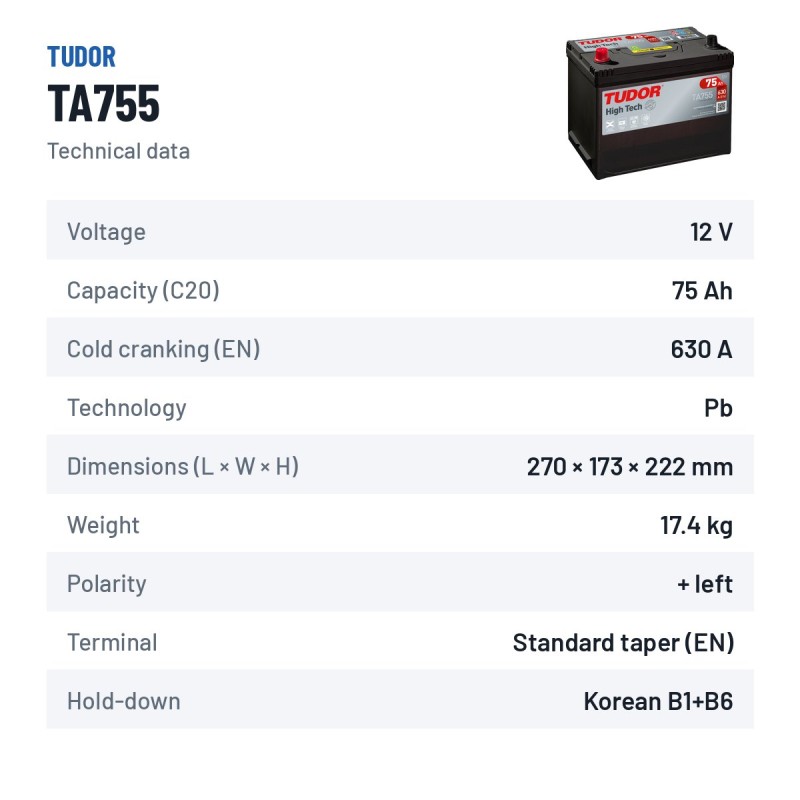

Data sheet
- Brand
- TUDOR
- Reference
- TA755
- Model
- TUDOR HIGH TECH
- Voltage (V)
- 12
- Length
- 270.00 mm
- Width
- 173.00 mm
- Height
- 222.00 mm
- Technology
- Lead-acid
- EAN
- 3661024054171
- Terminal layout
- Positive terminal on the left
- Cold cranking amps (EN)
- 630A
- Capacity (C20)
- 75Ah (c20)
Specific References
- EAN13
- 3661024054171
- MPN
- TA755
4,78/5
Verified purchasesLatest verified reviews
★★★★★Andres NuÑez
16/06/2026Entrega al día siguiente
Todo bien, excepto el envío que me tardó 2 días
★★★★★Lucas Herrera
17/04/2026Gracias por su atención
La atención telefónica fue excelente. En otros sitios ni me cogían el teléfono
★★★★★Miguel Perez
18/02/2026De 10
Me atendieron muy bien
★★★★★Martin MuÑoz
27/01/2026Buen servicio
Buen tiempo de entrega. Me urgía instalar la batería a mi coche. Gracias
★★★★★Salvador Saez
27/01/2026La batería me llegó al día siguiente
Pedí la batería en Viernes y el Lunes ya la tenía aquí
★★★★★Ramon Soto
09/01/2026Gran atención al cliente
Normalmente no compro en línea, pero ellos se encargan de dar un trato cercano y profesional. No me arrepiento de haber comprado en esta web
★★★★★Ramon Alonso
06/01/2026Recomendaré
Creo que esta web es la mejor para adquirir tu batería, muy recomdable
Codes and references Tudor TA755
| Brand | Tudor · see all batteries Tudor |
|---|---|
| Manufacturer range | TUDOR HIGH TECH |
| Manufacturer reference (MPN) | TA755 |
| EAN-13 barcode | 3661024054171 |
| Dimensions (length × width × height) | 270 × 173 × 222 mm (270x173x222) |
Comparison: Tudor TA755 vs equivalents
The Tudor TA755 is interchangeable with these equivalent references: TB705 (Tudor), EA755 (Exide), EB705 (Exide), EC605 (Exide), TC605 (Tudor).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Tudor
TA755
This battery
|
12V 75Ah 630A | Lead-acid | €98.80 |
Tudor
TB705
|
12V 70Ah 540A | Lead-acid | €68.40 |
Exide
EA755
|
12V 75Ah 630A | Lead-acid | €84.20 |
Exide
EB705
|
12V 70Ah 540A | Lead-acid | €73.70 |
Exide
EC605
|
12V 60Ah 440A | Lead-acid | €99.40 |
Tudor
TC605
|
12V 60Ah 440A | Lead-acid | €77.70 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Step-by-step guide to replace your car battery in 15-30 minutes (longer if the battery is under the seat or in the boot) without losing vehicle settings.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How do I fit the TA755 model in my car?
In most cars it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On cars with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Tudor TA755 battery last?
Expected lifespan of the Tudor TA755 is 4 to 6 years in regular car use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Tudor TA755 battery?
Dimensions (length × width × height) are 270×173×222 mm — also written as 270x173x222 mm — following the European DIN standard. Always measure the space in your car before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Tudor TA755 battery fit my car?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The TA755 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Tudor TA755?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop cars. See the "Equivalents" section to view recommended options at the same performance level.
