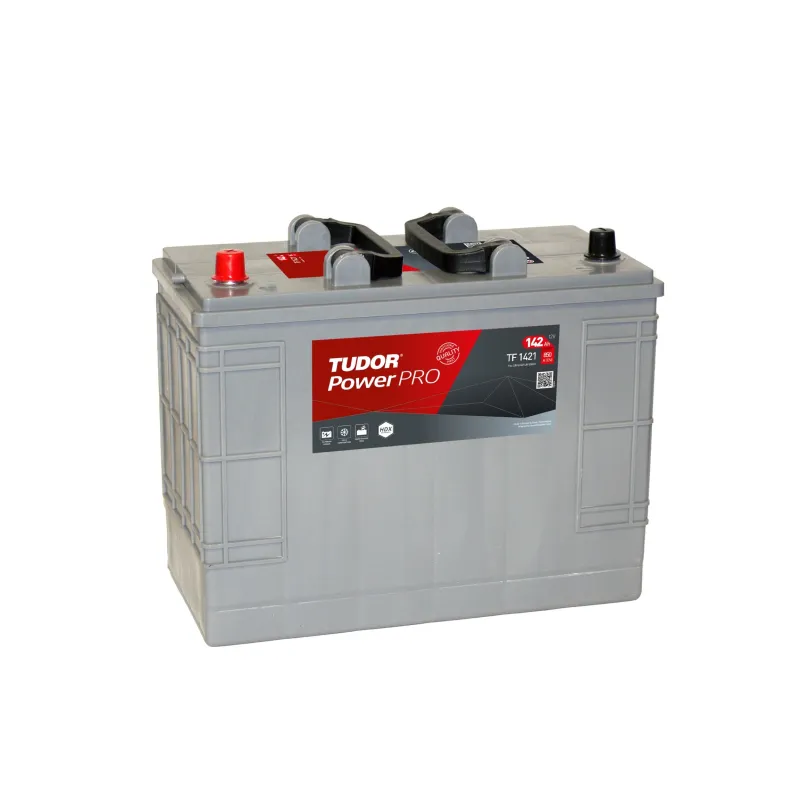

Tudor TF1421 · Truck battery 12V 142Ah 850A
Specifications
| Brand | TUDOR |
|---|---|
| Part number | TF1421 |
| Voltage (V) | 12 |
| Capacity (C20) | 142Ah (c20) |
| Technology | Lead-acid |
| Length | 345.00 mm |
| Width | 175.00 mm |
| Height | 290.00 mm |
| Terminal layout | Positive terminal on the left |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
4,73/5★★★★★35 reviewsVerified purchases
- ★★★★★Miguel Angel Guerrero:
Recibí la batería en menos de 13 horas. Una pasada
- ★★★★★Pablo Lopez:
Buen servicio y atención al cliente
- ★★★★★Marcos Moreno:
Esta web tiene un gran servicio al cliente.
Tudor TF1421 12V 142Ah 850A is an SHD (Super Heavy Duty) truck battery for intensive professional use. Vibration-resistant, withstands long cold-diesel cranks and deep discharges during parking with active loads (tachograph, refrigeration, heater).
Why this truck battery?
- True Heavy Dutybuilt for intensive professional use
- Long cold-diesel cranksreliable even in extreme cold
- Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
142 Ah
Cold cranking
850 A
Dimensions
345×175×290 mm
Technology
Lead-acid
Polarity
Positive on the left
Weight
35,1 kg
Model
TUDOR Power Pro (HDX)
Free quote, no obligation
Request a quote for your Truck battery Tudor TF1421 12V 142Ah 850A
- Reply in under 24 working hours
- Best price guaranteed
Truck battery Tudor TF1421 PRO (Hdx) 142Ah 850A 12V
12VVoltage
142AhCapacity
850ACold cranking
35.10kgWeight
The Tudor TF1421 truck battery is rated at 12 V, 142 Ah and 850 A of cold cranking current (EN) from the PRO (Hdx) range, and is prepared for trucks, buses, tractors and heavy machinery. It replaces the original battery without adaptation in trucks with a 345 × 175 × 290 mm format: same 142 Ah capacity and the positive terminal on the left.
- Powerful cold cranking for large-displacement diesel engines.
- Designed for 24 V installations with two batteries in series.
- Conventional lead-acid: the most proven and economical technology.
- Heavy Duty construction for intensive professional use.
Will it fit your current battery tray?
The Tudor TF1421 is made in the 345 × 175 × 290 mm format and weighs 35.10 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
What the Tudor TF1421 is for
The Tudor TF1421 is designed for trucks, buses, tractors and heavy machinery. In 24 V installations with two batteries in series, replace both at the same time to avoid imbalance. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 35.10 kg.
The Tudor TF1421: PRO (Hdx) range and conventional lead-acid technology
The PRO (Hdx) is the Tudor range the TF1421 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.
Tudor: the maker behind the TF1421
Tudor is Spain's historic battery brand, today part of the Exide group. Its car, truck, motorcycle and leisure ranges are built with the same technology and controls as the group's original-equipment references. All the Tudor batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Manufacturer's warranty
The Tudor TF1421 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.
Usage and maintenance tips
During rest stops with active loads, avoid repeated deep discharges: they shorten the life of any starter battery. On batteries with filler caps, check the electrolyte level and top up only with distilled water.
Shipping, delivery and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-TUDOR-TF1421
Data sheet
- Brand
- TUDOR
- Reference
- TF1421
- Model
- TUDOR PRO (HDX)
- Voltage (V)
- 12
- Length
- 345.00 mm
- Width
- 175.00 mm
- Height
- 290.00 mm
- Technology
- Lead-acid
- EAN
- 3661024055291
- Terminal layout
- Positive terminal on the left
- Cold cranking amps (EN)
- 850A
- Capacity (C20)
- 142Ah (c20)
Specific References
- EAN13
- 3661024055291
- MPN
- TF1421
4,73/5
Verified purchasesLatest verified reviews
★★★★★Miguel Angel Guerrero
12/07/2026Entrega muy rápida
Recibí la batería en menos de 13 horas. Una pasada
★★★★★Pablo Lopez
27/04/2026Muy buen servicio
Buen servicio y atención al cliente
★★★★★Marcos Moreno
17/02/2026Me encantan
Esta web tiene un gran servicio al cliente.
★★★★★Jose Ignacio Nieto
28/01/2026Sin duda volveré a confiar en esta web
Tiene de los mejores precios de baterías online que he visto, pero si encima te atienden vía telefónica super bien, no hay más que buscar. Otros ni te cogen el teléfono
★★★★★Martin Castro
16/01/2026Sobresaliente
Buena atención telefónica, cosa que no se puede decir de muchos otros sitios
★★★★★Felix Moreno
07/01/2026Perfecto
Me ayudaron con la instalación de mi batería
★★★★★Cesar Soto
27/12/2025Recomendado
He podido reemplazar la batería de mi coche. Buen servicio
★★★★★Antonio Martinez
22/10/2025Rapidez en la entrega
Recibí la bateria en menos de 13 horas. Una pasada
Codes and references Tudor TF1421
| Brand | Tudor · see all batteries Tudor |
|---|---|
| Manufacturer range | TUDOR PRO (HDX) |
| Manufacturer reference (MPN) | TF1421 |
| EAN-13 barcode | 3661024055291 |
| Dimensions (length × width × height) | 345 × 175 × 290 mm (345x175x290) |
Recommended accessories
How to change the battery
Guide to replace a truck battery in 30-60 minutes. Truck batteries weigh 25-50 kg — we recommend working in pairs and using a carrying strap.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery (two people)
Loosen the bottom hold-down clamp. Truck batteries weigh 25-50 kg — lift in pairs with gloves and a carrying strap. Forcing the lift alone risks back injury.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How is the Tudor TF1421 battery installed in the vehicle?
In most trucks it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On trucks with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Tudor TF1421 battery last?
Expected lifespan of the Tudor TF1421 is 4 to 6 years in regular truck use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 345×175×290 mm — also written as 345x175x290 mm — following the European DIN standard. Always measure the space in your truck before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Is the TF1421 valid for my vehicle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The TF1421 typically fits a wide range of European vehicles thanks to its standard DIN case format.
What are the equivalents of the TF1421 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop trucks. See the "Equivalents" section to view recommended options at the same performance level.
