Specifications
| Brand | VARTA |
|---|---|
| Part number | LFS105M |
| Voltage (V) | 12 |
| Capacity (C20) | 105Ah (c20) |
| Technology | Lead-acid |
| Length | 330 mm |
| Width | 172 mm |
| Height | 240 mm |
| Additional ETN | 931105080K312 |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you

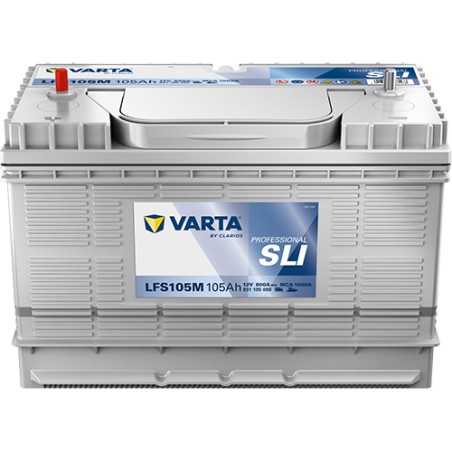

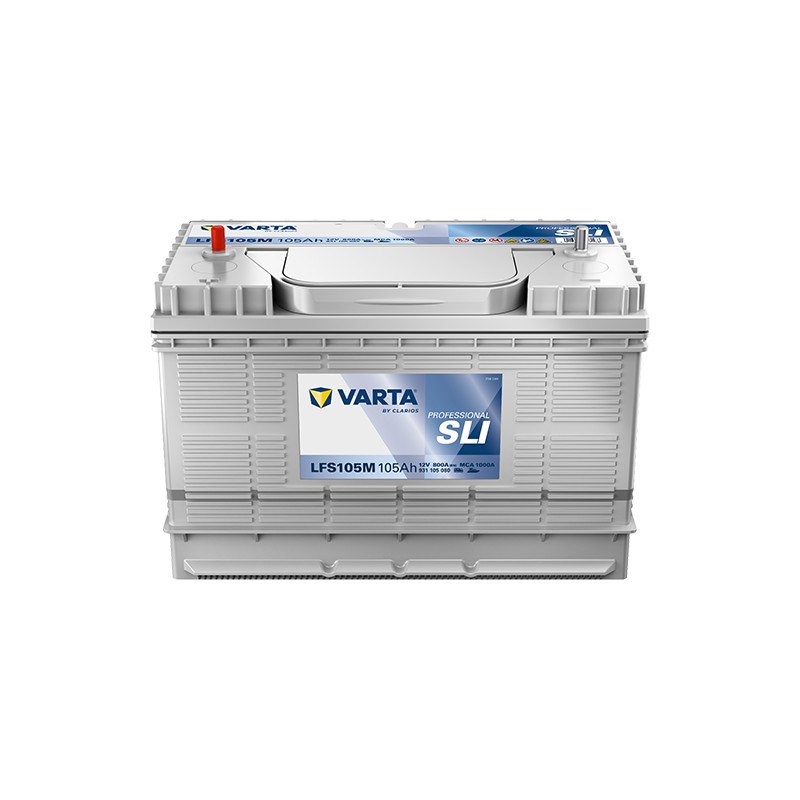

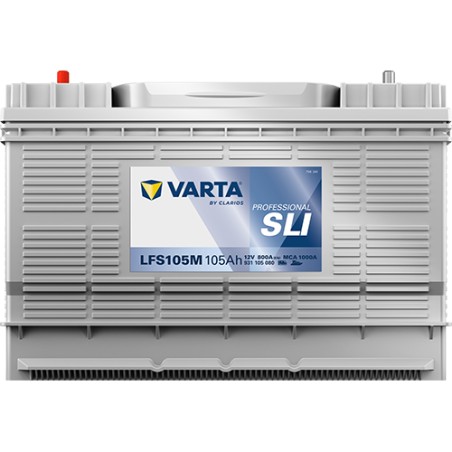

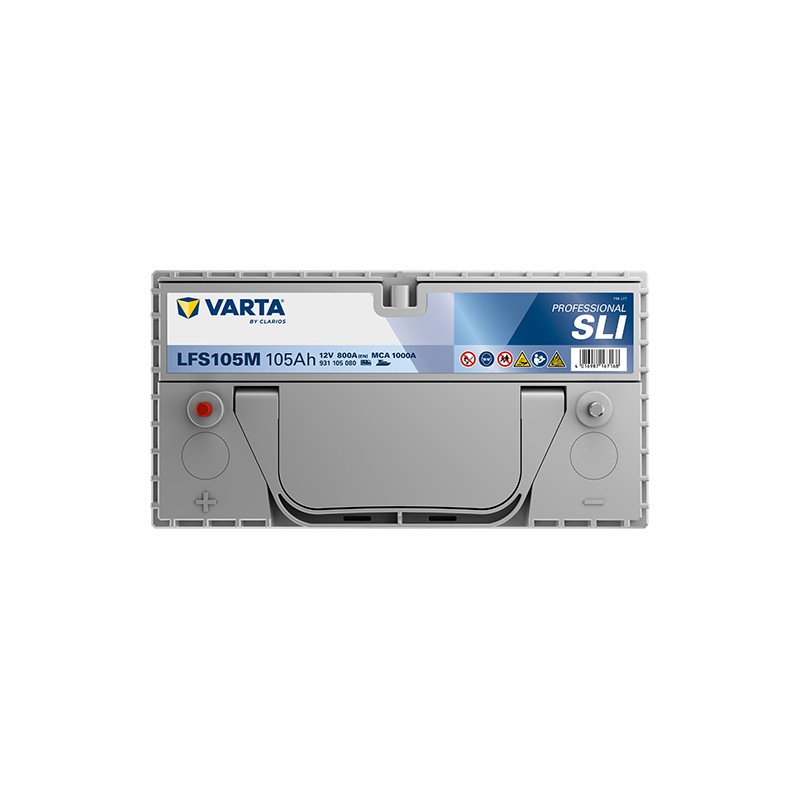

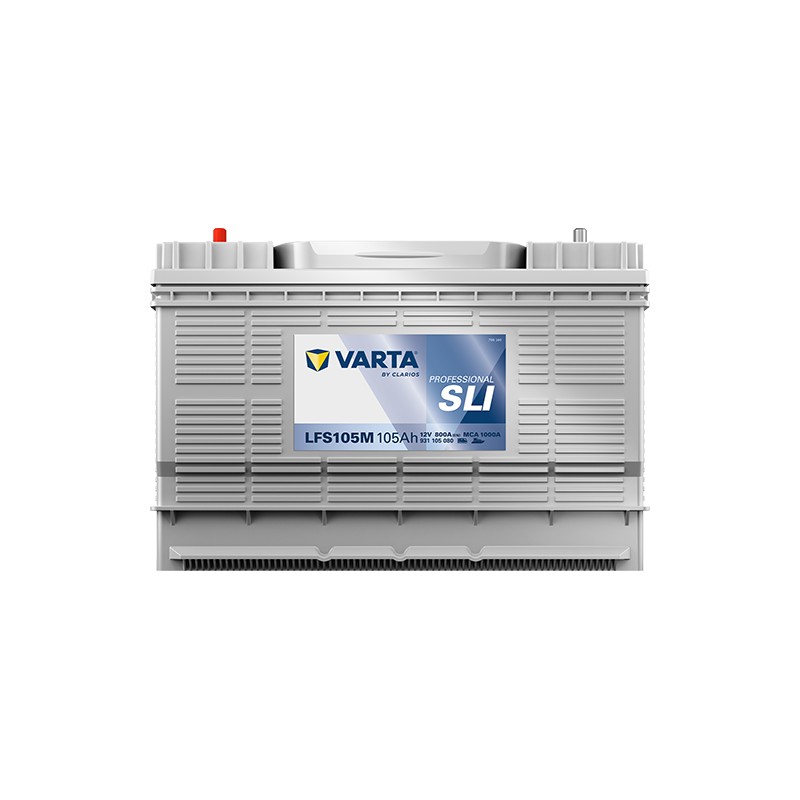

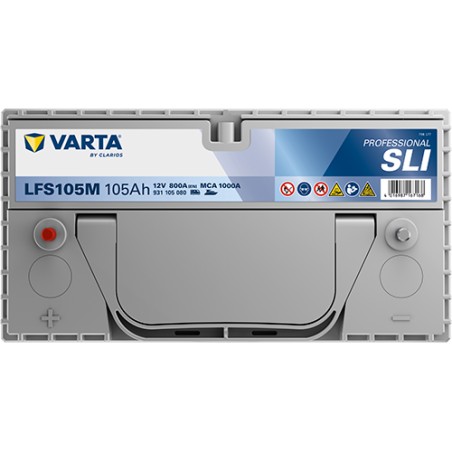

Varta LFS105M 12V 105Ah 800A is a starting battery for boats and motorhomes, with a case reinforced against the vibration of mooring and cruising. All its energy is designed to crank the engine reliably, not to run long loads: for that, fit a separate service bank.

The Varta LFS105M battery is the 12 V, 105 Ah model delivering 800 A of cold cranking power (EN), from Varta's Professional Starter from Varta, designed for starting marine engines and recreational vehicles in demanding conditions. With dimensions of 330 × 172 × 240 mm, it is the direct replacement for vehicles fitted from the factory with a 105 Ah battery in this format.
The Varta LFS105M covers the needs of starting marine engines and recreational vehicles in demanding conditions with 105 Ah of capacity and a construction built for that use. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a B01 hold-down.

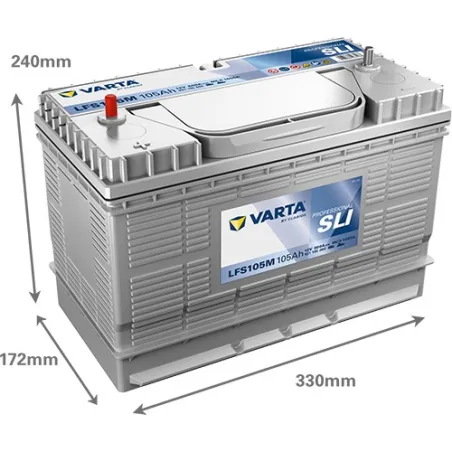

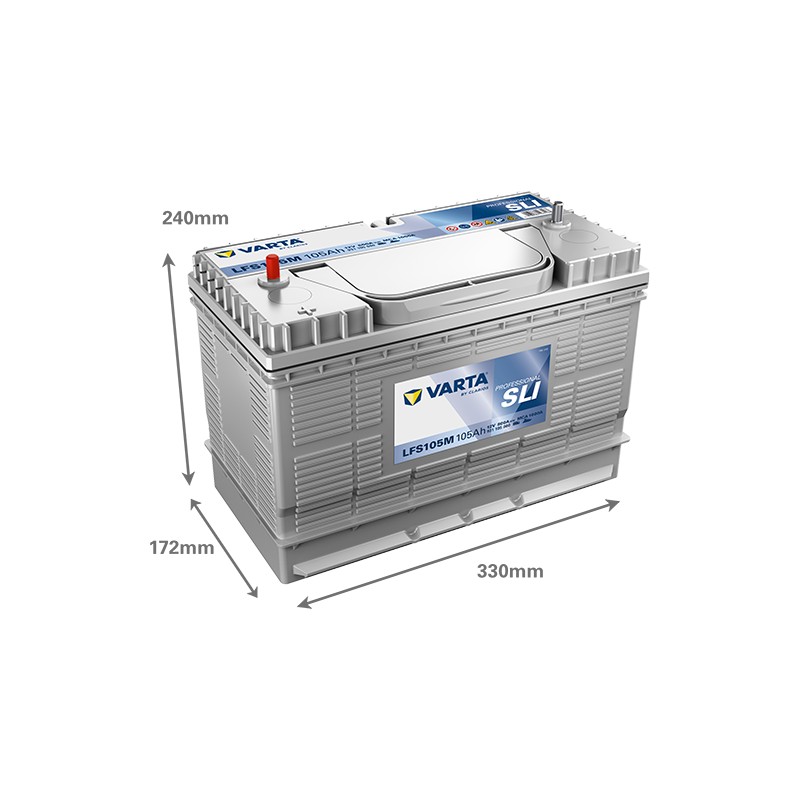

Its outer dimensions are 330 × 172 × 240 mm. It uses a B01 hold-down, the system that anchors it to the vehicle's battery tray. Before replacing it, measure the space your current battery occupies: if it matches on all three dimensions and on terminal position, the swap is direct and needs no adapters.
The Professional Starter range consists of pure starter batteries for leisure and boating, built to give marine engines and recreational vehicles powerful, reliable starting.
Unlike cycling or dual-purpose batteries, they are optimised for starting rather than for powering equipment over long periods: the choice when all you need is to fire up the engine with confidence.
Their construction prioritises peak current and resistance to the marine environment (vibration, damp and salt) rather than the ability to run equipment for hours: that is what the deep-cycle and dual-purpose ranges are for.
When a workshop recommends Varta, it is not down to marketing: it is one of the brands with the lowest return rates in the sector, with application coverage spanning practically the entire European fleet, from the city car to the commercial vehicle.
Varta combines more than a century of experience with Clarios's industrial production: it is the battery many manufacturers choose as standard and one of the most recommended by workshops. Like any lead-acid battery, it is 100% recyclable.
Varta is Europe's leading manufacturer of starter batteries: its production volume and quality controls guarantee consistent reliability batch after batch, something own-brand labels cannot always promise.
The Varta LFS105M battery comes with the official manufacturer warranty.
In leisure applications, avoiding discharges below 50% of capacity multiplies the number of cycles the battery will deliver. A suitable charger and, where possible, a solar regulator keep it healthy through the quieter seasons. To extend its life, recharge it as soon as possible after each discharge and never leave it flat over the winter. A trickle charger is the best investment for getting many cycles out of it.
Download the official technical sheet for this battery with all the manufacturer data.
Data sheet
Specific References
| Brand | Varta · see all batteries Varta |
|---|---|
| Manufacturer reference (MPN) | LFS105M |
| EAN-13 barcode | 4016987167168 |
| Dimensions (length × width × height) | 330 × 172 × 240 mm (330x172x240) |
The Varta LFS105M is interchangeable with these equivalent references: H16 (Varta), TB110B (Tudor).
| Product | Specifications | Technology | Price |
|---|---|---|---|
|
|
|||
|
|
12V 105Ah 800A | Lead-acid | €167.90 |
|
|
12V 110Ah 950A | Lead-acid | €494.50 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Guide to replace a marine battery (cranking or house) in 20-30 minutes. Moisture and vibration in marine environments require reinforced hold-downs and sealed copper terminals.
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Usually under the passenger bench, engine room or a dedicated ventilated compartment. Verify the compartment is dry and well ventilated before opening.
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Marine batteries are heavy (15-50 kg). If it has rope handles, use them; otherwise have a carry strap ready. Secure the new one with metal hold-downs (not plastic) to resist sea-state vibration.
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Apply dielectric grease on terminals to prevent salt-air corrosion. Check the engine charging circuit delivers 13.8-14.4 V at 2,000 rpm.
In most boats it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On boats with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
Expected lifespan of the Varta LFS105M is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
Dimensions (length × width × height) are 330×172×240 mm — also written as 330x172x240 mm — following the European DIN standard. Always measure the space in your boat before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The LFS105M typically fits a wide range of European vehicles thanks to its standard DIN case format.
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop boats. See the "Equivalents" section to view recommended options at the same performance level.
