Deta DB604 · Car battery 12V 60Ah 480A

Batería Deta DB604 60Ah - 1
search
  • Batería Deta DB604 60Ah - 1

This product is priced on demand to offer you the best available price at all times.

Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.

Thank you

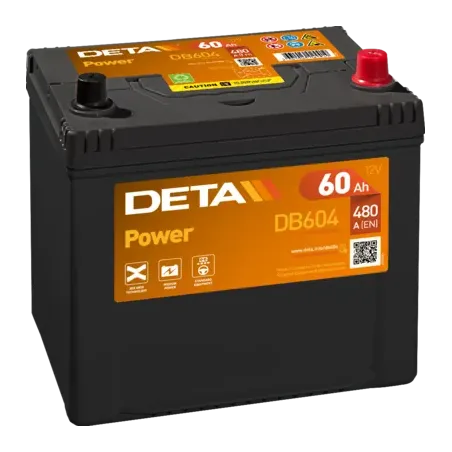

Deta DB604 12V 60Ah 480A is a ready-to-use passenger car battery, sealed and maintenance-free. Delivers the cranking amps the engine needs in cold weather and keeps stable voltage for modern car loads (ECU, sensors, climate control, infotainment).

Why this car battery?

  • Original-equipment qualitywithout dealership prices
  • Lasts 4 to 6 yearsbuy once instead of twice
  • Real human tech supportif you have any doubts before buying
Voltage
12 V
Capacity
60 Ah C20
Cold cranking
480 A EN-1
Dimensions
230×173×222 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
14,6 kg
Model
DETA Power
Free quote, no obligation

Request a quote for your Car battery Deta DB604 12V 60Ah 480A

  • Reply in under 24 working hours
  • Best price guaranteed
Attach photo (optional)
Photo of the old battery or vehicle documentation · Max. 3 · 8 MB · images or PDF
Logo Deta

Car battery Deta DB604 Power 60Ah 480A 12V

12VVoltage
60AhCapacity
480ACold cranking
14.60kgWeight

With 60 Ah at 12 V and 480 A of cold cranking current (EN), the Deta DB604 from the Power range is a starter battery built for passenger cars with conventional starting, without a Start-Stop system. Measuring 230 × 173 × 222 mm and the positive terminal on the right, it is the direct replacement for cars fitted from the factory with a 60 Ah battery of this format.

  • Good balance of capacity, cranking power and price.
  • Stable voltage for the vehicle electronics (ECU, sensors, climate control).
  • Low self-discharge: copes with long stops without losing charge.
  • Designed to last several years under normal daily use.

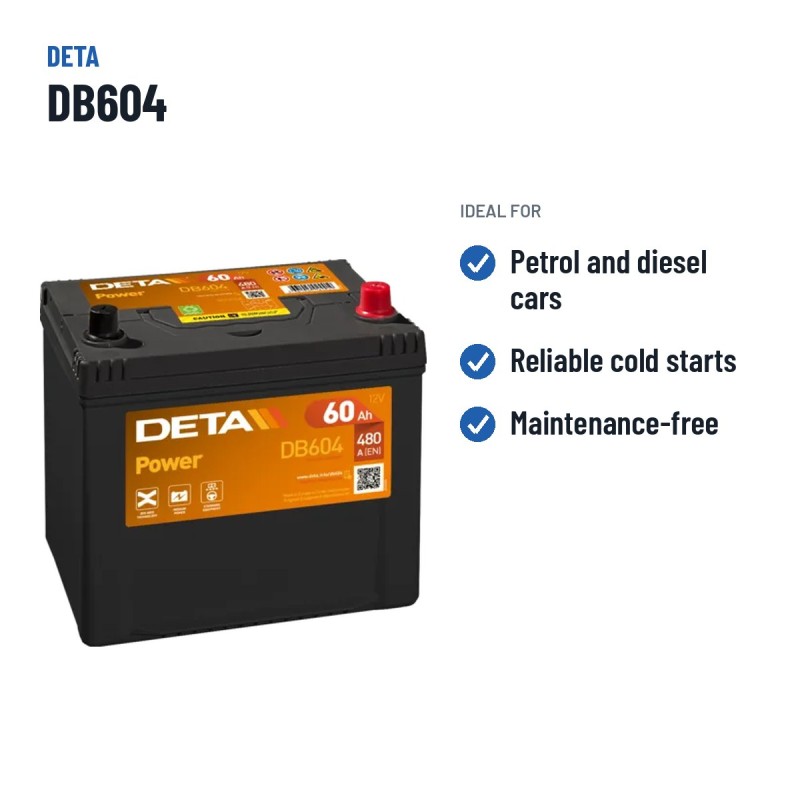

What the Deta DB604 is for

The Deta DB604 covers the needs of passenger cars with conventional starting, without a Start-Stop system: reliable starting, stable voltage for the electronics and a service life of several years in daily use. Check that it matches your current battery in size and terminal position. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 14.60 kg and Korean B1 hold-down.

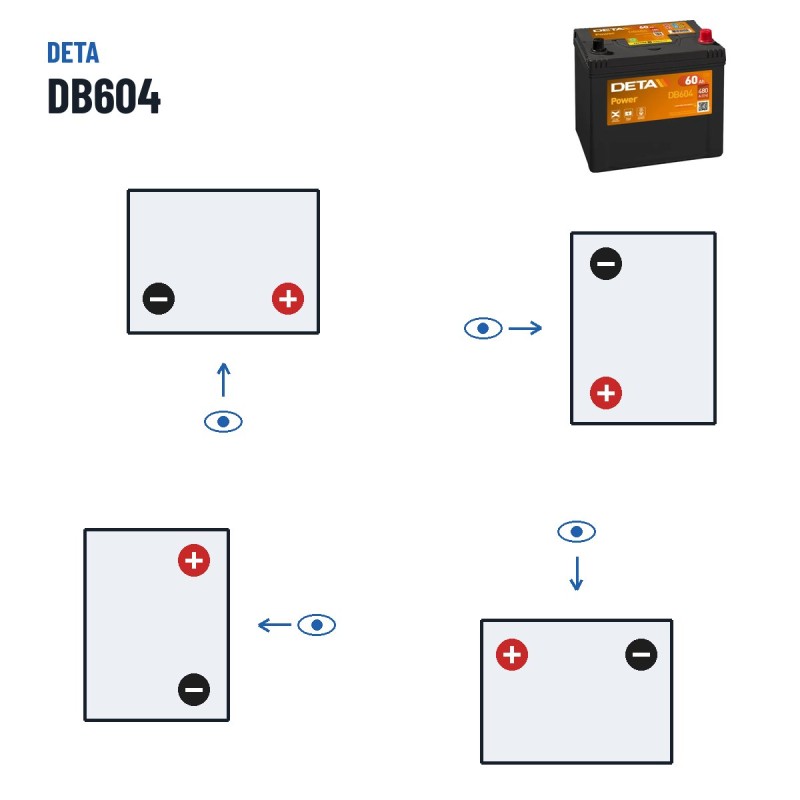

Dimensions, polarity and mounting

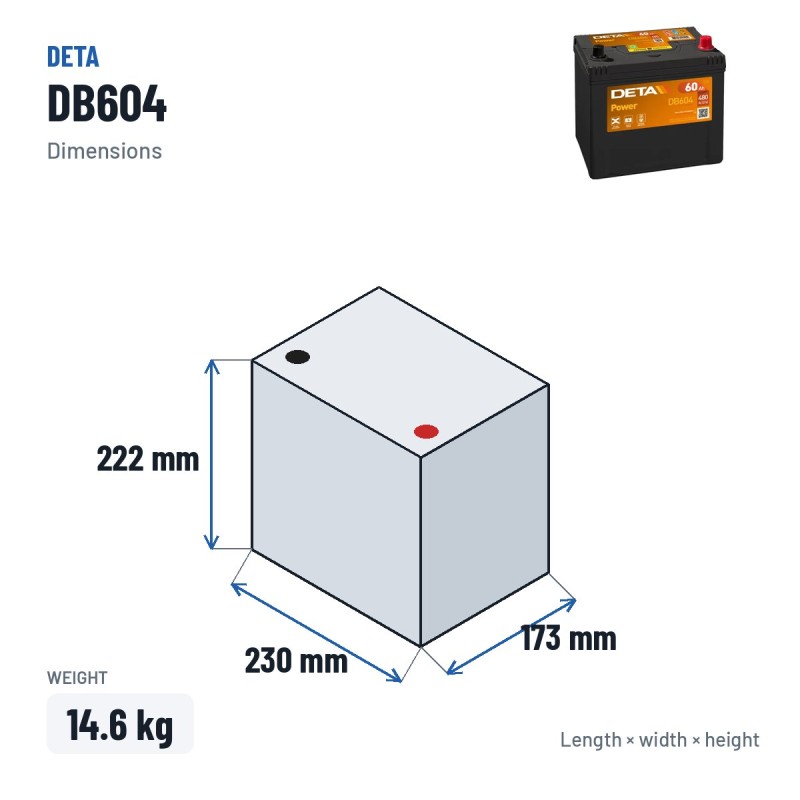

The Deta DB604 is made in the 230 × 173 × 222 mm format and weighs 14.60 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a Korean B1 hold-down, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.

What Deta does differently

Deta combines German engineering with Exide's industrial capacity. Its Power, Senator and PowerPRO series cover everything from urban cars to construction machinery. We guarantee that every Deta arrives new, charged and with the manufacturer's full warranty.

The Deta DB604: Power range and conventional lead-acid technology

The DB604 is part of the Deta Power range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.

The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.

Usage and maintenance tips

Avoid leaving lights or accessories on with the engine off: most batteries fail not through defects but through repeated deep discharges. Keep the terminals clean and tight, and check that the resting voltage does not drop below 12.4 V: below that it is time to recharge.

Warranty and coverage

The Deta DB604 comes with the manufacturer's official warranty against manufacturing defects; the exact period is stated in the brand's conditions. If it fails through a defect within the period, we replace it free of charge.

When you get it and how to return it

Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.

BCOM-DETA-DB604

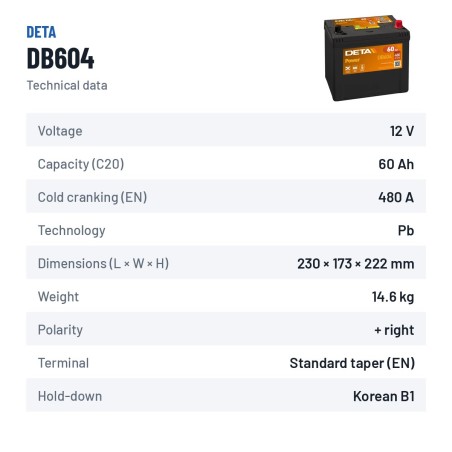

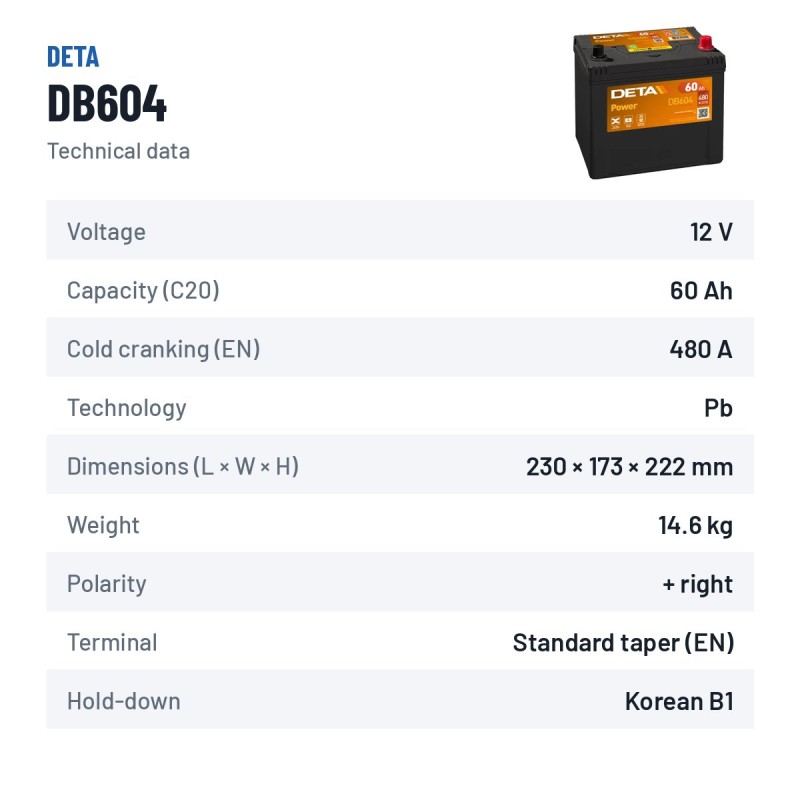

Data sheet

Brand
DETA
Reference
DB604
Model
DETA Power
Voltage (V)
12
Length
230 mm
Width
173 mm
Height
222 mm
Weight
14.60 Kgs
Technology
Lead-acid
EAN
3661024024419

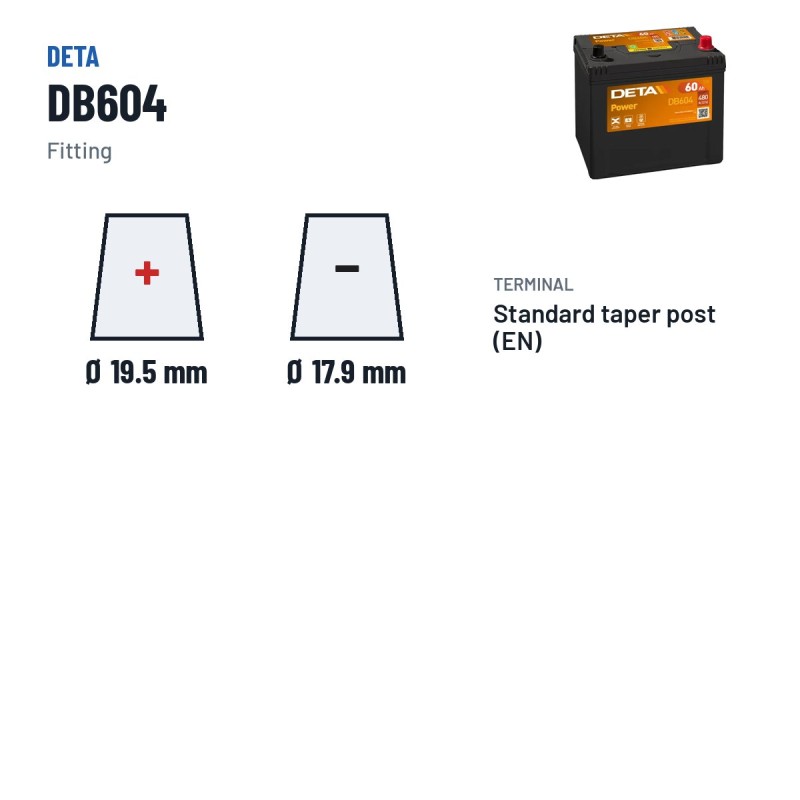

Terminal layout
Positive terminal on the right
Hold-down
Korean B1
Cold cranking amps (EN)
480A
Capacity (C20)
60Ah (c20)
Case type
D23

Specific References

EAN13
3661024024419
MPN
DB604

Codes and references Deta DB604

Brand Deta
Manufacturer range DETA Power
Manufacturer reference (MPN) DB604
EAN-13 barcode 3661024024419
Dimensions (length × width × height) 230 × 173 × 222 mm (230x173x222)

Comparison: Deta DB604 vs equivalents — alternatives with the same dimensions, Ah and CCA

The Deta DB604 is interchangeable with these equivalent references: TB604 (Tudor), EB604 (Exide), D47 (Varta), TA654 (Tudor), EA654 (Exide).

Product Specifications Technology Price
Deta DB604 Deta DB604 This battery 12V 60Ah 480A Lead-acid
Tudor TB604 Tudor TB604 ★ 4,8 12V 60Ah 480A Lead-acid €71.80
Exide EB604 Exide EB604 ★ 4,7 12V 60Ah 480A Lead-acid €107.70
Varta D47 Varta D47 ★ 4,7 12V 60Ah 540A Lead-acid €69.95
Tudor TA654 Tudor TA654 ★ 4,8 12V 65Ah 580A Lead-acid €93.20
Exide EA654 Exide EA654 ★ 4,8 12V 65Ah 580A Lead-acid €77.30

Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.

Recommended accessories — complement the Deta DB604 with a charger or tester

How to change the battery

Step-by-step guide to replace your car battery in 15-30 minutes (longer if the battery is under the seat or in the boot) without losing vehicle settings.

⏱ 15-30 min🛠 Tools: 10 mm wrench · Protective gloves
  1. Step 1. Prepare the vehicle

    Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.

  2. Step 2. Locate the battery

    Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.

  3. Step 3. Disconnect the negative (−) terminal

    Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.

  4. Step 4. Disconnect the positive (+) terminal

    Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.

  5. Step 5. Remove the old battery

    Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.

  6. Step 6. Install the new battery

    Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.

  7. Step 7. Connect the cables

    Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.

  8. Step 8. Verify the engine starts

    Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.

Frequently asked questions

How do I check that the Deta DB604 battery fits my vehicle?

Three ways: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team for the DB604; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)).

How do I fit the DB604 model in my car?

In most cars it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On cars with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.

What warranty does the Deta DB604 battery have?

The official manufacturer warranty is 2 years and covers manufacturing defects. Coverage includes cell breakdowns, internal short-circuits and abnormal capacity decreases. It does NOT cover misuse (prolonged overcharging, inadequate charger, defective alternator). On confirmed defect after technical inspection, we replace the DB604 model at no cost.

When will I receive the DB604 model?

In mainland Spain and Portugal it arrives in 24 h if you order before 6:00 pm and the battery is in stock — it leaves the same day and arrives the next business day. Afternoon or weekend orders ship the next business day. For Balearics, Canaries and other EU destinations, allow 2-5 days. Shipping cost is calculated in the cart based on destination and service (standard, express, cash on delivery). Tracking number is sent by email + SMS as soon as the parcel ships.

Can I return the Deta DB604 battery if it doesn't fit or doesn't work?

Yes. You have 14 days from delivery to return it. In mainland Spain and Portugal returns are FREE — we cover the return shipping cost via prepaid label. In other EU countries the return shipping cost is the customer's. It must arrive in its original packaging with no signs of installation. If it was defective, the warranty covers replacement even after the 14-day period.

Where can I buy this battery with full warranty?

At baterias.com — authorised distributor with real stock, Express 24h delivery in mainland Spain and Portugal if you order before 6:00 pm, and full manufacturer warranty. Shipping cost is calculated in the cart based on destination and chosen service (standard, express, cash on delivery). Secure payment by card, Bizum, PayPal or bank transfer. If you choose at-home installation, our technician will take the used battery and dispose of it through an authorised collection point.

How many years does this battery last?

Expected lifespan of the Deta DB604 is 4 to 6 years in regular car use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.

What are the measurements of the DB604 model?

Dimensions (length × width × height) are 230×173×222 mm — also written as 230x173x222 mm — following the European DIN standard. Always measure the space in your car before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.

What is the weight of the DB604 model?

It weighs 14,6 kg. Most of the weight is lead. If you plan to fit it yourself, use gloves and a carrying strap (AGM batteries are slightly heavier than conventional due to the absorbent glass-mat fibre).

Will the Deta DB604 battery fit my car?

Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The DB604 typically fits a wide range of European vehicles thanks to its standard DIN case format.

Which batteries are equivalent to the Deta DB604?

Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop cars. See the "Equivalents" section to view recommended options at the same performance level.

Is the DB604 model better than its equivalents from other brands?

This battery and its equivalents from Bosch, Tudor or Exide are technically comparable: same dimensions, same voltage and same capacity. The differences are warranty (Varta and Bosch: 2 years; Tudor and Exide: 2 years on the equivalent line), manufacturing plant (Varta and Bosch share origin in the Clarios Group; Tudor and Exide belong to Exide Technologies) and price. For private use any of these brands will give 4-6 years of life. Compare them in the "Equivalents" section.

What do users say about the Deta DB604 battery?
