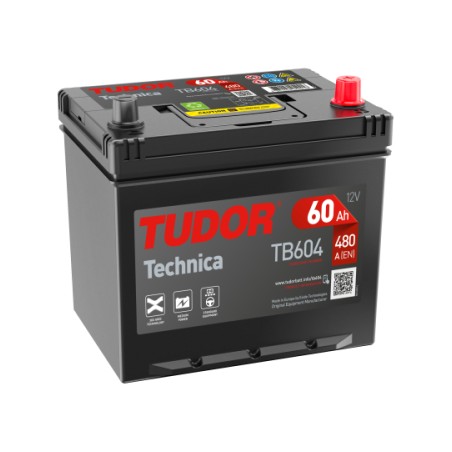

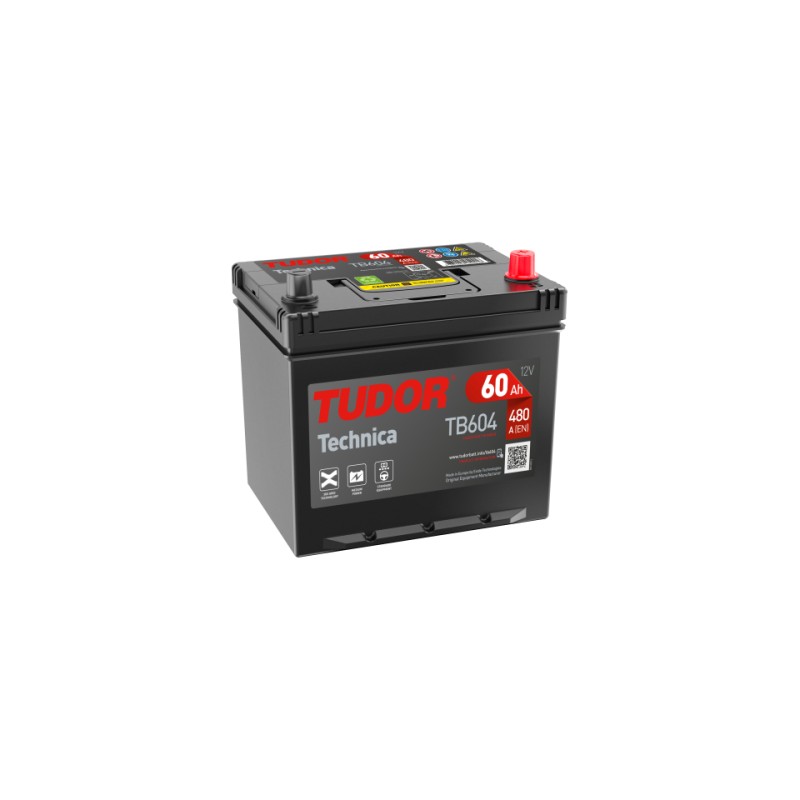

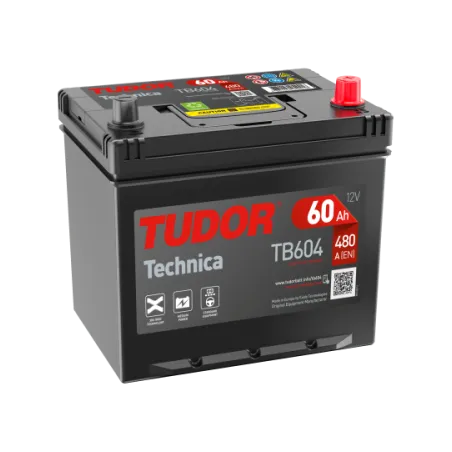

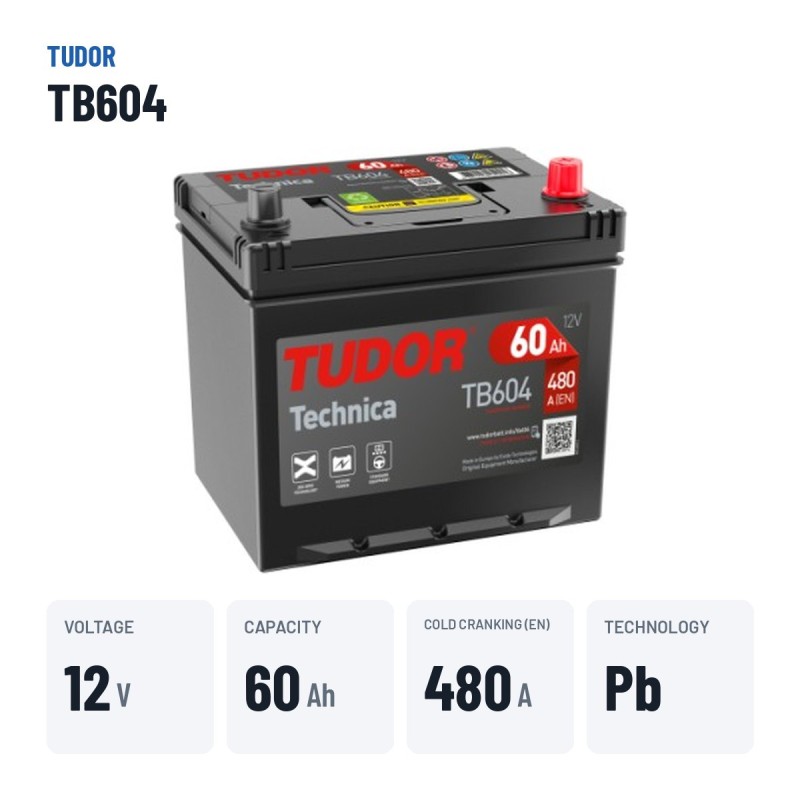

Tudor TB604 · Car battery 12V 60Ah 480A
Specifications
| Brand | TUDOR |
|---|---|
| Part number | TB604 |
| Voltage (V) | 12 |
| Capacity (C20) | 60Ah (c20) |
| Technology | Lead-acid |
| Length | 230.00 mm |
| Width | 173.00 mm |
| Height | 222.00 mm |
| Terminal layout | Positive terminal on the right |
€71.80
VAT included
4,82/5★★★★★35 reviewsVerified purchases
- ★★★★Carlos Martin:
Gracias por la atención. En otros sitios ni te cogen el telefono.
- ★★★★Marcos Ortiz:
Te atienden fenomenal
- ★★★★Juan Luis Ferrer:
Me ayudaron con la instalación de mi batería
Tudor TB604 12V 60Ah 480A is a ready-to-use passenger car battery, sealed and maintenance-free. Delivers the cranking amps the engine needs in cold weather and keeps stable voltage for modern car loads (ECU, sensors, climate control, infotainment).
Why this car battery?
- Original-equipment qualitywithout dealership prices
- Lasts 4 to 6 yearsbuy once instead of twice
- Real human tech supportif you have any doubts before buying
Voltage
12 V
Capacity
60 Ah
Cold cranking
480 A
Dimensions
230×173×222 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
14,2 kg
Model
TUDOR TECHNICA
Car battery Tudor TB604 Technica 60Ah 480A 12V
12VVoltage
60AhCapacity
480ACold cranking
14.20kgWeight
With 60 Ah at 12 V and 480 A of cold cranking current (EN), the Tudor TB604 from the Technica range is a starter battery built for passenger cars with conventional starting, without a Start-Stop system. Its 230 × 173 × 222 mm and the positive terminal on the right make it the exact replacement for the 60 Ah battery fitted as standard to many cars.
- Designed to last several years under normal daily use.
- Low self-discharge: copes with long stops without losing charge.
- Stable voltage for the vehicle electronics (ECU, sensors, climate control).
- Good balance of capacity, cranking power and price.

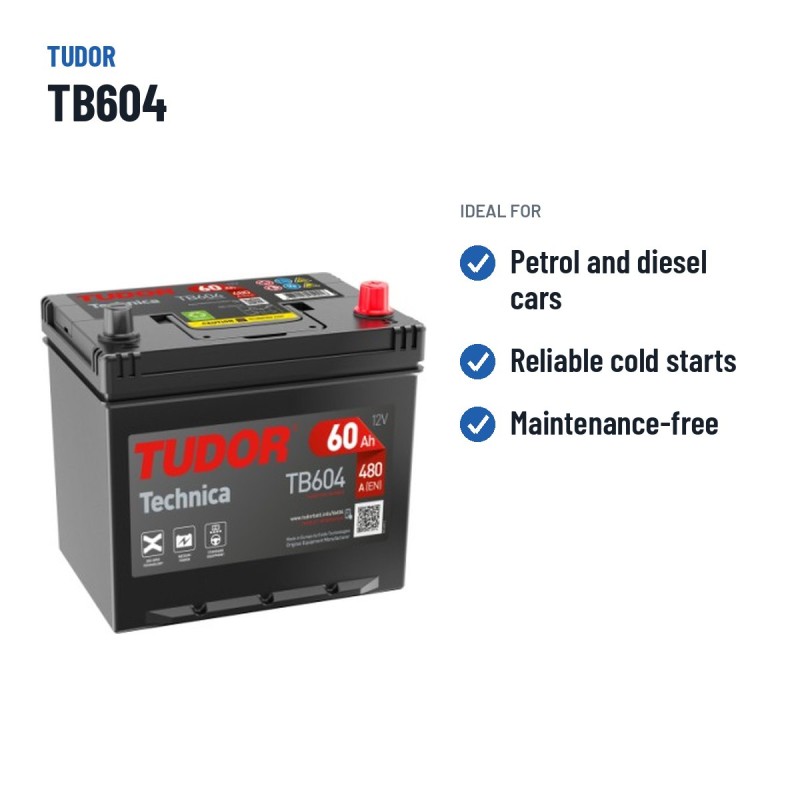

What the Tudor TB604 is for
With 60 Ah, the Tudor TB604 is sized for passenger cars with conventional starting, without a Start-Stop system. It is a direct replacement for the original battery as long as dimensions and terminals match. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 14.20 kg.
The Tudor TB604: Technica range and conventional lead-acid technology
Within the Tudor catalogue, the Technica series groups the references designed for this use. The TB604 is the 60 Ah model of that family, with the same performance as its siblings in other sizes.
In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.
Will it fit your current battery tray?

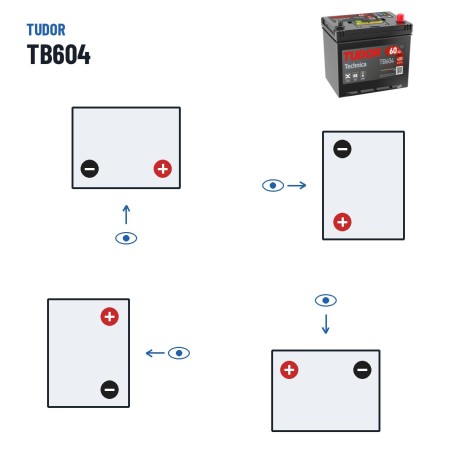

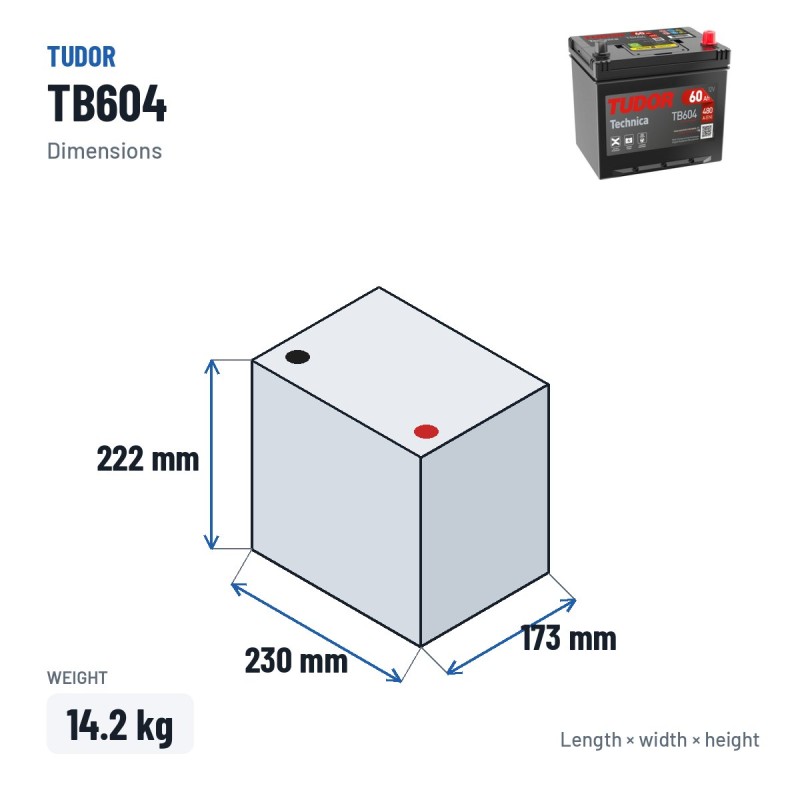

In terms of format, the Tudor TB604 measures 230 × 173 × 222 mm (length × width × height) and weighs 14.20 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
Why choose Tudor batteries
Tudor has made batteries in Spain for more than a century and remains one of the brands most trusted by Spanish workshops for reliability and value. All the Tudor batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Care and maintenance
Avoid leaving lights or accessories on with the engine off: most batteries fail not through defects but through repeated deep discharges. In normal daily use the alternator keeps the battery charged; if the car stands for weeks, a maintenance charge once a month prevents deep discharge.
Official warranty
The Tudor TB604 comes with the manufacturer's official warranty against manufacturing defects; the exact period is stated in the brand's conditions. If it fails through a defect within the period, we replace it free of charge.
Delivery times and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-TUDOR-TB604

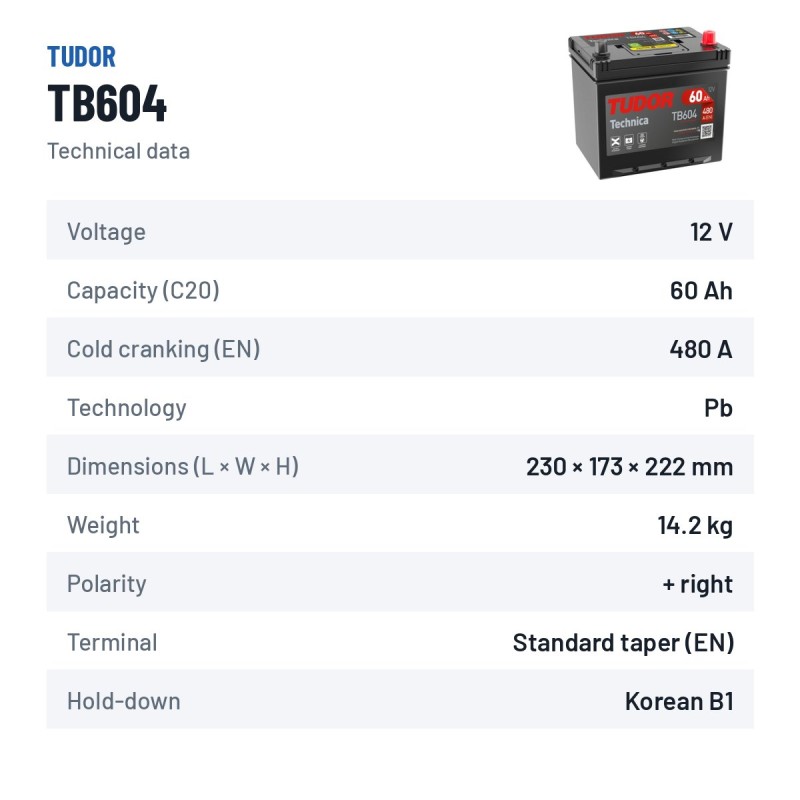

Data sheet
- Brand
- TUDOR
- Reference
- TB604
- Model
- TUDOR TECHNICA
- Voltage (V)
- 12
- Length
- 230.00 mm
- Width
- 173.00 mm
- Height
- 222.00 mm
- Technology
- Lead-acid
- EAN
- 3661024054416
- Terminal layout
- Positive terminal on the right
- Cold cranking amps (EN)
- 480A
- Capacity (C20)
- 60Ah (c20)
Specific References
- EAN13
- 3661024054416
- MPN
- TB604
4,82/5
Verified purchasesLatest verified reviews
★★★★★Carlos Martin
30/01/2026Se interesan por el cliente
Gracias por la atención. En otros sitios ni te cogen el telefono.
★★★★★Marcos Ortiz
18/01/2026Un servicio genial
Te atienden fenomenal
★★★★★Juan Luis Ferrer
25/12/2025Increíble
Me ayudaron con la instalación de mi batería
Codes and references Tudor TB604
| Brand | Tudor · see all batteries Tudor |
|---|---|
| Manufacturer range | TUDOR TECHNICA |
| Manufacturer reference (MPN) | TB604 |
| EAN-13 barcode | 3661024054416 |
| Dimensions (length × width × height) | 230 × 173 × 222 mm (230x173x222) |
Comparison: Tudor TB604 vs equivalents
The Tudor TB604 is interchangeable with these equivalent references: EB604 (Exide), D47 (Varta).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Tudor
TB604
This battery
|
12V 60Ah 480A | Lead-acid | €71.80 |
Exide
EB604
|
12V 60Ah 480A | Lead-acid | €107.70 |
Varta
D47
|
12V 60Ah 540A | Lead-acid | €69.95 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Step-by-step guide to replace your car battery in 15-30 minutes (longer if the battery is under the seat or in the boot) without losing vehicle settings.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How is the Tudor TB604 battery installed in the vehicle?
In most cars it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On cars with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Tudor TB604 battery last?
Expected lifespan of the Tudor TB604 is 4 to 6 years in regular car use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Tudor TB604 battery?
Dimensions (length × width × height) are 230×173×222 mm — also written as 230x173x222 mm — following the European DIN standard. Always measure the space in your car before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Tudor TB604 battery fit my car?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The TB604 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Tudor TB604?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop cars. See the "Equivalents" section to view recommended options at the same performance level.
