Exide 12N10-3B · Motorcycle battery 12V 10Ah 110A

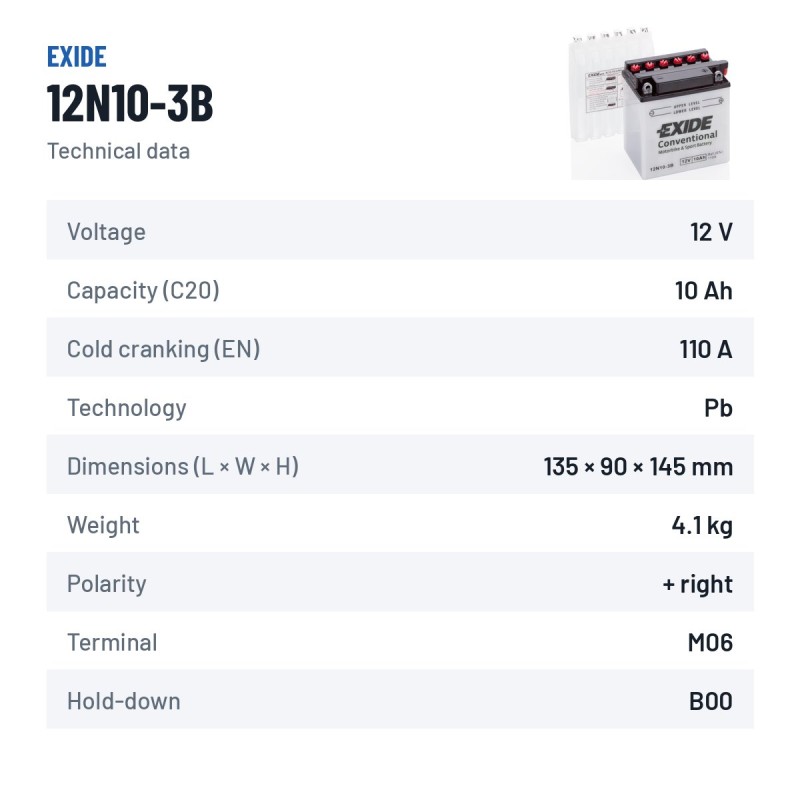

Specifications
| Brand | EXIDE |
|---|---|
| Part number | 12N10-3B |
| Voltage (V) | 12 |
| Capacity (C20) | 10Ah (c20) |
| Technology | Lead-acid |
| Length | 135.00 cm |
| Width | 90.00 cm |
| Height | 145.00 cm |
| Weight | 4.10 Kgs |
€118.70
VAT included
Exide 12N10-3B 12V 10Ah 110A is a motorcycle starter battery with standard JIS code (the one on your bike's original label). Ready to use, sealed and vibration-resistant. Fits any model that takes the same JIS reference — the code your mechanic recognises at a glance.
Why this motorcycle battery?
- Same JIS referenceas your bike's original — fits first time
- Sealed and ready to useno acid handling, no refills
- Survives winter storageholds charge through long off-season
JIS code
12N10-3B
Voltage
12 V
Capacity
10 Ah
Cold cranking
110 A
Dimensions
135×90×145 mm
Technology
Lead-acid
Polarity
Positive on the right
Weight
4,1 kg
Model
EXIDE MOTO CONVENTIONAL 12V
Mfr. reference
12N10-3B
Motorcycle battery Exide 12N10-3B Moto Convencional 10Ah 110A 12V
12VVoltage
10AhCapacity
110ACold cranking
4.10kgWeight
With 10 Ah at 12 V and 110 A of cold cranking current (EN), the Exide 12N10-3B with conventional lead-acid technology replaces the original battery of motorcycles, scooters, quads and personal watercraft. It replaces the original battery without adaptation in motorcycles with a 135 × 90 × 145 mm format: same 10 Ah capacity and the positive terminal on the right.
- Conventional lead-acid: the most proven and economical technology.
- Same JIS code as the original battery: fits first time.
- Resistant to the vibration typical of two wheels.
- Energetic cranking for high-compression engines.
Will it fit your current battery tray?

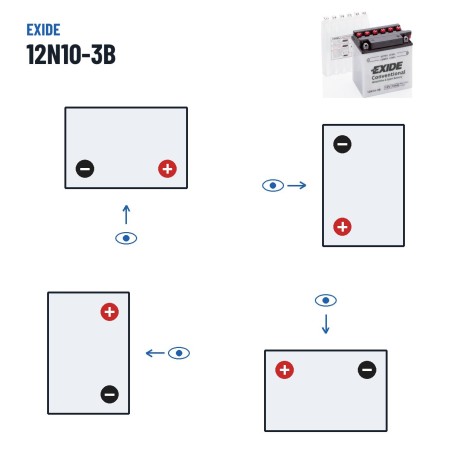

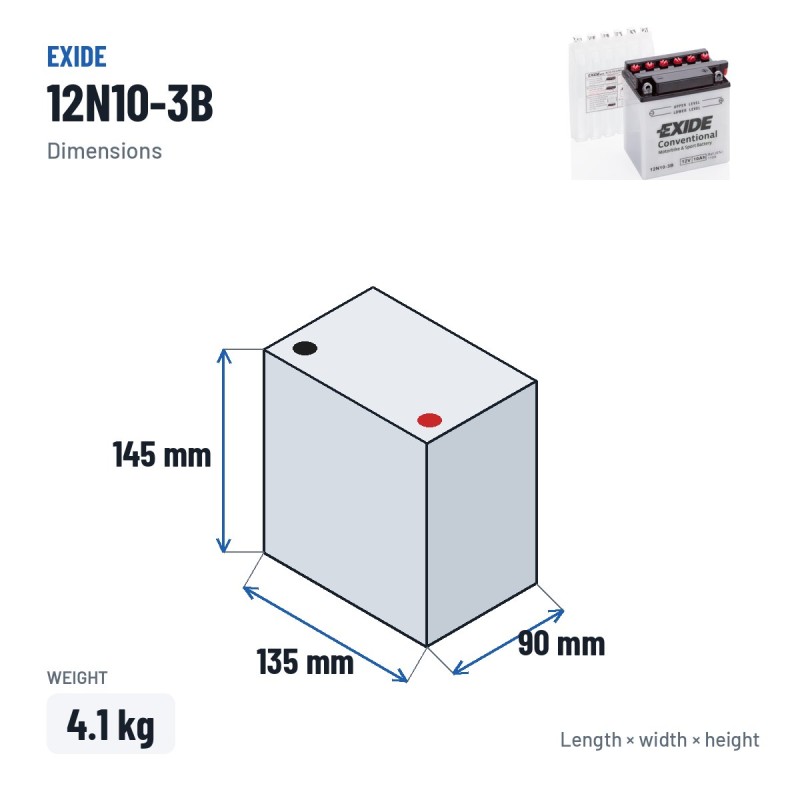

The Exide 12N10-3B is made in the 135 × 90 × 145 mm format and weighs 4.10 kg. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and M06 terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
What the Exide 12N10-3B is for
Designed for motorcycles, scooters, quads and personal watercraft, the Exide 12N10-3B replaces the original battery of bikes that use this code or format. Check the position of the positive terminal before ordering. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 4.10 kg, M06 terminals and B0 hold-down.
The Exide 12N10-3B: Moto Convencional range and conventional lead-acid technology
Within the Exide catalogue, the Moto Convencional series groups the references designed for this use. The 12N10-3B is the 10 Ah model of that family, with the same performance as its siblings in other sizes.
Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.
Exide: the maker behind the 12N10-3B
Exide is one of the world's largest battery manufacturers and an original-equipment supplier to many car makers. Its European plants produce starter, industrial and leisure batteries under original-equipment quality controls. We guarantee that every Exide arrives new, charged and with the manufacturer's full warranty.
Manufacturer's warranty
The Exide 12N10-3B comes with the manufacturer's official warranty. The warranty does not cover discharge through prolonged inactivity: if the bike stands for months, use a trickle charger.
Usage and maintenance tips
On batteries with filler caps, check the electrolyte level and top up only with distilled water. If the bike spends the winter standing, connect a trickle charger: deep discharge through inactivity is the first cause of premature failure.
Delivery times and returns
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-EXIDE-12N10-3B
Data sheet
- Brand
- EXIDE
- Reference
- 12N10-3B
- Model
- EXIDE MOTO CONVENCIONAL 12V
- Voltage (V)
- 12
- Length
- 135.00 cm
- Width
- 90.00 cm
- Height
- 145.00 cm
- Weight
- 4.10 Kgs
- Technology
- Lead-acid
- EAN
- 3661024033343
- Terminal layout
- Positive terminal on the right
- Terminal type
- M06
- Hold-down
- B0
- Cold cranking amps (EN)
- 110A
- Capacity (C20)
- 10Ah (c20)
Specific References
- EAN13
- 3661024033343
- MPN
- 12N10-3B
Codes and references Exide 12N10-3B
| Brand | Exide · see all batteries Exide |
|---|---|
| Manufacturer range | EXIDE MOTO CONVENCIONAL 12V |
| Manufacturer reference (MPN) | 12N10-3B |
| EAN-13 barcode | 3661024033343 |
| Dimensions (length × width × height) | 135 × 90 × 145 mm (135x90x145) |
Recommended accessories
How to change the battery
Guide to replace your motorcycle battery in 10-15 minutes. Motorcycle batteries are light (2-5 kg) and usually need an 8 mm wrench.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery compartment
On motorcycles it is usually under the seat, in the rear cowl or behind a side panel. Check the manual — access varies a lot between models.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the hold-down clamp or the straps that secure it. Lift the battery carefully — typical weight 2-5 kg. Check the terminals are not corroded before fitting the new one.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How do I fit the 12N10-3B model in my motorcycle?
In most motorcycles it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On motorcycles with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the 12N10-3B model?
Expected lifespan of the Exide 12N10-3B is 4 to 6 years in regular motorcycle use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What size is this battery?
Dimensions (length × width × height) are 135×90×145 mm — also written as 135x90x145 mm — following the European DIN standard. Always measure the space in your motorcycle before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Exide 12N10-3B battery fit my motorcycle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The 12N10-3B typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which interchangeable batteries are there for this one?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop motorcycles. See the "Equivalents" section to view recommended options at the same performance level.
