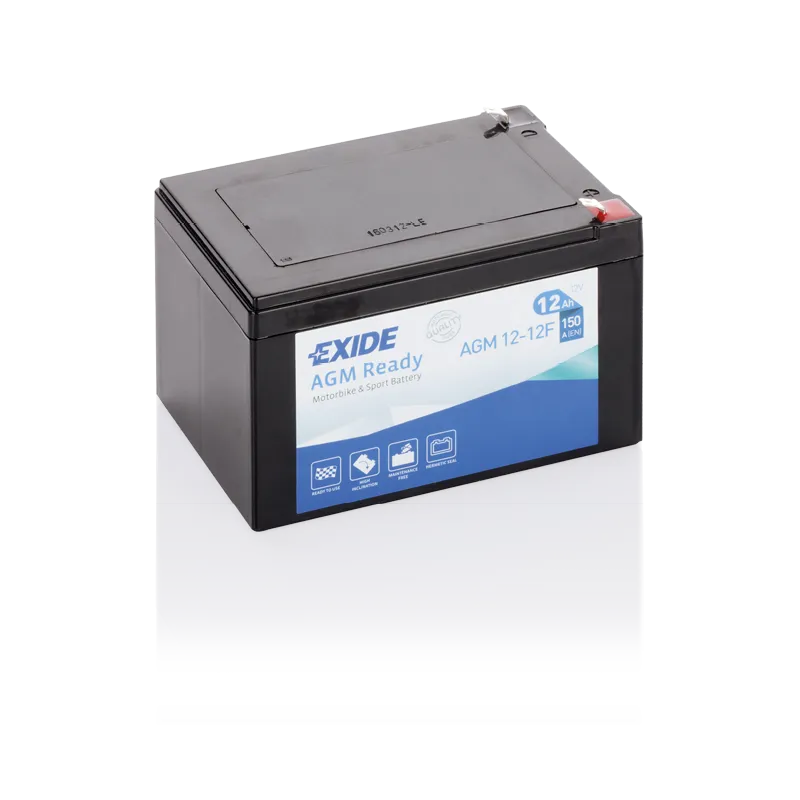

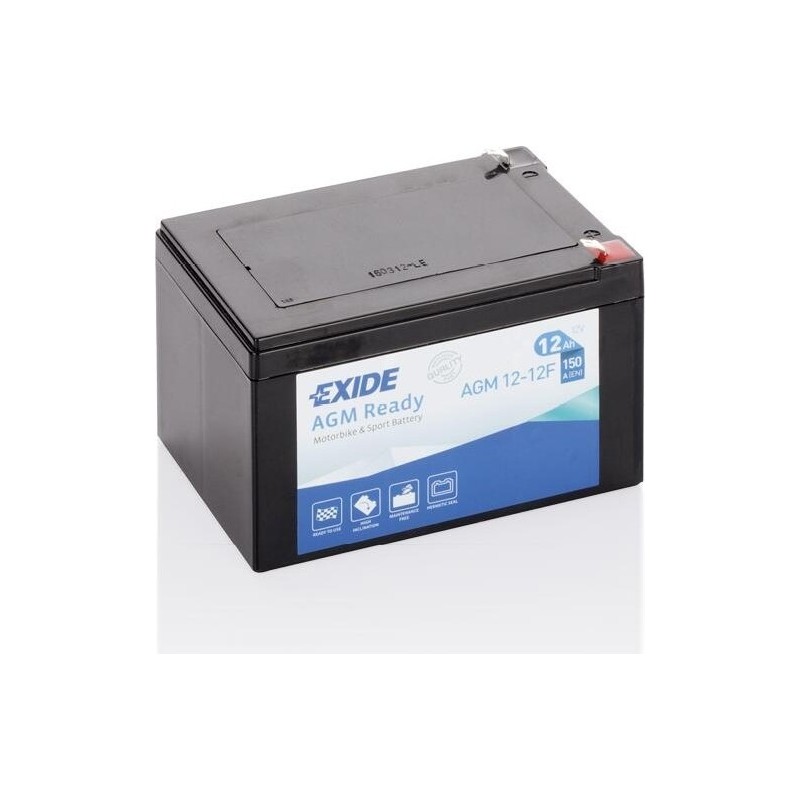

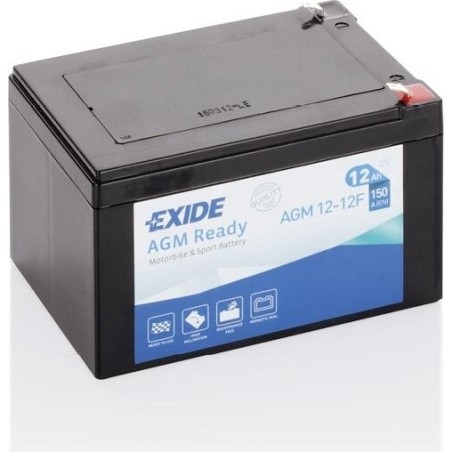

Exide AGM12-12F · Motorcycle battery 12V 12Ah 150A AGM
Specifications
| Brand | EXIDE |
|---|---|
| Part number | AGM12-12F |
| Voltage (V) | 12 |
| Capacity (C20) | 12Ah (c20) |
| Capacity (C10) | 12Ah (c10) |
| Cold cranking amps (EN) | 150A |
| Technology | AGM |
| Length | 150.00 cm |
| Width | 100.00 cm |
€45.80
VAT included
Exide AGM12-12F 12V 12Ah 150A is a sealed motorcycle battery ready to fit, with the JIS reference your mechanic recognises at a glance. Vibration-resistant, keeps voltage during the winter off-season and cranks first time when you take it out for a ride.
Why this motorcycle battery?
- Same JIS referenceas your bike's original — fits first time
- Sealed and ready to useno acid handling, no refills
- Survives winter storageholds charge through long off-season
Voltage
12 V
Capacity
12 Ah
Cold cranking
150 A
Dimensions
150×100×100 mm
Technology
AGM
Polarity
Positive on the left
Weight
3,8 kg
Model
EXIDE MOTO AGM 12V
Mfr. reference
AGM12-12F

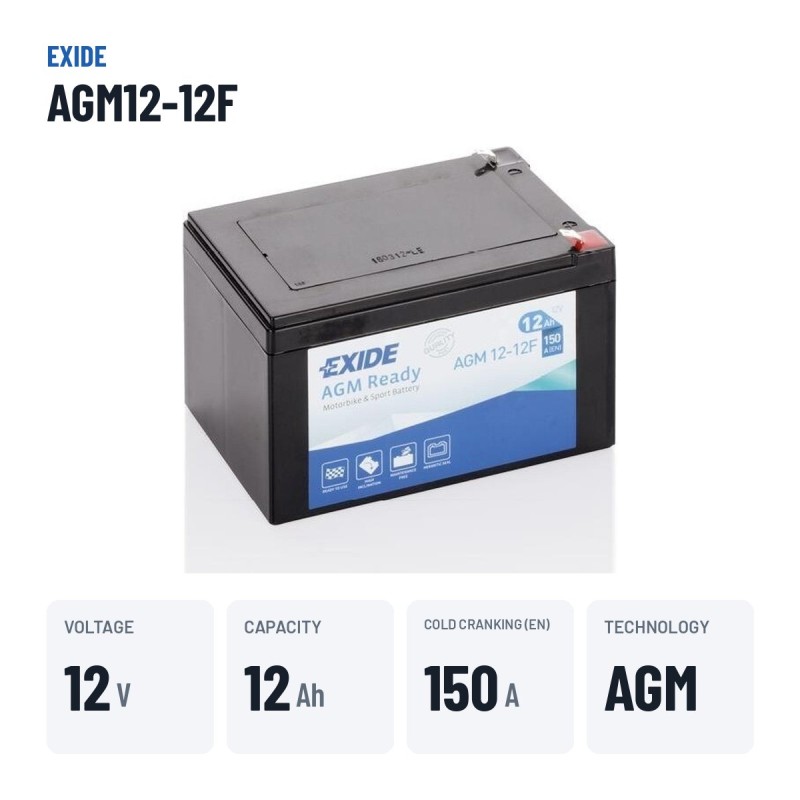

Motorcycle battery Exide AGM12-12F Moto AGM 12Ah 150A 12V
12VVoltage
12AhCapacity
150ACold cranking
3.80kgWeight
The Exide AGM12-12F motorcycle battery is rated at 12 V, 12 Ah and 150 A of cold cranking current (EN) from the Moto AGM range, and is designed for motorcycles, scooters, quads and personal watercraft. Measuring 150 × 100 × 100 mm and the positive terminal on the left, it is the direct replacement for motorcycles fitted from the factory with a 12 Ah battery of this format.
- AGM: faster recharging and better cycle resistance than a conventional battery.
- Sealed and ready to fit, no acid handling.
- Holds its charge through winter storage.
- Compact and lightweight format.

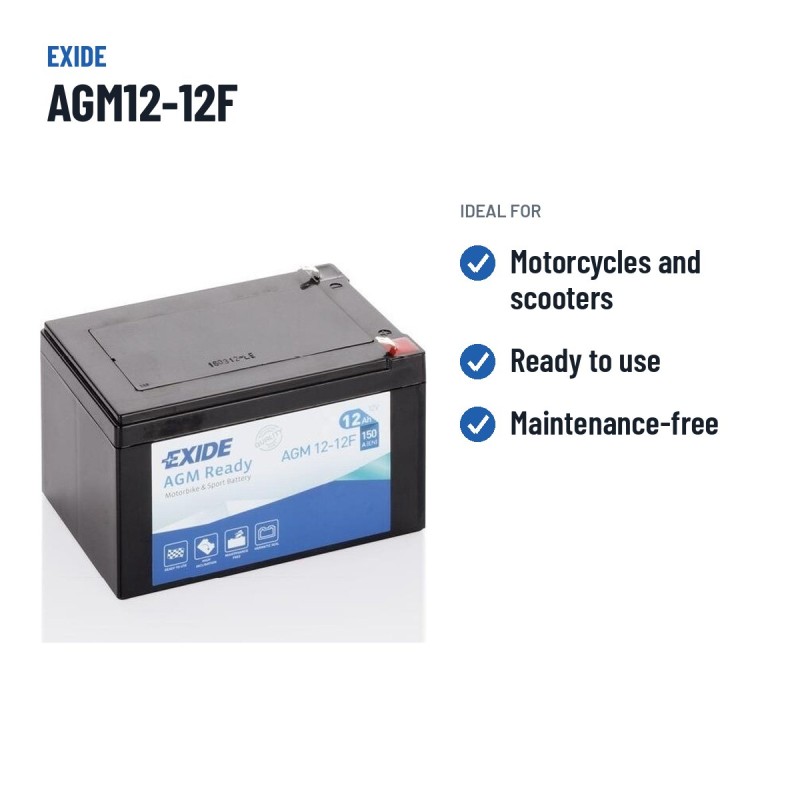

What the Exide AGM12-12F is for
With 12 Ah, the Exide AGM12-12F covers the starting of motorcycles, scooters, quads and personal watercraft. The JIS code on your current battery label is the safest way to confirm equivalence. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 3.80 kg, Faston S (4 8) terminals and B0 hold-down.
Will it fit your current battery tray?

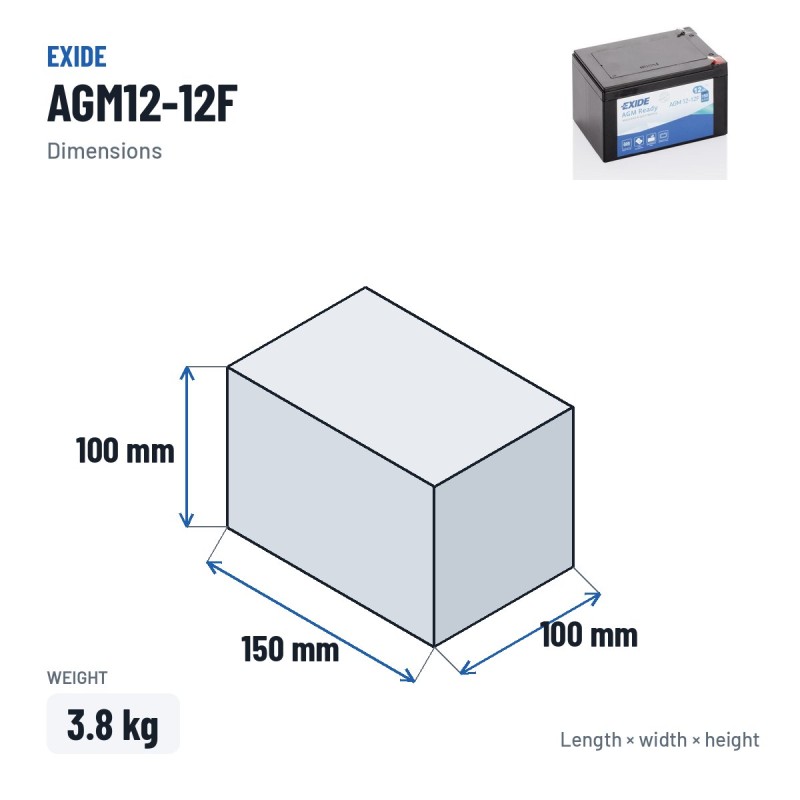

In terms of format, the Exide AGM12-12F measures 150 × 100 × 100 mm (length × width × height) and weighs 3.80 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and Faston S (4 8) terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
The Exide AGM12-12F: Moto AGM range and AGM technology
The Moto AGM is the Exide range the AGM12-12F belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.
What Exide does differently
With more than a century of history, Exide Technologies manufactures automotive, marine, motorcycle and industrial batteries in Europe. Its presence as original equipment on assembly lines vouches for the quality of every reference. All the Exide batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
Manufacturer's warranty
The Exide AGM12-12F comes with the manufacturer's official warranty. The warranty does not cover discharge through prolonged inactivity: if the bike stands for months, use a trickle charger.
Usage and maintenance tips
If the bike spends the winter standing, connect a trickle charger: deep discharge through inactivity is the first cause of premature failure. Avoid repeated cranking attempts on a cold bike for long: if it does not start on the third try, let the battery rest for a minute.
Delivery times and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-EXIDE-AGM12-12F

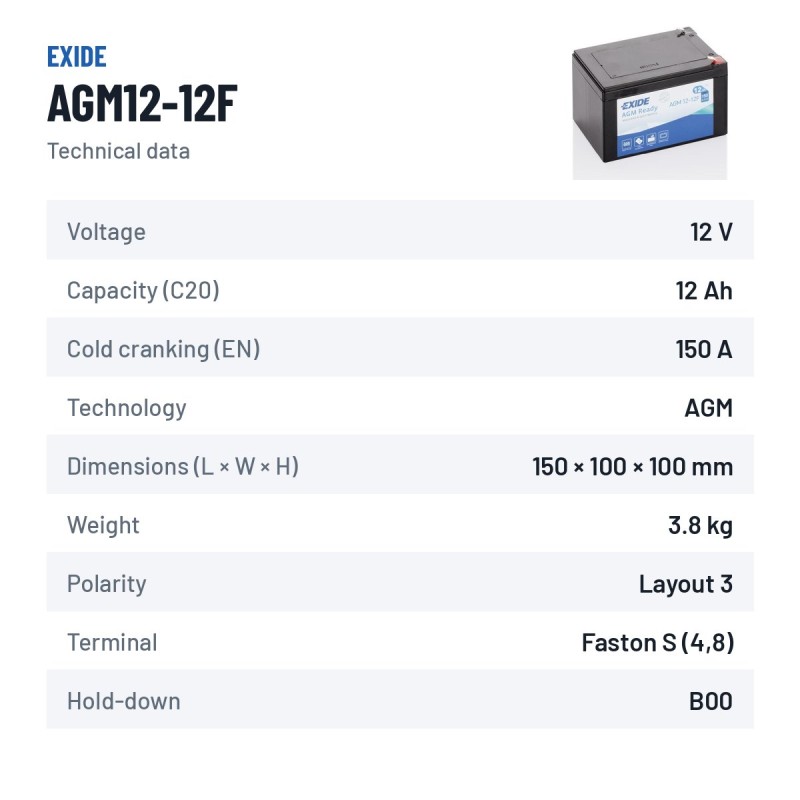

Data sheet
- Brand
- EXIDE
- Reference
- AGM12-12F
- Model
- EXIDE MOTO AGM 12V
- Voltage (V)
- 12
- Length
- 150.00 cm
- Width
- 100.00 cm
- Height
- 100.00 cm
- Weight
- 3.80 Kgs
- Technology
- AGM
- EAN
- 3661024036313
- Terminal layout
- Positive terminal on the left
- Terminal type
- Faston S (4 8)
- Hold-down
- B0
- Cold cranking amps (EN)
- 150A
- Capacity (C20)
- 12Ah (c20)
- Capacity (C10)
- 12Ah (c10)
Specific References
- EAN13
- 3661024036313
- MPN
- AGM12-12F
Codes and references Exide AGM12-12F
| Brand | Exide · see all Exide batteries |
|---|---|
| Manufacturer range | EXIDE MOTO AGM 12V |
| Manufacturer part number (MPN) | AGM12-12F |
| Also known as | AGM1212F · AGM12 12F |
| EAN-13 barcode | 3661024036313 |
| Dimensions (length × width × height) | 150 × 100 × 100 mm (150x100x100) |
Recommended accessories
How to change the battery
Guide to replace your motorcycle battery in 10-15 minutes. Motorcycle batteries are light (2-5 kg) and usually need an 8 mm wrench.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery compartment
On motorcycles it is usually under the seat, in the rear cowl or behind a side panel. Check the manual — access varies a lot between models.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the hold-down clamp or the straps that secure it. Lift the battery carefully — typical weight 2-5 kg. Check the terminals are not corroded before fitting the new one.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
Is the AGM12-12F model AGM? What does this technology offer?
Yes. The AGM12-12F from Exide uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for motorcycles with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How do I change this battery step by step?
In most motorcycles it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On motorcycles with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Exide AGM12-12F battery last?
Expected lifespan of the Exide AGM12-12F is 5 to 8 years in mild-climate motorcycle use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the AGM12-12F model?
Dimensions (length × width × height) are 150×100×100 mm — also written as 150x100x100 mm — following the European DIN standard. Always measure the space in your motorcycle before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Exide AGM12-12F battery fit my motorcycle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The AGM12-12F typically fits a wide range of European vehicles thanks to its standard DIN case format.
What are the equivalents of the AGM12-12F model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop motorcycles. See the "Equivalents" section to view recommended options at the same performance level.
