Exide ED1803 Endurance+PRO · Truck battery 180Ah 900A

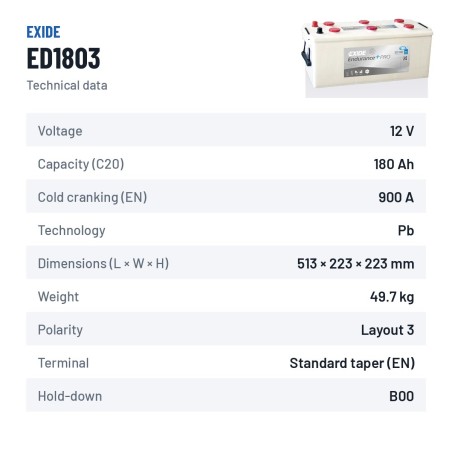

Specifications

BrandEXIDE
Part numberED1803
Voltage (V)12
Capacity (C20)180Ah (c20)
Cold cranking amps (EN)900A
TechnologyFlooded
Length513.00 mm
Width223.00 mm
Height223.00 mm
See the full specifications →

This product is priced on demand to offer you the best available price at all times.

Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.

Thank you

Exide ED1803 12V 180Ah 900A is an SHD (Super Heavy Duty) truck battery for intensive professional use. Vibration-resistant, withstands long cold-diesel cranks and deep discharges during parking with active loads (tachograph, refrigeration, heater).

Why this truck battery?

  • True Heavy Dutybuilt for intensive professional use
  • Long cold-diesel cranksreliable even in extreme cold
  • Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
180 Ah C20
Cold cranking
900 A EN-1
Dimensions
513×223×223 mm
Technology
Lead-acid
Polarity
Positive on the left
Weight
49,7 kg
Model
EXIDE Endurance+PRO Gel

Where it fits: the Exide ED1803 is one of our truck batteries, belongs to our Exide batteries and by capacity it sits among our 180Ah batteries.

Solve it now by chat Our assistant replies instantly about batteries, shipping and orders, and opens the request you need.
I prefer to fill in the form
Free quote, no obligation

Request a quote for your Truck battery Exide ED1803 12V 180Ah 900A

  • Reply in under 4 working hours
  • Best price guaranteed
Attach photo (optional)
Photo of the old battery or vehicle documentation · Max. 3 · 8 MB · images or PDF
Logo Exide

Truck battery Exide ED1803 Endurance+PRO 180Ah 900A 12V

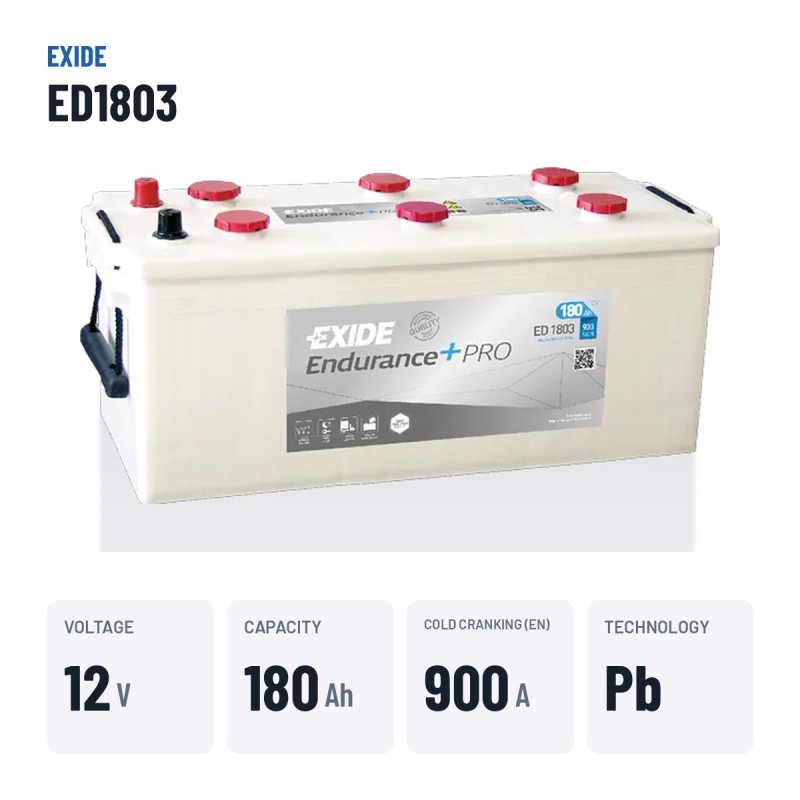

12VVoltage
180AhCapacity
900ACold cranking
49.70kgWeight

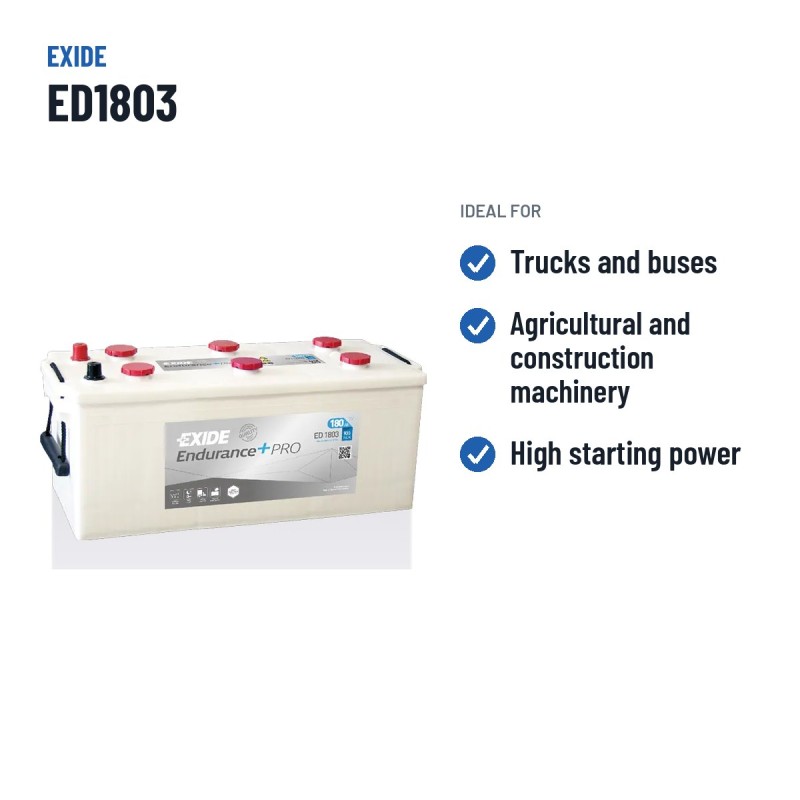

With 180 Ah and 900 A of cold cranking current (EN), the Exide ED1803 from the Endurance+PRO range is built for professional use in trucks, buses, tractors and heavy machinery. It measures 513 × 223 × 223 mm and the positive terminal on the left, the format sought by anyone replacing a 180 Ah battery in trucks.

In short: the Exide ED1803 (180 Ah, 900 A, 513 × 223 × 223 mm, positive terminal on the left). Verified equivalent alternatives: Varta M18 and Exide EG1803.

  • Designed for 24 V installations with two batteries in series.
  • Powerful cold cranking for large-displacement diesel engines.
  • Heavy Duty construction for intensive professional use.
  • Conventional lead-acid: the most proven and economical technology.

Vehicles compatible with the Exide ED1803

This battery appears as compatible in more than 424 vehicles from manufacturers such as Fiat, New Holland, Case Ih, Carraro, Valmet and Case. If you are looking for a battery for a Fiat or New Holland with these dimensions, the ED1803 is one of the usual replacement references. It also appears as a replacement in vehicles from Valtra, Steyr, Same, Case International, Hurlimann, Lamborghini, Zetor and Komatsu, among other manufacturers. In our database it is cross-referenced against 97 original-equipment part numbers, which gives an idea of its real coverage.

Dimensions, polarity and mounting

It has external dimensions of 513 × 223 × 223 mm and weighs 49.70 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and EN taper post terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.

The Exide ED1803: Endurance+PRO range and conventional lead-acid technology

Within the Exide catalogue, the Endurance+PRO series groups the references designed for this use. The ED1803 is the 180 Ah model of that family, with the same performance as its siblings in other sizes.

The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.

Exide: the maker behind the ED1803

With more than a century of history, Exide Technologies manufactures automotive, marine, motorcycle and industrial batteries in Europe. Its presence as original equipment on assembly lines vouches for the quality of every reference. All the Exide batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.

Official warranty

The Exide ED1803 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.

How to make it last longer

Keep the terminals clean and tight and the battery firmly secured against chassis vibration. On batteries with filler caps, check the electrolyte level and top up only with distilled water.

Shipping, delivery and returns

Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 1 to 2 working days in mainland Spain and 1 to 3 working days in mainland Portugal, 1 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.

  • Reference
    BCOM-EXIDE-ED1803

Data sheet

  • Brand
    EXIDE
  • Reference
    ED1803
  • Model
    EXIDE Endurance+PRO
  • Voltage (V)
    12
  • Length
    513.00 mm
  • Width
    223.00 mm
  • Height
    223.00 mm
  • Weight
    49.70 Kgs
  • Technology
    Flooded
  • EAN
    3661024035224
  • Terminal layout
    Positive terminal on the left

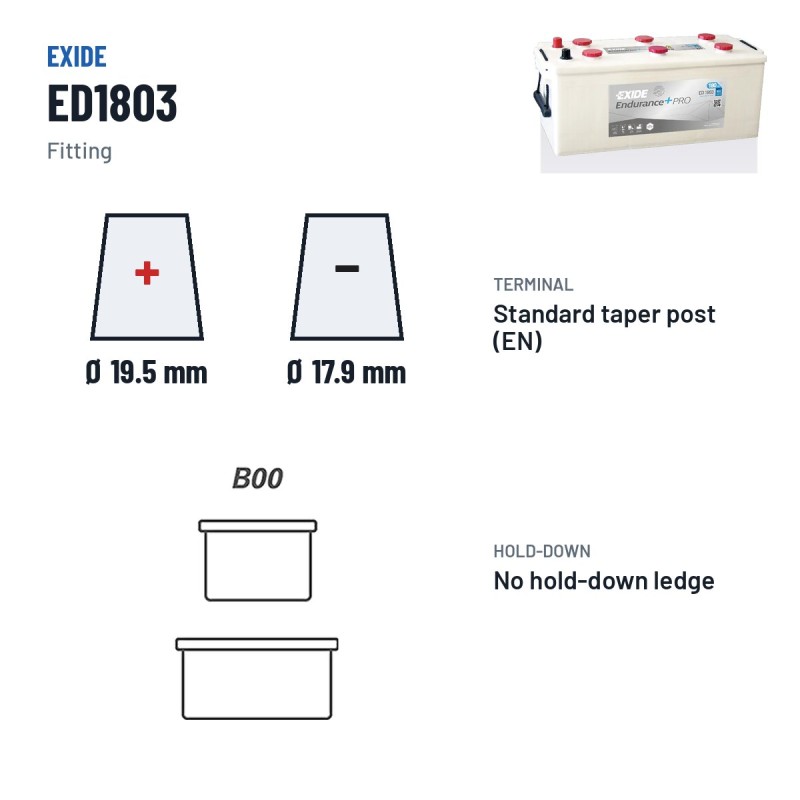

  • Terminal type
    EN taper post
  • Hold-down
    B0
  • Cold cranking amps (EN)
    900A
  • Capacity (C20)
    180Ah (c20)
  • Case type
    D05

Specific References

  • EAN13
    3661024035224
  • MPN
    ED1803

Download

Datasheet Exide ED1803 (English)

PDF datasheet of the Exide ED1803 battery – English

Download (161.41KB)

Codes and references Exide ED1803

Brand Exide · see all Exide batteries
Manufacturer range EXIDE Endurance+PRO
Manufacturer part number (MPN) ED1803
EAN-13 barcode 3661024035224
Dimensions (length × width × height) 513 × 223 × 223 mm (513x223x223)

Exide ED1803: best-selling equivalent or higher-spec batteries — alternatives with the same dimensions, Ah and CCA

The Exide ED1803 is interchangeable with these equivalent references: M18 (Varta), EG1803 (Exide), TG1803 (Tudor), TF1853 (Tudor), M12 (Varta). Higher-technology alternatives that can replace it: TE1853 (Tudor), TX1803 (Tudor), B90 (Varta).

Product Specifications Technology Price
Exide ED1803 Exide ED1803 This battery 12V 180Ah 900A Lead-acid
Exide EG1803 Exide EG1803 Bigger sister 12V 180Ah 1000A Lead-acid €178.80 +€178.80

Exide ED1803 vs Exide EG1803

Bigger sister · +€178.80

The next step up from the ED1803 in the same range and the same case. Compared with the ED1803 it has 100 A of cold cranking more. It costs €178.80 more. Worth it with an equipped cab (fridge, heater, equipment) or many long stops; otherwise the ED1803 does the job.

ED1803EG1803
Capacity180 Ah180 Ah
Cold cranking (EN)900 A1000 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price€178.80
Varta M12 Varta M12 Varta equivalent 12V 180Ah 1400A Lead-acid €179.40 +€179.40

Exide ED1803 vs Varta M12

Varta equivalent · +€179.40

Same case and same fitting as the ED1803, from Varta. Compared with the ED1803 it has 500 A of cold cranking more. It costs €179.40 more. If you want to save or the ED1803 is out of stock, it is the safe alternative: same dimensions, same polarity and official warranty.

ED1803M12
Capacity180 Ah180 Ah
Cold cranking (EN)900 A1400 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price€179.40
Varta M18 Varta M18 Varta equivalent 12V 180Ah 1000A Lead-acid €182.20 +€182.20

Exide ED1803 vs Varta M18

Varta equivalent · +€182.20

It is the verified Varta equivalent for the ED1803 tray. Compared with the ED1803 it has 100 A of cold cranking more. It costs €182.20 more. Decide by price, brand preference and availability: both fit and crank the same.

ED1803M18
Capacity180 Ah180 Ah
Cold cranking (EN)900 A1000 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price€182.20
Tudor TF1853 Tudor TF1853 Tudor equivalent 12V 185Ah 1150A Lead-acid €177.40 +€177.40

Exide ED1803 vs Tudor TF1853

Tudor equivalent · +€177.40

The Tudor alternative that fits where the ED1803 goes, with the same polarity. Compared with the ED1803 it has 5 Ah more and 250 A of cold cranking more. It costs €177.40 more. A straight swap with nothing to adapt; the difference is the price and the brand you prefer.

ED1803TF1853
Capacity180 Ah185 Ah
Cold cranking (EN)900 A1150 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price€177.40
Varta B90 Varta B90 Upgrade: EFB 12V 190Ah 1050A EFB Upgrade €209.60 +€209.60

Exide ED1803 vs Varta B90

Upgrade: EFB · +€209.60

It is the EFB version of the same case: it withstands far more partial discharges than the ED1803. Compared with the ED1803 it has 10 Ah more and 150 A of cold cranking more. It costs €209.60 more. Essential with Start-Stop or heavy draw at standstill; in a conventional-use truck the ED1803 does the job and EFB only adds service life.

ED1803B90
Capacity180 Ah190 Ah
Cold cranking (EN)900 A1050 A
TechnologyLead-acidEFB
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price€209.60
Tudor TG1803 Tudor TG1803 Tudor equivalent 12V 180Ah 1000A Lead-acid €181.60 +€181.60
Tudor TE1853 Tudor TE1853 Upgrade: EFB 12V 185Ah 1100A EFB Upgrade €293.20 +€293.20
Tudor TX1803 Tudor TX1803 Upgrade: EFB 12V 180Ah 1000A EFB Upgrade €261.95 +€261.95

Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.

Other 180Ah batteries: We stock 21 models of 180 Ah to compare by price, technology and cold cranking: see all 180Ah batteries. Same size (513 × 223 × 223 mm): batteries of 513 × 223 × 223 mm.

Recommended accessories — complement the Exide ED1803 with a charger or tester

Compatible vehicles

The Exide ED1803 fits 141 vehicles. Most searched below:

See all 141 compatible vehicles

Frequently asked questions

Why does my lorry have two batteries?

Most lorries, buses and tractors run on 24 V with two 12 V batteries connected in series. Always replace both at the same time and with the same model: if one is new and the other old, they become unbalanced and both last less.

How long does the Exide ED1803 battery last?

Estimated lifespan of the Exide ED1803: 4 to 6 years in normal lorry use. Treat it as an approximate guide, as every case is different. Many factors play a part: how it is used (lots of short trips, for example), temperature (cold makes every start harder and intense heat evaporates the electrolyte), the condition of the alternator and charging system, power drawn with the engine off and maintenance, as well as the type of truck and whether it has Start-Stop.

What are the measurements of the ED1803 model?

Length × width × height: 513x223x223 mm. Height is measured to the top of the terminals. Measure your truck's battery tray first; if the battery exceeds it by even a millimetre, the hold-down clamp may not close.

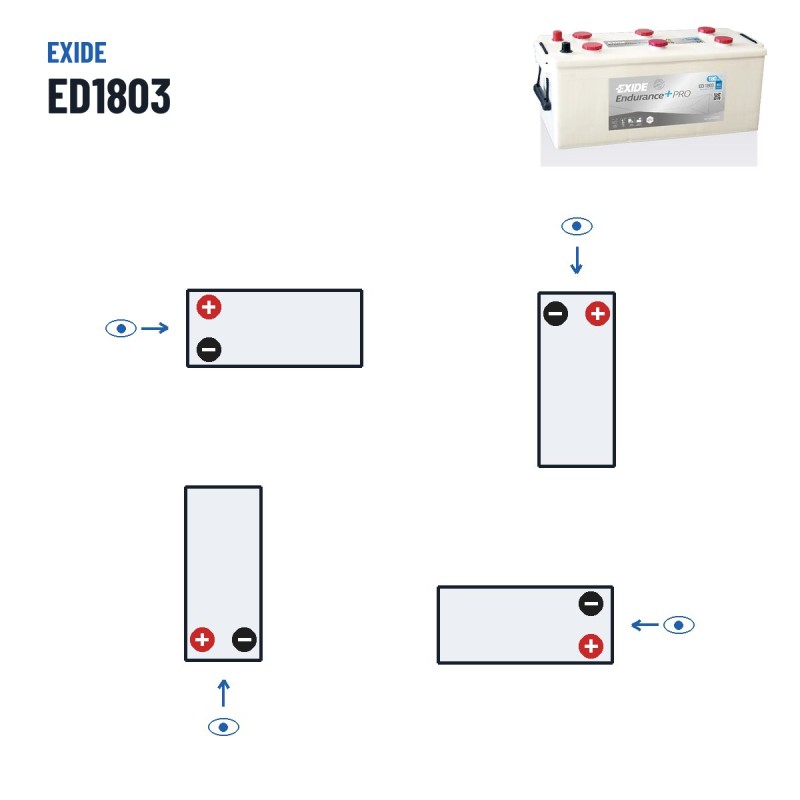

What polarity does the Exide ED1803 battery have?

The ED1803 has the positive on the left: that is its polarity. Face the battery with its terminals nearest you and see which side the positive post (+, red ring) is on. A change of polarity from the original means longer cables or a reconfigured system and can cause a short circuit: check it before ordering.

Will the Exide ED1803 battery fit my truck?

For your own vehicle: type your number plate into the finder (DGT/DVLA/KBA identify model and engine), check the "Compatible vehicles" tab below, listing vehicles verified by our technical team, or message us on WhatsApp with make, model, engine and year; we reply during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). According to our data, 141 verified vehicle versions are compatible with the ED1803. If our table and the truck handbook disagree, go with what the manufacturer says.

Which batteries are equivalent to the Exide ED1803?

To replace the Exide ED1803 without modifications, the other battery must be identical in size, polarity, Ah and CCA. Not just any technology will do: an EFB cannot be replaced with a conventional battery in Start-Stop trucks. The "Equivalents" section further down lists the recommended alternatives.
