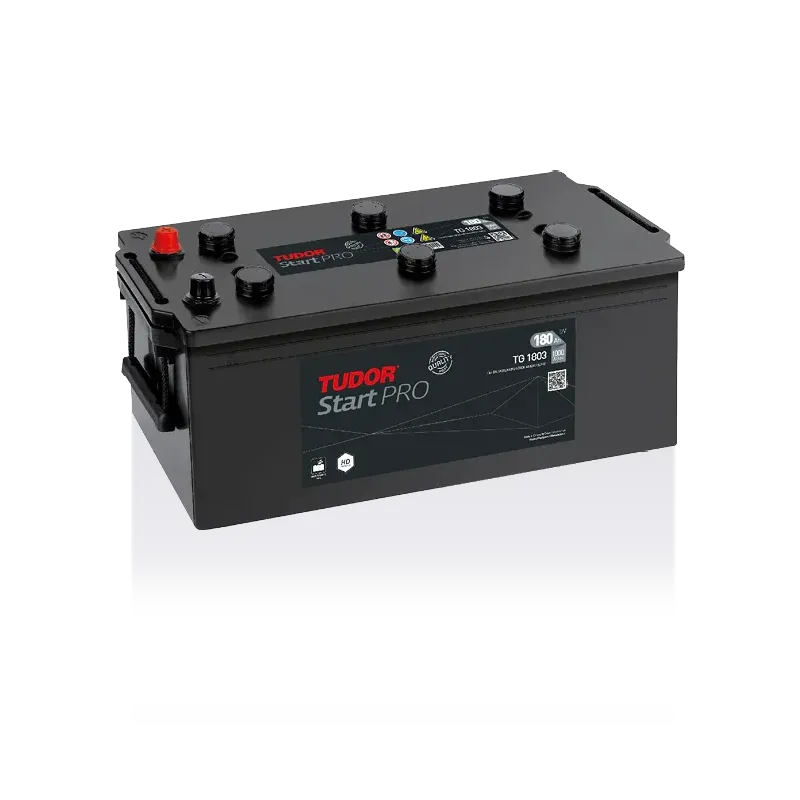

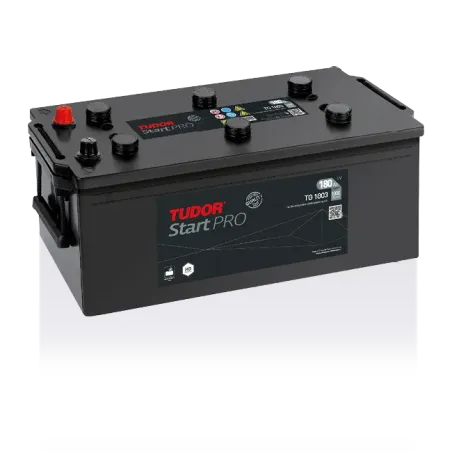

Tudor TG1803 Start Pro · Truck battery 180Ah 1000A

Specifications

BrandTUDOR
Part numberTG1803
Voltage (V)12
Capacity (C20)180Ah (c20)
Cold cranking amps (EN)1000A
TechnologyFlooded
Length513.00 mm
Width223.00 mm
Height223.00 mm
See the full specifications →
Price: €181.60
VAT included
Quantity

Brand: Tudor batteries Part number: TG1803

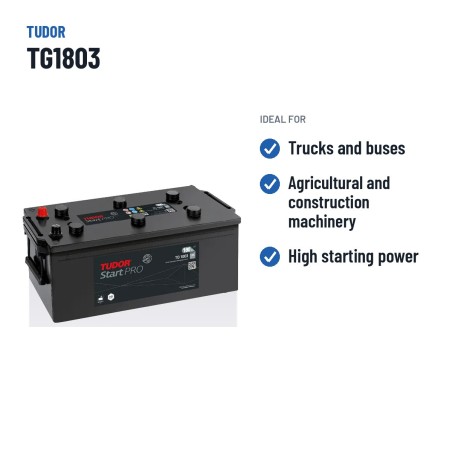

Tudor TG1803 12V 180Ah 1000A is a professional battery for heavy commercial vehicles. Withstands constant chassis vibration, supports long cold-engine cranks and keeps auxiliary services running (tachograph, heater, refrigeration, GPS) during driver's mandatory rest stops.

Why this truck battery?

  • True Heavy Dutybuilt for intensive professional use
  • Long cold-diesel cranksreliable even in extreme cold
  • Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
180 Ah C20
Cold cranking
1000 A EN-1
Dimensions
513×223×223 mm
Technology
Lead-acid
Polarity
Positive on the left
Weight
42,8 kg
Model
TUDOR START PRO (HD)

Where it fits: the Tudor TG1803 is one of our truck batteries, belongs to our Tudor batteries and by capacity it sits among our 180Ah batteries.

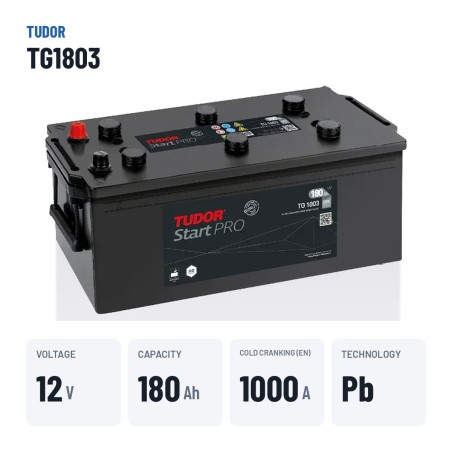

Truck battery Tudor TG1803 Start PRO (Hd) 180Ah 1,000A 12V

12VVoltage
180AhCapacity
1,000ACold cranking
42.80kgWeight

The Tudor TG1803 with conventional lead-acid technology delivers 180 Ah at 12 V and 1,000 A of cold cranking current (EN): what trucks, buses, tractors and heavy machinery demand. Measuring 513 × 223 × 223 mm and the positive terminal on the left, it is the direct replacement for trucks fitted from the factory with a 180 Ah battery of this format.

In short: the Tudor TG1803 (180 Ah, 1000 A, 513 × 223 × 223 mm, positive terminal on the left). Verified equivalent alternatives: Varta M18 and Exide EG1803.

  • Powers tachograph, fridge and heater during rest stops.
  • Better tolerance to deep discharge than a conventional starter battery.
  • Good balance of capacity, cranking power and price.
  • Resistant to constant chassis vibration.

Vehicles compatible with the Tudor TG1803

The Tudor TG1803 is compatible with more than 424 vehicles: it is fitted as original equipment or as a replacement by brands such as Fiat, New Holland, Case Ih, Carraro, Valmet and Case. It is a go-to option when you need a battery for a Fiat, New Holland or other models that use this same format. Models from Valtra, Steyr, Same, Case International, Hurlimann, Lamborghini, Zetor and Komatsu are added to that list. In our database it is cross-referenced against 97 original-equipment part numbers, which gives an idea of its real coverage.

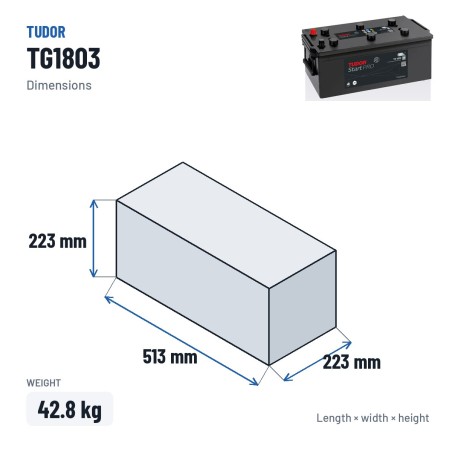

Size, terminals and hold-down of the Tudor TG1803

It has external dimensions of 513 × 223 × 223 mm and weighs 42.80 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and EN taper post terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.

The Tudor TG1803: Start PRO (Hd) range and conventional lead-acid technology

Within the Tudor catalogue, the Start PRO (Hd) series groups the references designed for this use. The TG1803 is the 180 Ah model of that family, with the same performance as its siblings in other sizes.

The conventional lead-acid battery remains the most widespread technology thanks to its balance of capacity, cranking current and price. Well maintained and kept charged, it offers years of reliable service in vehicles without Start-Stop.

What Tudor does differently

Tudor is Spain's historic battery brand, today part of the Exide group. Its car, truck, motorcycle and leisure ranges are built with the same technology and controls as the group's original-equipment references. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.

Official warranty

The Tudor TG1803 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.

Usage and maintenance tips

On batteries with filler caps, check the electrolyte level and top up only with distilled water. In 24 V installations, check periodically that both batteries show the same voltage; an imbalance means one is failing.

Delivery times and returns

Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 1 to 2 working days in mainland Spain and 1 to 3 working days in mainland Portugal, 1 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.

  • Reference
    BCOM-TUDOR-TG1803

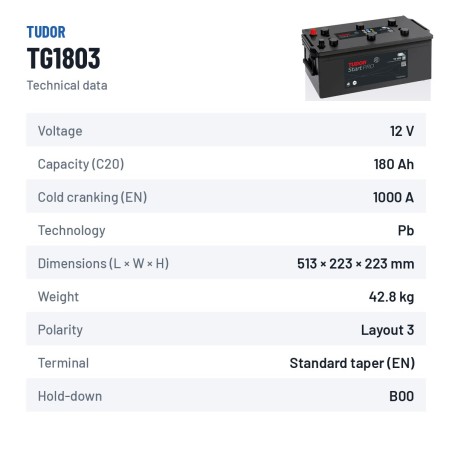

Data sheet

  • Brand
    TUDOR
  • Reference
    TG1803
  • Model
    TUDOR START PRO (HD)
  • Voltage (V)
    12
  • Length
    513.00 mm
  • Width
    223.00 mm
  • Height
    223.00 mm
  • Weight
    42.80 Kgs
  • Technology
    Flooded
  • EAN
    3661024055444

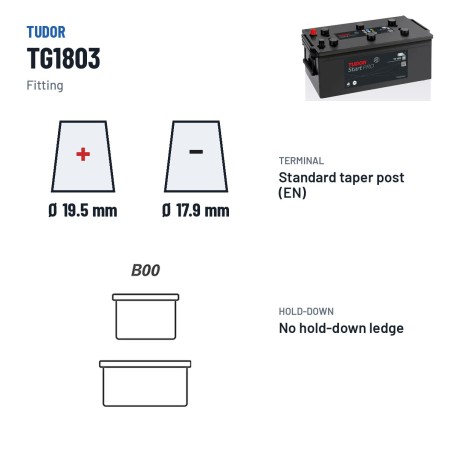

  • Terminal layout
    Positive terminal on the left
  • Terminal type
    EN taper post
  • Hold-down
    B0
  • Cold cranking amps (EN)
    1000A
  • Capacity (C20)
    180Ah (c20)
  • Case type
    D05

Specific References

  • EAN13
    3661024055444
  • MPN
    TG1803

Download

Datasheet Tudor TG1803 (English)

PDF datasheet of the Tudor TG1803 battery – English

Download (163.36KB)

Codes and references Tudor TG1803

Brand Tudor · see all Tudor batteries
Manufacturer range TUDOR START PRO (HD)
Manufacturer part number (MPN) TG1803
EAN-13 barcode 3661024055444
Dimensions (length × width × height) 513 × 223 × 223 mm (513x223x223)

Tudor TG1803: best-selling equivalent or higher-spec batteries — alternatives with the same dimensions, Ah and CCA

The Tudor TG1803 is interchangeable with these equivalent references: M18 (Varta), EG1803 (Exide), TF1853 (Tudor), M12 (Varta). Higher-technology alternatives that can replace it: TE1853 (Tudor), TX1803 (Tudor), B90 (Varta), EE1853 (Exide).

Product Specifications Technology Price
Tudor TG1803 Tudor TG1803 This battery 12V 180Ah 1000A Lead-acid 181,60 €
Tudor TF1853 Tudor TF1853 Bigger sister 12V 185Ah 1150A Lead-acid 177,40 € −4,20 €

Tudor TG1803 vs Tudor TF1853

Bigger sister · −4,20 €

It is the bigger sister of the TG1803 in the same Tudor range. Compared with the TG1803 it has 5 Ah more and 150 A of cold cranking more. It costs 4,20 € less. Worth it with an equipped cab (fridge, heater, equipment) or many long stops; otherwise the TG1803 does the job.

TG1803TF1853
Capacity180 Ah185 Ah
Cold cranking (EN)1000 A1150 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price181,60 €177,40 €
Tudor TE1853 Tudor TE1853 Upgrade: EFB 12V 185Ah 1100A EFB Upgrade 293,20 € +111,60 €

Tudor TG1803 vs Tudor TE1853

Upgrade: EFB · +111,60 €

It is the EFB version of the same case: it withstands far more partial discharges than the TG1803. Compared with the TG1803 it has 5 Ah more and 100 A of cold cranking more. It costs 111,60 € more. Essential with Start-Stop or heavy draw at standstill; in a conventional-use truck the TG1803 does the job and EFB only adds service life.

TG1803TE1853
Capacity180 Ah185 Ah
Cold cranking (EN)1000 A1100 A
TechnologyLead-acidEFB
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price181,60 €293,20 €
Tudor TX1803 Tudor TX1803 Upgrade: EFB 12V 180Ah 1000A EFB Upgrade 261,95 € +80,35 €

Tudor TG1803 vs Tudor TX1803

Upgrade: EFB · +80,35 €

It is the EFB version of the same case: it withstands far more partial discharges than the TG1803. Compared with the TG1803 it has the same Ah and cranking power. It costs 80,35 € more. Essential with Start-Stop or heavy draw at standstill; in a conventional-use truck the TG1803 does the job and EFB only adds service life.

TG1803TX1803
Capacity180 Ah180 Ah
Cold cranking (EN)1000 A1000 A
TechnologyLead-acidEFB
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price181,60 €261,95 €
Varta M12 Varta M12 Varta equivalent 12V 180Ah 1400A Lead-acid 179,40 € −2,20 €

Tudor TG1803 vs Varta M12

Varta equivalent · −2,20 €

It is the verified Varta equivalent for the TG1803 tray. Compared with the TG1803 it has 400 A of cold cranking more. It costs 2,20 € less. Decide by price, brand preference and availability: both fit and crank the same.

TG1803M12
Capacity180 Ah180 Ah
Cold cranking (EN)1000 A1400 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price181,60 €179,40 €
Varta M18 Varta M18 Varta equivalent 12V 180Ah 1000A Lead-acid 182,20 € +0,60 €

Tudor TG1803 vs Varta M18

Varta equivalent · +0,60 €

The Varta alternative that fits where the TG1803 goes, with the same polarity. Compared with the TG1803 it has the same Ah and cranking power. It costs 0,60 € more. A straight swap with nothing to adapt; the difference is the price and the brand you prefer.

TG1803M18
Capacity180 Ah180 Ah
Cold cranking (EN)1000 A1000 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 223 × 223513 × 223 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price181,60 €182,20 €
Varta B90 Varta B90 Upgrade: EFB 12V 190Ah 1050A EFB Upgrade 209,60 € +28,00 €
Exide EG1803 Exide EG1803 Exide equivalent 12V 180Ah 1000A Lead-acid 178,80 € −2,80 €
Exide EE1853 Exide EE1853 Upgrade: EFB 12V 185Ah 1100A EFB Upgrade 293,20 € +111,60 €

Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.

Other 180Ah batteries: We stock 21 models of 180 Ah to compare by price, technology and cold cranking: see all 180Ah batteries. Same size (513 × 223 × 223 mm): batteries of 513 × 223 × 223 mm.

Recommended accessories — complement the Tudor TG1803 with a charger or tester

Compatible vehicles

The Tudor TG1803 fits 141 vehicles. Most searched below:

See all 141 compatible vehicles

Frequently asked questions

Why does my lorry have two batteries?

Most lorries, buses and tractors run on 24 V with two 12 V batteries connected in series. Always replace both at the same time and with the same model: if one is new and the other old, they become unbalanced and both last less.

How long does the Tudor TG1803 battery last?

There is no exact figure: for a battery such as the Tudor TG1803, a reasonable guide is 4 to 6 years in normal lorry use. Actual lifespan varies with climate (cold starts, heat evaporating the electrolyte), with usage and short journeys, with the condition of the alternator and charging system, with power draw while parked and with maintenance; the type of truck and Start-Stop also count.

What size is this battery?

Measure the battery tray before ordering: a one-millimetre difference is enough for the hold-down clamp not to close. It measures 513×223×223 mm in length × width × height, with the terminals included in the height.

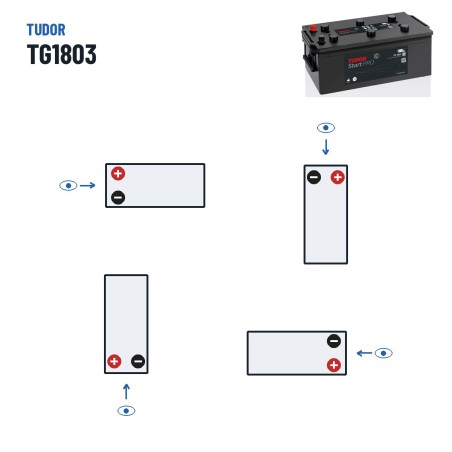

What polarity does the Tudor TG1803 battery have?

It has the positive on the left (polarity). Put it in front of you, terminals towards you: the post with the red ring and the + sign is the positive. Compare it with the battery you are replacing: if it does not match, cables must be lengthened or the system reconfigured, with a risk of short circuit.

Will the Tudor TG1803 battery fit my truck?

The TG1803 fits 141 verified vehicle versions in our database. The quickest way is to enter your number plate in the finder: DGT/DVLA/KBA detect model and engine. You can also look at the "Compatible vehicles" tab, verified by our technical team, or send us make, model, engine and year on WhatsApp; we answer during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). In every case, the truck manufacturer's specifications (owner's handbook) take precedence.

Which batteries are equivalent to the Tudor TG1803?

Technology matters too: in Start-Stop trucks, an EFB cannot be replaced with a conventional battery. The options at the same level are in the "Equivalents" section of this page. A battery interchangeable with the Tudor TG1803 must match it on dimensions (513×223×223 mm), polarity (positive on the left), capacity (180 Ah) and cranking current (1000 A).

Tudor TG1803 or Tudor TF1853: which one to choose?

It is the bigger sister of the TG1803 in the same Tudor range. Compared with the TG1803 it has 5 Ah more and 150 A of cold cranking more. It costs 4,20 € less. Worth it with an equipped cab (fridge, heater, equipment) or many long stops; otherwise the TG1803 does the job.

Tudor TG1803 or Tudor TE1853: which one to choose?

It is the EFB version of the same case: it withstands far more partial discharges than the TG1803. Compared with the TG1803 it has 5 Ah more and 100 A of cold cranking more. It costs 111,60 € more. Essential with Start-Stop or heavy draw at standstill; in a conventional-use truck the TG1803 does the job and EFB only adds service life.
