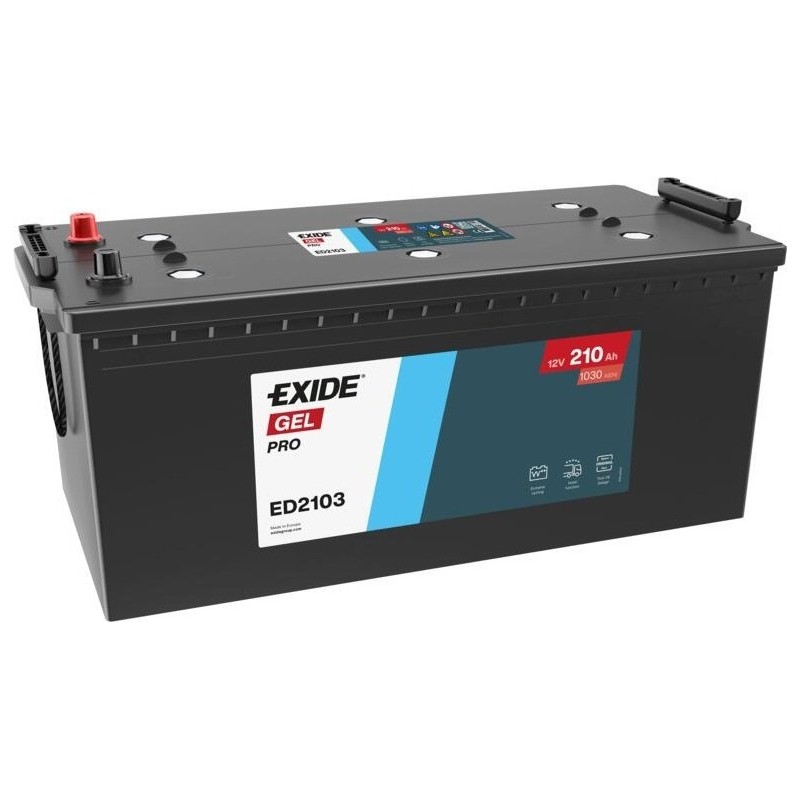

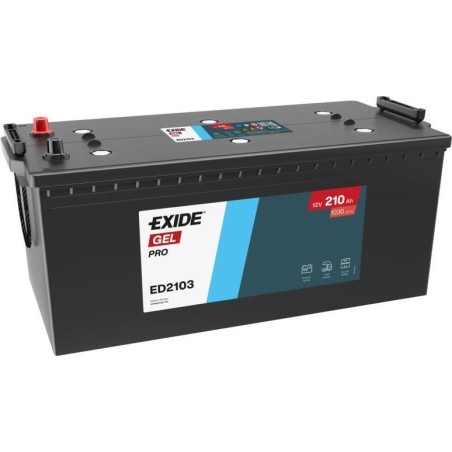

Exide ED2103 · Truck battery 12V 210Ah 1030A GEL
Specifications
| Brand | EXIDE |
|---|---|
| Part number | ED2103 |
| Voltage (V) | 12 |
| Capacity (C20) | 210Ah (c20) |
| Technology | GEL |
| Length | 518.00 cm |
| Width | 279.00 cm |
| Height | 240.00 cm |
| Weight | 63.50 Kgs |
€632.50
VAT included
Exide ED2103 12V 210Ah 1030A is a professional battery for heavy commercial vehicles. Withstands constant chassis vibration, supports long cold-engine cranks and keeps auxiliary services running (tachograph, heater, refrigeration, GPS) during driver's mandatory rest stops.
Why this truck battery?
- True Heavy Dutybuilt for intensive professional use
- Long cold-diesel cranksreliable even in extreme cold
- Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
210 Ah
Cold cranking
1030 A
Dimensions
518×274×240 mm
Technology
GEL
Polarity
Positive on the left
Weight
63,5 kg
Model
EXIDE Endurance+PRO Gel

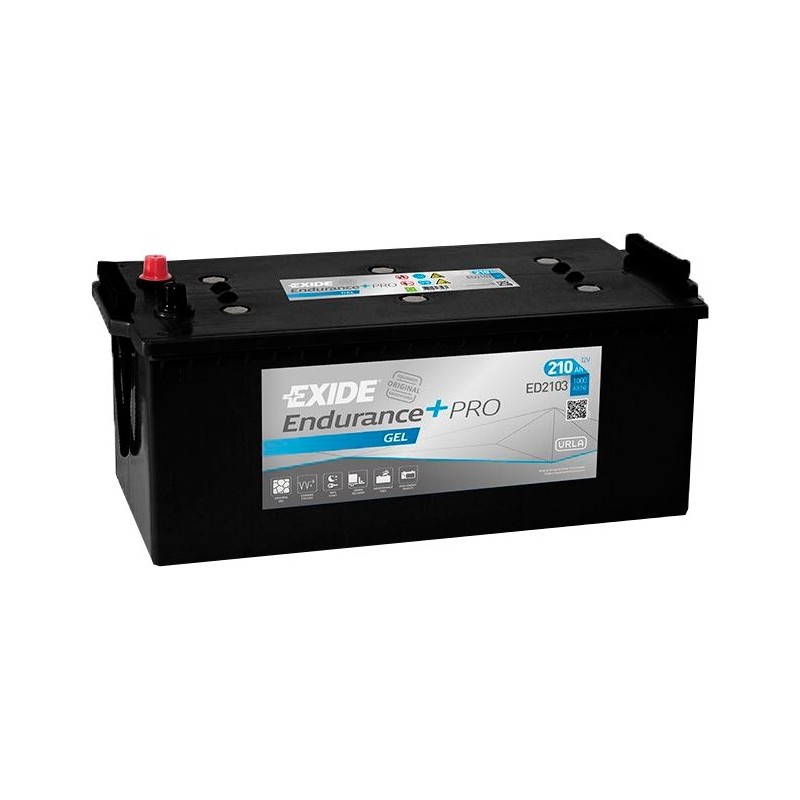

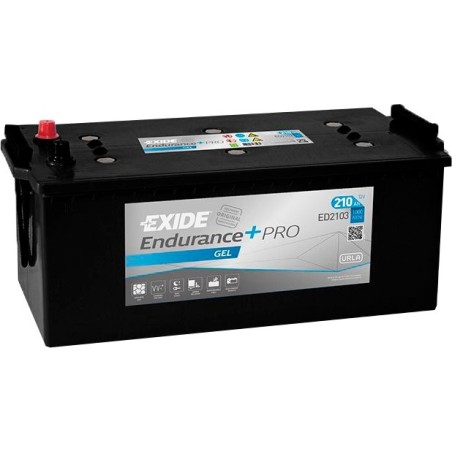

Truck battery Exide ED2103 Endurance+Pro GEL 210Ah 1,030A 12V
12VVoltage
210AhCapacity
1,030ACold cranking
63.50kgWeight
The Exide ED2103 truck battery is rated at 12 V, 210 Ah and 1,030 A of cold cranking current (EN) from the Endurance+Pro GEL range, and is prepared for trucks, buses, tractors and heavy machinery. It measures 518 × 279 × 240 mm, the format sought by anyone replacing a 210 Ah battery in trucks.
- Designed for 24 V installations with two batteries in series.
- Powerful cold cranking for large-displacement diesel engines.
- Heavy Duty construction for intensive professional use.
- GEL technology: gelled electrolyte, fully sealed and maintenance-free.
What the Exide ED2103 is for
With 210 Ah, the Exide ED2103 cranks large-displacement diesel engines in the cold and powers tachograph, fridge and heater during rest stops. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 63.50 kg.
The Exide ED2103: Endurance+Pro GEL range and GEL technology
Within the Exide catalogue, the Endurance+Pro GEL series groups the references designed for this use. The ED2103 is the 210 Ah model of that family, with the same performance as its siblings in other sizes.
GEL technology fixes the acid in a solid gel. That removes maintenance and leaks and gives very long cycle life, in exchange for slightly slower recharging and lower peak current than an AGM.
Size, terminals and hold-down of the Exide ED2103
The Exide ED2103 is made in the 518 × 279 × 240 mm format and weighs 63.50 kg. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
Exide: the maker behind the ED2103
With more than a century of history, Exide Technologies manufactures automotive, marine, motorcycle and industrial batteries in Europe. Its presence as original equipment on assembly lines vouches for the quality of every reference. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Care and maintenance
In 24 V installations, check periodically that both batteries show the same voltage; an imbalance means one is failing. Keep the terminals clean and tight and the battery firmly secured against chassis vibration.
Official warranty
The Exide ED2103 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.
Shipping, delivery and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-EXIDE-ED2103
Data sheet
- Brand
- EXIDE
- Reference
- ED2103
- Model
- EXIDE ENDURANCE+PRO GEL
- Voltage (V)
- 12
- Length
- 518.00 cm
- Width
- 279.00 cm
- Height
- 240.00 cm
- Weight
- 63.50 Kgs
- Technology
- GEL
- EAN
- 3661024037341
- Cold cranking amps (EN)
- 1030A
- Capacity (C20)
- 210Ah (c20)
Specific References
- EAN13
- 3661024037341
- MPN
- ED2103
Codes and references Exide ED2103
| Brand | Exide · see all batteries Exide |
|---|---|
| Manufacturer range | EXIDE ENDURANCE+PRO GEL |
| Manufacturer reference (MPN) | ED2103 |
| EAN-13 barcode | 3661024037341 |
| Dimensions (length × width × height) | 518 × 274 × 240 mm (518x274x240) |
Comparison: Exide ED2103 vs equivalents
The Exide ED2103 is interchangeable with these equivalent references: TD2103 (Tudor), ED2103-T (Exide), N2 (Varta).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Exide
ED2103
This battery
|
12V 210Ah 1030A | Gel | €632.50 |
Tudor
TD2103
|
12V 210Ah 1030A | Gel | €663.95 |
Exide
ED2103-T
|
12V 210Ah 800A | Gel | €1,480.70 |
Varta
N2
|
12V 200Ah 1050A | Lead-acid | €283.20 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace a truck battery in 30-60 minutes. Truck batteries weigh 25-50 kg — we recommend working in pairs and using a carrying strap.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery (two people)
Loosen the bottom hold-down clamp. Truck batteries weigh 25-50 kg — lift in pairs with gloves and a carrying strap. Forcing the lift alone risks back injury.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
Is the Exide ED2103 a GEL battery? What is GEL used for?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How is the Exide ED2103 battery installed in the vehicle?
In most trucks it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On trucks with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the ED2103 model?
Expected lifespan of the Exide ED2103 is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Exide ED2103 battery?
Dimensions (length × width × height) are 518×274×240 mm — also written as 518x274x240 mm — following the European DIN standard. Always measure the space in your truck before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Exide ED2103 battery fit my truck?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The ED2103 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Exide ED2103?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop trucks. See the "Equivalents" section to view recommended options at the same performance level.
