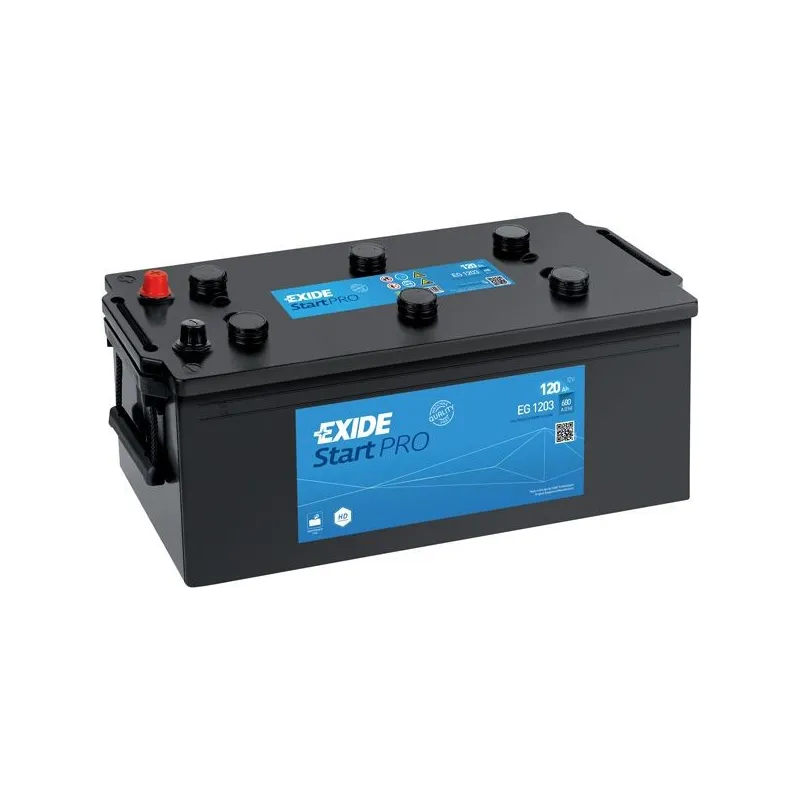

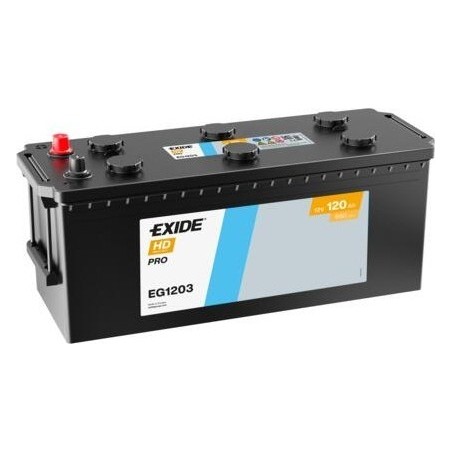

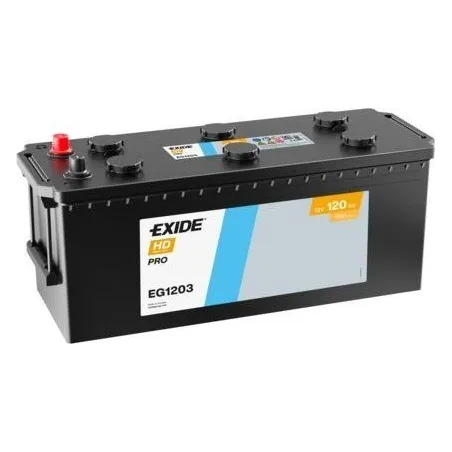

Exide EG1203 · Truck battery 12V 120Ah 680A
Specifications
| Brand | EXIDE |
|---|---|
| Part number | EG1203 |
| Voltage (V) | 12 |
| Capacity (C20) | 120Ah (c20) |
| Cold cranking amps (EN) | 680A |
| Technology | Lead-acid |
| Weight | 32.50 Kgs |
| Model | EXIDE START PRO |
| EAN | 3661024036993 |
€188.20
VAT included
Exide EG1203 12V 120Ah 680A is a professional battery for heavy commercial vehicles. Withstands constant chassis vibration, supports long cold-engine cranks and keeps auxiliary services running (tachograph, heater, refrigeration, GPS) during driver's mandatory rest stops.
Why this truck battery?
- True Heavy Dutybuilt for intensive professional use
- Long cold-diesel cranksreliable even in extreme cold
- Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
120 Ah
Cold cranking
680 A
Dimensions
513×189×223 mm
Technology
Lead-acid
Polarity
Positive on the left
Weight
32,5 kg
Model
EXIDE START PRO

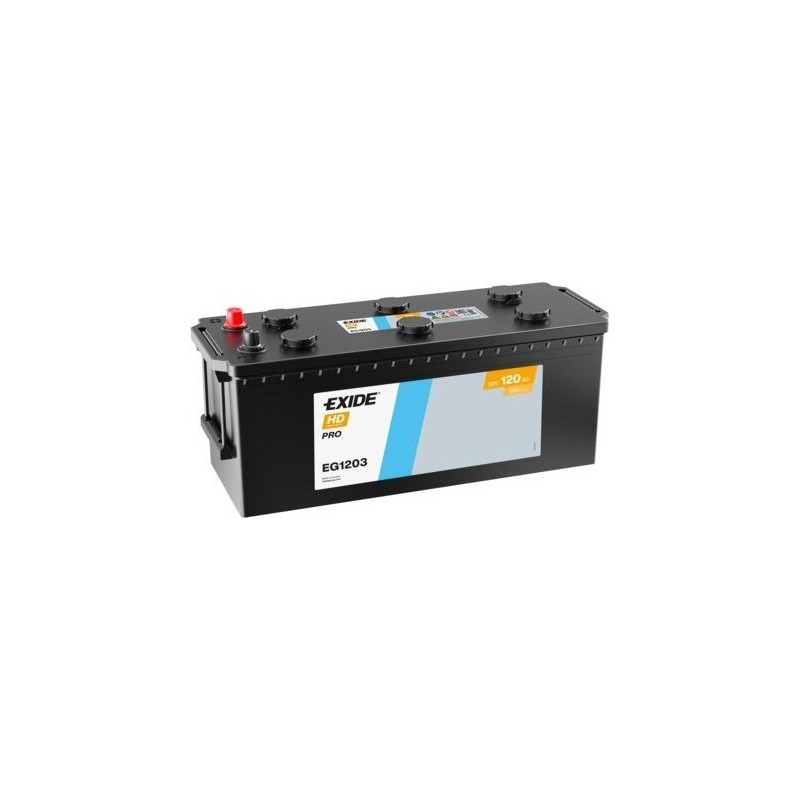

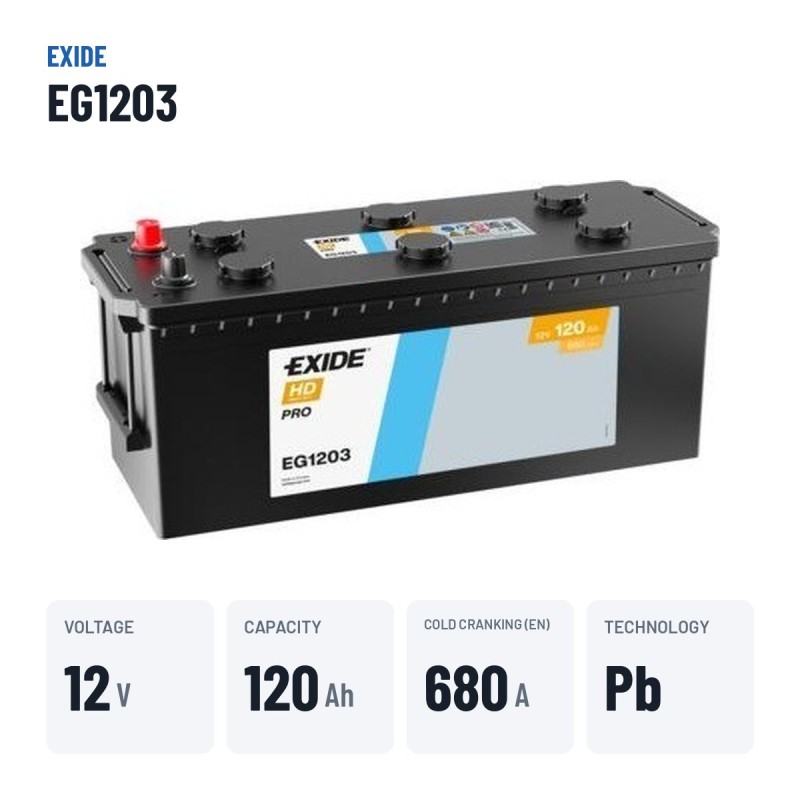

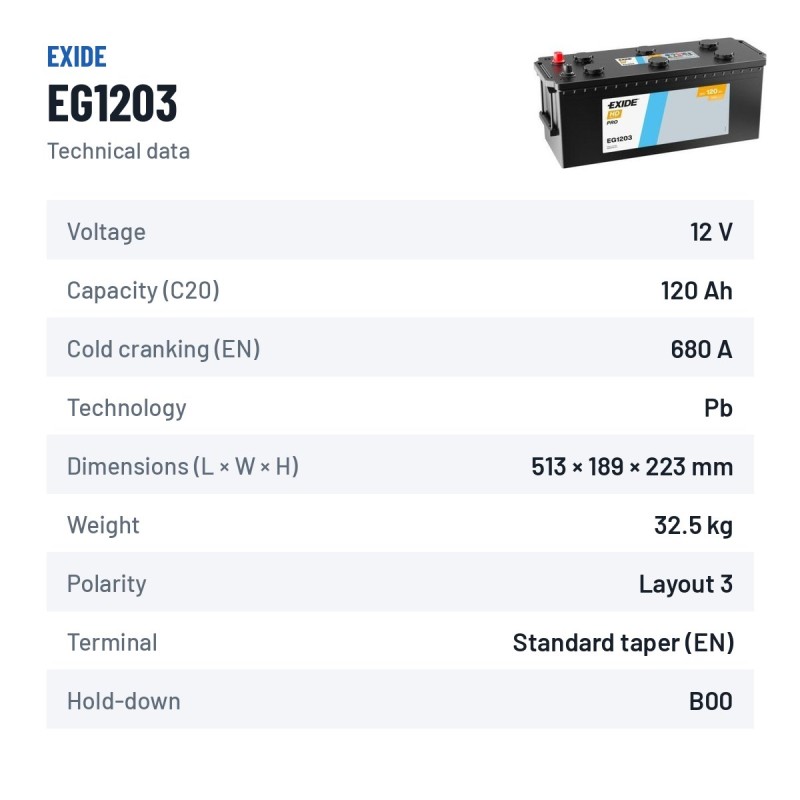

Truck battery Exide EG1203 Start PRO 120Ah 680A 12V
12VVoltage
120AhCapacity
680ACold cranking
32.50kgWeight

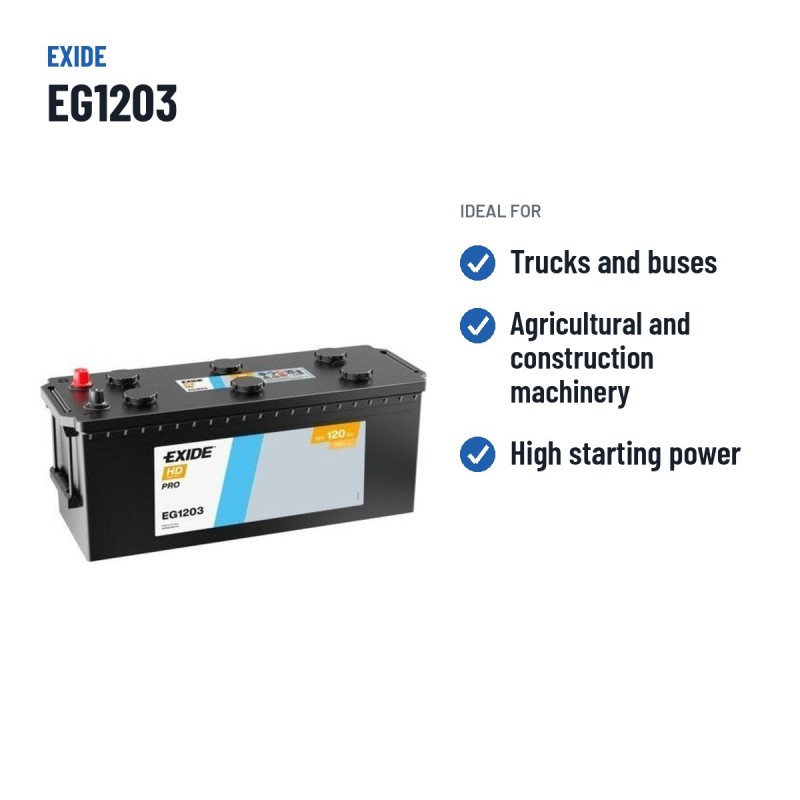

The Exide EG1203 truck battery is rated at 12 V, 120 Ah and 680 A of cold cranking current (EN) from the Start PRO range, and is prepared for trucks, buses, tractors and heavy machinery. Measuring 513 × 189 × 223 mm, it is the direct replacement for trucks fitted from the factory with a 120 Ah battery of this format.
- Powers tachograph, fridge and heater during rest stops.
- Better tolerance to deep discharge than a conventional starter battery.
- Good balance of capacity, cranking power and price.
- Resistant to constant chassis vibration.
Vehicles compatible with the Exide EG1203
This battery appears as compatible in more than 720 vehicles from manufacturers such as Fiat, Volvo, Deutz-Fahr, John Deere, Fendt and Komatsu. For anyone who needs to replace the battery in their Fiat or Volvo, this Exide EG1203 reproduces the original specifications. The compatibility list also includes models from Claas, Khd, Gueldner, Case, Bührer, Caterpillar, Bourgoin and Stavostroj. It covers 25 original-equipment references, one of the widest coverages in its format.

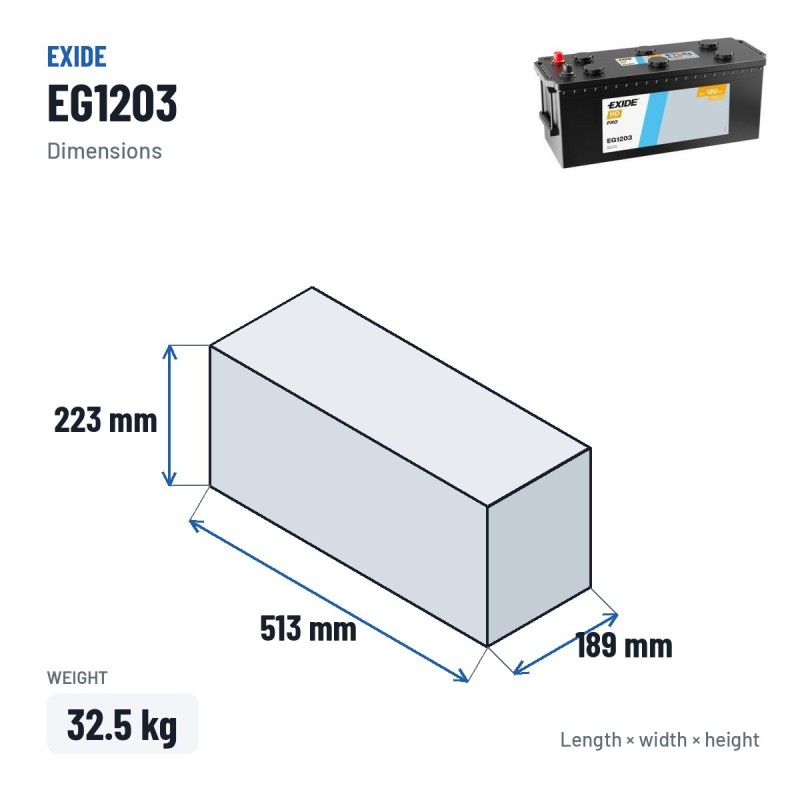

Dimensions, polarity and mounting
In terms of format, the Exide EG1203 measures 513 × 189 × 223 mm (length × width × height) and weighs 32.50 kg. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
What Exide does differently
Exide is one of the world's largest battery manufacturers and an original-equipment supplier to many car makers. Its European plants produce starter, industrial and leisure batteries under original-equipment quality controls. All the Exide batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
The Exide EG1203: Start PRO range and conventional lead-acid technology
The EG1203 is part of the Exide Start PRO range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.
Usage and maintenance tips
During rest stops with active loads, avoid repeated deep discharges: they shorten the life of any starter battery. In 24 V installations, check periodically that both batteries show the same voltage; an imbalance means one is failing.
Warranty and coverage
The Exide EG1203 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.
Delivery times and returns
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-EXIDE-EG1203
Data sheet
- Brand
- EXIDE
- Reference
- EG1203
- Model
- EXIDE START PRO
- Voltage (V)
- 12
- Weight
- 32.50 Kgs
- Technology
- Lead-acid
- EAN
- 3661024036993
- Cold cranking amps (EN)
- 680A
- Capacity (C20)
- 120Ah (c20)
Specific References
- EAN13
- 3661024036993
- MPN
- EG1203
Codes and references Exide EG1203
| Brand | Exide · see all Exide batteries |
|---|---|
| Manufacturer range | EXIDE START PRO |
| Manufacturer reference (MPN) | EG1203 |
| EAN-13 barcode | 3661024036993 |
| Dimensions (length × width × height) | 513 × 189 × 223 mm (513x189x223) |
Comparison: Exide EG1203 vs equivalents
The Exide EG1203 is interchangeable with these equivalent references: I8 (Varta), TG1203 (Tudor).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Exide
EG1203
This battery
|
12V 120Ah 680A | Lead-acid | €188.20 |
Varta
I8
|
12V 120Ah 680A | Lead-acid | €138.50 |
Tudor
TG1203
|
12V 120Ah 680A | Lead-acid | €188.20 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
Compatible vehicles
The Exide EG1203 fits 720 vehicles. Most searched below:
FIATSeries1990FIATSeries1990FENDTFarmer1990FENDTFarmer1990DEUTZ-FAHRD-Serie1990DEUTZ-FAHRD-Serie1990VOLVOBagger1990VOLVOOthers1990KOMATSUHydraulikbagger1990JOHN DEERE60001990
See all 720 compatible vehicles
How to change the battery
Guide to replace a truck battery in 30-60 minutes. Truck batteries weigh 25-50 kg — we recommend working in pairs and using a carrying strap.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery (two people)
Loosen the bottom hold-down clamp. Truck batteries weigh 25-50 kg — lift in pairs with gloves and a carrying strap. Forcing the lift alone risks back injury.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How do I change this battery step by step?
In most trucks it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On trucks with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How many years does this battery last?
Expected lifespan of the Exide EG1203 is 4 to 6 years in regular truck use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Exide EG1203 battery?
Dimensions (length × width × height) are 513×189×223 mm — also written as 513x189x223 mm — following the European DIN standard. Always measure the space in your truck before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Exide EG1203 battery fit my truck?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The EG1203 fits 720 verified vehicle versions in our database.
Which batteries are equivalent to the Exide EG1203?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop trucks. See the "Equivalents" section to view recommended options at the same performance level.
