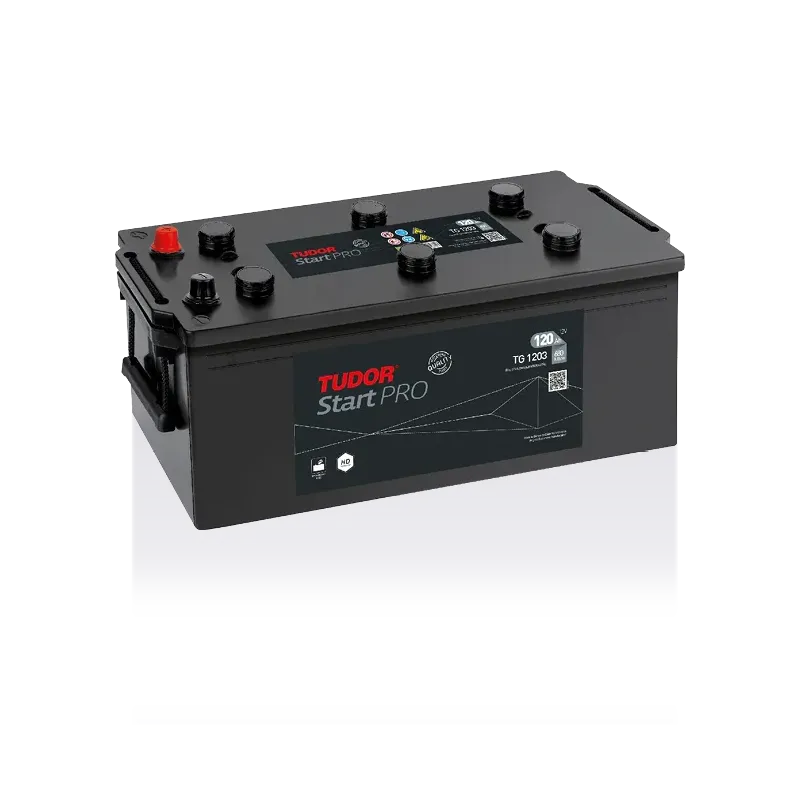

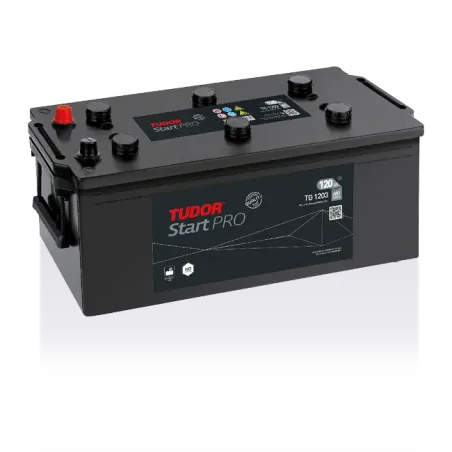

Tudor TG1203 Start Pro · Truck battery 120Ah 680A

Specifications

BrandTUDOR
Part numberTG1203
Voltage (V)12
Capacity (C20)120Ah (c20)
Cold cranking amps (EN)680A
TechnologyFlooded
Length513.00 mm
Width189.00 mm
Height223.00 mm
See the full specifications →
Price: €188.20
VAT included
Quantity

Brand: Tudor batteries Part number: TG1203

Tudor TG1203 12V 120Ah 680A is a professional battery for heavy commercial vehicles. Withstands constant chassis vibration, supports long cold-engine cranks and keeps auxiliary services running (tachograph, heater, refrigeration, GPS) during driver's mandatory rest stops.

Why this truck battery?

  • True Heavy Dutybuilt for intensive professional use
  • Long cold-diesel cranksreliable even in extreme cold
  • Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
120 Ah C20
Cold cranking
680 A EN-1
Dimensions
513×189×223 mm
Technology
Lead-acid
Polarity
Positive on the left
Weight
32,5 kg
Model
TUDOR START PRO (HD)

Where it fits: the Tudor TG1203 is one of our truck batteries, belongs to our Tudor batteries and by capacity it sits among our 120Ah batteries.

Truck battery Tudor TG1203 Start PRO (Hd) 120Ah 680A 12V

12VVoltage
120AhCapacity
680ACold cranking
32.50kgWeight

The Tudor TG1203 truck battery is rated at 12 V, 120 Ah and 680 A of cold cranking current (EN) from the Start PRO (Hd) range, and is prepared for trucks, buses, tractors and heavy machinery. Its 513 × 189 × 223 mm and the positive terminal on the left make it the exact replacement for the 120 Ah battery fitted as standard to many trucks.

In short: the Tudor TG1203 (120 Ah, 680 A, 513 × 189 × 223 mm, positive terminal on the left). Verified equivalent alternatives: Varta I8 and Exide EG1203.

  • Resistant to constant chassis vibration.
  • Good balance of capacity, cranking power and price.
  • Better tolerance to deep discharge than a conventional starter battery.
  • Powers tachograph, fridge and heater during rest stops.

Vehicles compatible with the Tudor TG1203

According to our database, the Tudor TG1203 equips more than 720 vehicles from brands such as Fiat, Volvo, Deutz-Fahr, John Deere, Fendt and Komatsu, among others. If you are looking for a battery for a Fiat or Volvo with these dimensions, the TG1203 is one of the usual replacement references. The compatibility list also includes models from Claas, Khd, Gueldner, Case, Bührer, Caterpillar, Bourgoin and Stavostroj. In our database it is cross-referenced against 25 original-equipment part numbers, which gives an idea of its real coverage.

The Tudor TG1203: Start PRO (Hd) range and conventional lead-acid technology

The Start PRO (Hd) is the Tudor range the TG1203 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.

In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.

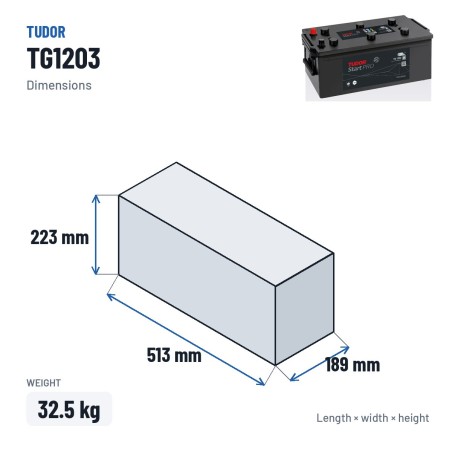

Dimensions, polarity and mounting

It has external dimensions of 513 × 189 × 223 mm and weighs 32.50 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and EN taper post terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.

What Tudor does differently

Tudor has made batteries in Spain for more than a century and remains one of the brands most trusted by Spanish workshops for reliability and value. All the Tudor batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.

Usage and maintenance tips

In 24 V installations, check periodically that both batteries show the same voltage; an imbalance means one is failing. During rest stops with active loads, avoid repeated deep discharges: they shorten the life of any starter battery.

Manufacturer's warranty

The Tudor TG1203 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.

Delivery times and returns

Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 1 to 2 working days in mainland Spain and 1 to 3 working days in mainland Portugal, 1 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.

  • Reference
    BCOM-TUDOR-TG1203

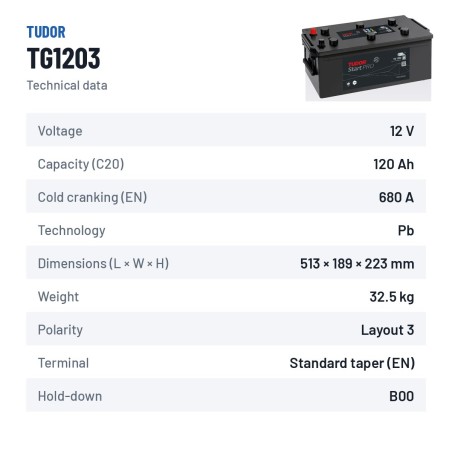

Data sheet

  • Brand
    TUDOR
  • Reference
    TG1203
  • Model
    TUDOR START PRO (HD)
  • Voltage (V)
    12
  • Length
    513.00 mm
  • Width
    189.00 mm
  • Height
    223.00 mm
  • Weight
    32.50 Kgs
  • Technology
    Flooded
  • EAN
    3661024056816

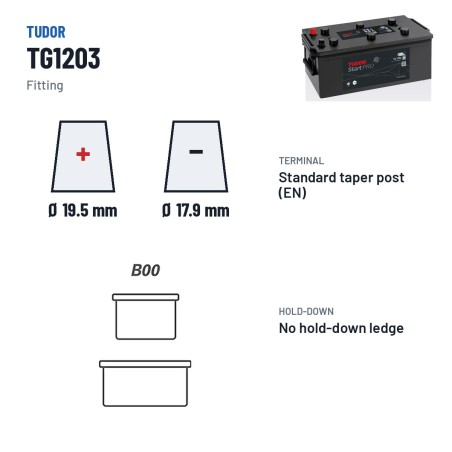

  • Terminal layout
    Positive terminal on the left
  • Terminal type
    EN taper post
  • Hold-down
    B0
  • Cold cranking amps (EN)
    680A
  • Capacity (C20)
    120Ah (c20)
  • Case type
    D04

Specific References

  • EAN13
    3661024056816
  • MPN
    TG1203

Download

Datasheet Tudor TG1203 (English)

PDF datasheet of the Tudor TG1203 battery – English

Download (165.24KB)

Codes and references Tudor TG1203

Brand Tudor · see all Tudor batteries
Manufacturer range TUDOR START PRO (HD)
Manufacturer part number (MPN) TG1203
EAN-13 barcode 3661024056816
Dimensions (length × width × height) 513 × 189 × 223 mm (513x189x223)

Tudor TG1203: best-selling equivalent or higher-spec batteries — alternatives with the same dimensions, Ah and CCA

The Tudor TG1203 is interchangeable with these equivalent references: I8 (Varta), EG1203 (Exide), TF1453 (Tudor), K7 (Varta), M11 (Varta), EF1453 (Exide). Higher-technology alternatives that can replace it: TE1403 (Tudor), EE1403 (Exide).

Product Specifications Technology Price
Tudor TG1203 Tudor TG1203 This battery 12V 120Ah 680A Lead-acid 188,20 €
Tudor TE1403 Tudor TE1403 Upgrade: EFB 12V 140Ah 800A EFB Upgrade 235,90 € +47,70 €

Tudor TG1203 vs Tudor TE1403

Upgrade: EFB · +47,70 €

It is the EFB version of the same case: it withstands far more partial discharges than the TG1203. Compared with the TG1203 it has 20 Ah more and 120 A of cold cranking more. It costs 47,70 € more. Essential with Start-Stop or heavy draw at standstill; in a conventional-use truck the TG1203 does the job and EFB only adds service life.

TG1203TE1403
Capacity120 Ah140 Ah
Cold cranking (EN)680 A800 A
TechnologyLead-acidEFB
Dimensions (mm)513 × 189 × 223513 × 189 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price188,20 €235,90 €
Tudor TF1453 Tudor TF1453 Bigger sister ★ 5,0 12V 145Ah 900A Lead-acid 169,60 € −18,60 €

Tudor TG1203 vs Tudor TF1453

Bigger sister · −18,60 €

Same family as the TG1203, one step up in performance. Compared with the TG1203 it has 25 Ah more and 220 A of cold cranking more. It costs 18,60 € less. Worth it with an equipped cab (fridge, heater, equipment) or many long stops; otherwise the TG1203 does the job.

TG1203TF1453
Capacity120 Ah145 Ah
Cold cranking (EN)680 A900 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 189 × 223513 × 189 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price188,20 €169,60 €
Varta K7 Varta K7 Varta equivalent 12V 145Ah 800A Lead-acid 140,90 € −47,30 €

Tudor TG1203 vs Varta K7

Varta equivalent · −47,30 €

The Varta alternative that fits where the TG1203 goes, with the same polarity. Compared with the TG1203 it has 25 Ah more and 120 A of cold cranking more. It costs 47,30 € less. A straight swap with nothing to adapt; the difference is the price and the brand you prefer.

TG1203K7
Capacity120 Ah145 Ah
Cold cranking (EN)680 A800 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 189 × 223513 × 189 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price188,20 €140,90 €
Varta M11 Varta M11 Varta equivalent 12V 154Ah 1150A Lead-acid 166,10 € −22,10 €

Tudor TG1203 vs Varta M11

Varta equivalent · −22,10 €

The Varta alternative that fits where the TG1203 goes, with the same polarity. Compared with the TG1203 it has 34 Ah more and 470 A of cold cranking more. It costs 22,10 € less. A straight swap with nothing to adapt; the difference is the price and the brand you prefer.

TG1203M11
Capacity120 Ah154 Ah
Cold cranking (EN)680 A1150 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 189 × 223513 × 189 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price188,20 €166,10 €
Exide EF1453 Exide EF1453 Exide equivalent 12V 145Ah 900A Lead-acid 138,70 € −49,50 €

Tudor TG1203 vs Exide EF1453

Exide equivalent · −49,50 €

It is the verified Exide equivalent for the TG1203 tray. Compared with the TG1203 it has 25 Ah more and 220 A of cold cranking more. It costs 49,50 € less. Decide by price, brand preference and availability: both fit and crank the same.

TG1203EF1453
Capacity120 Ah145 Ah
Cold cranking (EN)680 A900 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 189 × 223513 × 189 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price188,20 €138,70 €
Varta I8 Varta I8 Varta equivalent 12V 120Ah 680A Lead-acid 138,50 € −49,70 €
Exide EG1203 Exide EG1203 Exide equivalent 12V 120Ah 680A Lead-acid 188,20 € same price
Exide EE1403 Exide EE1403 Upgrade: EFB 12V 140Ah 800A EFB Upgrade 224,70 € +36,50 €

Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.

Other 120Ah batteries: We stock 24 models of 120 Ah to compare by price, technology and cold cranking: see all 120Ah batteries. Same size (513 × 189 × 223 mm): batteries of 513 × 189 × 223 mm.

Recommended accessories — complement the Tudor TG1203 with a charger or tester

Compatible vehicles

The Tudor TG1203 fits 360 vehicles. Most searched below:

See all 360 compatible vehicles

Frequently asked questions

Why does my lorry have two batteries?

Most lorries, buses and tractors run on 24 V with two 12 V batteries connected in series. Always replace both at the same time and with the same model: if one is new and the other old, they become unbalanced and both last less.

How long does the Tudor TG1203 battery last?

There is no exact figure: for a battery such as the Tudor TG1203, a reasonable guide is 4 to 6 years in normal lorry use. It can vary considerably with usage (short or long journeys), temperature, the condition of the alternator and charging system, power drawn with the engine off and maintenance, plus the truck itself and Start-Stop. Cold demands more at every start and intense heat evaporates the electrolyte.

What are the measurements of the TG1203 model?

The Tudor TG1203 takes up 513×189×223 mm (length, width and height, terminals included). Before buying, measure the space in your truck: one extra millimetre can stop the hold-down clamp from closing.

On which side is the positive of the TG1203 model?

It has the positive on the left (polarity). Put it in front of you, terminals towards you: the post with the red ring and the + sign is the positive. Compare it with the battery you are replacing: if it does not match, cables must be lengthened or the system reconfigured, with a risk of short circuit.

Will the Tudor TG1203 battery fit my truck?

Not sure? Try your number plate in the finder (DGT/DVLA/KBA detect model and engine) or the "Compatible vehicles" tab, checked by our technical team; if your truck is not there, send us make, model, engine and year on WhatsApp and we will reply during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). The compatibility list for the TG1203 runs to 360 verified vehicle versions. The truck manufacturer's specifications always take priority over our tables.

Which batteries are equivalent to the Tudor TG1203?

A battery interchangeable with the Tudor TG1203 must match it on dimensions (513×189×223 mm), polarity (positive on the left), capacity (120 Ah) and cranking current (680 A). See the "Equivalents" section of this page for the recommended options at the same performance level. Mind the technology: in Start-Stop trucks an EFB is not swapped for a conventional battery.

Tudor TG1203 or Tudor TE1403: which one to choose?

It is the EFB version of the same case: it withstands far more partial discharges than the TG1203. Compared with the TG1203 it has 20 Ah more and 120 A of cold cranking more. It costs 47,70 € more. Essential with Start-Stop or heavy draw at standstill; in a conventional-use truck the TG1203 does the job and EFB only adds service life.

Tudor TG1203 or Tudor TF1453: which one to choose?

Same family as the TG1203, one step up in performance. Compared with the TG1203 it has 25 Ah more and 220 A of cold cranking more. It costs 18,60 € less. Worth it with an equipped cab (fridge, heater, equipment) or many long stops; otherwise the TG1203 does the job.
