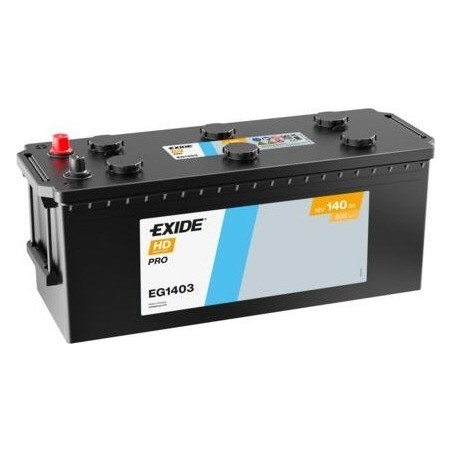

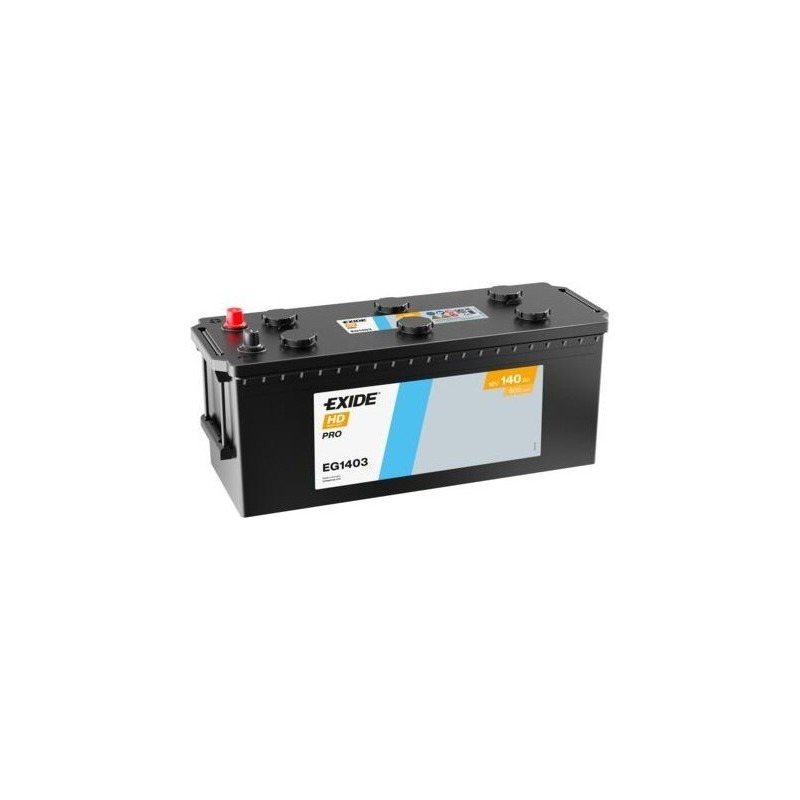

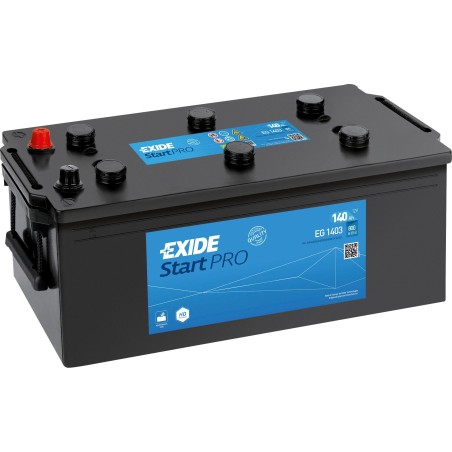

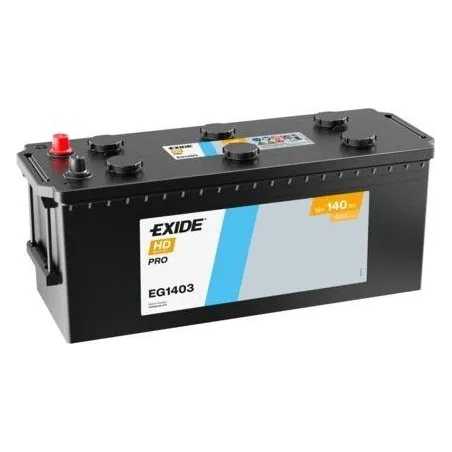

Exide EG1403 · Truck battery 12V 140Ah 800A
Specifications
| Brand | EXIDE |
|---|---|
| Part number | EG1403 |
| Voltage (V) | 12 |
| Capacity (C20) | 140Ah (c20) |
| Technology | Lead-acid |
| Length | 513.00 cm |
| Width | 189.00 cm |
| Height | 223.00 cm |
| Weight | 34.10 Kgs |
€128.60
VAT included
Exide EG1403 12V 140Ah 800A is an SHD (Super Heavy Duty) truck battery for intensive professional use. Vibration-resistant, withstands long cold-diesel cranks and deep discharges during parking with active loads (tachograph, refrigeration, heater).
Why this truck battery?
- True Heavy Dutybuilt for intensive professional use
- Long cold-diesel cranksreliable even in extreme cold
- Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
140 Ah
Cold cranking
800 A
Dimensions
513×189×223 mm
Technology
Lead-acid
Polarity
Positive on the left
Weight
34,1 kg
Model
EXIDE START PRO
Truck battery Exide EG1403 Start PRO 140Ah 800A 12V

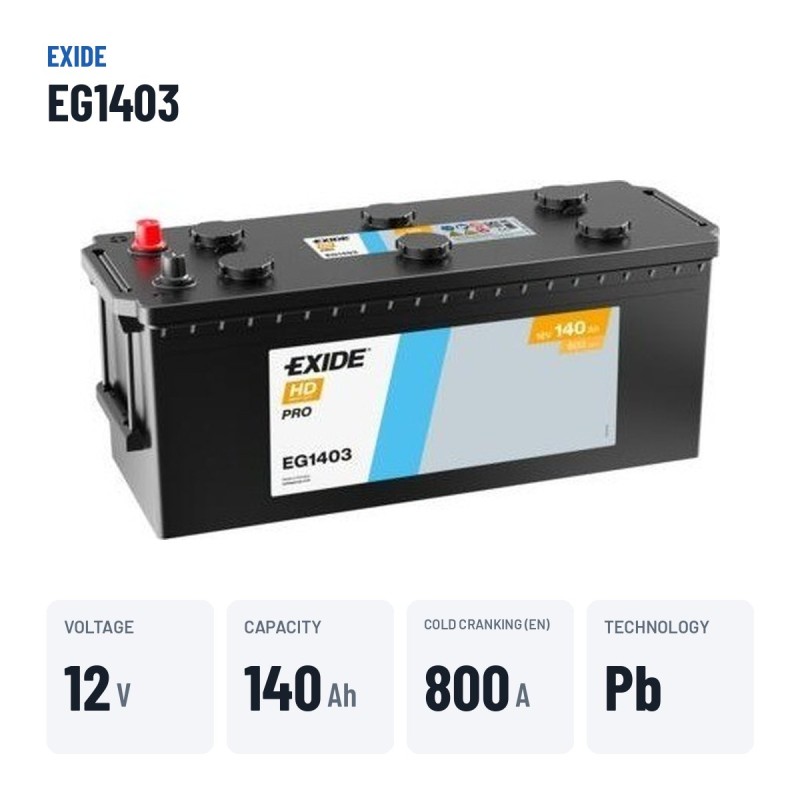

12VVoltage
140AhCapacity
800ACold cranking
34.10kgWeight
The Exide EG1403 with conventional lead-acid technology delivers 140 Ah at 12 V and 800 A of cold cranking current (EN): what trucks, buses, tractors and heavy machinery demand. It measures 513 × 189 × 223 mm and the positive terminal on the left, the format sought by anyone replacing a 140 Ah battery in trucks.
- Heavy Duty construction for intensive professional use.
- Conventional lead-acid: the most proven and economical technology.
- Designed for 24 V installations with two batteries in series.
- Powerful cold cranking for large-displacement diesel engines.
What the Exide EG1403 is for
With 140 Ah, the Exide EG1403 cranks large-displacement diesel engines in the cold and powers tachograph, fridge and heater during rest stops. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 34.10 kg, 1 terminals and B0 hold-down.
The Exide EG1403: Start PRO range and conventional lead-acid technology
The EG1403 is part of the Exide Start PRO range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.
Will it fit your current battery tray?

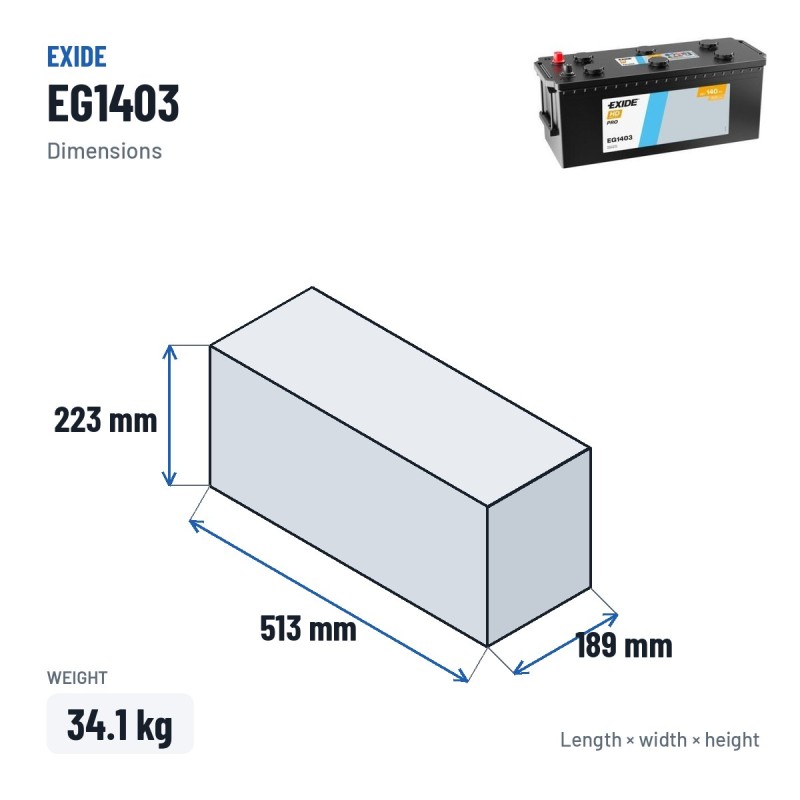

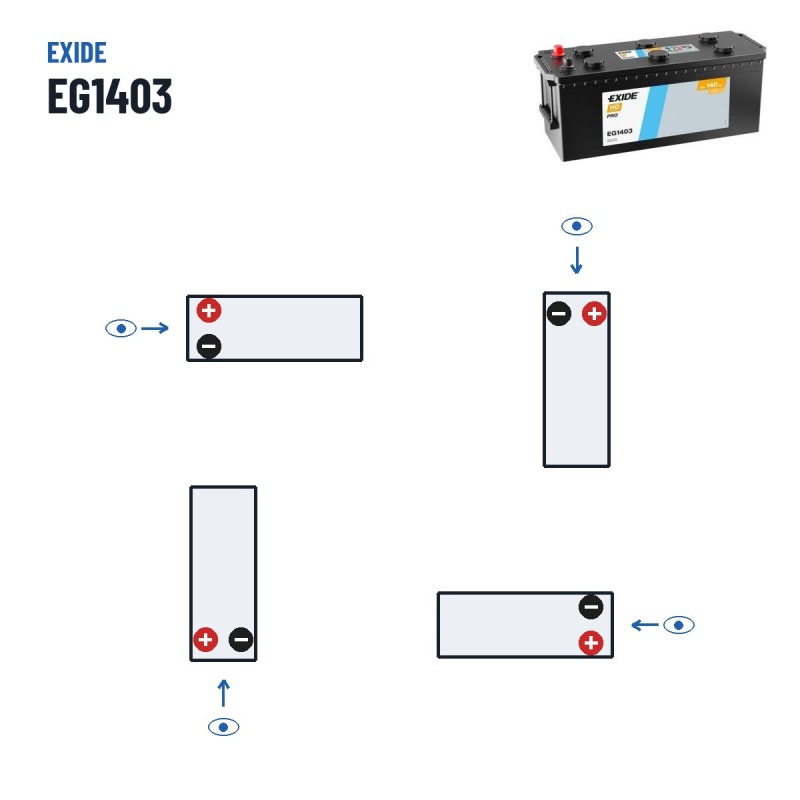

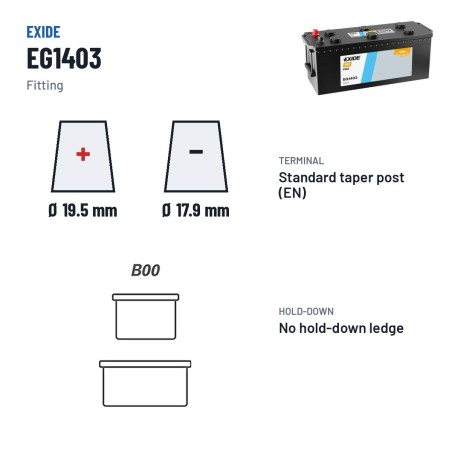

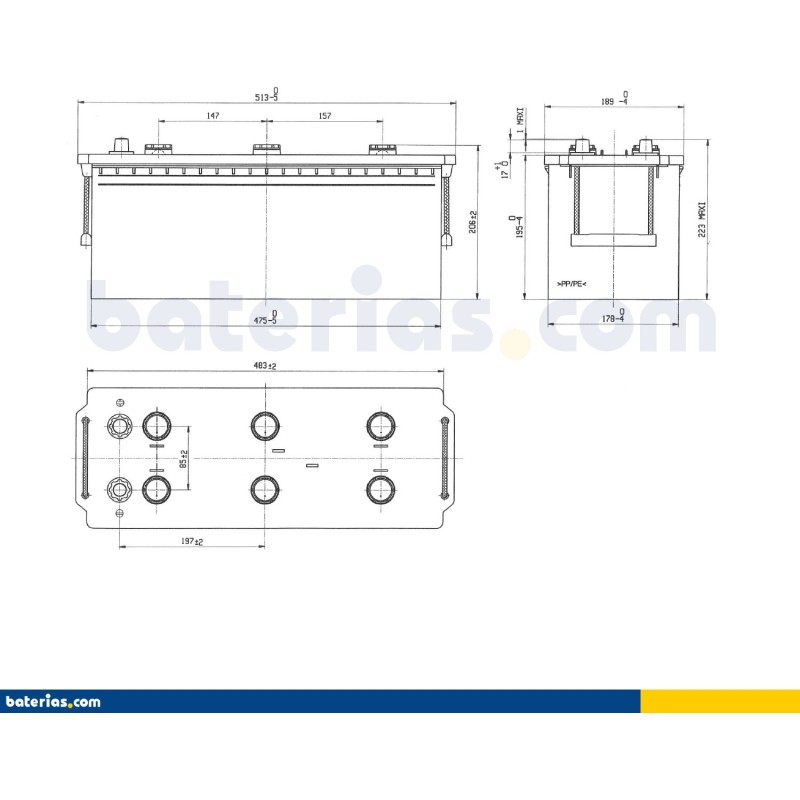

It has external dimensions of 513 × 189 × 223 mm and weighs 34.10 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and 1 terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
Why choose Exide batteries
With more than a century of history, Exide Technologies manufactures automotive, marine, motorcycle and industrial batteries in Europe. Its presence as original equipment on assembly lines vouches for the quality of every reference. We guarantee that every Exide arrives new, charged and with the manufacturer's full warranty.
Usage and maintenance tips
Keep the terminals clean and tight and the battery firmly secured against chassis vibration. In 24 V installations, check periodically that both batteries show the same voltage; an imbalance means one is failing.
Official warranty
The Exide EG1403 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.
When you get it and how to return it
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-EXIDE-EG1403

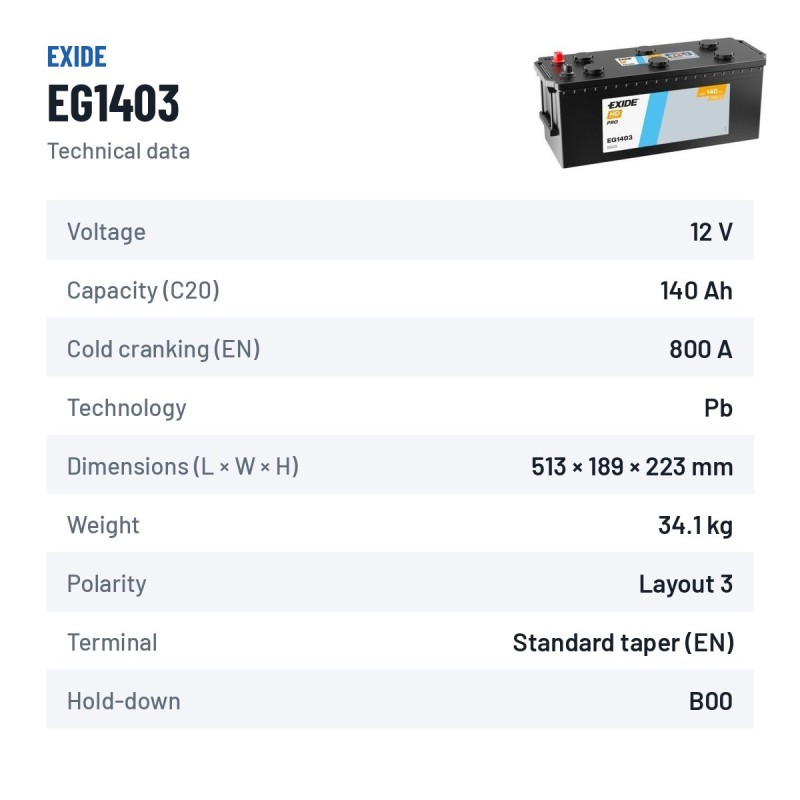

Data sheet
- Brand
- EXIDE
- Reference
- EG1403
- Model
- EXIDE START PRO
- Voltage (V)
- 12
- Length
- 513.00 cm
- Width
- 189.00 cm
- Height
- 223.00 cm
- Weight
- 34.10 Kgs
- Technology
- Lead-acid
- EAN
- 3661024035422
- Terminal layout
- Positive terminal on the left
- Terminal type
- 1
- Hold-down
- B0
- Cold cranking amps (EN)
- 800A
- Capacity (C20)
- 140Ah (c20)
- Case type
- D04
Specific References
- EAN13
- 3661024035422
- MPN
- EG1403
Codes and references Exide EG1403
| Brand | Exide · see all batteries Exide |
|---|---|
| Manufacturer range | EXIDE START PRO |
| Manufacturer reference (MPN) | EG1403 |
| EAN-13 barcode | 3661024035422 |
| Dimensions (length × width × height) | 513 × 189 × 223 mm (513x189x223) |
Comparison: Exide EG1403 vs equivalents
The Exide EG1403 is interchangeable with these equivalent references: I8 (Varta), EG1203 (Exide), TG1203 (Tudor), TG1403 (Tudor), K8 (Varta).
| Product | Specifications | Technology | Price |
|---|---|---|---|
Exide
EG1403
This battery
|
12V 140Ah 800A | Lead-acid | €128.60 |
Varta
I8
|
12V 120Ah 680A | Lead-acid | €138.50 |
Exide
EG1203
|
12V 120Ah 680A | Lead-acid | €188.20 |
Tudor
TG1203
|
12V 120Ah 680A | Lead-acid | €188.20 |
Tudor
TG1403
|
12V 140Ah 800A | Lead-acid | €133.90 |
Varta
K8
|
12V 140Ah 800A | Lead-acid | €212.50 |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Recommended accessories
How to change the battery
Guide to replace a truck battery in 30-60 minutes. Truck batteries weigh 25-50 kg — we recommend working in pairs and using a carrying strap.
Step 1. Prepare the vehicle
Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.
Step 2. Locate the battery
Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery (two people)
Loosen the bottom hold-down clamp. Truck batteries weigh 25-50 kg — lift in pairs with gloves and a carrying strap. Forcing the lift alone risks back injury.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the engine starts
Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.
Frequently asked questions
How is the Exide EG1403 battery installed in the vehicle?
In most trucks it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On trucks with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Exide EG1403 battery last?
Expected lifespan of the Exide EG1403 is 4 to 6 years in regular truck use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Exide EG1403 battery?
Dimensions (length × width × height) are 513×189×223 mm — also written as 513x189x223 mm — following the European DIN standard. Always measure the space in your truck before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Is the EG1403 valid for my vehicle?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The EG1403 typically fits a wide range of European vehicles thanks to its standard DIN case format.
What are the equivalents of the EG1403 model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop trucks. See the "Equivalents" section to view recommended options at the same performance level.
