Tudor TG1403 Start Pro · Truck battery 140Ah 800A

Specifications

BrandTUDOR
Part numberTG1403
Voltage (V)12
Capacity (C20)140Ah (c20)
Cold cranking amps (EN)800A
TechnologyFlooded
Length513.00 mm
Width189.00 mm
Height223.00 mm
See the full specifications →
Price: €133.90
VAT included

How do you want it in …?

Service for one battery per order.

Quantity

Brand: Tudor batteries Part number: TG1403

Home installation within 1 to 3 hours from €96.80 in Málaga.

Urgent battery installation service Home installation within 1 to 3 hours
Málaga With our urgent home battery installation service, you buy your battery and within approximately 1 to 3 hours a qualified technician will install it comfortably at your home.

Check service availability in your area

Want it installed?

Home installation within 1 to 3 hours from €96.80 in Málaga.

Order today (Tuesday) before 6 pm (mainland Spain time) and we will dispatch by urgent courier so you receive it comfortably at home tomorrow (Wednesday) before 17:00

Service available in mainland Spain and Portugal

Tudor TG1403 12V 140Ah 800A is a professional battery for heavy commercial vehicles. Withstands constant chassis vibration, supports long cold-engine cranks and keeps auxiliary services running (tachograph, heater, refrigeration, GPS) during driver's mandatory rest stops.

Why this truck battery?

  • True Heavy Dutybuilt for intensive professional use
  • Long cold-diesel cranksreliable even in extreme cold
  • Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
140 Ah C20
Cold cranking
800 A EN-1
Dimensions
513×189×223 mm
Technology
Lead-acid
Polarity

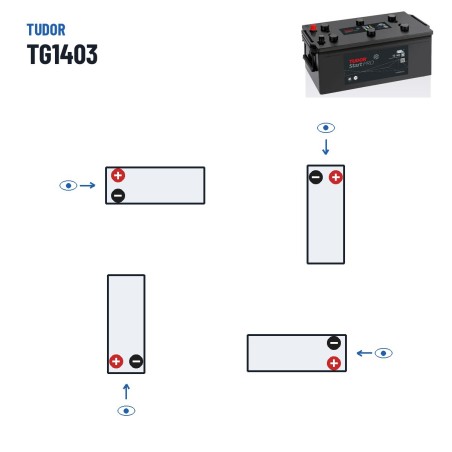

Positive on the left
Weight
34,1 kg
Model
TUDOR START PRO (HD)

Where it fits: the Tudor TG1403 is one of our truck batteries, belongs to our Tudor batteries and by capacity it sits among our 140Ah batteries.

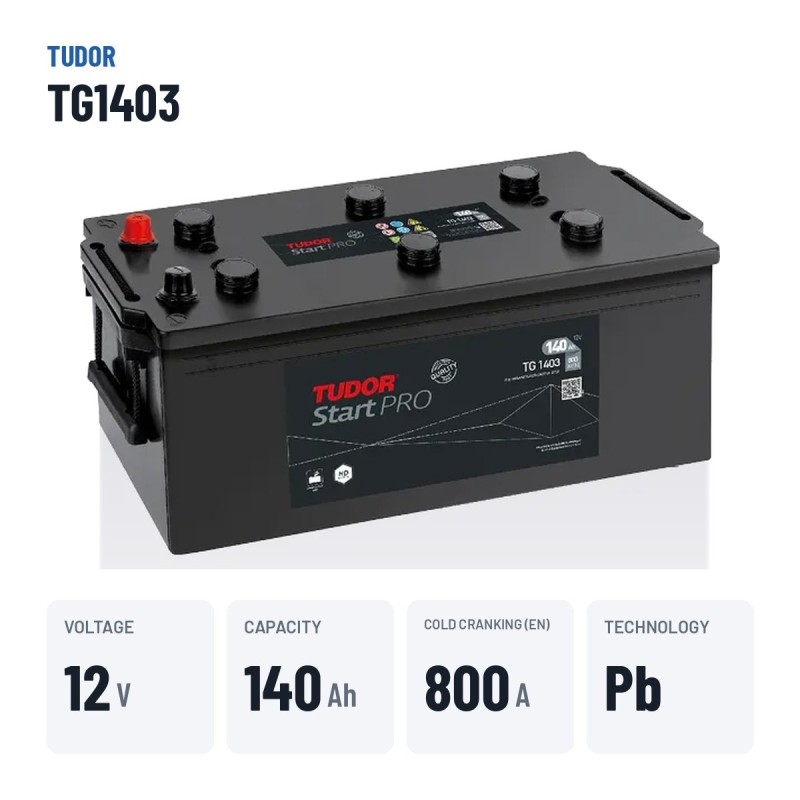

Truck battery Tudor TG1403 Start PRO (Hd) 140Ah 800A 12V

12VVoltage
140AhCapacity
800ACold cranking
34.10kgWeight

The Tudor TG1403 truck battery is rated at 12 V, 140 Ah and 800 A of cold cranking current (EN) from the Start PRO (Hd) range, and is prepared for trucks, buses, tractors and heavy machinery. Measuring 513 × 189 × 223 mm and the positive terminal on the left, it is the direct replacement for trucks fitted from the factory with a 140 Ah battery of this format.

In short: the Tudor TG1403 (140 Ah, 800 A, 513 × 189 × 223 mm, positive terminal on the left). Verified equivalent alternatives: Exide EG1403 and Tudor TF1453.

  • Good balance of capacity, cranking power and price.
  • Resistant to constant chassis vibration.
  • Powers tachograph, fridge and heater during rest stops.
  • Better tolerance to deep discharge than a conventional starter battery.

What the Tudor TG1403 is for

With 140 Ah, the Tudor TG1403 cranks large-displacement diesel engines in the cold and powers tachograph, fridge and heater during rest stops. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 34.10 kg, EN taper post terminals and B0 hold-down.

Size, terminals and hold-down of the Tudor TG1403

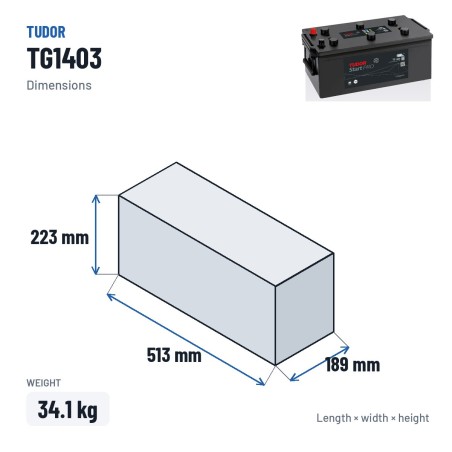

It has external dimensions of 513 × 189 × 223 mm and weighs 34.10 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and EN taper post terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.

What Tudor does differently

Tudor has made batteries in Spain for more than a century and remains one of the brands most trusted by Spanish workshops for reliability and value. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.

The Tudor TG1403: Start PRO (Hd) range and conventional lead-acid technology

Within the Tudor catalogue, the Start PRO (Hd) series groups the references designed for this use. The TG1403 is the 140 Ah model of that family, with the same performance as its siblings in other sizes.

In a conventional battery the electrolyte is liquid and the lead plates are immersed in it. It is a mature, economical and easily recycled technology, ideal for starting vehicles in normal use.

How to make it last longer

Keep the terminals clean and tight and the battery firmly secured against chassis vibration. In 24 V installations, check periodically that both batteries show the same voltage; an imbalance means one is failing.

Warranty and coverage

The Tudor TG1403 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.

When you get it and how to return it

Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 1 to 2 working days; for the Balearic Islands and the rest of the European Union allow 1 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.

  • Reference
    BCOM-TUDOR-TG1403

Data sheet

  • Brand
    TUDOR
  • Reference
    TG1403
  • Model
    TUDOR START PRO (HD)
  • Voltage (V)
    12
  • Length
    513.00 mm
  • Width
    189.00 mm
  • Height
    223.00 mm
  • Weight
    34.10 Kgs
  • Technology
    Flooded
  • EAN
    3661024055420
  • Terminal layout
    Positive terminal on the left

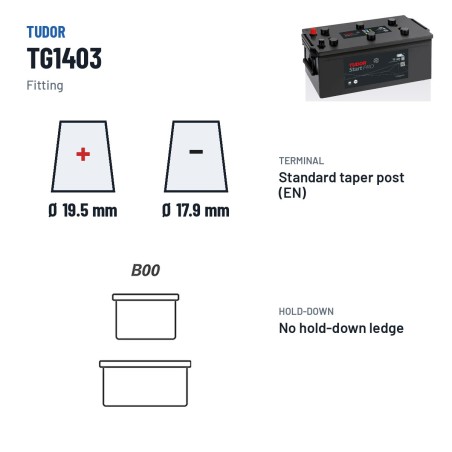

  • Terminal type
    EN taper post
  • Hold-down
    B0
  • Cold cranking amps (EN)
    800A
  • Capacity (C20)
    140Ah (c20)
  • Case type
    D04

Specific References

  • EAN13
    3661024055420
  • MPN
    TG1403

Download

Datasheet Tudor TG1403 (English)

PDF datasheet of the Tudor TG1403 battery – English

Download (164.95KB)

Codes and references Tudor TG1403

Brand Tudor · see all Tudor batteries
Manufacturer range TUDOR START PRO (HD)
Manufacturer part number (MPN) TG1403
EAN-13 barcode 3661024055420
Dimensions (length × width × height) 513 × 189 × 223 mm (513x189x223)

Tudor TG1403: best-selling equivalent or higher-spec batteries — alternatives with the same dimensions, Ah and CCA

The Tudor TG1403 is interchangeable with these equivalent references: EG1403 (Exide), TF1453 (Tudor), K7 (Varta), M11 (Varta), EF1453 (Exide), K8 (Varta). Higher-technology alternatives that can replace it: TE1403 (Tudor), EE1403 (Exide).

Product Specifications Technology Price
Tudor TG1403 Tudor TG1403 This battery 12V 140Ah 800A Lead-acid 133,90 €
Tudor TE1403 Tudor TE1403 Upgrade: EFB 12V 140Ah 800A EFB Upgrade 235,90 € +102,00 €

Tudor TG1403 vs Tudor TE1403

Upgrade: EFB · +102,00 €

It is the EFB version of the same case: it withstands far more partial discharges than the TG1403. Compared with the TG1403 it has the same Ah and cranking power. It costs 102,00 € more. Essential with Start-Stop or heavy draw at standstill; in a conventional-use truck the TG1403 does the job and EFB only adds service life.

TG1403TE1403
Capacity140 Ah140 Ah
Cold cranking (EN)800 A800 A
TechnologyLead-acidEFB
Dimensions (mm)513 × 189 × 223513 × 189 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price133,90 €235,90 €
Tudor TF1453 Tudor TF1453 Bigger sister ★ 5,0 12V 145Ah 900A Lead-acid 169,60 € +35,70 €

Tudor TG1403 vs Tudor TF1453

Bigger sister · +35,70 €

It is the bigger sister of the TG1403 in the same Tudor range. Compared with the TG1403 it has 5 Ah more and 100 A of cold cranking more. It costs 35,70 € more. Worth it with an equipped cab (fridge, heater, equipment) or many long stops; otherwise the TG1403 does the job.

TG1403TF1453
Capacity140 Ah145 Ah
Cold cranking (EN)800 A900 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 189 × 223513 × 189 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price133,90 €169,60 €
Varta K7 Varta K7 Varta equivalent 12V 145Ah 800A Lead-acid 140,90 € +7,00 €

Tudor TG1403 vs Varta K7

Varta equivalent · +7,00 €

Same case and same fitting as the TG1403, from Varta. Compared with the TG1403 it has 5 Ah more. It costs 7,00 € more. If you want to save or the TG1403 is out of stock, it is the safe alternative: same dimensions, same polarity and official warranty.

TG1403K7
Capacity140 Ah145 Ah
Cold cranking (EN)800 A800 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 189 × 223513 × 189 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price133,90 €140,90 €
Varta M11 Varta M11 Varta equivalent 12V 154Ah 1150A Lead-acid 166,10 € +32,20 €

Tudor TG1403 vs Varta M11

Varta equivalent · +32,20 €

It is the verified Varta equivalent for the TG1403 tray. Compared with the TG1403 it has 14 Ah more and 350 A of cold cranking more. It costs 32,20 € more. Decide by price, brand preference and availability: both fit and crank the same.

TG1403M11
Capacity140 Ah154 Ah
Cold cranking (EN)800 A1150 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 189 × 223513 × 189 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price133,90 €166,10 €
Exide EF1453 Exide EF1453 Exide equivalent 12V 145Ah 900A Lead-acid 138,70 € +4,80 €

Tudor TG1403 vs Exide EF1453

Exide equivalent · +4,80 €

Same case and same fitting as the TG1403, from Exide. Compared with the TG1403 it has 5 Ah more and 100 A of cold cranking more. It costs 4,80 € more. If you want to save or the TG1403 is out of stock, it is the safe alternative: same dimensions, same polarity and official warranty.

TG1403EF1453
Capacity140 Ah145 Ah
Cold cranking (EN)800 A900 A
TechnologyLead-acidLead-acid
Dimensions (mm)513 × 189 × 223513 × 189 × 223
Positive terminalPositive terminal on the leftPositive terminal on the left
Price133,90 €138,70 €
Exide EG1403 Exide EG1403 Exide equivalent ★ 5,0 12V 140Ah 800A Lead-acid 128,60 € −5,30 €
Exide EE1403 Exide EE1403 Upgrade: EFB 12V 140Ah 800A EFB Upgrade 224,70 € +90,80 €
Varta K8 Varta K8 Varta equivalent 12V 140Ah 800A Lead-acid 212,50 € +78,60 €

Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.

Other 140Ah batteries: We stock 26 models of 140 Ah to compare by price, technology and cold cranking: see all 140Ah batteries. Same size (513 × 189 × 223 mm): batteries of 513 × 189 × 223 mm.

Recommended accessories — complement the Tudor TG1403 with a charger or tester

Compatible vehicles

The Tudor TG1403 fits 360 vehicles. Most searched below:

See all 360 compatible vehicles

Frequently asked questions

Why does my lorry have two batteries?

Most lorries, buses and tractors run on 24 V with two 12 V batteries connected in series. Always replace both at the same time and with the same model: if one is new and the other old, they become unbalanced and both last less.

How many years does this battery last?

As a guide, you can expect the Tudor TG1403 to last 4 to 6 years in normal lorry use, although the real figure may be higher or lower. It can vary considerably with usage (short or long journeys), temperature, the condition of the alternator and charging system, power drawn with the engine off and maintenance, plus the truck itself and Start-Stop. Cold demands more at every start and intense heat evaporates the electrolyte.

What size is this battery?

The Tudor TG1403 takes up 513×189×223 mm (length, width and height, terminals included). Before buying, measure the space in your truck: one extra millimetre can stop the hold-down clamp from closing.

On which side is the positive of the TG1403 model?

On the Tudor TG1403, the polarity is positive on the left. It must match your current battery: reversed polarity means lengthening cables or reconfiguring the system, with a risk of short circuit. To check, stand the battery in front of you with the terminals nearest you: the positive (+) is the one with the red ring.

Does this battery fit my truck?

Our database holds 360 verified vehicle versions for the Tudor TG1403. Not sure? Try your number plate in the finder (DGT/DVLA/KBA detect model and engine) or the "Compatible vehicles" tab, checked by our technical team; if your truck is not there, send us make, model, engine and year on WhatsApp and we will reply during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). The truck manufacturer's specifications always take priority over our tables.

What are the equivalents of the TG1403 model?

A battery interchangeable with the Tudor TG1403 must match it on dimensions (513×189×223 mm), polarity (positive on the left), capacity (140 Ah) and cranking current (800 A). Technology matters too: in Start-Stop trucks, an EFB cannot be replaced with a conventional battery. The options at the same level are in the "Equivalents" section of this page.

Tudor TG1403 or Tudor TE1403: which one to choose?

It is the EFB version of the same case: it withstands far more partial discharges than the TG1403. Compared with the TG1403 it has the same Ah and cranking power. It costs 102,00 € more. Essential with Start-Stop or heavy draw at standstill; in a conventional-use truck the TG1403 does the job and EFB only adds service life.

Tudor TG1403 or Tudor TF1453: which one to choose?

It is the bigger sister of the TG1403 in the same Tudor range. Compared with the TG1403 it has 5 Ah more and 100 A of cold cranking more. It costs 35,70 € more. Worth it with an equipped cab (fridge, heater, equipment) or many long stops; otherwise the TG1403 does the job.
