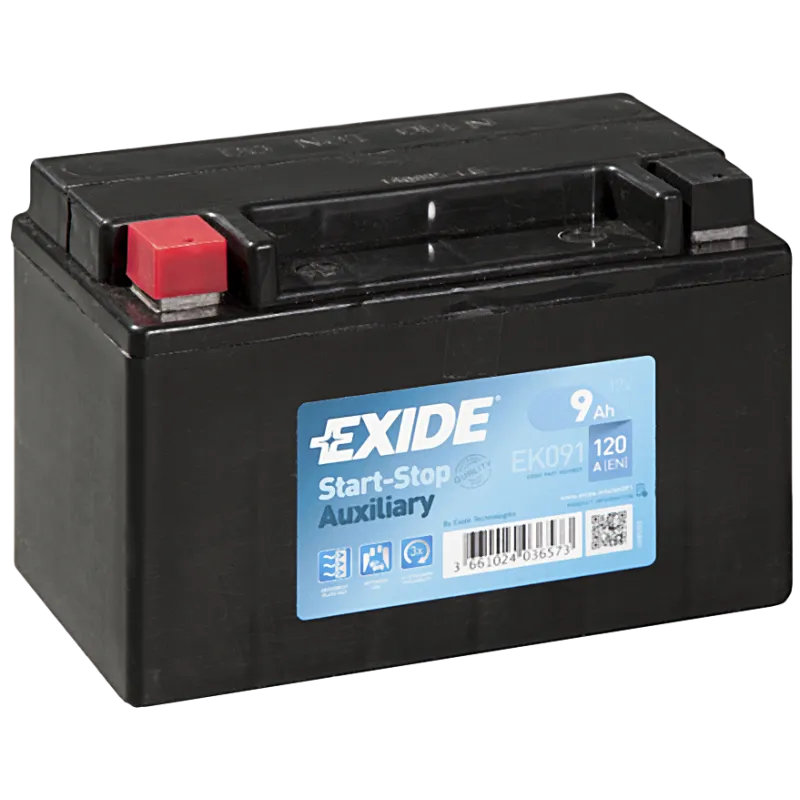

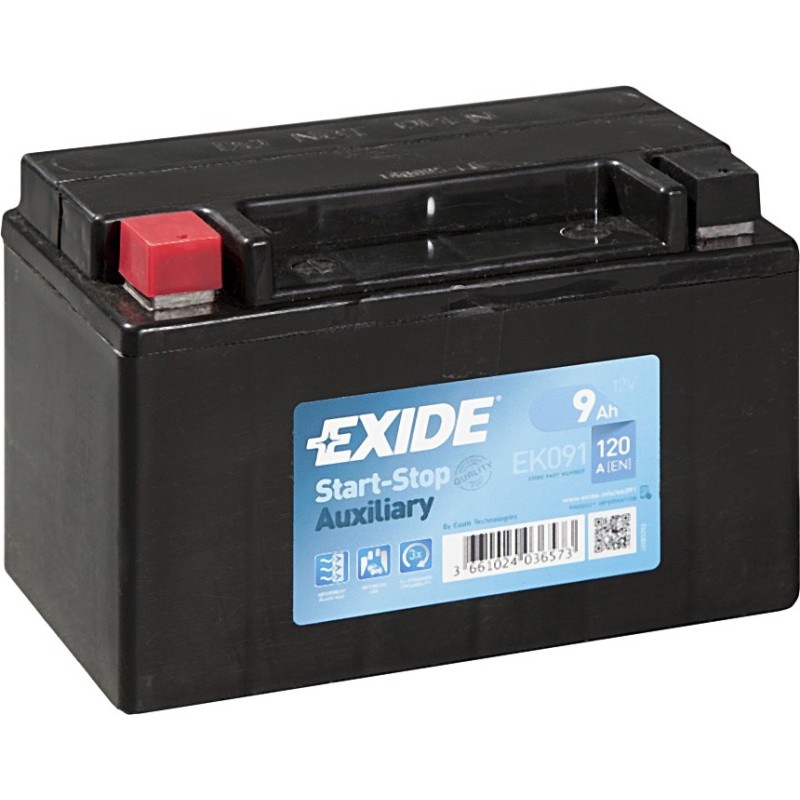

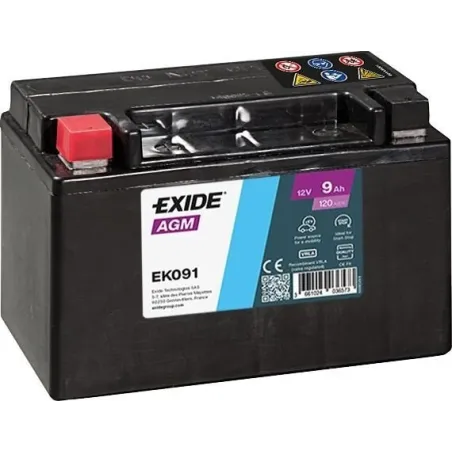

Exide EK091 Auxiliar · Auxiliary battery 9Ah 120A AGM

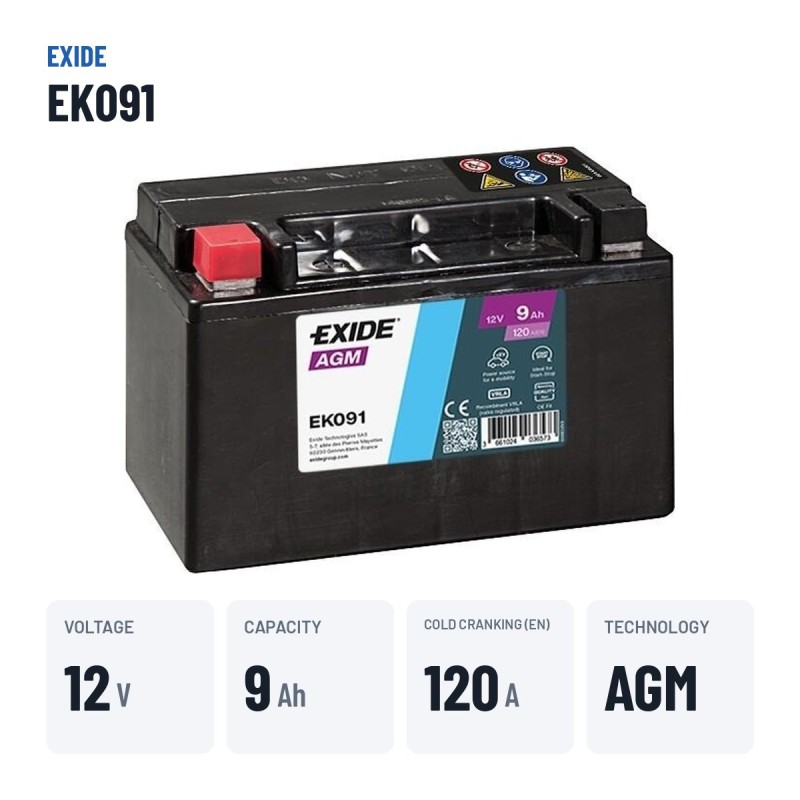

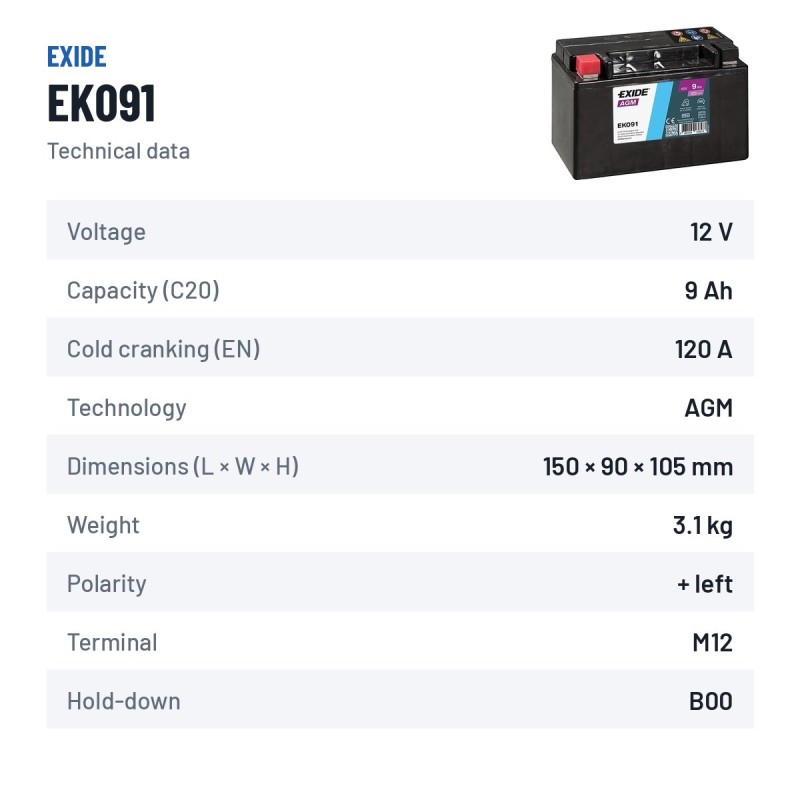

Specifications

BrandEXIDE
Part numberEK091
Voltage (V)12
Capacity (C20)9Ah (c20)
Cold cranking amps (EN)120A
TechnologyAGM
Length150 mm
Width90 mm
Height105 mm
See the full specifications →
Price: €55.40
VAT included
Quantity

Brand: EXIDE batteries Part number: EK091

Polarity: positive on the left. Check it matches your current battery before buying.

Exide EK091 12V 9Ah 120A is an auxiliary battery: it supports the Start-Stop system and on-board electronics during stops, without draining the main battery.

Why this auxiliary battery?

  • Designed for Start-Stopbuilt for the intensive cycling of modern cars
  • 2 to 3 times longer lifevs fitting a cheap conventional battery
  • Fast recoveryrecharges in minutes once the engine is running
Voltage
12 V
Capacity
9 Ah C20
Cold cranking
120 A EN-1
Dimensions
150×90×105 mm
Technology
AGM
Polarity
Positive on the left
Weight
3,1 kg
Model
EXIDE Start-Stop Auxiliary

Where it fits: the Exide EK091 is one of our auxiliary batteries, belongs to our Exide batteries and by capacity it sits among our 9Ah batteries.

The Exide EK091 in practice

Which cars do our customers fit it to?

Mostly to Volvo XC60 (1 orders with the vehicle identified). That those models use it does not guarantee it fits yours: check the plate, as tray and polarity vary by version.

Logo Exide

Auxiliary battery Exide EK091 Auxiliar 9Ah 120A 12V

12VVoltage
9AhCapacity
120ACold cranking
3.10kgWeight

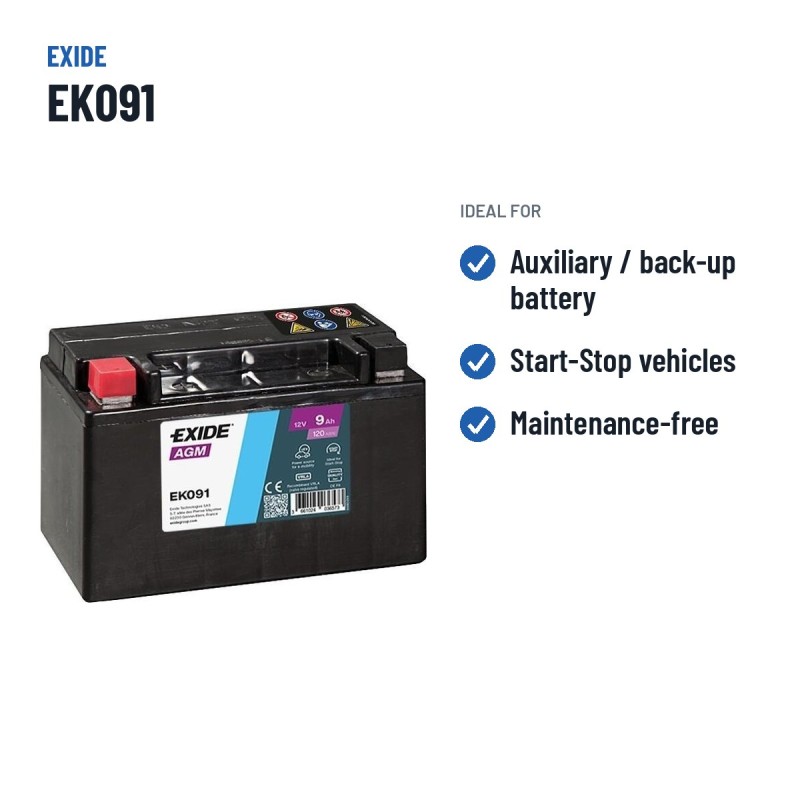

The Exide EK091 with AGM technology is the 9 Ah, 12 V support battery for the auxiliary network of cars with advanced Start-Stop and heavy electronics. It measures 150 × 90 × 105 mm and the positive terminal on the left, the format sought by anyone replacing a 9 Ah battery in vehicles with an auxiliary battery.

  • Stabilises the onboard network voltage.
  • AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
  • Maintenance-free.
  • Sealed AGM: safe when installed in the cabin.

Size, terminals and hold-down of the Exide EK091

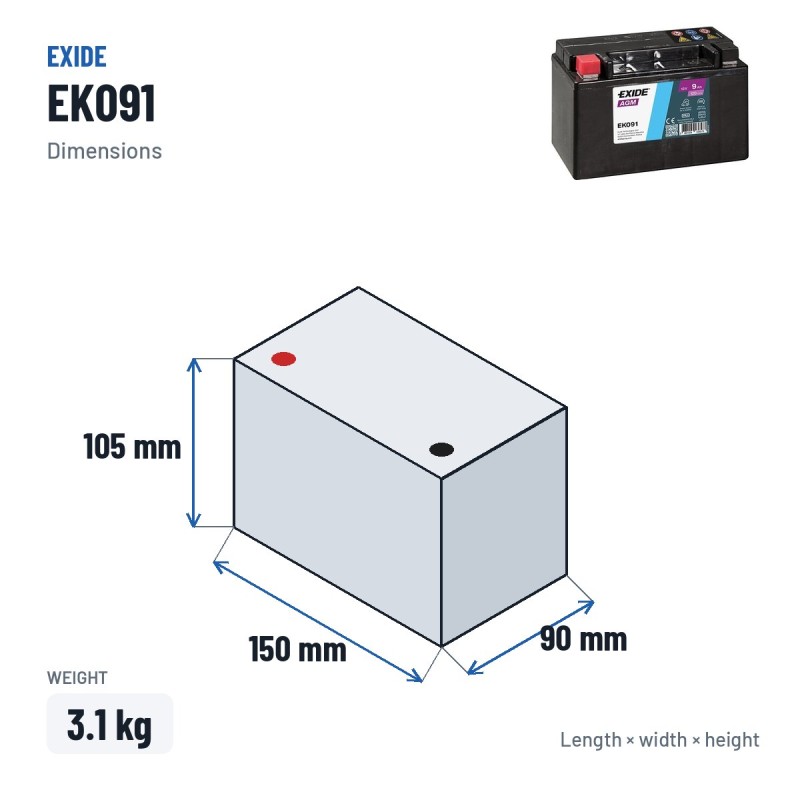

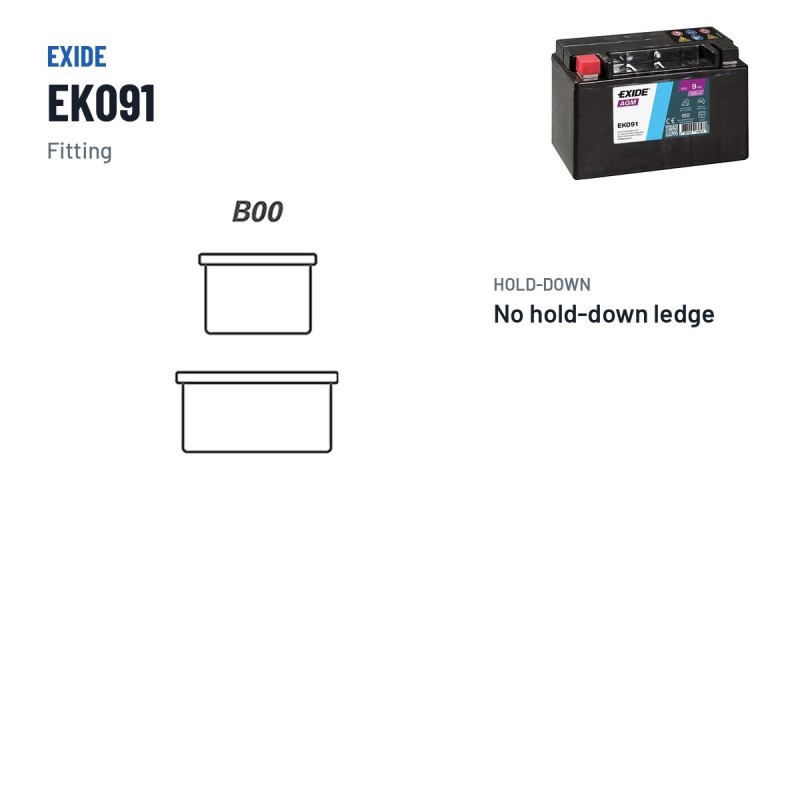

In terms of format, the Exide EK091 measures 150 × 90 × 105 mm (length × width × height) and weighs 3.10 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B0 hold-down and M12 terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.

What the Exide EK091 is for

As an auxiliary battery, the Exide EK091 works alongside the main one; replace it when the vehicle reports a fault in the support network. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 3.10 kg, M12 terminals and B0 hold-down.

The Exide EK091: Auxiliar range and AGM technology

The Auxiliar is the Exide range the EK091 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.

In an AGM battery the electrolyte is absorbed in glass-fibre separators: there is no free liquid, it cannot spill and it can be mounted at an angle. That construction lowers internal resistance, speeds up recharging and multiplies cycle life compared with a conventional battery.

Why choose Exide batteries

Exide is one of the world's largest battery manufacturers and an original-equipment supplier to many car makers. Its European plants produce starter, industrial and leisure batteries under original-equipment quality controls. All the Exide batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.

Official warranty

The Exide EK091 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.

Usage and maintenance tips

Replace it with the same technology and capacity as the original. The auxiliary battery works alongside the main one: if a support-network fault warning appears, check both.

Delivery times and returns

Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 1 to 2 working days; for the Balearic Islands and the rest of the European Union allow 1 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.

  • Reference
    BCOM-EXIDE-EK091

Data sheet

  • Brand
    EXIDE
  • Reference
    EK091
  • Model
    EXIDE AUXILIAR
  • Voltage (V)
    12
  • Length
    150 mm
  • Width
    90 mm
  • Height
    105 mm
  • Weight
    3.10 Kgs
  • Technology
    AGM
  • EAN
    3661024036573
  • Terminal layout
    Positive terminal on the left
  • Terminal type
    M12
  • Hold-down
    B0
  • Cold cranking amps (EN)
    120A
  • Capacity (C20)
    9Ah (c20)

Specific References

  • EAN13
    3661024036573
  • MPN
    EK091

Download

Datasheet Exide EK091

PDF datasheet of the Exide EK091 battery

Download (121.61KB)

Codes and references Exide EK091

Brand Exide · see all Exide batteries
Manufacturer range EXIDE AUXILIAR
Manufacturer part number (MPN) EK091
EAN-13 barcode 3661024036573
Dimensions (length × width × height) 150 × 90 × 105 mm (150x90x105)

Exide EK091: best-selling equivalent or higher-spec batteries — alternatives with the same dimensions, Ah and CCA

The Exide EK091 is interchangeable with these equivalent references: TK091 (Tudor).

Product Specifications Technology Price
Exide EK091 Exide EK091 This battery 12V 9Ah 120A AGM 55,40 €
Tudor TK091 Tudor TK091 Tudor equivalent 12V 9Ah 120A AGM 61,70 € +6,30 €

Exide EK091 vs Tudor TK091

Tudor equivalent · +6,30 €

Same case and same fitting as the EK091, from Tudor. Compared with the EK091 it has the same Ah and cranking power. It costs 6,30 € more. If you want to save or the EK091 is out of stock, it is the safe alternative: same dimensions, same polarity and official warranty.

EK091TK091
Capacity9 Ah9 Ah
Cold cranking (EN)120 A120 A
TechnologyAGMAGM
Dimensions (mm)150 × 90 × 105150 × 90 × 105
Positive terminalPositive terminal on the leftPositive terminal on the left
Price55,40 €61,70 €

Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.

Other 9Ah batteries: We stock 25 models of 9 Ah to compare by price, technology and cold cranking: see all 9Ah batteries. Same size (150 × 90 × 105 mm): batteries of 150 × 90 × 105 mm.

Recommended accessories — complement the Exide EK091 with a charger or tester

Fitting it yourself? Step-by-step guide to replacing the battery →

Frequently asked questions

Is this battery AGM? What is it for?

Yes. AGM (Absorbent Glass Mat) technology, 9 Ah and 12 V: sealed lead-acid, with the electrolyte held in glass fibre. It is the technology required by cars with advanced Start-Stop and regenerative braking. It withstands more cycles than a conventional battery and copes better with heat.

Is the EK091 model suitable for Start-Stop cars?

Yes, the AGM technology of the EK091 is built for Start-Stop. AGM batteries support advanced Start-Stop and regenerative braking thanks to their higher cycle count. Basic Start-Stop: EFB. Start-Stop with regenerative braking: AGM, which withstands more cycles. Check the handbook for the technology the car manufacturer requires. It needs nothing to work, though on most modern cars registering it via OBD is advisable so the alternator adjusts its charging profile.

What is the service life of the EK091 model?

There is no exact figure: for a battery such as the Exide EK091 (AGM), a reasonable guide is 5 to 8 years in mild-climate car use with Start-Stop. It can vary considerably with usage (short or long journeys), temperature, the condition of the alternator and charging system, power drawn with the engine off and maintenance, plus the car itself and Start-Stop. Cold demands more at every start and intense heat evaporates the electrolyte.

What are the measurements of the EK091 model?

Its dimensions are 150×90×105 mm, also written 150x90x105 mm; the height already includes the terminals. Check the room available in your car, because a single millimetre too much can stop the clamp from closing.

What polarity does the Exide EK091 battery have?

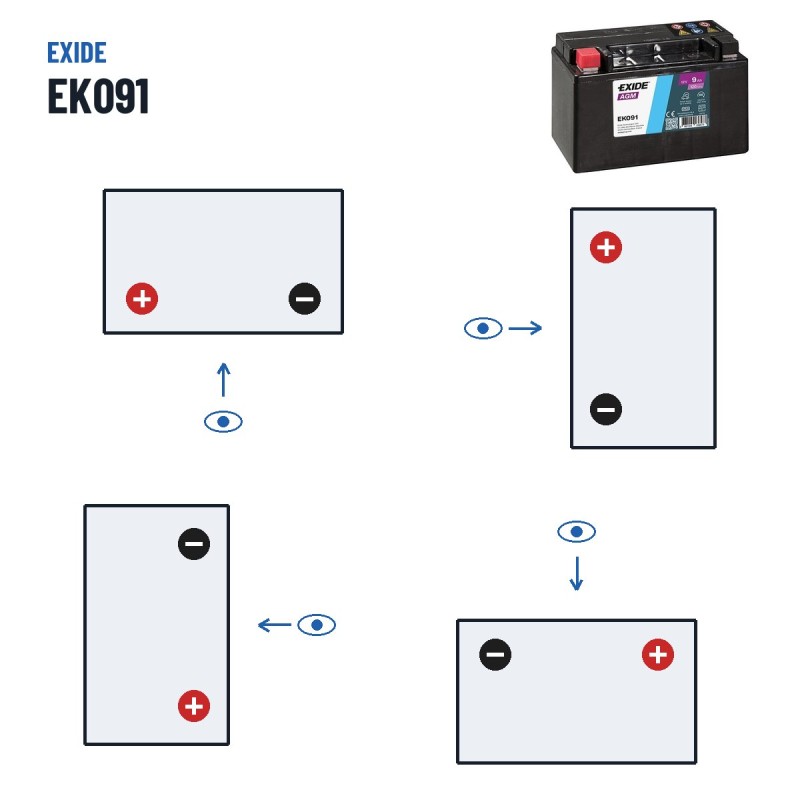

It has the positive on the left (polarity). It must match your current battery: reversed polarity means lengthening cables or reconfiguring the system, with a risk of short circuit. Put it in front of you, terminals towards you: the post with the red ring and the + sign is the positive.

Does this battery fit my car?

Not sure? Try your number plate in the finder (DGT/DVLA/KBA detect model and engine) or the "Compatible vehicles" tab, checked by our technical team; if your car is not there, send us make, model, engine and year on WhatsApp and we will reply during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). Always cross-check with what the car manufacturer states in the owner's handbook.

Which batteries are equivalent to the Exide EK091?

Interchangeable means the same dimensions, same polarity, same Ah and same CCA; for the EK091, 9 Ah (120 A cranking). The "Equivalents" section of this page gathers the recommended options with equivalent performance; remember that in Start-Stop cars an EFB should not be replaced with a conventional battery.

Exide EK091 or Tudor TK091: which one to choose?

Same case and same fitting as the EK091, from Tudor. Compared with the EK091 it has the same Ah and cranking power. It costs 6,30 € more. If you want to save or the EK091 is out of stock, it is the safe alternative: same dimensions, same polarity and official warranty.

When do I need an AGM battery like this one?

The Exide EK091 has a capacity of 9 Ah. In an AGM (Absorbent Glass Mat) battery the electrolyte is held in a glass-fibre mat: no spills, and many more charge/discharge cycles than a conventional battery. For regenerative braking systems such as BMW EfficientDynamics, Mercedes Eco, Audi MHEV, Land Rover ECO or Volvo i-Stop, AGM is the recommendation; it also copes better than an EFB with tilting, vibration and extreme temperatures.

Do I need to register the Exide EK091 on the car after installation?

Advisable, yes; essential, on most cars, no. Registering it via OBD makes the alternator charge with the optimum profile from the first minute and extends battery life, which matters most on brands with sophisticated BMS such as BMW, Mercedes, Audi, Volvo or Land Rover. Without registration there is no starting problem: the alternator adjusts the profile within a few days. A workshop only needs an OBD scanner and a few minutes. DIY apps: VCDS / Carista (VAG), Bimmercode (BMW), iCarsoft.
