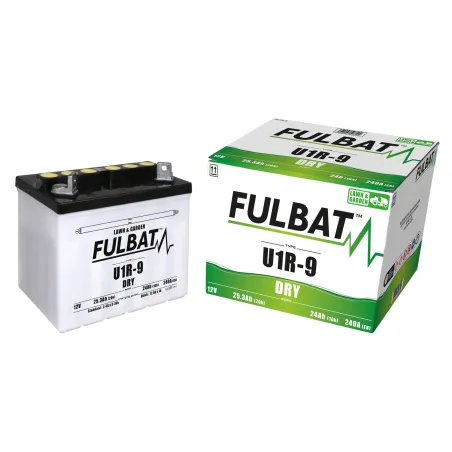

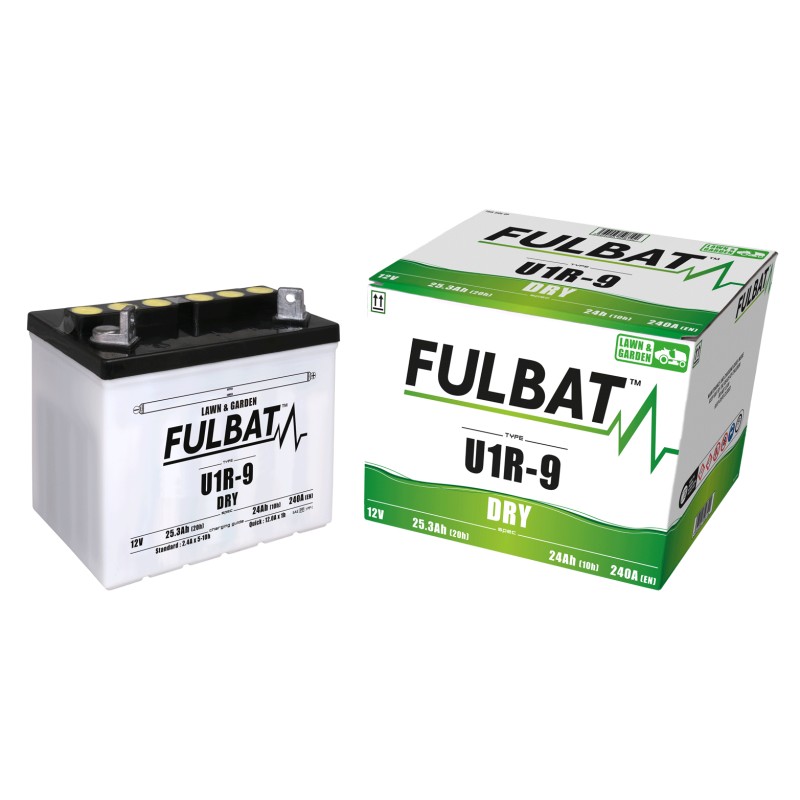

Fulbat U1R-9 Lawn & Garden DRY · Battery 24V 25.3Ah 240A

Specifications

BrandFULBAT
Part numberU1R-9
Voltage (V)12V
Capacity (C20)25.30Ah
Capacity (C10)24Ah (c10)
Cold cranking amps (EN)240A
TechnologyLead-acid
Length195mm
Width130mm
See the full specifications →

This product is priced on demand to offer you the best available price at all times.

Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.

Thank you

Fulbat U1R-9 24V 25Ah 240A is a compact garden battery: strong cranking reserve and good tolerance to long idle periods between seasons.

Why this lawnmower battery?

  • Same JIS referenceas your bike's original — fits first time
  • Sealed and ready to useno acid handling, no refills
  • Survives winter storageholds charge through long off-season
Voltage
24 V
Capacity
25 Ah C20
Cold cranking
240 A EN-1
Dimensions
195×130×180 mm
Technology
Lead-acid
Polarity
Positive on the right
Model
FULBAT Lawn & Garden DRY
Mfr. reference
U1R-9

Where it fits: the Fulbat U1R-9 is one of our lawnmower batteries, belongs to our Fulbat batteries and by capacity it sits among our 25Ah batteries.

Solve it now by chat Our assistant replies instantly about batteries, shipping and orders, and opens the request you need.
I prefer to fill in the form
Free quote, no obligation

Request a quote for your Lawnmower battery Fulbat U1R-9 24V 25.3Ah 240A

  • Reply in under 4 working hours
  • Best price guaranteed
Attach photo (optional)
Photo of the old battery or vehicle documentation · Max. 3 · 8 MB · images or PDF
Logo Fulbat

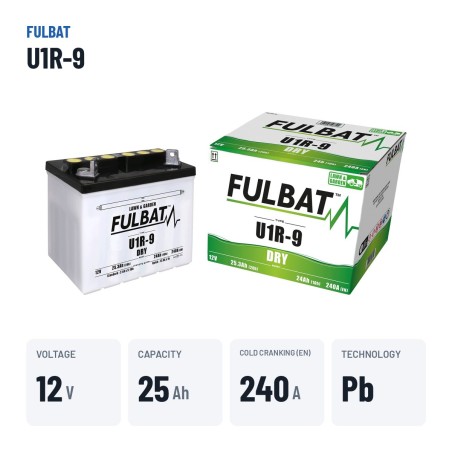

Lawn mower battery Fulbat U1R-9 25.3Ah 240A 12V

12VVoltage
25.3AhCapacity
240ACold cranking

The Fulbat U1R-9 with conventional lead-acid technology delivers 25.3 Ah at 12 V and 240 A of cold cranking current (EN) for ride-on mowers, tillers and garden machinery. It replaces the original battery without adaptation in ride-on mowers with a 195 × 130 × 180 mm format: same 25.3 Ah capacity and the positive terminal on the right.

  • Conventional lead-acid: the most proven and economical technology.
  • Reliable starting after months of winter storage.
  • Compact format for small trays.
  • Good tolerance to self-discharge.

What the Fulbat U1R-9 is for

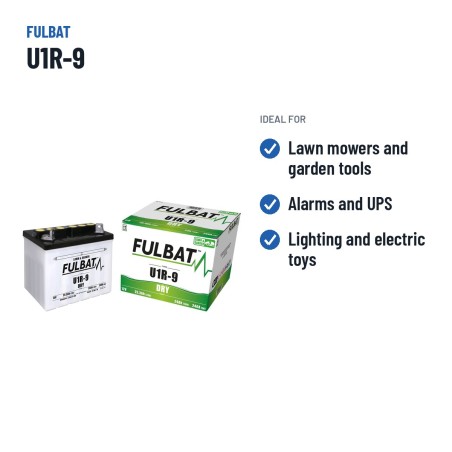

The Fulbat U1R-9 is designed for ride-on mowers, tillers and garden machinery. After winter, a full charge before the first start avoids surprises.

Technology inside the Fulbat U1R-9

Fulbat builds the U1R-9 to the same standards as the rest of its catalogue; what changes between references is capacity, format and terminal position.

Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.

Size, terminals and hold-down of the Fulbat U1R-9

The Fulbat U1R-9 is made in the 195 × 130 × 180 mm format. The positive terminal on the right decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.

Fulbat: the maker behind the U1R-9

Fulbat has manufactured in France since 1978 and specialises in motorcycles and light vehicles. Its catalogue is short and clear, covers almost the whole fleet and works only with sealed, leak-free batteries. All the Fulbat batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.

Usage and maintenance tips

Disconnect or remove the battery over winter and give it a maintenance charge before storing it. On batteries with filler caps, check the electrolyte level and top up only with distilled water.

Warranty and coverage

The Fulbat U1R-9 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.

When you get it and how to return it

Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 1 to 2 working days in mainland Spain and 1 to 3 working days in mainland Portugal, 1 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.

  • Reference
    BCOM-FULBAT-U1R-9

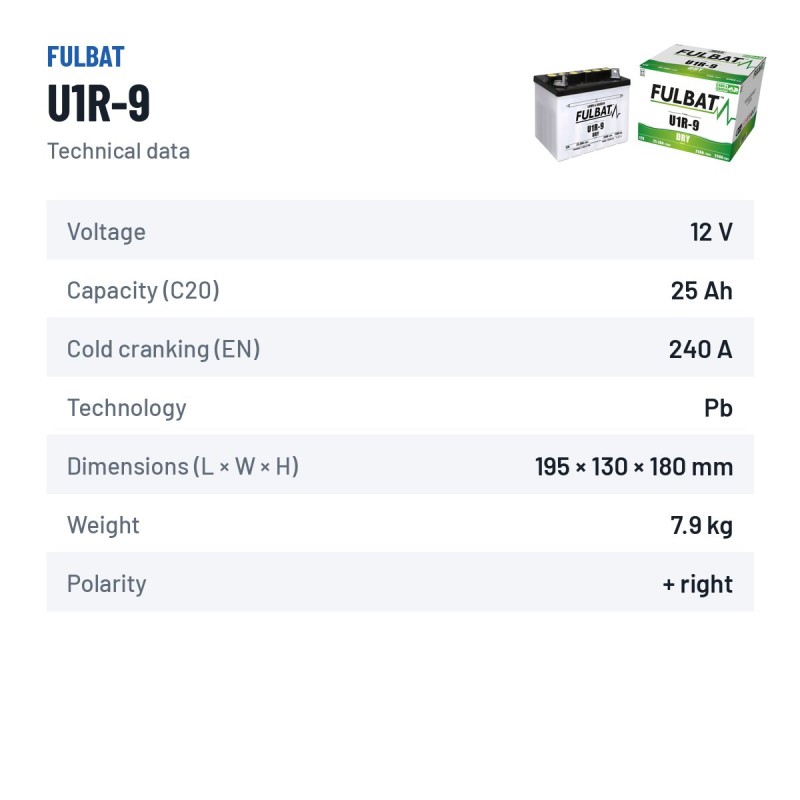

Data sheet

  • Brand
    FULBAT
  • Model
    FULBAT Lawn & Garden DRY
  • Voltage (V)
    12V
  • Length
    195mm
  • Width
    130mm
  • Height
    180mm
  • Technology
    Lead-acid
  • Terminal layout
    Positive right
  • Cold cranking amps (EN)
    240A
  • Capacity (C20)
    25.30Ah
  • Capacity (C10)
    24Ah (c10)

Specific References

  • MPN
    U1R-9

Download

Datasheet Fulbat U1R-9

PDF datasheet of the Fulbat U1R-9 battery

Download (426.21KB)

Fulbat U1R-9: alternatives with the same dimensions — alternatives with the same dimensions, Ah and CCA

Batteries from our catalogue with the same dimensions, voltage and technology as the Fulbat U1R-9 and a similar capacity, sorted by sales. They are not manufacturer-approved equivalents: check the polarity and capacity of your original battery.

Product Specifications Technology Price
Fulbat U1R-9 Fulbat U1R-9 This battery 12V 25.3Ah 240A Lead-acid
Exide U1R-11 Exide U1R-11 Same size 12V 30Ah 300A Lead-acid €93.50 +€93.50

Fulbat U1R-9 vs Exide U1R-11

Same size · +€93.50

Same case and same technology as the U1R-9: an alternative by size, not an official equivalent. Compared with the U1R-9 it has 5 Ah more and 60 A of cold cranking more. It costs €93.50 more. If the polarity matches and your equipment had a similar capacity, it works as a replacement; if in doubt, ask us with your model.

U1R-9U1R-11
Capacity25 Ah30 Ah
Cold cranking (EN)240 A300 A
TechnologyLead-acidLead-acid
Dimensions (mm)195 × 130 × 180195 × 130 × 180
Positive terminalPositive rightPositive terminal on the right
Price€93.50
Exide U1-9 Exide U1-9 Same size ★ 5,0 12V 24Ah 240A Lead-acid €80.40 +€80.40

Fulbat U1R-9 vs Exide U1-9

Same size · +€80.40

It has the same dimensions, voltage and technology as the U1R-9, although it is not a manufacturer-approved equivalent. Compared with the U1R-9 it has 1 Ah less. It costs €80.40 more. Check the positive terminal side and the original capacity before ordering; otherwise it is a straight swap.

U1R-9U1-9
Capacity25 Ah24 Ah
Cold cranking (EN)240 A240 A
TechnologyLead-acidLead-acid
Dimensions (mm)195 × 130 × 180195 × 130 × 180
Positive terminalPositive rightPositive terminal on the left
Price€80.40

Automatic selection by dimensions (±3 mm), voltage, technology and capacity (−10 % / +20 %). Official manufacturer warranty on every option.

Other 25Ah batteries: We stock 6 models of 25 Ah to compare by price, technology and cold cranking: see all 25Ah batteries. Same size (195 × 130 × 180 mm): batteries of 195 × 130 × 180 mm.

Recommended accessories — complement the Fulbat U1R-9 with a charger or tester

Frequently asked questions

How long does the Fulbat U1R-9 battery last?

Estimated lifespan of the Fulbat U1R-9: 4 to 6 years in normal lorry use. Treat it as an approximate guide, as every case is different. Many factors play a part: how it is used (lots of short trips, for example), temperature (cold makes every start harder and intense heat evaporates the electrolyte), the condition of the alternator and charging system, power drawn with the engine off and maintenance, as well as the type of truck and whether it has Start-Stop.

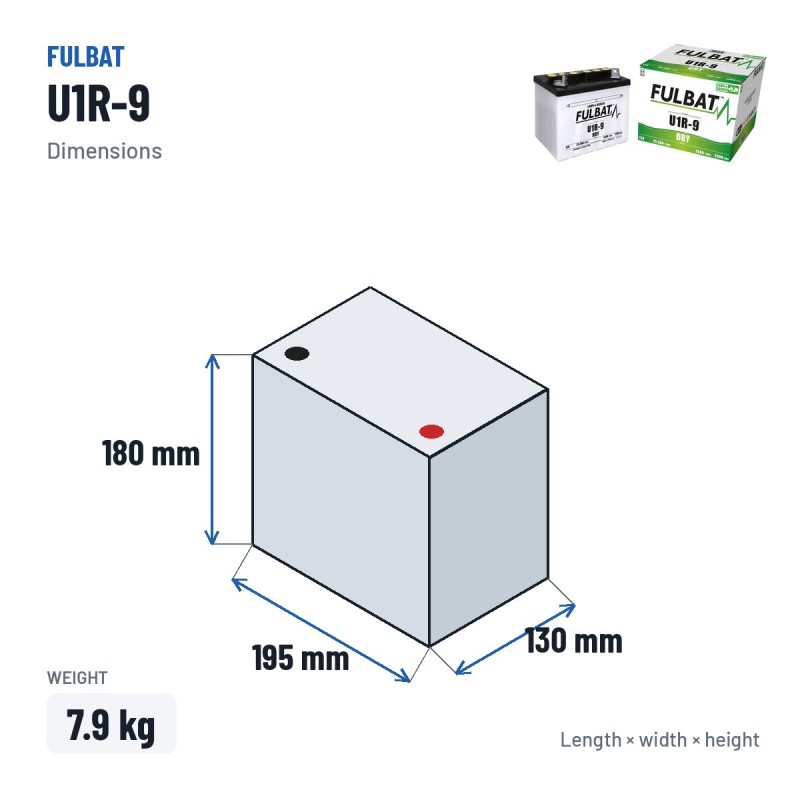

What are the measurements of the U1R-9 model?

It measures 195×130×180 mm in length × width × height, with the terminals included in the height. Measure the battery tray before ordering: a one-millimetre difference is enough for the hold-down clamp not to close.

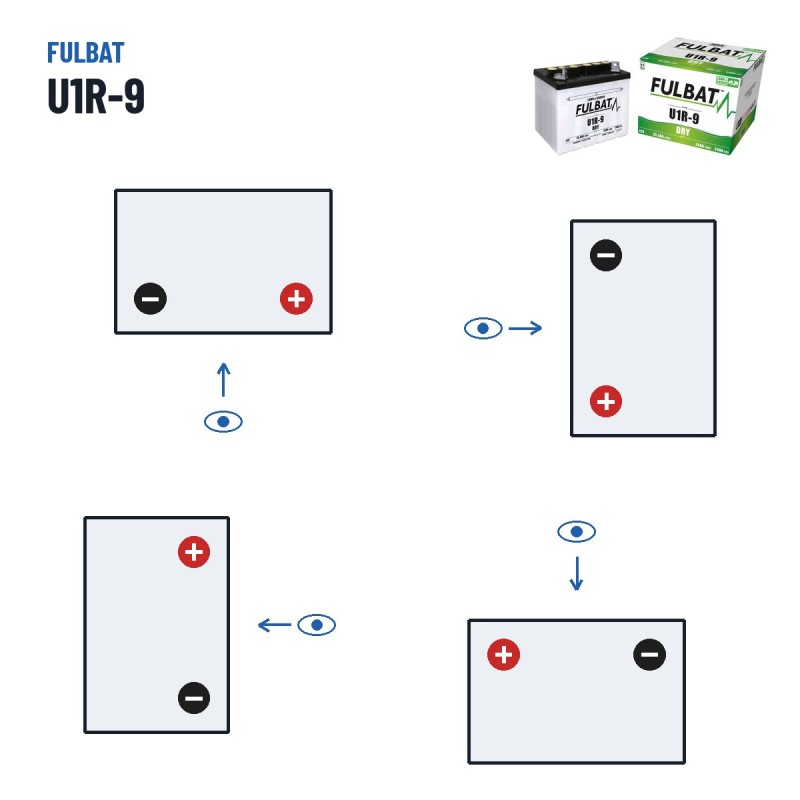

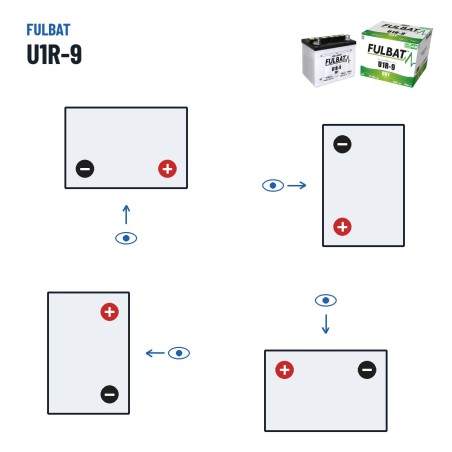

On which side is the positive of the U1R-9 model?

The U1R-9 has the positive on the right: that is its polarity. It must match your current battery: reversed polarity means lengthening cables or reconfiguring the system, with a risk of short circuit. Face the battery with its terminals nearest you and see which side the positive post (+, red ring) is on.

Is the U1R-9 valid for my vehicle?

For your own vehicle: type your number plate into the finder (DGT/DVLA/KBA identify model and engine), check the "Compatible vehicles" tab below, listing vehicles verified by our technical team, or message us on WhatsApp with make, model, engine and year; we reply during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). In every case, the truck manufacturer's specifications (owner's handbook) take precedence.

Which interchangeable batteries are there for this one?

Interchangeable means the same dimensions, same polarity, same Ah and same CCA; for the U1R-9, 25.3 Ah (240 A cranking). Technology matters too: in Start-Stop trucks, an EFB cannot be replaced with a conventional battery. The options at the same level are in the "Equivalents" section of this page.
