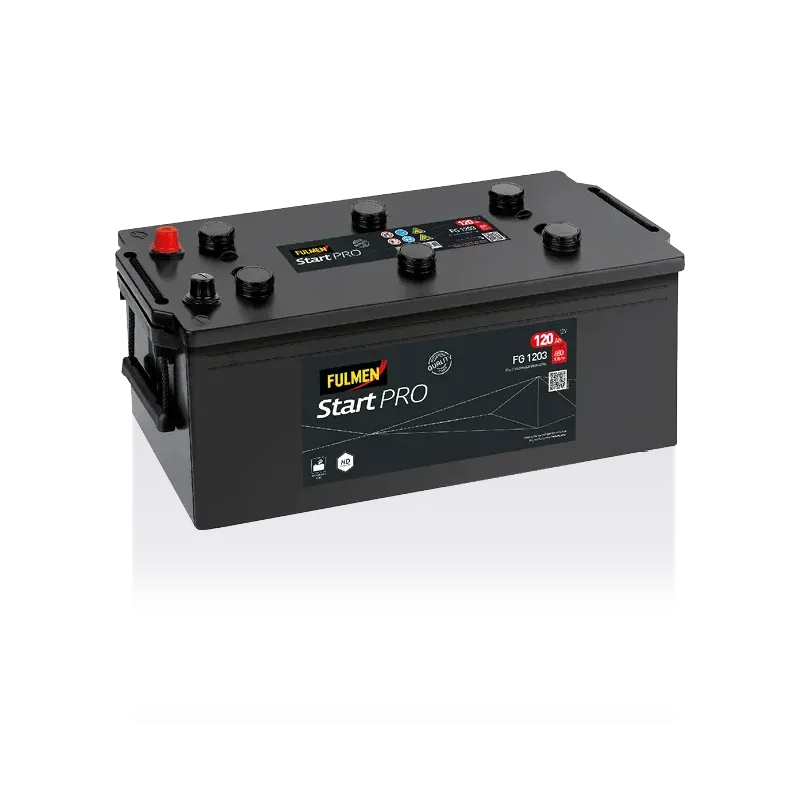

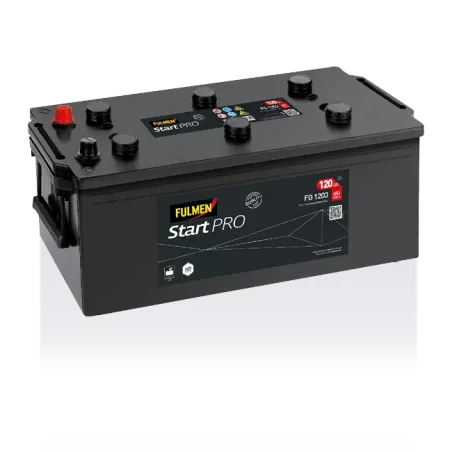

Fulmen FG1203 · Truck battery 12V 120Ah 680A

Batería Fulmen FG1203 120Ah - 1
search
  • Batería Fulmen FG1203 120Ah - 1

Specifications

BrandFulmen
Part numberFG1203
Voltage (V)12
Capacity (C20)120Ah (c20)
Cold cranking amps (EN)680A
TechnologyLead-acid
Length513 mm
Width189 mm
Height223 mm
See the full specifications →

This product is priced on demand to offer you the best available price at all times.

Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.

Thank you

Fulmen FG1203 12V 120Ah 680A is an SHD (Super Heavy Duty) truck battery for intensive professional use. Vibration-resistant, withstands long cold-diesel cranks and deep discharges during parking with active loads (tachograph, refrigeration, heater).

Why this truck battery?

  • True Heavy Dutybuilt for intensive professional use
  • Long cold-diesel cranksreliable even in extreme cold
  • Powers services at idletachograph, heater and lights with engine off
Voltage
12 V
Capacity
120 Ah C20
Cold cranking
680 A EN-1
Dimensions
513×189×223 mm
Technology
Lead-acid
Polarity
Positive on the left
Weight
32,5 kg
Model
FULMEN StartPRO
Free quote, no obligation

Request a quote for your Truck battery Fulmen FG1203 12V 120Ah 680A

  • Reply in under 24 working hours
  • Best price guaranteed
Attach photo (optional)
Photo of the old battery or vehicle documentation · Max. 3 · 8 MB · images or PDF
Logo Fulmen

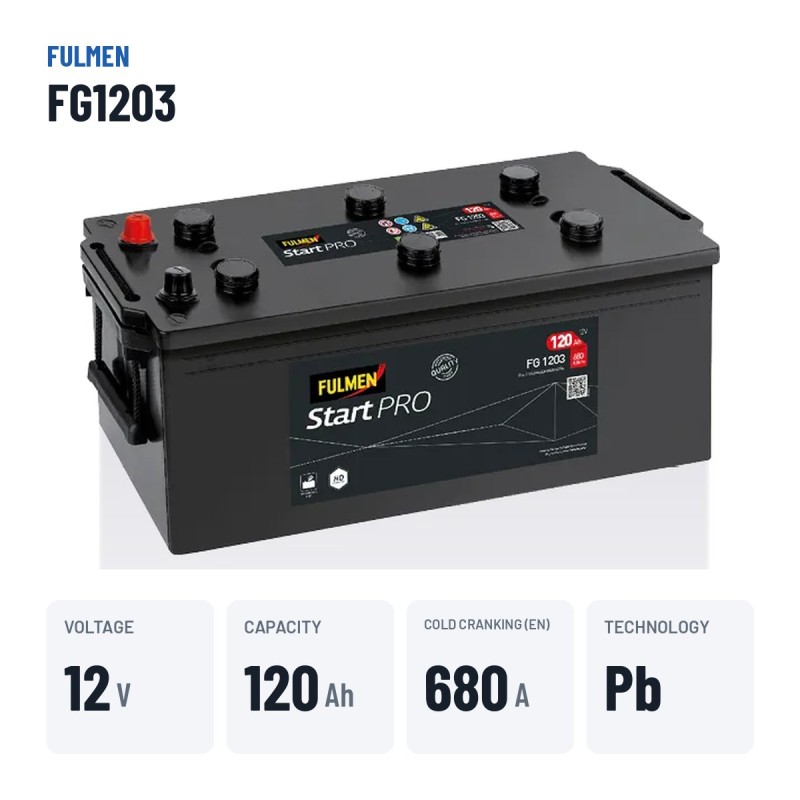

Truck battery Fulmen FG1203 StartPRO 120Ah 680A 12V

12VVoltage
120AhCapacity
680ACold cranking
32.50kgWeight

The Fulmen FG1203 with conventional lead-acid technology delivers 120 Ah at 12 V and 680 A of cold cranking current (EN): what trucks, buses, tractors and heavy machinery demand. It replaces the original battery without adaptation in trucks with a 513 × 189 × 223 mm format: same 120 Ah capacity and the positive terminal on the left.

  • Powerful cold cranking for large-displacement diesel engines.
  • Designed for 24 V installations with two batteries in series.
  • Conventional lead-acid: the most proven and economical technology.
  • Heavy Duty construction for intensive professional use.

Will it fit your current battery tray?

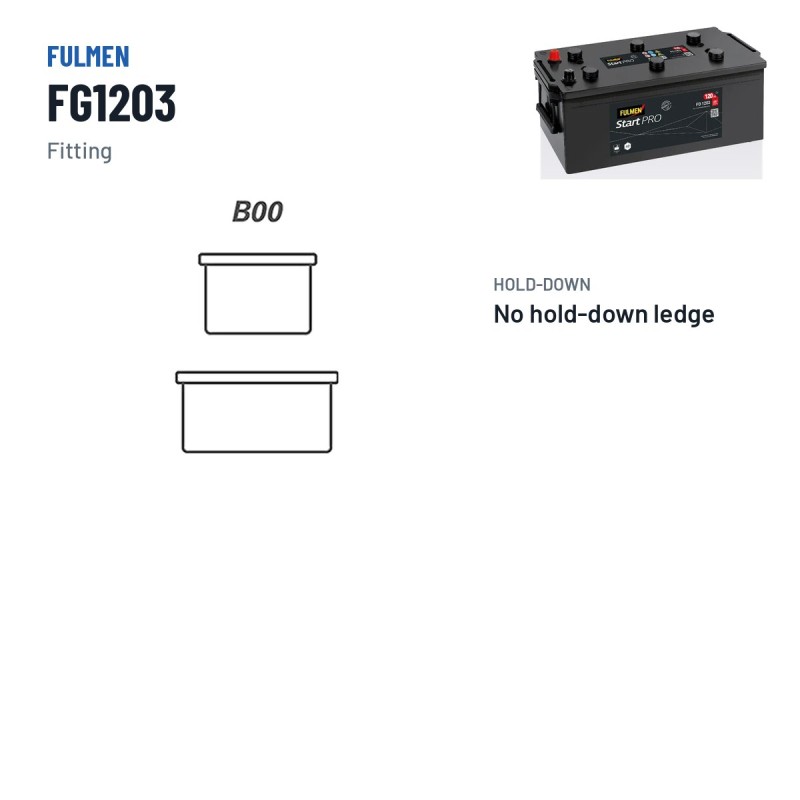

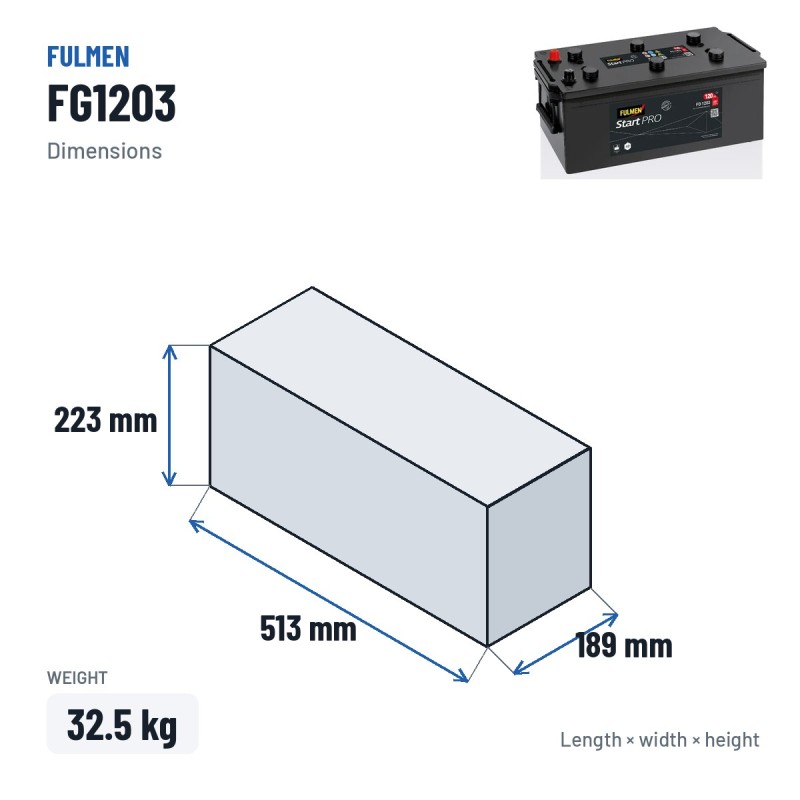

The Fulmen FG1203 is made in the 513 × 189 × 223 mm format and weighs 32.50 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses a B00 hold-down, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.

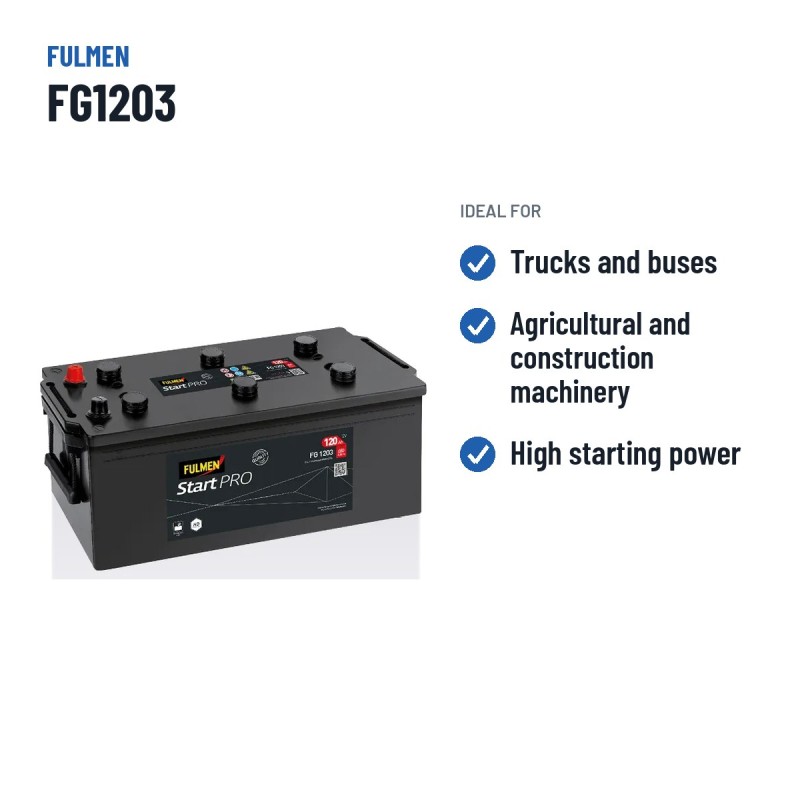

What the Fulmen FG1203 is for

The Fulmen FG1203 is designed for trucks, buses, tractors and heavy machinery. In 24 V installations with two batteries in series, replace both at the same time to avoid imbalance. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 32.50 kg and B00 hold-down.

The Fulmen FG1203: StartPRO range and conventional lead-acid technology

Within the Fulmen catalogue, the StartPRO series groups the references designed for this use. The FG1203 is the 120 Ah model of that family, with the same performance as its siblings in other sizes.

Conventional lead-acid is the benchmark against which other technologies are compared: good cranking current, great tolerance to alternator charging and the best price per amp-hour.

Why choose Fulmen batteries

With more than a century of history, Fulmen offers complete ranges for cars, trucks, motorcycles and leisure with the industrial quality of the Exide group. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.

Manufacturer's warranty

The Fulmen FG1203 comes with the manufacturer's official warranty against manufacturing defects. An important note for commercial vehicles: most trucks use two batteries connected in series (24 V installation). If you replace only one, the new battery works alongside the old one, which has already lost capacity; that imbalance shortens its life and the manufacturer may treat it as misuse. Always replace both at the same time.

Care and maintenance

Keep the terminals clean and tight and the battery firmly secured against chassis vibration. During rest stops with active loads, avoid repeated deep discharges: they shorten the life of any starter battery.

Delivery times and returns

Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.

BCOM-FULMEN-FG1203

Data sheet

Brand
FULMEN
Reference
FG1203
Model
FULMEN StartPRO
Voltage (V)
12
Length
513 mm
Width
189 mm
Height
223 mm
Weight
32.50 Kgs
Technology
Lead-acid
EAN
3661024046541

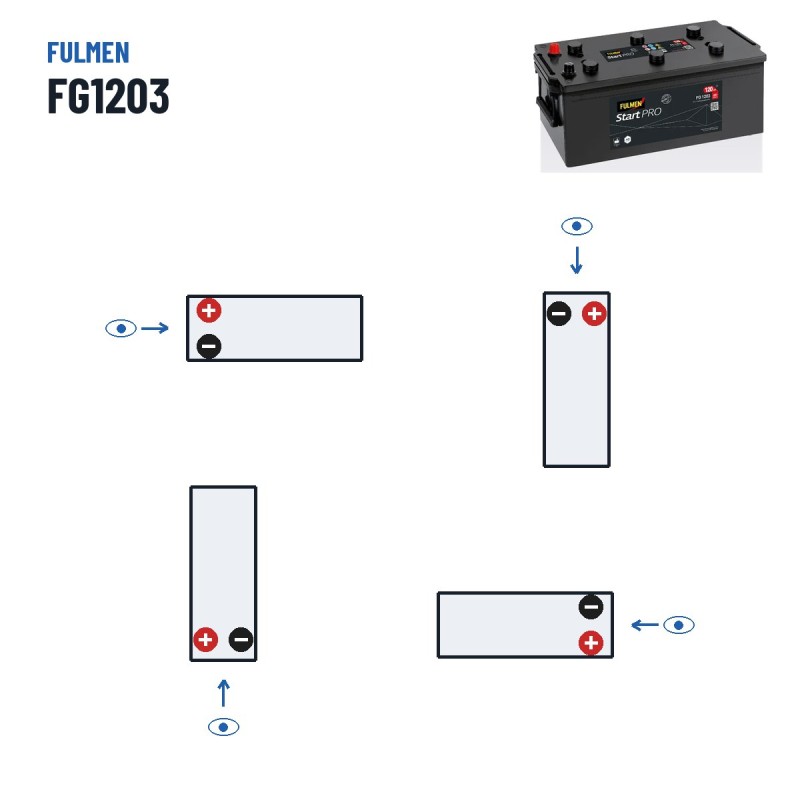

Terminal layout
Positive terminal on the left
Hold-down
B00
Cold cranking amps (EN)
680A
Capacity (C20)
120Ah (c20)
Case type
D04

Specific References

EAN13
3661024046541
MPN
FG1203

Codes and references Fulmen FG1203

Brand Fulmen
Manufacturer range FULMEN StartPRO
Manufacturer part number (MPN) FG1203
EAN-13 barcode 3661024046541
Dimensions (length × width × height) 513 × 189 × 223 mm (513x189x223)

Comparison: Fulmen FG1203 vs equivalents — alternatives with the same dimensions, Ah and CCA

The Fulmen FG1203 is interchangeable with these equivalent references: M11 (Varta), LFD140 (Varta), K7 (Varta), I8 (Varta), TF1453 (Tudor).

Product Specifications Technology Price
Fulmen FG1203 Fulmen FG1203 This battery 12V 120Ah 680A Lead-acid
Varta M11 Varta M11 ★ 4,8 12V 154Ah 1150A Lead-acid €166.10
Varta LFD140 Varta LFD140 ★ 4,8 12V 140Ah 800A Lead-acid €181.40
Varta K7 Varta K7 ★ 4,8 12V 145Ah 800A Lead-acid €140.90
Varta I8 Varta I8 ★ 4,8 12V 120Ah 680A Lead-acid €138.50
Tudor TF1453 Tudor TF1453 ★ 4,8 12V 145Ah 900A Lead-acid €169.60

Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.

Recommended accessories — complement the Fulmen FG1203 with a charger or tester

How to change the battery

Guide to replace a truck battery in 30-60 minutes. Truck batteries weigh 25-50 kg — we recommend working in pairs and using a carrying strap.

⏱ 30-60 min🛠 Tools: 13 mm or 17 mm wrench (depending on make) · Protective gloves
  1. Step 1. Prepare the vehicle

    Park on a flat surface, switch off the engine and remove the key. Make sure all lights and electrical accessories are off. Wait 1-2 minutes before starting.

  2. Step 2. Locate the battery

    Open the bonnet. The battery is usually in the engine bay, but in many modern cars it may be in the boot or under the passenger seat. Check the manual if you cannot find it.

  3. Step 3. Disconnect the negative (−) terminal

    Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.

  4. Step 4. Disconnect the positive (+) terminal

    Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.

  5. Step 5. Remove the old battery (two people)

    Loosen the bottom hold-down clamp. Truck batteries weigh 25-50 kg — lift in pairs with gloves and a carrying strap. Forcing the lift alone risks back injury.

  6. Step 6. Install the new battery

    Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.

  7. Step 7. Connect the cables

    Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.

  8. Step 8. Verify the engine starts

    Close the bonnet. Start the engine to confirm everything works. On cars with Start-Stop or a BMS, you may need to register the battery via OBD so the alternator applies the correct charging profile.

Frequently asked questions

How is the Fulmen FG1203 battery installed in the vehicle?

In most trucks it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On trucks with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.

How many years does this battery last?

Expected lifespan of the Fulmen FG1203 is 4 to 6 years in regular truck use without Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.

What size is this battery?

Dimensions (length × width × height) are 513×189×223 mm — also written as 513x189x223 mm — following the European DIN standard. Always measure the space in your truck before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.

Will the Fulmen FG1203 battery fit my truck?

Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The FG1203 typically fits a wide range of European vehicles thanks to its standard DIN case format.

What are the equivalents of the FG1203 model?

Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop trucks. See the "Equivalents" section to view recommended options at the same performance level.
