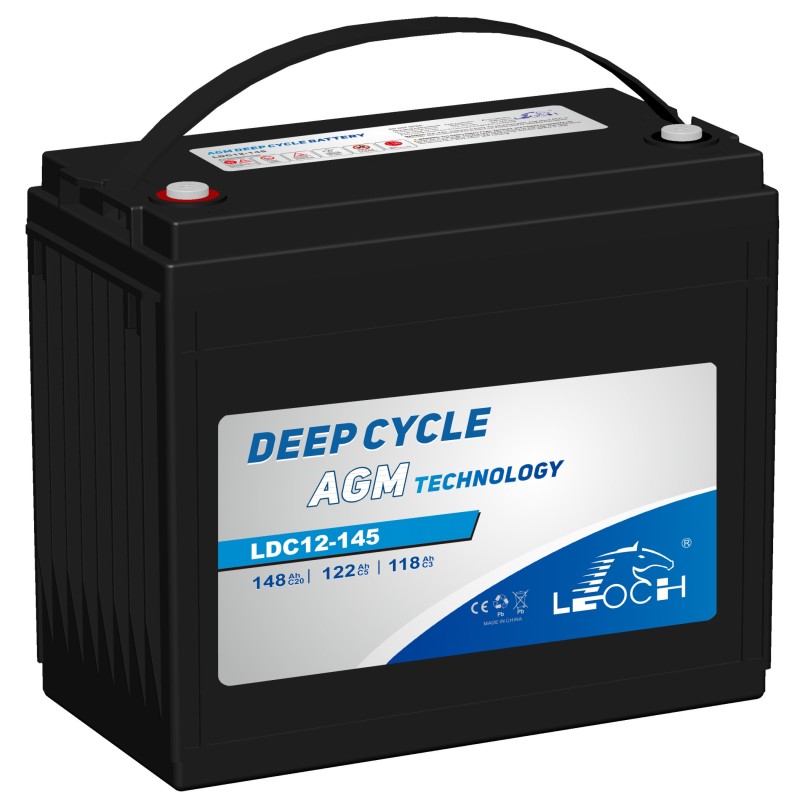

Leoch LDC12-145 · Caravan battery 12V 148Ah AGM

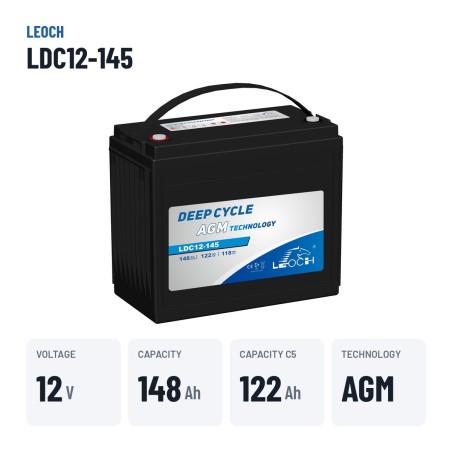

Specifications
| Brand | Leoch |
|---|---|
| Part number | LDC12-145 |
| Capacity (C20) | 148Ah (c20) |
| Capacity (C5) | 122Ah (c5) |
| Technology | AGM |
| Length | 340.00 mm |
| Width | 172.00 mm |
| Height | 286.00 mm |
| Weight | 42.5 Kgs |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Leoch LDC12-145 12V 148Ah is a leisure battery for campers, motorhomes and caravans. Designed to power the entire interior kit (fridge, heater, water pump, USB, LED lighting) for several days off-grid, with no need to plug into a campsite hookup. 308 min reserve at 25 A.
Why this caravan battery?
- Real off-grid autonomyno campsite hookup needed
- Lasts the whole seasonhandles daily discharges without capacity loss
- Powers it all at oncefridge, water pump, LED and USB without issues
Voltage
12 V
Capacity
148 Ah
Dimensions
340×172×286 mm
Technology
AGM
Weight
42,5 kg
Model
LEOCH Deep Cycle LDC Series
Free quote, no obligation
Request a quote for your Caravan battery Leoch LDC12-145 12V 148Ah AGM
- Reply in under 24 working hours
- Best price guaranteed
Leisure battery Leoch LDC12-145 Deep Cycle LDC Series 148Ah 12V
12VVoltage
148AhCapacity
42.50kgWeight
The Leoch LDC12-145 with AGM technology stores 148 Ah at 12 V: autonomy for motorhomes, caravans and campers that need power off-grid. Its 340 × 172 × 286 mm make it the exact replacement for the 148 Ah battery fitted as standard to many motorhomes and caravans.
- Withstands daily discharges throughout the season.
- AGM: faster recharging and better cycle resistance than a conventional battery.
- Direct replacement for the original leisure battery.
- Recharges from the alternator, a solar panel or a mains charger.
What the Leoch LDC12-145 is for
With 148 Ah, the Leoch LDC12-145 is the habitation battery for motorhomes, caravans and campers that need power off-grid. It recharges from the alternator, a solar panel or a mains charger. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 42.50 kg and M8 terminals.

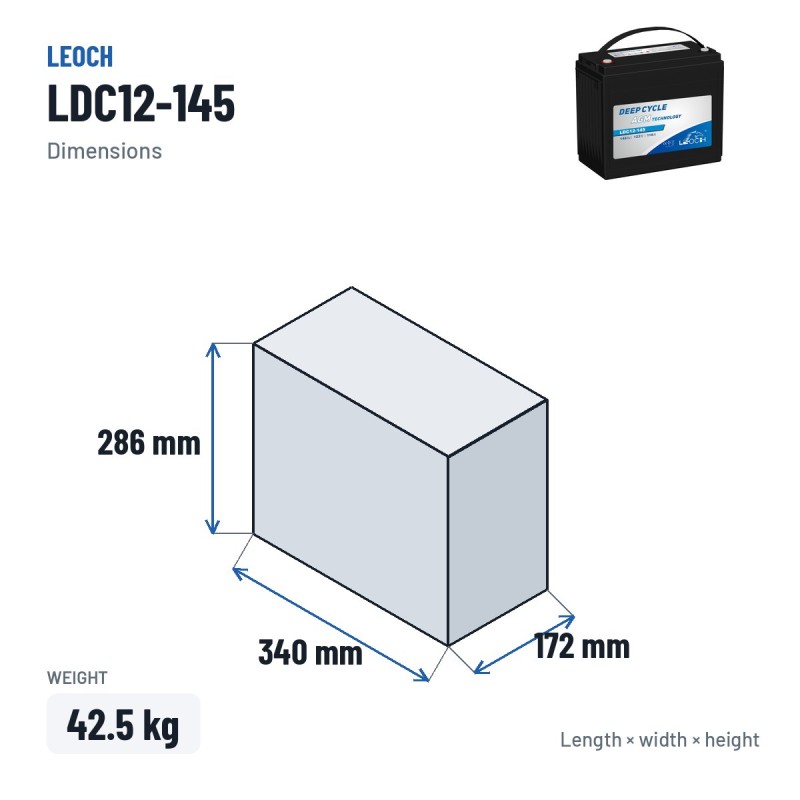

Dimensions, polarity and mounting
The Leoch LDC12-145 is made in the 340 × 172 × 286 mm format and weighs 42.50 kg. It uses M8 terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
Leoch: the maker behind the LDC12-145
Leoch is one of the world's major manufacturers of lead-acid and lithium batteries, with deep-cycle, UPS, telecoms and automotive ranges produced in its own internationally certified plants. We guarantee that every Leoch arrives new, charged and with the manufacturer's full warranty.
The Leoch LDC12-145: Deep Cycle LDC Series range and AGM technology
The Deep Cycle LDC Series is the Leoch range the LDC12-145 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.
Usage and maintenance tips
During months of storage, keep it charged with a mains charger or a small solar panel; a battery left discharged for weeks loses capacity permanently. Avoid routinely discharging the leisure battery below 50% and recharge it fully after every trip.
Warranty and coverage
The Leoch LDC12-145 comes with the manufacturer's official warranty against manufacturing defects. Avoid repeated full discharges: they shorten its life and are not covered.
When you get it and how to return it
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-LEOCH-LDC12-145

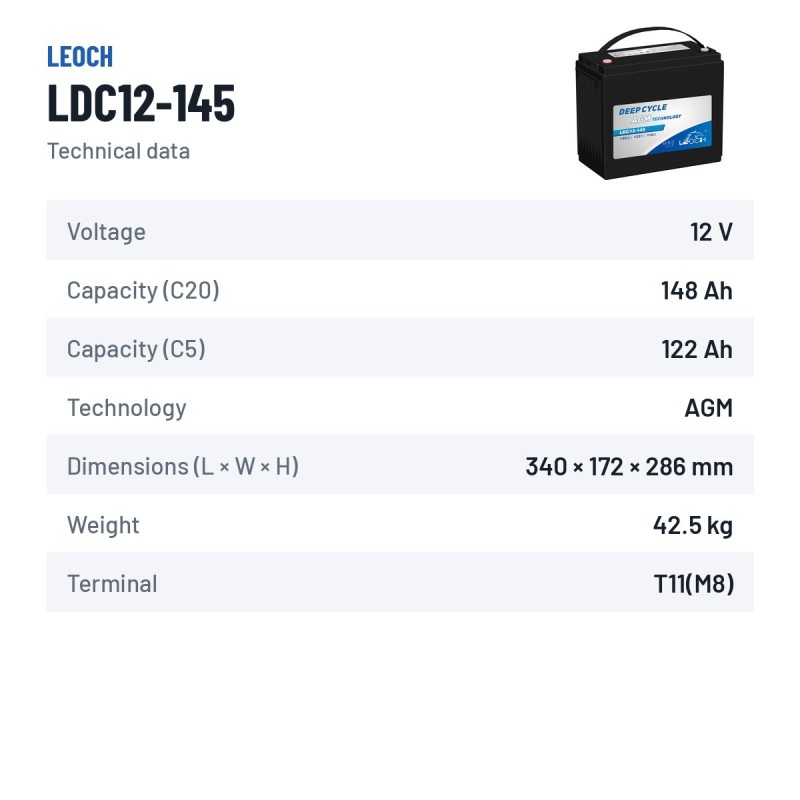

Data sheet
- Brand
- LEOCH
- Reference
- LDC12-145
- Model
- Deep Cycle LDC Series
- Voltage (V)
- Length
- 340.00 mm
- Width
- 172.00 mm
- Height
- 286.00 mm
- Weight
- 42.5 Kgs
- Technology
- AGM
- Terminal type
- M8
- Capacity (C20)
- 148Ah (c20)
- Capacity (C5)
- 122Ah (c5)
Specific References
- MPN
- LDC12-145
Recommended accessories
How to change the battery
Guide to replace the leisure battery of your motorhome or caravan. Estimated time 15-25 minutes. Important: isolate the 12V auxiliary system before handling.
Step 1. Switch off 12V equipment and unplug shore power
Turn off fridge, lights, water pump, Truma Mover and other auxiliary loads. Disconnect the 230V shore power and solar panels if any.
Step 2. Locate the leisure battery compartment
On motorhomes usually under the driver/passenger seat, in an outside locker or in the garage area. Verify this is NOT the engine starter battery — that one is up front with the engine.
Step 3. Disconnect the negative (−) terminal
Use the 10 mm wrench to loosen the negative cable nut (black, marked −) and remove the cable from the post. Move it aside so it cannot touch any bodywork.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Loosen the bottom hold-down clamp with the same wrench. Lift the battery carefully (it can weigh 15-25 kg). Clean the tray with a brush and baking soda if there is corrosion.
Step 6. Install the new battery
Place the battery in the same orientation as the old one (positive terminal on the same side). Tighten the hold-down clamp firmly.
Step 7. Connect the cables
Connect the positive (+) terminal first, then the negative (−). Tighten the nuts with the wrench until each terminal does not move. Apply anti-spark grease if you have any.
Step 8. Verify the charger and auxiliary services
After connecting, check the combi charger (CBE/Schaudt/Nordelettronica) recognises the new battery: voltage should stabilise at 13.2-13.8 V with 230V connected. Test a couple of services (lights + pump) before heading out.
Frequently asked questions
How is the Leoch LDC12-145 battery installed in the vehicle?
In most caravans it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On caravans with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the LDC12-145 model?
Expected lifespan of the Leoch LDC12-145 is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the LDC12-145 model?
Dimensions (length × width × height) are 340×172×286 mm — also written as 340x172x286 mm — following the European DIN standard. Always measure the space in your caravan before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Will the Leoch LDC12-145 battery fit my caravan?
Three options to confirm: 1) enter your number plate in the finder (DGT/DVLA/KBA auto-detect your model and engine); 2) check the "Compatible vehicles" tab on this page, where we list every vehicle verified by our technical team; 3) if you cannot find your model, message us on WhatsApp with brand, model, engine and year — we reply during business hours (Mon–Fri 10:00–13:30 and 16:40–18:00 (Spanish time, CET)). The LDC12-145 typically fits a wide range of European vehicles thanks to its standard DIN case format.
Which batteries are equivalent to the Leoch LDC12-145?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop caravans. See the "Equivalents" section to view recommended options at the same performance level.
