Leoch LDC8-165-GC8 · Golf cart battery 8V 165Ah AGM
Specifications
| Brand | Leoch |
|---|---|
| Part number | LDC8-165-GC8 |
| Voltage (V) | 8 |
| Capacity (C20) | 165Ah (c20) |
| Capacity (C5) | 140Ah (c5) |
| Technology | AGM |
| Length | 260.00 mm |
| Width | 180.00 mm |
| Height | 274.00 mm |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Leoch LDC8-165-GC8 8V 165Ah is a golf traction battery: thick plates and a high cycle count for daily course use. GC8 case, same as the Trojan T-875.
Why this golf cart battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time
Voltage
8 V
Capacity
165 Ah
Dimensions
260×180×274 mm
Technology
AGM
Weight
29,27 kg
Model
LEOCH Deep Cycle LDC Series
Free quote, no obligation
Request a quote for your Golf cart battery Leoch LDC8-165-GC8 8V 165Ah AGM
- Reply in under 24 working hours
- Best price guaranteed
Golf cart battery Leoch LDC8-165-GC8 Deep Cycle LDC Series 165Ah 8V
8VVoltage
165AhCapacity
29.27kgWeight
With 165 Ah with AGM technology, the Leoch LDC8-165-GC8 from the Deep Cycle LDC Series range withstands the daily deep discharges of golf carts and electric utility vehicles. It measures 260 × 180 × 274 mm, the format sought by anyone replacing a 165 Ah battery in golf carts.
- Daily deep discharges without capacity loss.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
- Full recharge every night with the vehicle charger.
- Sealed and maintenance-free.

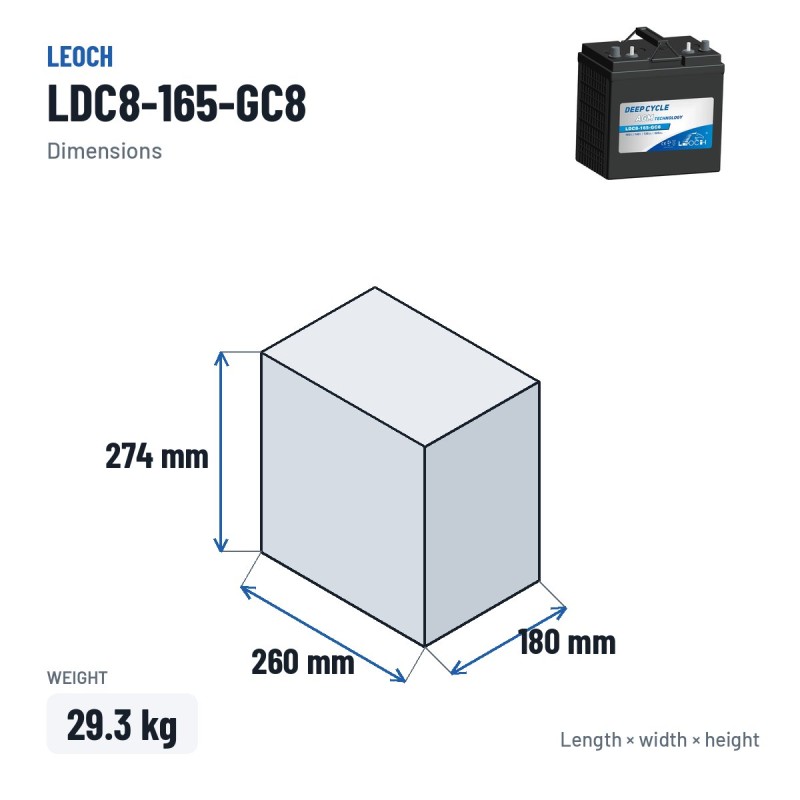

Dimensions, polarity and mounting

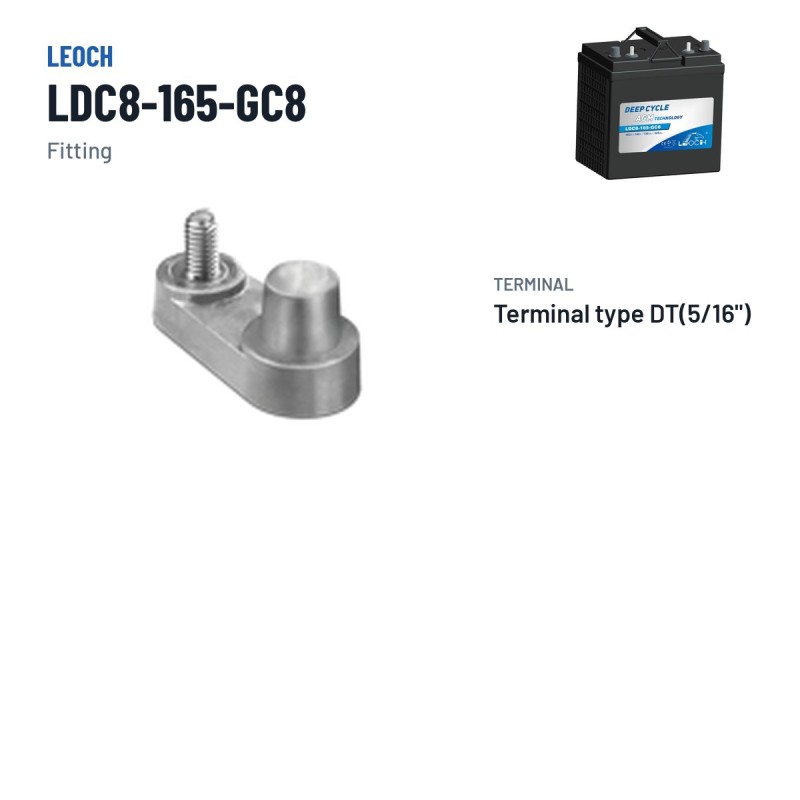

In terms of format, the Leoch LDC8-165-GC8 measures 260 × 180 × 274 mm (length × width × height) and weighs 29.27 kg. It uses DT terminals, the system that anchors and connects it in the vehicle. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.

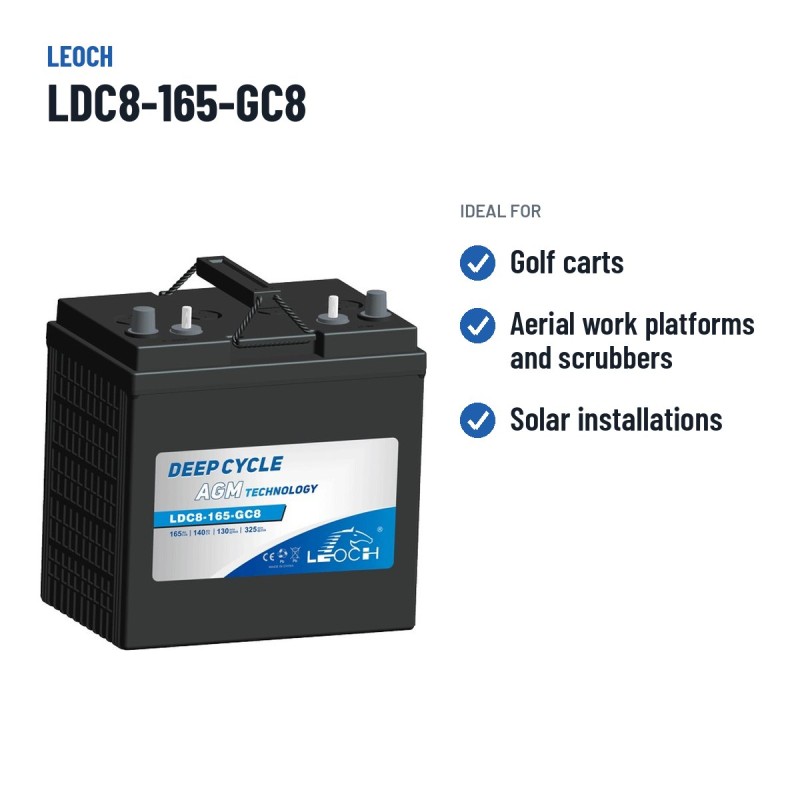

What the Leoch LDC8-165-GC8 is for
With 165 Ah, the Leoch LDC8-165-GC8 forms part of the battery banks of golf carts and electric utility vehicles. Always replace the complete set to avoid imbalance. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 29.27 kg and DT terminals.
The Leoch LDC8-165-GC8: Deep Cycle LDC Series range and AGM technology
Within the Leoch catalogue, the Deep Cycle LDC Series series groups the references designed for this use. The LDC8-165-GC8 is the 165 Ah model of that family, with the same performance as its siblings in other sizes.
AGM (Absorbent Glass Mat) technology seals the electrolyte in glass microfibre. The result is a maintenance-free battery that is highly vibration-resistant and able to withstand deep discharges that would ruin a classic lead-acid battery.
Why choose Leoch batteries
Leoch's Deep Cycle LDC series has earned its place in mobility, leisure and solar for its tolerance to deep discharge and its value for money. We guarantee that every Leoch arrives new, charged and with the manufacturer's full warranty.
Warranty and coverage
The Leoch LDC8-165-GC8 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Care and maintenance
Always replace all the batteries in the bank at once and use the charger specified by the vehicle manufacturer. Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators.
Delivery times and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-LEOCH-LDC8-165-GC8

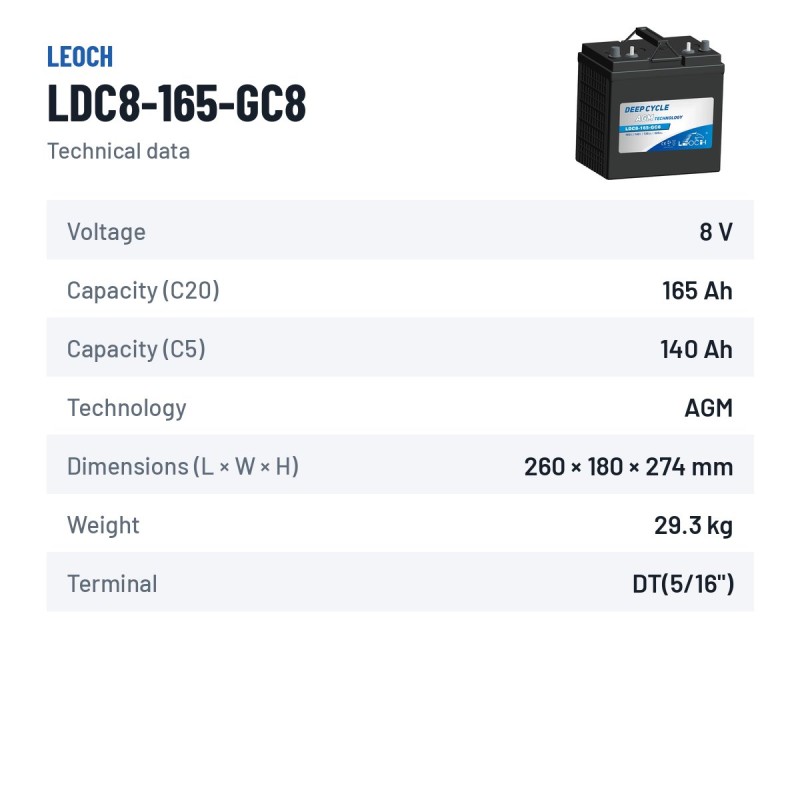

Data sheet
- Brand
- LEOCH
- Reference
- LDC8-165-GC8
- Model
- Deep Cycle LDC Series
- Voltage (V)
- 8
- Length
- 260.00 mm
- Width
- 180.00 mm
- Height
- 274.00 mm
- Weight
- 29.27 Kgs
- Technology
- AGM
- Terminal type
- DT
- Capacity (C20)
- 165Ah (c20)
- Capacity (C5)
- 140Ah (c5)
- Case type
- GC8
Specific References
- MPN
- LDC8-165-GC8
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
How do I change this battery step by step?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Leoch LDC8-165-GC8 battery last?
Expected lifespan of the Leoch LDC8-165-GC8 is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Leoch LDC8-165-GC8 battery?
Dimensions (length × width × height) are 260×180×274 mm — also written as 260x180x274 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Leoch LDC8-165-GC8?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
