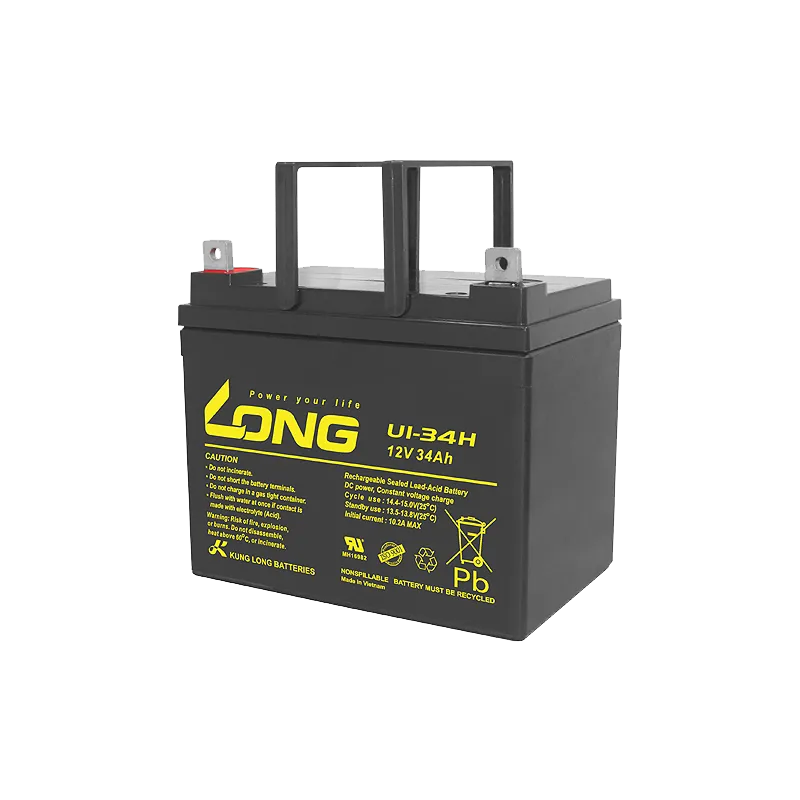

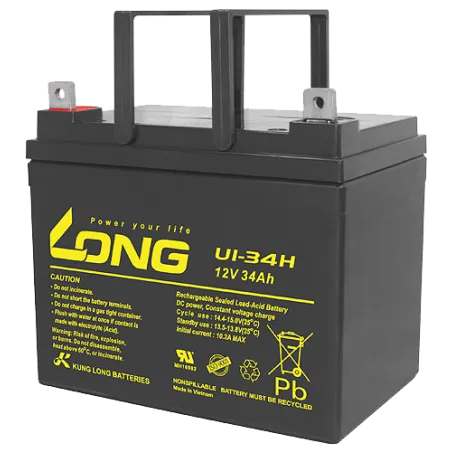

Long U1-34H · Wheelchair battery 12V 34Ah AGM

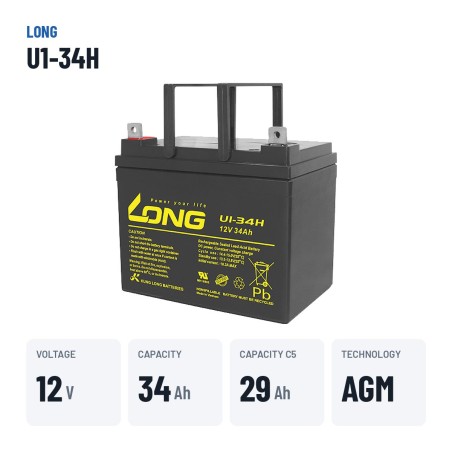

Specifications
| Brand | LONG |
|---|---|
| Part number | U1-34H |
| Voltage (V) | 12 |
| Capacity (C20) | 34Ah (c20) |
| Capacity (C5) | 28.9Ah (c5) |
| Technology | AGM |
| Length | 197.00 cm |
| Width | 131.00 cm |
| Height | 180.00 cm |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Long U1-34H 12V 34Ah is a sealed AGM/GEL battery for daily mobility use: maintenance-free, no risk of spills, and thousands of useful cycles well beyond a starter battery.
Why this wheelchair battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
34 Ah
Dimensions
197×131×180 mm
Technology
AGM
Weight
10,5 kg
Model
U1 Series
Free quote, no obligation
Request a quote for your Wheelchair battery Long U1-34H 12V 34Ah AGM
- Reply in under 24 working hours
- Best price guaranteed
Mobility battery Long U1-34H U1 Series 34Ah 12V
12VVoltage
34AhCapacity
10.50kgWeight
Designed for power wheelchairs, mobility scooters and light electric vehicles, the Long U1-34H from the U1 Series range offers 34 Ah of deep-cycle capacity with AGM technology. It measures 197 × 131 × 180 mm, the format sought by anyone replacing a 34 Ah battery in power wheelchairs and mobility scooters.
- Designed to be discharged and recharged daily without losing capacity.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
- Standard replacement format for wheelchairs and scooters.
- Thousands of useful cycles over its lifetime.

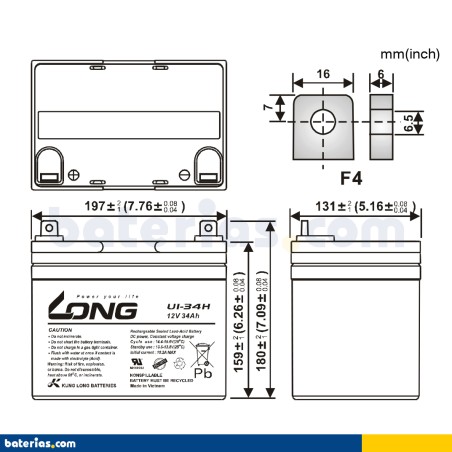

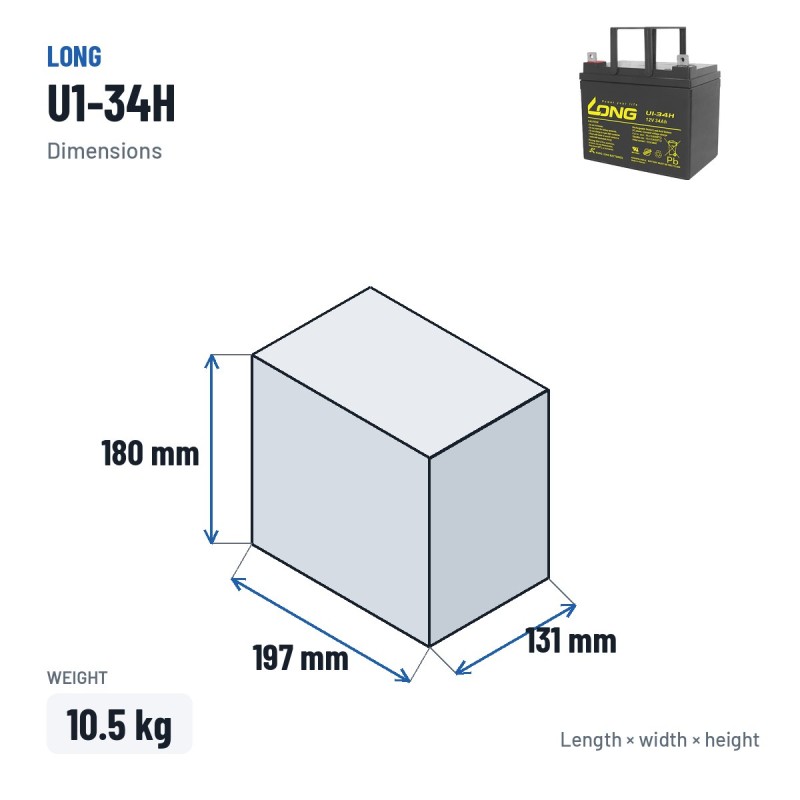

Dimensions, polarity and mounting
It has external dimensions of 197 × 131 × 180 mm and weighs 10.50 kg. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
What the Long U1-34H is for
The Long U1-34H is designed for power wheelchairs, mobility scooters and light electric vehicles. Wheelchairs and scooters normally use two identical batteries in series: replace them together. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 10.50 kg.
The Long U1-34H: U1 Series range and AGM technology
Within the Long catalogue, the U1 Series series groups the references designed for this use. The U1-34H is the 34 Ah model of that family, with the same performance as its siblings in other sizes.
In an AGM battery the electrolyte is absorbed in glass-fibre separators: there is no free liquid, it cannot spill and it can be mounted at an angle. That construction lowers internal resistance, speeds up recharging and multiplies cycle life compared with a conventional battery.
Long: the maker behind the U1-34H
Long (Kung Long Batteries) is one of the world's largest manufacturers of sealed VRLA batteries. Its AGM and GEL series for UPS, mobility, alarms and cycling are found in equipment worldwide as original equipment. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.
Official warranty
The Long U1-34H comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Usage and maintenance tips
Use the original charger or one compatible with the battery technology (AGM/GEL) and always replace both batteries in the set together. Recharge the wheelchair or scooter after each use and do not leave it discharged for days: lead sulphates and loses capacity.
Delivery times and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 24-48 working hours in mainland Spain and Portugal, 3 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.
BCOM-LONG-U1-34H

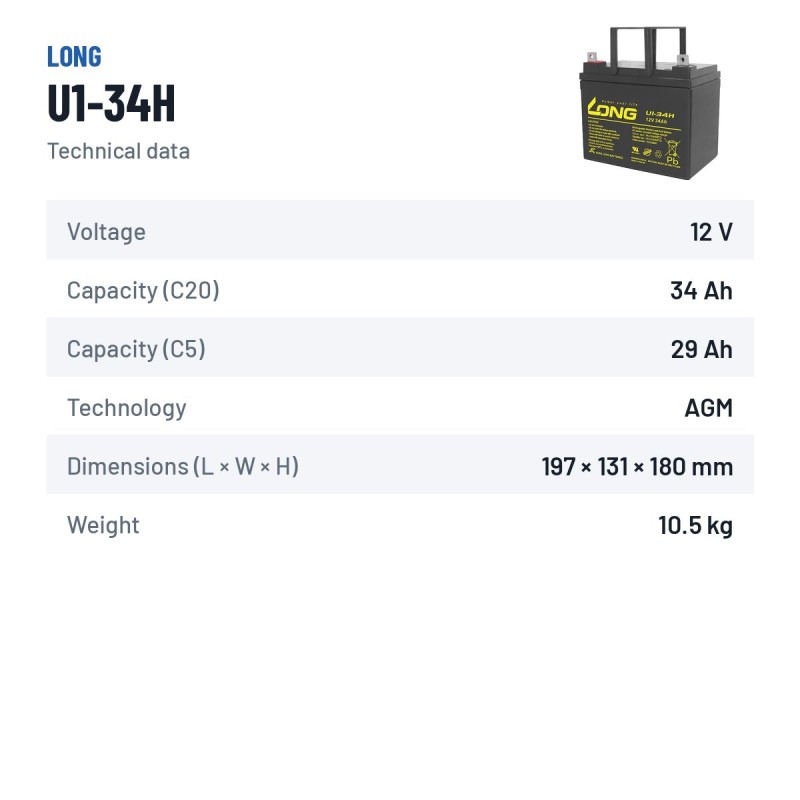

Data sheet
- Brand
- LONG
- Reference
- U1-34H
- Model
- U1 Series
- Voltage (V)
- 12
- Length
- 197.00 cm
- Width
- 131.00 cm
- Height
- 180.00 cm
- Weight
- 10.50 Kgs
- Technology
- AGM
- Capacity (C20)
- 34Ah (c20)
- Capacity (C5)
- 28.9Ah (c5)
Specific References
- MPN
- U1-34H
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is this battery AGM? What is it for?
Yes. The U1-34H from Long uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for devices with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How do I change this battery step by step?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Long U1-34H battery last?
Expected lifespan of the Long U1-34H is 5 to 8 years in mild-climate device use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the U1-34H model?
Dimensions (length × width × height) are 197×131×180 mm — also written as 197x131x180 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the U1-34H model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
