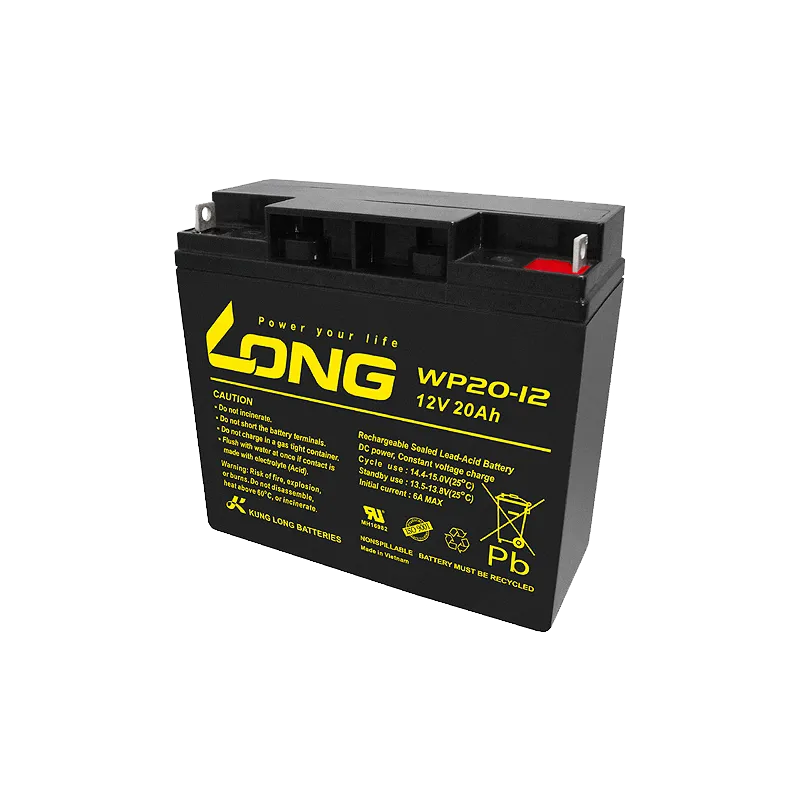

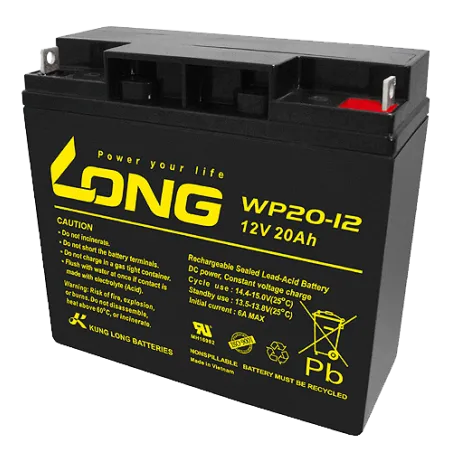

Long WP20-12 WP Series · Wheelchair battery 20Ah AGM

Specifications

BrandLONG
Part numberWP20-12
Voltage (V)12
Capacity (C20)20Ah (c20)
Capacity (C5)17Ah (c5)
TechnologyAGM
Length181 mm
Width76 mm
Height167 mm
See the full specifications →

This product is priced on demand to offer you the best available price at all times.

Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.

Thank you

Long WP20-12 12V 20Ah is a deep-cycle battery for wheelchairs and mobility scooters, optimised to be discharged and recharged daily down to 80 % DOD without losing range.

Why this wheelchair battery?

  • Daily cycling without wearhandles deep discharges without losing capacity
  • Sealed AGM/GELno maintenance, no risk of spills
  • Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
20 Ah C20
Dimensions
181×76×167 mm
Technology
AGM
Weight
5,95 kg
Model
WP Series

Where it fits: the Long WP20-12 is one of our power wheelchair batteries, belongs to our Long batteries and by capacity it sits among our 20Ah batteries.

Solve it now by chat Our assistant replies instantly about batteries, shipping and orders, and opens the request you need.
I prefer to fill in the form
Free quote, no obligation

Request a quote for your Wheelchair battery Long WP20-12 12V 20Ah AGM

  • Reply in under 4 working hours
  • Best price guaranteed
Attach photo (optional)
Photo of the old battery or vehicle documentation · Max. 3 · 8 MB · images or PDF

The Long WP20-12 in practice

WP20-12 vs Long WP22-12N

The Long WP20-12 offers 20 Ah and 0 A cold cranking in a 181 × 76 × 167 mm case. The Long WP22-12N, same brand and technology, goes up to 22 Ah and 0 A Going up is only worth it if the tray allows it and the car cranks lazily in the cold; in normal use this one is plenty.

Logo Long

Mobility battery Long WP20-12 WP Series 20Ah 12V

12VVoltage
20AhCapacity
5.95kgWeight

Designed for power wheelchairs, mobility scooters and light electric vehicles, the Long WP20-12 from the WP Series range offers 20 Ah of deep-cycle capacity with AGM technology. It measures 181 × 76 × 167 mm, the format sought by anyone replacing a 20 Ah battery in power wheelchairs and mobility scooters.

  • Designed to be discharged and recharged daily without losing capacity.
  • AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
  • Standard replacement format for wheelchairs and scooters.
  • Thousands of useful cycles over its lifetime.

What the Long WP20-12 is for

With 20 Ah, the Long WP20-12 offers the daily range that power wheelchairs, mobility scooters and light electric vehicles need, with a sealed construction that is safe indoors. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 5.95 kg.

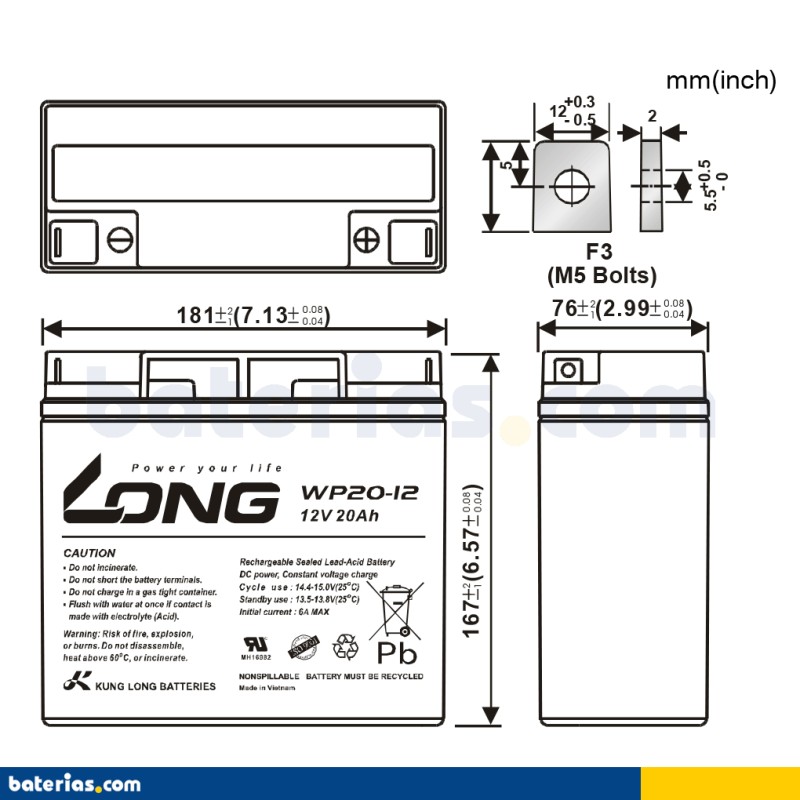

Dimensions, polarity and mounting

The Long WP20-12 is made in the 181 × 76 × 167 mm format and weighs 5.95 kg. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.

The Long WP20-12: WP Series range and AGM technology

Within the Long catalogue, the WP Series series groups the references designed for this use. The WP20-12 is the 20 Ah model of that family, with the same performance as its siblings in other sizes.

AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.

Why choose Long batteries

Long (Kung Long Batteries) is one of the world's largest manufacturers of sealed VRLA batteries. Its AGM and GEL series for UPS, mobility, alarms and cycling are found in equipment worldwide as original equipment. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.

Manufacturer's warranty

The Long WP20-12 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.

Usage and maintenance tips

Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. Use the original charger or one compatible with the battery technology (AGM/GEL) and always replace both batteries in the set together.

Shipping, delivery and returns

Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 1 to 2 working days; for the Balearic Islands and the rest of the European Union allow 1 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.

  • Reference
    BCOM-LONG-WP20-12

Data sheet

  • Brand
    LONG
  • Reference
    WP20-12
  • Model
    WP Series
  • Voltage (V)
    12
  • Length
    181 mm
  • Width
    76 mm
  • Height
    167 mm
  • Weight
    5.95 Kgs
  • Technology
    AGM
  • Capacity (C20)
    20Ah (c20)
  • Capacity (C5)
    17Ah (c5)

Specific References

  • MPN
    WP20-12

Download

Datasheet Long WP20-12

PDF datasheet of the Long WP20-12 battery

Download (673.15KB)

Long WP20-12: alternatives with the same dimensions — alternatives with the same dimensions, Ah and CCA

Batteries from our catalogue with the same dimensions, voltage and technology as the Long WP20-12 and a similar capacity, sorted by sales. They are not manufacturer-approved equivalents: check the polarity and capacity of your original battery.

Product Specifications Technology Price
Long WP20-12 Long WP20-12 This battery 12V 20Ah AGM
Long WP22-12NE Long WP22-12NE Same size 12V 22Ah AGM €54.20 +€54.20

Long WP20-12 vs Long WP22-12NE

Same size · +€54.20

It has the same dimensions, voltage and technology as the WP20-12, although it is not a manufacturer-approved equivalent. Compared with the WP20-12 it has 2 Ah more. It costs €54.20 more. Check the positive terminal side and the original capacity before ordering; otherwise it is a straight swap.

WP20-12WP22-12NE
Capacity20 Ah22 Ah
Cold cranking (EN)——
TechnologyAGMAGM
Dimensions (mm)181 × 76 × 167181 × 76 × 167
Positive terminal——
Price€54.20
Long WP24-12ANE Long WP24-12ANE Same size 12V 24Ah AGM €71.60 +€71.60

Long WP20-12 vs Long WP24-12ANE

Same size · +€71.60

Same case and same technology as the WP20-12: an alternative by size, not an official equivalent. Compared with the WP20-12 it has 4 Ah more. It costs €71.60 more. If the polarity matches and your equipment had a similar capacity, it works as a replacement; if in doubt, ask us with your model.

WP20-12WP24-12ANE
Capacity20 Ah24 Ah
Cold cranking (EN)——
TechnologyAGMAGM
Dimensions (mm)181 × 76 × 167181 × 78 × 170
Positive terminal——
Price€71.60
Long WP18-12SHR Long WP18-12SHR Same size 12V 18Ah AGM €75.30 +€75.30

Long WP20-12 vs Long WP18-12SHR

Same size · +€75.30

Same case and same technology as the WP20-12: an alternative by size, not an official equivalent. Compared with the WP20-12 it has 2 Ah less. It costs €75.30 more. If the polarity matches and your equipment had a similar capacity, it works as a replacement; if in doubt, ask us with your model.

WP20-12WP18-12SHR
Capacity20 Ah18 Ah
Cold cranking (EN)——
TechnologyAGMAGM
Dimensions (mm)181 × 76 × 167181 × 76 × 167
Positive terminal——
Price€75.30
MK Powered ES22-12 MK Powered ES22-12 Same size ★ 5,0 12V 22Ah AGM €54.10 +€54.10

Long WP20-12 vs MK Powered ES22-12

Same size · +€54.10

It has the same dimensions, voltage and technology as the WP20-12, although it is not a manufacturer-approved equivalent. Compared with the WP20-12 it has 2 Ah more. It costs €54.10 more. Check the positive terminal side and the original capacity before ordering; otherwise it is a straight swap.

WP20-12ES22-12
Capacity20 Ah22 Ah
Cold cranking (EN)——
TechnologyAGMAGM
Dimensions (mm)181 × 76 × 167181 × 76 × 167
Positive terminal——
Price€54.10
MK Powered ES20-12C FT MK Powered ES20-12C FT Same size ★ 5,0 12V 20Ah AGM €53.70 +€53.70

Long WP20-12 vs MK Powered ES20-12C FT

Same size · +€53.70

Same case and same technology as the WP20-12: an alternative by size, not an official equivalent. Compared with the WP20-12 it has the same Ah and cranking power. It costs €53.70 more. If the polarity matches and your equipment had a similar capacity, it works as a replacement; if in doubt, ask us with your model.

WP20-12ES20-12C FT
Capacity20 Ah20 Ah
Cold cranking (EN)——
TechnologyAGMAGM
Dimensions (mm)181 × 76 × 167181 × 76 × 167
Positive terminal——
Price€53.70
MK Powered ES20-12C MK Powered ES20-12C Same size 12V 20Ah AGM €65.20 +€65.20
MK Powered ES17-12 MK Powered ES17-12 Same size 12V 18Ah AGM €81.40 +€81.40
MK Powered ES20-12FR HR MK Powered ES20-12FR HR Same size 12V 20Ah AGM €65.20 +€65.20

Automatic selection by dimensions (±3 mm), voltage, technology and capacity (−10 % / +20 %). Official manufacturer warranty on every option.

Other 20Ah batteries: We stock 16 models of 20 Ah to compare by price, technology and cold cranking: see all 20Ah batteries. Same size (181 × 76 × 167 mm): batteries of 181 × 76 × 167 mm.

Recommended accessories — complement the Long WP20-12 with a charger or tester

Frequently asked questions

Is the Long WP20-12 an AGM battery and what are the benefits of AGM?

Yes. AGM (Absorbent Glass Mat) technology, 20 Ah and 12 V: sealed lead-acid, with the electrolyte held in glass fibre. It tolerates heat better and handles more cycles than a conventional battery.

What are the measurements of the WP20-12 model?

Check the room available in your device, because a single millimetre too much can stop the clamp from closing. Its dimensions are 181×76×167 mm, also written 181x76x167 mm; the height already includes the terminals.
