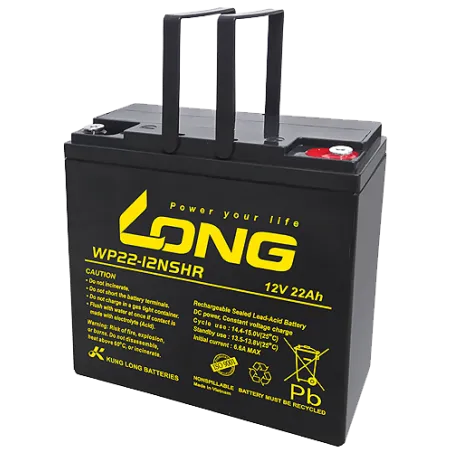

Long WP22-12NSHR WP Series · Stationary UPS battery 22Ah AGM

Specifications

BrandLONG
Part numberWP22-12NSHR
Voltage (V)12
Capacity (C20)22Ah (c20)
Capacity (C5)18.7Ah (c5)
TechnologyAGM
Length181 mm
Width77 mm
Height170 mm
See the full specifications →

This product is priced on demand to offer you the best available price at all times.

Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.

Thank you

Long WP22-12NSHR 12V 22Ah is a stationary battery for backup power systems: UPS, alarms, telecom and emergency lighting. Long float-life under permanent charge and instant response to mains outages with no noticeable voltage drop.

Why this stationary battery?

  • Instant responsewhen the mains drop, no voltage dip
  • Long life under 24/7 chargeoptimised for permanent service
  • Compatible with your systemexisting UPS units and alarm control panels
Voltage
12 V
Capacity
22 Ah C20
Dimensions
181×77×170 mm
Technology
AGM
Weight
7 kg
Model
WP Series

Where it fits: the Long WP22-12NSHR is one of our power wheelchair batteries, belongs to our Long batteries and by capacity it sits among our 22Ah batteries.

Solve it now by chat Our assistant replies instantly about batteries, shipping and orders, and opens the request you need.
I prefer to fill in the form
Free quote, no obligation

Request a quote for your Stationary UPS battery Long WP22-12NSHR 12V 22Ah AGM

  • Reply in under 4 working hours
  • Best price guaranteed
Attach photo (optional)
Photo of the old battery or vehicle documentation · Max. 3 · 8 MB · images or PDF
Logo Long

Mobility battery Long WP22-12NSHR WP Series 22Ah 12V

12VVoltage
22AhCapacity
7kgWeight

The Long WP22-12NSHR with AGM technology delivers 22 Ah at 12 V with the cycle life that power wheelchairs, mobility scooters and light electric vehicles demand. Measuring 181 × 77 × 170 mm, it is the direct replacement for power wheelchairs and mobility scooters fitted from the factory with a 22 Ah battery of this format.

  • AGM: faster recharging and better cycle resistance than a conventional battery.
  • Sealed AGM/GEL: safe indoors and in transport.
  • No maintenance, no water top-ups.
  • Approved for air and sea transport (VRLA).

Will it fit your current battery tray?

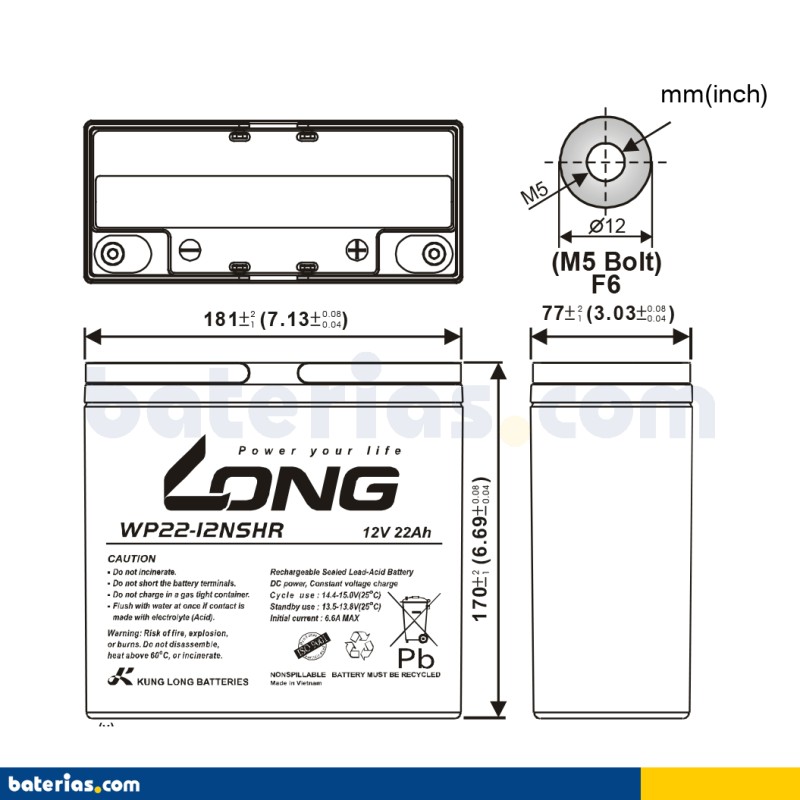

In terms of format, the Long WP22-12NSHR measures 181 × 77 × 170 mm (length × width × height) and weighs 7 kg. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.

What the Long WP22-12NSHR is for

With 22 Ah, the Long WP22-12NSHR offers the daily range that power wheelchairs, mobility scooters and light electric vehicles need, with a sealed construction that is safe indoors. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 7 kg.

The Long WP22-12NSHR: WP Series range and AGM technology

The WP22-12NSHR is part of the Long WP Series range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.

AGM (Absorbent Glass Mat) technology seals the electrolyte in glass microfibre. The result is a maintenance-free battery that is highly vibration-resistant and able to withstand deep discharges that would ruin a classic lead-acid battery.

Long: the maker behind the WP22-12NSHR

Long (Kung Long Batteries) is one of the world's largest manufacturers of sealed VRLA batteries. Its AGM and GEL series for UPS, mobility, alarms and cycling are found in equipment worldwide as original equipment. We guarantee that every Long arrives new, charged and with the manufacturer's full warranty.

Official warranty

The Long WP22-12NSHR comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.

How to make it last longer

Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. Use the original charger or one compatible with the battery technology (AGM/GEL) and always replace both batteries in the set together.

Shipping, delivery and returns

Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 1 to 2 working days in mainland Spain and 1 to 3 working days in mainland Portugal, 1 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.

  • Reference
    BCOM-LONG-WP22-12NSHR

Data sheet

  • Brand
    LONG
  • Reference
    WP22-12NSHR
  • Model
    WP Series
  • Voltage (V)
    12
  • Length
    181 mm
  • Width
    77 mm
  • Height
    170 mm
  • Weight
    7.00 Kgs
  • Technology
    AGM
  • Capacity (C20)
    22Ah (c20)
  • Capacity (C5)
    18.7Ah (c5)

Specific References

  • MPN
    WP22-12NSHR

Download

Datasheet Long WP22-12NSHR

PDF datasheet of the Long WP22-12NSHR battery

Download (660.68KB)

Long WP22-12NSHR: alternatives with the same dimensions — alternatives with the same dimensions, Ah and CCA

Batteries from our catalogue with the same dimensions, voltage and technology as the Long WP22-12NSHR and a similar capacity, sorted by sales. They are not manufacturer-approved equivalents: check the polarity and capacity of your original battery.

Product Specifications Technology Price
Long WP22-12NSHR Long WP22-12NSHR This battery 12V 22Ah AGM
Long WP22-12NE Long WP22-12NE Same size 12V 22Ah AGM €54.20 +€54.20

Long WP22-12NSHR vs Long WP22-12NE

Same size · +€54.20

Same case and same technology as the WP22-12NSHR: an alternative by size, not an official equivalent. Compared with the WP22-12NSHR it has the same Ah and cranking power. It costs €54.20 more. If the polarity matches and your equipment had a similar capacity, it works as a replacement; if in doubt, ask us with your model.

WP22-12NSHRWP22-12NE
Capacity22 Ah22 Ah
Cold cranking (EN)——
TechnologyAGMAGM
Dimensions (mm)181 × 77 × 170181 × 76 × 167
Positive terminal——
Price€54.20
Long WP24-12ANE Long WP24-12ANE Same size 12V 24Ah AGM €71.60 +€71.60

Long WP22-12NSHR vs Long WP24-12ANE

Same size · +€71.60

It has the same dimensions, voltage and technology as the WP22-12NSHR, although it is not a manufacturer-approved equivalent. Compared with the WP22-12NSHR it has 2 Ah more. It costs €71.60 more. Check the positive terminal side and the original capacity before ordering; otherwise it is a straight swap.

WP22-12NSHRWP24-12ANE
Capacity22 Ah24 Ah
Cold cranking (EN)——
TechnologyAGMAGM
Dimensions (mm)181 × 77 × 170181 × 78 × 170
Positive terminal——
Price€71.60
Long WP22-12N Long WP22-12N Same size 12V 22Ah AGM €82.20 +€82.20

Long WP22-12NSHR vs Long WP22-12N

Same size · +€82.20

It has the same dimensions, voltage and technology as the WP22-12NSHR, although it is not a manufacturer-approved equivalent. Compared with the WP22-12NSHR it has the same Ah and cranking power. It costs €82.20 more. Check the positive terminal side and the original capacity before ordering; otherwise it is a straight swap.

WP22-12NSHRWP22-12N
Capacity22 Ah22 Ah
Cold cranking (EN)——
TechnologyAGMAGM
Dimensions (mm)181 × 77 × 170181 × 76 × 167
Positive terminal——
Price€82.20
MK Powered ES22-12 MK Powered ES22-12 Same size ★ 5,0 12V 22Ah AGM €54.10 +€54.10

Long WP22-12NSHR vs MK Powered ES22-12

Same size · +€54.10

Same case and same technology as the WP22-12NSHR: an alternative by size, not an official equivalent. Compared with the WP22-12NSHR it has the same Ah and cranking power. It costs €54.10 more. If the polarity matches and your equipment had a similar capacity, it works as a replacement; if in doubt, ask us with your model.

WP22-12NSHRES22-12
Capacity22 Ah22 Ah
Cold cranking (EN)——
TechnologyAGMAGM
Dimensions (mm)181 × 77 × 170181 × 76 × 167
Positive terminal——
Price€54.10
MK Powered ES20-12C FT MK Powered ES20-12C FT Same size ★ 5,0 12V 20Ah AGM €53.70 +€53.70

Long WP22-12NSHR vs MK Powered ES20-12C FT

Same size · +€53.70

It has the same dimensions, voltage and technology as the WP22-12NSHR, although it is not a manufacturer-approved equivalent. Compared with the WP22-12NSHR it has 2 Ah less. It costs €53.70 more. Check the positive terminal side and the original capacity before ordering; otherwise it is a straight swap.

WP22-12NSHRES20-12C FT
Capacity22 Ah20 Ah
Cold cranking (EN)——
TechnologyAGMAGM
Dimensions (mm)181 × 77 × 170181 × 76 × 167
Positive terminal——
Price€53.70
MK Powered ES20-12C MK Powered ES20-12C Same size 12V 20Ah AGM €65.20 +€65.20
MK Powered ES20-12FR HR MK Powered ES20-12FR HR Same size 12V 20Ah AGM €65.20 +€65.20

Automatic selection by dimensions (±3 mm), voltage, technology and capacity (−10 % / +20 %). Official manufacturer warranty on every option.

Other 22Ah batteries: We stock 10 models of 22 Ah to compare by price, technology and cold cranking: see all 22Ah batteries.

Recommended accessories — complement the Long WP22-12NSHR with a charger or tester

Frequently asked questions

Is this battery AGM? What is it for?

Yes, it is AGM. In an AGM battery such as the WP22-12NSHR, the electrolyte is not free but absorbed in a glass-fibre mat inside a sealed lead-acid battery. It withstands more cycles than a conventional battery and copes better with heat.

What are the measurements of the WP22-12NSHR model?

Length × width × height: 181x77x170 mm. Height is measured to the top of the terminals. Measure your device's battery tray first; if the battery exceeds it by even a millimetre, the hold-down clamp may not close.

Long WP22-12NSHR or Long WP22-12NE: which one to choose?

Same case and same technology as the WP22-12NSHR: an alternative by size, not an official equivalent. Compared with the WP22-12NSHR it has the same Ah and cranking power. It costs €54.20 more. If the polarity matches and your equipment had a similar capacity, it works as a replacement; if in doubt, ask us with your model.

Long WP22-12NSHR or Long WP24-12ANE: which one to choose?

It has the same dimensions, voltage and technology as the WP22-12NSHR, although it is not a manufacturer-approved equivalent. Compared with the WP22-12NSHR it has 2 Ah more. It costs €71.60 more. Check the positive terminal side and the original capacity before ordering; otherwise it is a straight swap.
