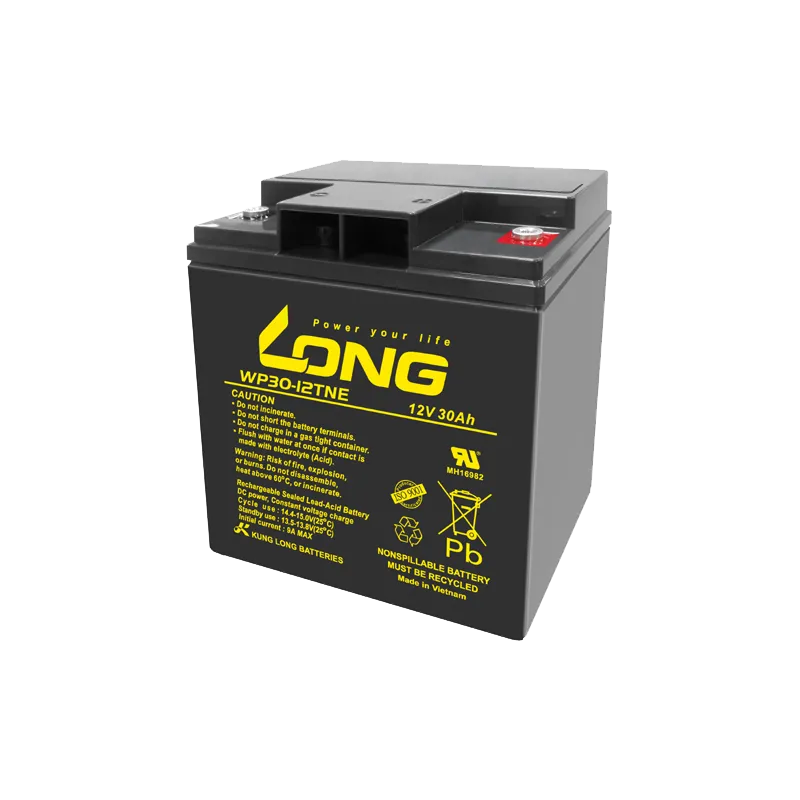

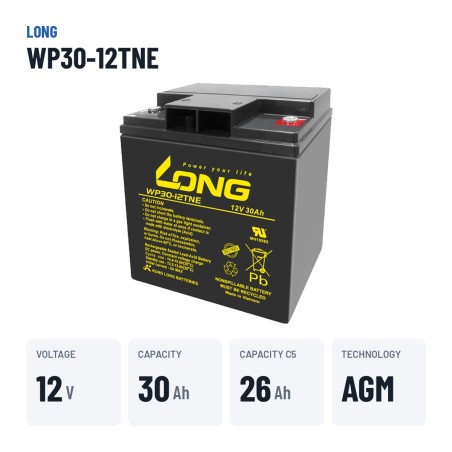

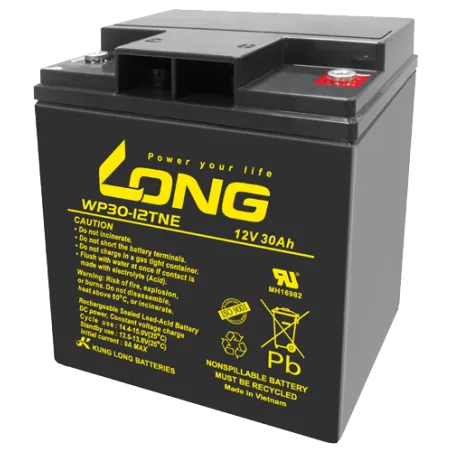

Long WP30-12TNE · Wheelchair battery 12V 30Ah AGM
Specifications
| Brand | LONG |
|---|---|
| Part number | WP30-12TNE |
| Voltage (V) | 12 |
| Capacity (C20) | 30Ah (c20) |
| Capacity (C5) | 25.5Ah (c5) |
| Technology | AGM |
| Length | 166.00 cm |
| Width | 125.50 cm |
| Height | 176.00 cm |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Long WP30-12TNE 12V 30Ah is a deep-cycle battery for wheelchairs and mobility scooters, optimised to be discharged and recharged daily down to 80 % DOD without losing range.
Why this wheelchair battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
30 Ah
Dimensions
166×125×176 mm
Technology
AGM
Weight
9,03 kg
Model
WP Series
Free quote, no obligation
Request a quote for your Wheelchair battery Long WP30-12TNE 12V 30Ah AGM
- Reply in under 24 working hours
- Best price guaranteed
Mobility battery Long WP30-12TNE WP Series 30Ah 12V
12VVoltage
30AhCapacity
9.03kgWeight
The Long WP30-12TNE with AGM technology delivers 30 Ah at 12 V with the cycle life that power wheelchairs, mobility scooters and light electric vehicles demand. It measures 166 × 125 × 176 mm, the format sought by anyone replacing a 30 Ah battery in power wheelchairs and mobility scooters.
- Designed to be discharged and recharged daily without losing capacity.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
- Standard replacement format for wheelchairs and scooters.
- Thousands of useful cycles over its lifetime.

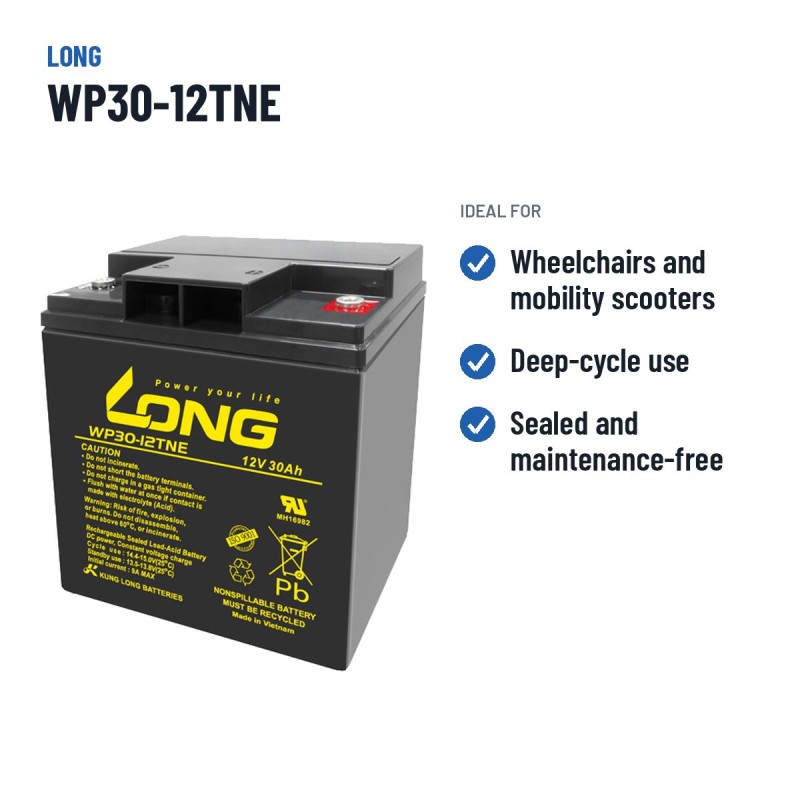

What the Long WP30-12TNE is for
With 30 Ah, the Long WP30-12TNE offers the daily range that power wheelchairs, mobility scooters and light electric vehicles need, with a sealed construction that is safe indoors. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 9.03 kg.

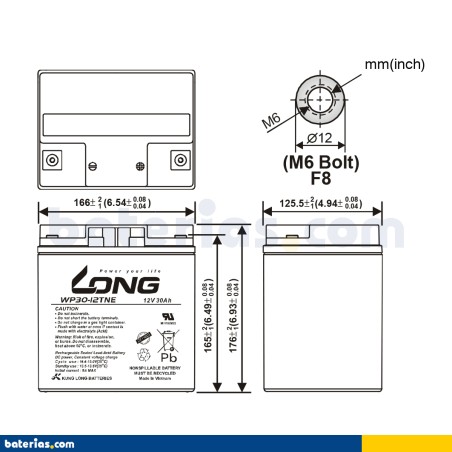

Size, terminals and hold-down of the Long WP30-12TNE
The Long WP30-12TNE is made in the 166 × 125 × 176 mm format and weighs 9.03 kg. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
Why choose Long batteries
Long batteries combine large-scale production with ISO quality standards and a batch-to-batch consistency that has made them the de-facto standard in backup systems and electric mobility. All the Long batteries in our catalogue are genuine product, recently manufactured and covered by the manufacturer's warranty.
The Long WP30-12TNE: WP Series range and AGM technology
The WP30-12TNE is part of the Long WP Series range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.
In an AGM battery the electrolyte is absorbed in glass-fibre separators: there is no free liquid, it cannot spill and it can be mounted at an angle. That construction lowers internal resistance, speeds up recharging and multiplies cycle life compared with a conventional battery.
Usage and maintenance tips
Recharge the wheelchair or scooter after each use and do not leave it discharged for days: lead sulphates and loses capacity. Use the original charger or one compatible with the battery technology (AGM/GEL) and always replace both batteries in the set together.
Warranty and coverage
The Long WP30-12TNE comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
When you get it and how to return it
Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 24-48 working hours; for the Balearic and Canary Islands and the rest of the European Union allow 3 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.
BCOM-LONG-WP30-12TNE

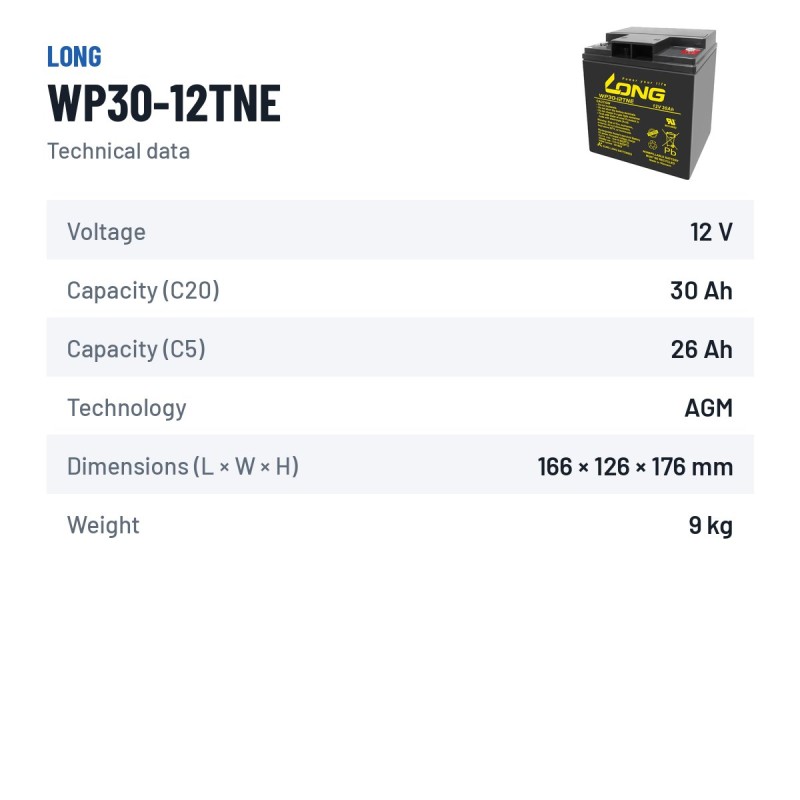

Data sheet
- Brand
- LONG
- Reference
- WP30-12TNE
- Model
- WP Series
- Voltage (V)
- 12
- Length
- 166.00 cm
- Width
- 125.50 cm
- Height
- 176.00 cm
- Weight
- 9.03 Kgs
- Technology
- AGM
- Capacity (C20)
- 30Ah (c20)
- Capacity (C5)
- 25.5Ah (c5)
Specific References
- MPN
- WP30-12TNE
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the WP30-12TNE model AGM? What does this technology offer?
Yes. The WP30-12TNE from Long uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for devices with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How do I fit the WP30-12TNE model in my device?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Long WP30-12TNE battery last?
Expected lifespan of the Long WP30-12TNE is 5 to 8 years in mild-climate device use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.

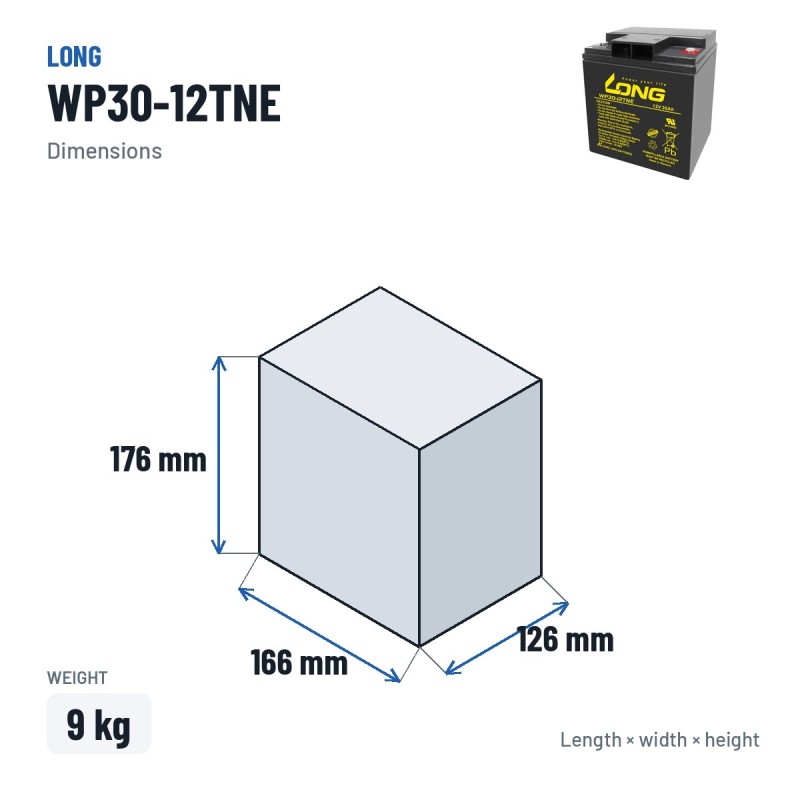

What are the dimensions of the Long WP30-12TNE battery?
Dimensions (length × width × height) are 166×126×176 mm — also written as 166x126x176 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
What are the equivalents of the WP30-12TNE model?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
