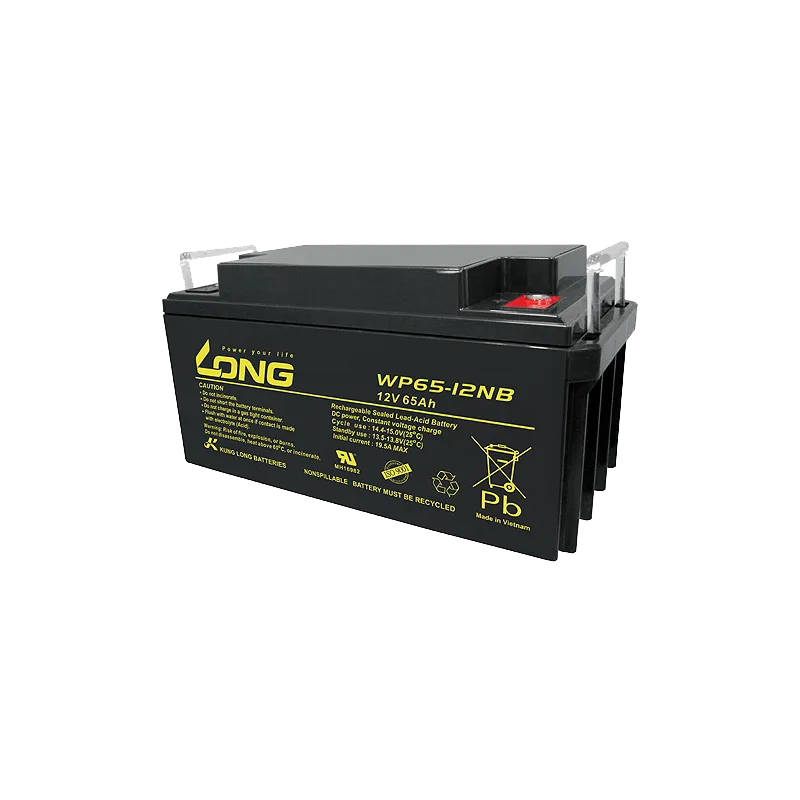

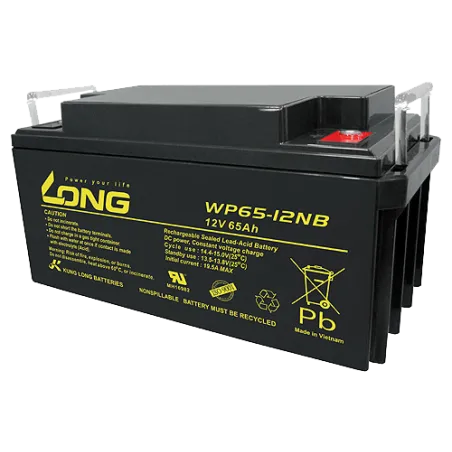

Long WP65-12NB · Wheelchair battery 12V 65Ah AGM
Specifications
| Brand | LONG |
|---|---|
| Part number | WP65-12NB |
| Voltage (V) | 12 |
| Capacity (C20) | 65Ah (c20) |
| Capacity (C5) | 55.25Ah (c5) |
| Technology | AGM |
| Length | 350.00 cm |
| Width | 166.00 cm |
| Height | 174.00 cm |
This product is priced on demand to offer you the best available price at all times.
Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.
Thank you
Long WP65-12NB 12V 65Ah is a deep-cycle battery for wheelchairs and mobility scooters, optimised to be discharged and recharged daily down to 80 % DOD without losing range.
Why this wheelchair battery?
- Daily cycling without wearhandles deep discharges without losing capacity
- Sealed AGM/GELno maintenance, no risk of spills
- Thousands of useful cyclesover its full lifetime
Voltage
12 V
Capacity
65 Ah
Dimensions
350×166×174 mm
Technology
AGM
Weight
21,6 kg
Model
WP Series
Free quote, no obligation
Request a quote for your Wheelchair battery Long WP65-12NB 12V 65Ah AGM
- Reply in under 24 working hours
- Best price guaranteed

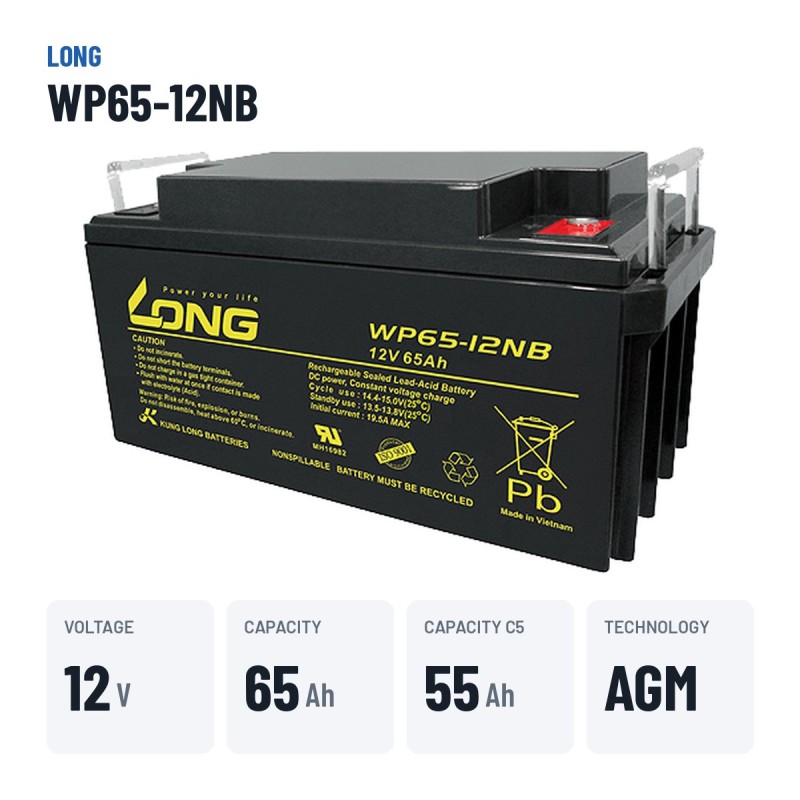

Mobility battery Long WP65-12NB WP Series 65Ah 12V
12VVoltage
65AhCapacity
21.60kgWeight
The Long WP65-12NB with AGM technology delivers 65 Ah at 12 V with the cycle life that power wheelchairs, mobility scooters and light electric vehicles demand. It replaces the original battery without adaptation in power wheelchairs and mobility scooters with a 350 × 166 × 174 mm format: same 65 Ah capacity.
- Thousands of useful cycles over its lifetime.
- Standard replacement format for wheelchairs and scooters.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
- Designed to be discharged and recharged daily without losing capacity.

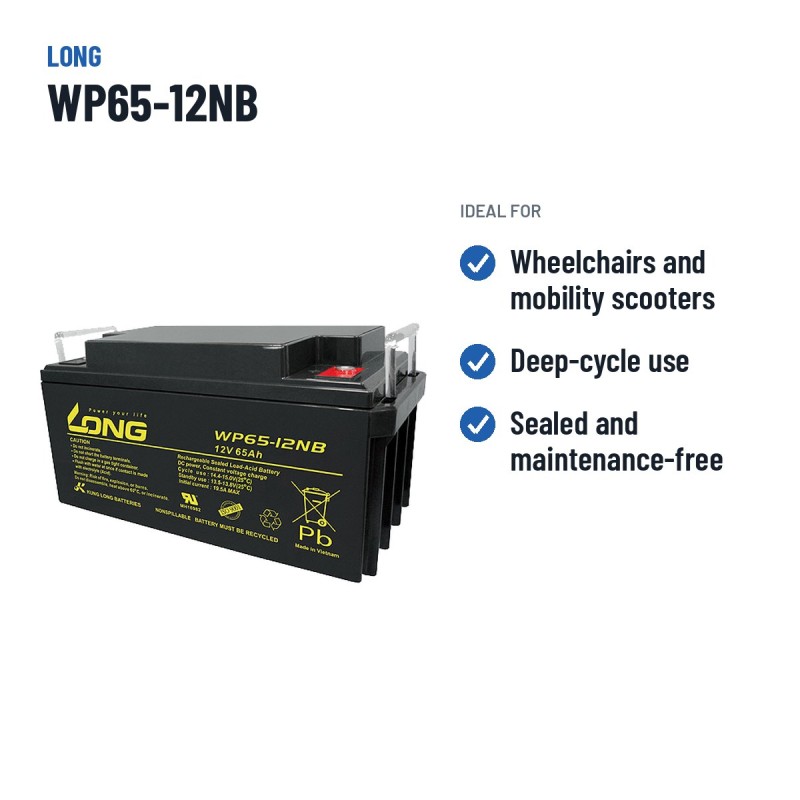

What the Long WP65-12NB is for
The Long WP65-12NB is designed for power wheelchairs, mobility scooters and light electric vehicles. Wheelchairs and scooters normally use two identical batteries in series: replace them together. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 21.60 kg.
Will it fit your current battery tray?

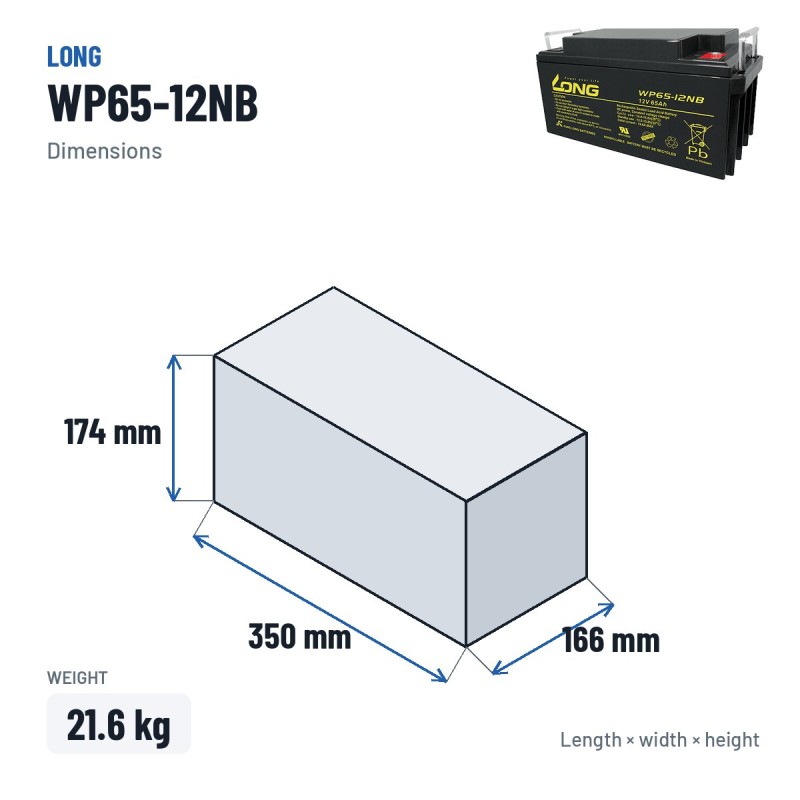

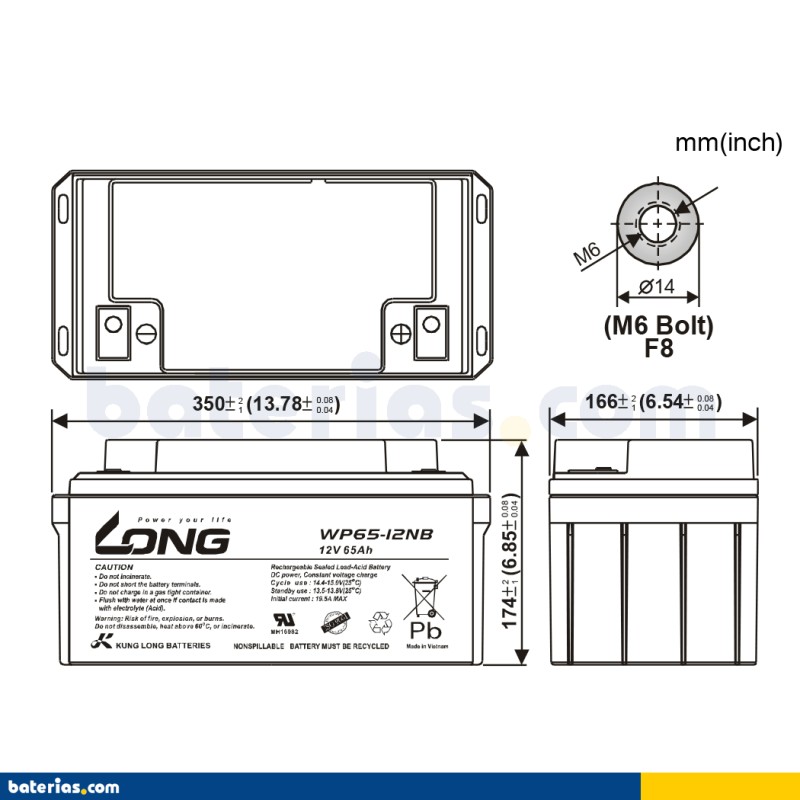

In terms of format, the Long WP65-12NB measures 350 × 166 × 174 mm (length × width × height) and weighs 21.60 kg. Before replacing it, measure your current battery tray: if all three dimensions and the terminal positions match, the swap is direct and needs no adapters.
The Long WP65-12NB: WP Series range and AGM technology
The WP Series is the Long range the WP65-12NB belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.
What Long does differently
Long (Kung Long Batteries) is one of the world's largest manufacturers of sealed VRLA batteries. Its AGM and GEL series for UPS, mobility, alarms and cycling are found in equipment worldwide as original equipment. We guarantee that every Long arrives new, charged and with the manufacturer's full warranty.
Official warranty
The Long WP65-12NB comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
Care and maintenance
Use the original charger or one compatible with the battery technology (AGM/GEL) and always replace both batteries in the set together. Recharge the wheelchair or scooter after each use and do not leave it discharged for days: lead sulphates and loses capacity.
When you get it and how to return it
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BCOM-LONG-WP65-12NB

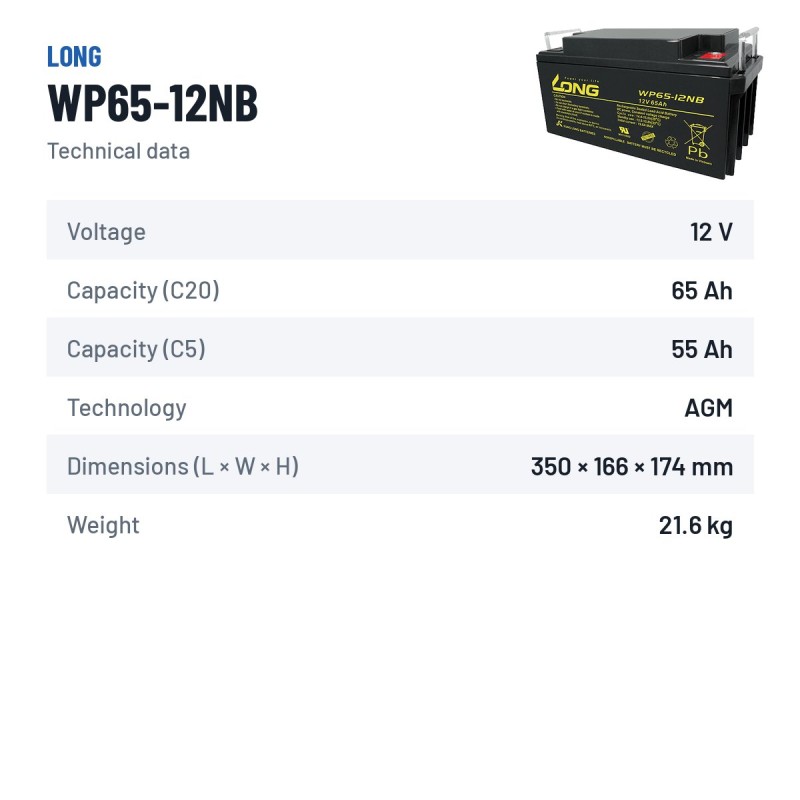

Data sheet
- Brand
- LONG
- Reference
- WP65-12NB
- Model
- WP Series
- Voltage (V)
- 12
- Length
- 350.00 cm
- Width
- 166.00 cm
- Height
- 174.00 cm
- Weight
- 21.60 Kgs
- Technology
- AGM
- Capacity (C20)
- 65Ah (c20)
- Capacity (C5)
- 55.25Ah (c5)
Specific References
- MPN
- WP65-12NB
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the Long WP65-12NB an AGM battery and what are the benefits of AGM?
Yes. The WP65-12NB from Long uses AGM (Absorbent Glass Mat) technology: a sealed lead-acid battery where the electrolyte is absorbed in a glass-fibre mat. It withstands more charge/discharge cycles than a conventional one, handles heat better and is the required technology for devices with advanced Start-Stop and regenerative braking. Expected lifespan: 5-8 years under normal conditions.
How do I fit the WP65-12NB model in my device?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Long WP65-12NB battery last?
Expected lifespan of the Long WP65-12NB is 5 to 8 years in mild-climate device use with Start-Stop. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the dimensions of the Long WP65-12NB battery?
Dimensions (length × width × height) are 350×166×174 mm — also written as 350x166x174 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Long WP65-12NB?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
