Odyssey ODP-AGM34 · Car battery 61Ah 792A AGM

Specifications

BrandODYSSEY
Part numberODP-AGM34
Capacity (C20)61Ah (c20)
Capacity (C10)57Ah (c10)
Cold cranking amps (EN)792
TechnologyAGM
Length274 mm
Width173 mm
Height201 mm
See the full specifications →

This product is priced on demand to offer you the best available price at all times.

Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.

Thank you

Polarity: positive on the left. Check it matches your current battery before buying.

Odyssey ODP-AGM34 61Ah 792A is a passenger car battery with factory-guaranteed cranking power and extended service life. OEM quality at white-label prices: calcium-silver grids, low self-discharge and compatible with all modern electrical systems.

Why this car battery?

  • Original-equipment qualitywithout dealership prices
  • Lasts 4 to 6 yearsbuy once instead of twice
  • Real human tech supportif you have any doubts before buying
Capacity
61 Ah C20
Cold cranking
792 A SAE
Dimensions
274×173×201 mm
Technology
AGM
Polarity
Positive on the left
Weight
21,1 kg
Model
ODP

Where it fits: the Odyssey ODP-AGM34 is one of our car batteries, belongs to our Odyssey batteries and by capacity it sits among our 61Ah batteries.

Solve it now by chat Our assistant replies instantly about batteries, shipping and orders, and opens the request you need.
I prefer to fill in the form
Free quote, no obligation

Request a quote for your Car battery Odyssey ODP-AGM34 61Ah 792A AGM

  • Reply in under 4 working hours
  • Best price guaranteed
Attach photo (optional)
Photo of the old battery or vehicle documentation · Max. 3 · 8 MB · images or PDF

The Odyssey ODP-AGM34 in practice

ODP-AGM34 vs Odyssey ODX-AGM34M

The Odyssey ODP-AGM34 offers 61 Ah and 792 A cold cranking in a 274 × 173 × 201 mm case. The Odyssey ODX-AGM34M, same brand and technology, goes up to 65 Ah and 880 A with 3 mm more length The difference shows on diesels and in hard winters; for a daily-driven petrol car the extra is not needed.

When not to choose it

It is an AGM: it replaces an AGM, an EFB or a conventional battery, but not the other way round. Do not choose it if dimensions or polarity differ from the original, even if the Ah match.

Logo Odyssey

Start-Stop battery Odyssey ODP-AGM34 ODP 61Ah 792A

61AhCapacity
792ACold cranking
21.10kgWeight

The Odyssey ODP-AGM34 with AGM technology delivers the 61 Ah at V and 792 A of cold cranking current (EN) that cars with Start-Stop, regenerative braking and heavy electrical loads need. It measures 274 × 173 × 201 mm and the positive terminal on the left, the format sought by anyone replacing a 61 Ah battery in Start-Stop cars.

In short: the Odyssey ODP-AGM34 (61 Ah, 792 A, 274 × 173 × 201 mm, positive terminal on the left). It is an AGM battery for cars with Start-Stop and regenerative braking; if your car came with AGM, always replace it with another AGM.

  • Withstands hundreds of starts a day without degrading.
  • AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
  • Up to three times the cycles of a conventional battery.
  • Compatible with regenerative braking and energy management (BMS).

What the Odyssey ODP-AGM34 is for

With 61 Ah, the Odyssey ODP-AGM34 is the replacement for cars with Start-Stop, regenerative braking and heavy electrical loads. After the swap it may be necessary to register the new battery in the ECU so that energy management works correctly. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 21.10 kg and SAE terminals.

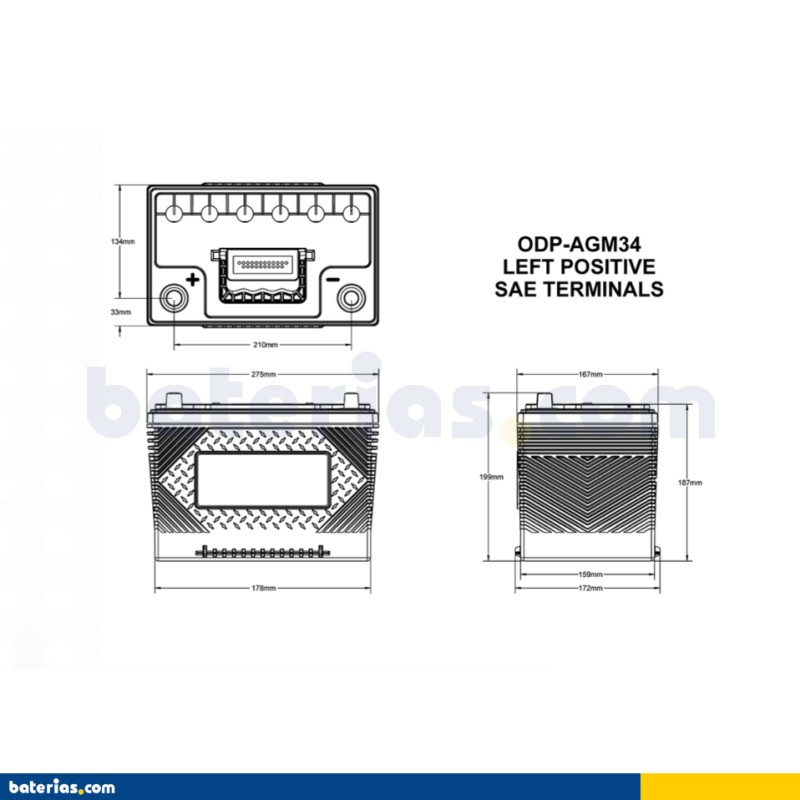

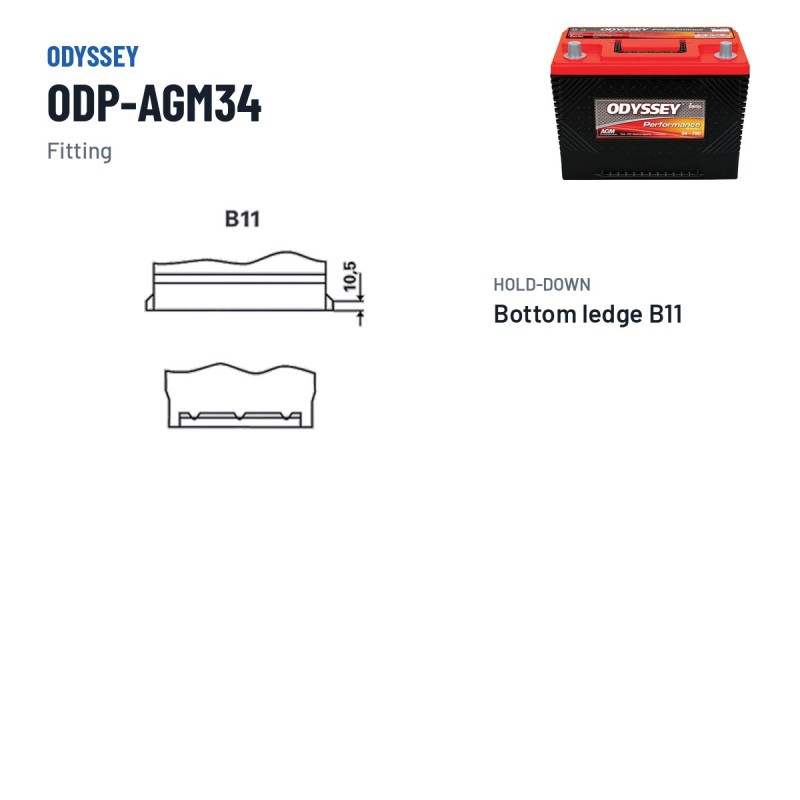

Size, terminals and hold-down of the Odyssey ODP-AGM34

The Odyssey ODP-AGM34 is made in the 274 × 173 × 201 mm format and weighs 21.10 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses SAE terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.

Why choose Odyssey batteries

Odyssey batteries combine starting and deep cycling in a single sealed pure-lead unit, with some of the longest warranties on the market. At baterias.com we work directly with the manufacturer or its official distributor: real stock, brand-new product and official warranty.

The Odyssey ODP-AGM34: ODP range and AGM technology

The ODP-AGM34 is part of the Odyssey ODP range. Choosing the right reference within the series comes down to capacity, dimensions and terminals: technology and quality are common to the whole family.

AGM means the acid is held in a glass mat instead of floating free. That is why the battery can be installed in the cabin without gases, survives more cycles and recovers its charge quickly.

How to make it last longer

Do not mix technologies: a conventional battery in a Start-Stop car degrades within months. Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators.

Warranty and coverage

The Odyssey ODP-AGM34 comes with the manufacturer's official warranty. To keep it valid, always fit the same technology as the original battery (AGM or EFB) and register the replacement if your vehicle requires it.

When you get it and how to return it

Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 1 to 2 working days in mainland Spain and 1 to 3 working days in mainland Portugal, 1 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.

  • Reference
    BCOM-ODYSSEY-ODP-AGM34

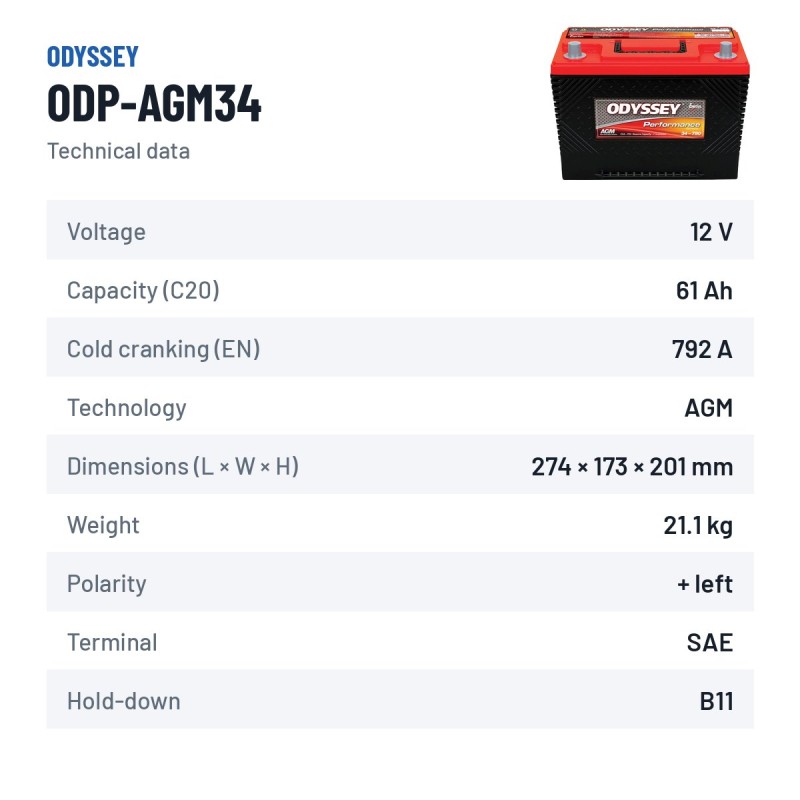

Data sheet

  • Brand
    ODYSSEY
  • Reference
    ODP-AGM34
  • Model
    ODP
  • Length
    274 mm
  • Width
    173 mm
  • Height
    201 mm
  • Weight
    21.10 Kgs
  • Technology
    AGM
  • Terminal layout
    Positive terminal on the left
  • Terminal type
    SAE
  • Cold cranking amps (EN)
    792
  • Capacity (C20)
    61Ah (c20)
  • Capacity (C10)
    57Ah (c10)

Specific References

  • UPC
    635241140569
  • MPN
    ODP-AGM34

Download

Datasheet Odyssey ODP-AGM34

PDF datasheet of the Odyssey ODP-AGM34 battery

Download (1.89MB)

Other 61Ah batteries: We stock 5 models of 61 Ah to compare by price, technology and cold cranking: see all 61Ah batteries.

Recommended accessories — complement the Odyssey ODP-AGM34 with a charger or tester

Fitting it yourself? Step-by-step guide to replacing the battery →

Frequently asked questions

Is the ODP-AGM34 model AGM? What does this technology offer?

Yes, it is AGM. In an AGM battery such as the ODP-AGM34, the electrolyte is not free but absorbed in a glass-fibre mat inside a sealed lead-acid battery. Compared with a conventional battery it withstands more charge/discharge cycles and handles heat better; it is the required technology for cars with advanced Start-Stop and regenerative braking.

Is the Odyssey ODP-AGM34 battery suitable for Start-Stop?

Yes. It is a AGM battery of 61 Ah, designed for vehicles with Start-Stop. AGM batteries support advanced Start-Stop and regenerative braking thanks to their higher cycle count. Basic Start-Stop: EFB. Start-Stop with regenerative braking: AGM, which withstands more cycles. Check the handbook for the technology the car manufacturer requires. Registering it via OBD is advisable on most modern cars (the alternator then applies the optimum profile), but it works from the start.

How is the Odyssey ODP-AGM34 battery fitted in a Start-Stop car?

Start-Stop or BMS specifics: do not remove the IBS sensor on the negative terminal (just loosen the cable nut); after the swap, register the battery via OBD so the alternator charges with the right profile; and never step down in technology: if the car had AGM or EFB, the new one must be the same or better, as a conventional battery lasts only a few months. Allow 15-30 minutes and a 10 mm spanner. If the car keeps its battery in the boot or under a seat, it can take up to twice as long. Steps: 1) switch off and remove the key; 2) find the battery (bonnet, boot or under a seat); 3) undo the negative (−), then the positive (+); 4) remove the clamp and the old battery; 5) fit the new one facing the same way (positive on the left) to match the polarity; 6) connect the positive (+) and finally the negative (−). Before you start, check the car handbook: the manufacturer's procedure always comes first. Our full step-by-step guide is on the blog.

What is the service life of the ODP-AGM34 model?

Estimated lifespan of the Odyssey ODP-AGM34: 5 to 8 years in mild-climate car use with Start-Stop. Treat it as an approximate guide, as every case is different. What weighs most: temperature (cold makes starts harder and intense heat evaporates the electrolyte), frequent short trips, the condition of the alternator and charging system, power draw while parked and maintenance, not forgetting the type of car and Start-Stop.

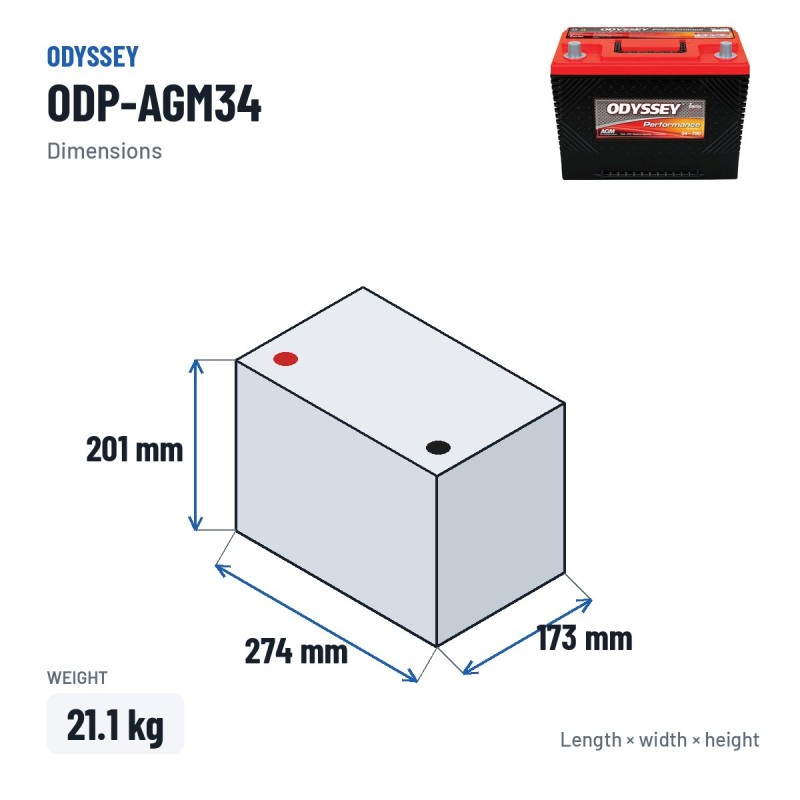

What are the dimensions of the Odyssey ODP-AGM34 battery?

The Odyssey ODP-AGM34 takes up 274×173×201 mm (length, width and height, terminals included). Before buying, measure the space in your car: one extra millimetre can stop the hold-down clamp from closing.

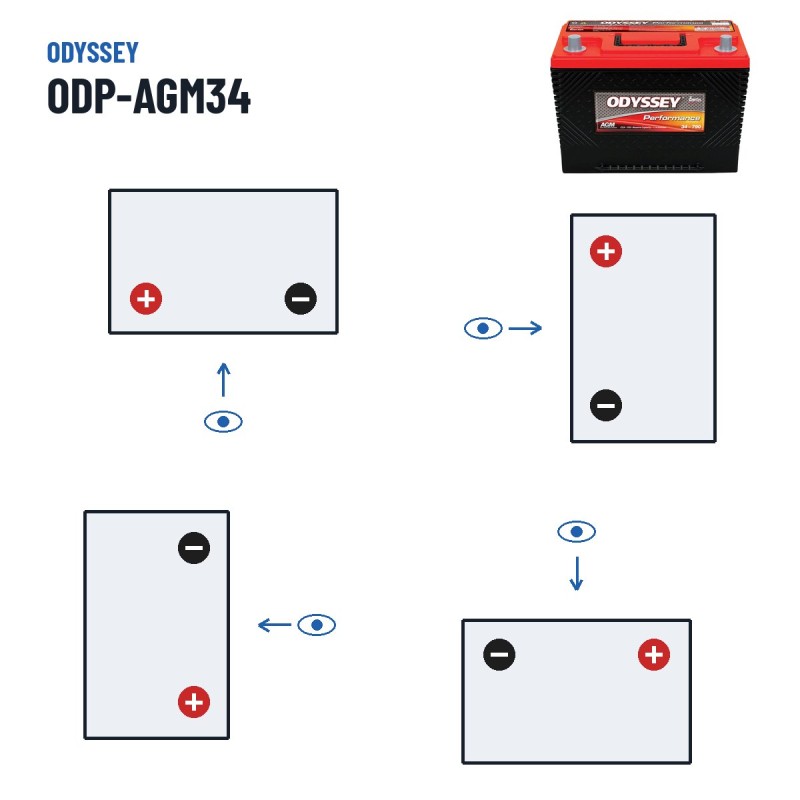

What polarity does the Odyssey ODP-AGM34 battery have?

The ODP-AGM34 has the positive on the left: that is its polarity. If your current battery has its positive on the other side, this one is not suitable without longer cables or a reconfigured system (short-circuit risk). Face the battery with its terminals nearest you and see which side the positive post (+, red ring) is on.

Will the Odyssey ODP-AGM34 battery fit my car?

The ODP-AGM34 typically fits a wide range of European vehicles thanks to its standard DIN case format. Three routes: the "Compatible vehicles" tab on this page, with the vehicles verified by our technical team; your number plate in the finder, from which DGT/DVLA/KBA detect model and engine; and WhatsApp, with make, model, engine and year, during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). The car manufacturer's specifications always take priority over our tables.

What are the equivalents of the ODP-AGM34 model?

See the "Equivalents" section of this page for the recommended options at the same performance level. Mind the technology: in Start-Stop cars an EFB is not swapped for a conventional battery. To replace the Odyssey ODP-AGM34 without modifications, the other battery must be identical in size, polarity, Ah and CCA.

What advantages does the Odyssey ODP-AGM34 AGM battery offer over an EFB?

This ODP-AGM34 delivers 792 A cold cranking (EN). The absorbent glass-fibre mat of an AGM retains the electrolyte, so it cannot leak and withstands considerably more cycles than a conventional battery. Hence it is recommended for advanced Start-Stop with regenerative braking, such as BMW EfficientDynamics, Mercedes Eco, Audi MHEV, Land Rover ECO or Volvo i-Stop, and it handles tilting, vibration and extreme temperatures better than an EFB.

Do I need to register the Odyssey ODP-AGM34 on the car after installation?

The alternator detects the new battery and adapts the charge automatically, so on most cars it is not compulsory. Even so, it is advisable to register it via OBD so charging is optimum from the first minute and the battery lasts longer, particularly on BMW, Mercedes, Audi, Volvo or Land Rover, with more sophisticated BMS. Any workshop with an OBD scanner does it in a few minutes; DIY, with VCDS or Carista (VAG group), Bimmercode (BMW) or iCarsoft. Even if you do not register the Odyssey ODP-AGM34, the car will start correctly; the profile adjusts within a few days.
