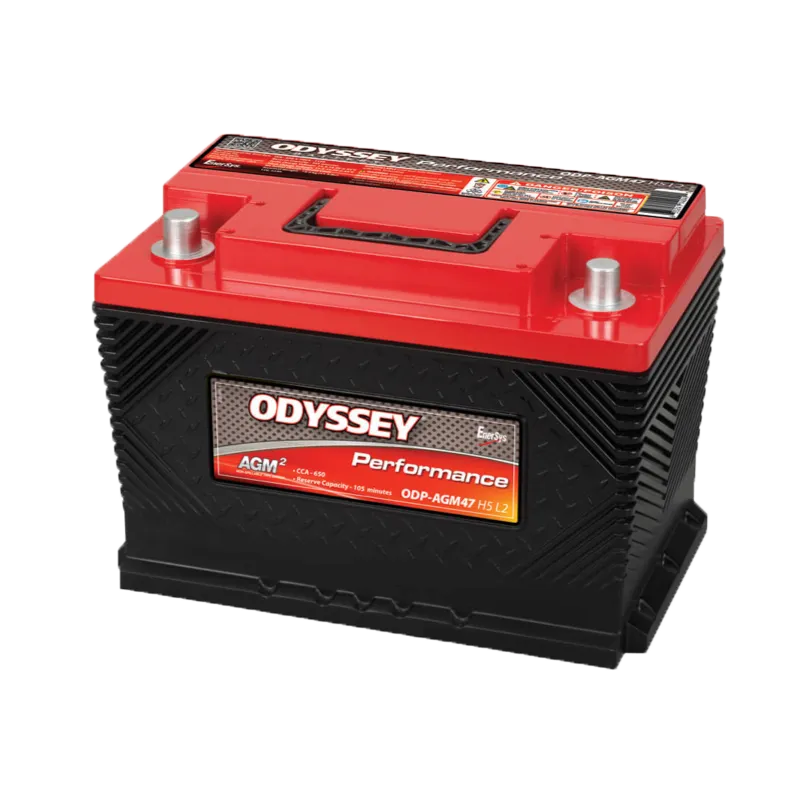

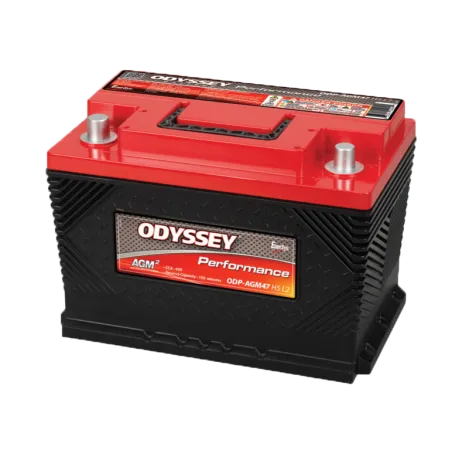

Odyssey ODP-AGM47-H5-L2 · Car battery 64Ah 650A AGM

Specifications

BrandODYSSEY
Part numberODP-AGM47-H5-L2
Capacity (C20)64Ah (c20)
Capacity (C10)58Ah (c10)
Cold cranking amps (EN)650
TechnologyAGM
Length241 mm
Width175 mm
Height188 mm
See the full specifications →

This product is priced on demand to offer you the best available price at all times.

Please contact us to request a quote and we will inform you about availability and the best price on the entire website, as well as the delivery time.

Thank you

Polarity: positive on the left. Check it matches your current battery before buying.

Odyssey ODP-AGM47-H5-L2 64Ah 650A is a ready-to-use passenger car battery, sealed and maintenance-free. Delivers the cranking amps the engine needs in cold weather and keeps stable voltage for modern car loads (ECU, sensors, climate control, infotainment).

Why this car battery?

  • Original-equipment qualitywithout dealership prices
  • Lasts 4 to 6 yearsbuy once instead of twice
  • Real human tech supportif you have any doubts before buying
Capacity
64 Ah C20
Cold cranking
650 A SAE
Dimensions
241×175×188 mm
Technology
AGM
Polarity
Positive on the left
Weight
19 kg
Model
ODP

Where it fits: the Odyssey ODP-AGM47-H5-L2 is one of our car batteries, belongs to our Odyssey batteries and by capacity it sits among our 64Ah batteries.

Solve it now by chat Our assistant replies instantly about batteries, shipping and orders, and opens the request you need.
I prefer to fill in the form
Free quote, no obligation

Request a quote for your Car battery Odyssey ODP-AGM47-H5-L2 64Ah 650A AGM

  • Reply in under 4 working hours
  • Best price guaranteed
Attach photo (optional)
Photo of the old battery or vehicle documentation · Max. 3 · 8 MB · images or PDF

The Odyssey ODP-AGM47-H5-L2 in practice

When not to choose it

Technically it suits any car of its size, but it is only worth paying for if yours has Start-Stop, regenerative braking or heavy loads; in a simple car a conventional battery does the job for half.

Logo Odyssey

Start-Stop battery Odyssey ODP-AGM47-H5-L2 ODP 64Ah 650A

64AhCapacity
650ACold cranking
19kgWeight

Designed for cars with Start-Stop, regenerative braking and heavy electrical loads, the Odyssey ODP-AGM47-H5-L2 from the ODP range combines 64 Ah and 650 A of cold cranking current (EN) with AGM construction able to withstand hundreds of starts a day. Its 241 × 175 × 188 mm and the positive terminal on the left make it the exact replacement for the 64 Ah battery fitted as standard to many Start-Stop cars.

In short: the Odyssey ODP-AGM47-H5-L2 (64 Ah, 650 A, 241 × 175 × 188 mm, positive terminal on the left). It is an AGM battery for cars with Start-Stop and regenerative braking; if your car came with AGM, always replace it with another AGM.

  • Fast recharge on the move thanks to low internal resistance.
  • AGM: faster recharging and better cycle resistance than a conventional battery.
  • Direct replacement for the original Start-Stop battery.
  • Keeps comfort loads running with the engine off at the lights.

What the Odyssey ODP-AGM47-H5-L2 is for

The Odyssey ODP-AGM47-H5-L2 is designed for cars with Start-Stop, regenerative braking and heavy electrical loads. If your car was fitted with an AGM or EFB battery, always replace it with the same technology: a conventional model would degrade within months. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 19 kg and SAE terminals.

Will it fit your current battery tray?

It has external dimensions of 241 × 175 × 188 mm and weighs 19 kg. The positive terminal on the left decides which side the cables end up on: it is the detail that causes most buying mistakes, so check it before ordering. It uses SAE terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.

Odyssey: the maker behind the ODP-AGM47-H5-L2

Odyssey, part of the EnerSys group, makes thin-plate pure-lead (TPPL) batteries: extreme cranking, total vibration resistance and very long service life in motorsport, 4x4, marine and demanding vehicles. We guarantee that every Odyssey arrives new, charged and with the manufacturer's full warranty.

The Odyssey ODP-AGM47-H5-L2: ODP range and AGM technology

The ODP is the Odyssey range the ODP-AGM47-H5-L2 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.

In an AGM battery the electrolyte is absorbed in glass-fibre separators: there is no free liquid, it cannot spill and it can be mounted at an angle. That construction lowers internal resistance, speeds up recharging and multiplies cycle life compared with a conventional battery.

How to make it last longer

Charge with a charger that has an AGM mode: it limits the voltage and protects the glass-fibre separators. In a Start-Stop car the battery is controlled by the ECU; after replacing it, the new battery may need to be registered so the system adjusts charging.

Manufacturer's warranty

The Odyssey ODP-AGM47-H5-L2 comes with the manufacturer's official warranty. To keep it valid, always fit the same technology as the original battery (AGM or EFB) and register the replacement if your vehicle requires it.

Delivery times and returns

Orders placed before 6:00 pm with the battery in stock ship the same day. Delivery in mainland Spain and Portugal takes 1 to 2 working days; for the Balearic Islands and the rest of the European Union allow 1 to 5 working days. You have 14 days to return an unused battery; in mainland Spain and Portugal collection is free. We email you the tracking number as soon as the parcel ships.

  • Reference
    BCOM-ODYSSEY-ODP-AGM47-H5-L2

Data sheet

  • Brand
    ODYSSEY
  • Reference
    ODP-AGM47-H5-L2
  • Model
    ODP
  • Length
    241 mm
  • Width
    175 mm
  • Height
    188 mm
  • Weight
    19.00 Kgs
  • Technology
    AGM
  • Terminal layout
    Positive terminal on the left
  • Terminal type
    SAE
  • Cold cranking amps (EN)
    650
  • Capacity (C20)
    64Ah (c20)
  • Capacity (C10)
    58Ah (c10)

Specific References

  • UPC
    635241140491
  • MPN
    ODP-AGM47-H5-L2

Download

Datasheet Odyssey ODP-AGM47-H5-L2

PDF datasheet of the Odyssey ODP-AGM47-H5-L2 battery

Download (1.95MB)

Other 64Ah batteries: We stock 5 models of 64 Ah to compare by price, technology and cold cranking: see all 64Ah batteries.

Recommended accessories — complement the Odyssey ODP-AGM47-H5-L2 with a charger or tester

Fitting it yourself? Step-by-step guide to replacing the battery →

Frequently asked questions

Is the Odyssey ODP-AGM47-H5-L2 an AGM battery and what are the benefits of AGM?

Yes, it is AGM. In an AGM battery such as the ODP-AGM47-H5-L2, the electrolyte is not free but absorbed in a glass-fibre mat inside a sealed lead-acid battery. Compared with a conventional battery it withstands more charge/discharge cycles and handles heat better; it is the required technology for cars with advanced Start-Stop and regenerative braking.

Is this battery compatible with Start-Stop systems?

AGM batteries support advanced Start-Stop and regenerative braking thanks to their higher cycle count. The Odyssey ODP-AGM47-H5-L2 is AGM, so yes, it is designed for Start-Stop cars. If the car recovers energy when braking, AGM is recommended for its higher cycle count; for basic Start-Stop, EFB. The manufacturer's specification comes first. Registering it via OBD is advisable on most modern cars (the alternator then applies the optimum profile), but it works from the start.

How is the Odyssey ODP-AGM47-H5-L2 battery fitted in a Start-Stop car?

If the car has Start-Stop or BMS: a) the technology must match the original (AGM or EFB) or be higher, because a conventional battery would fail within months; b) undo the negative cable at its nut, leaving the IBS sensor in place; c) it is advisable to register the battery via OBD so the alternator applies the proper charging profile. With a 10 mm spanner, swapping in the Odyssey ODP-AGM47-H5-L2 takes 15 to 30 minutes on most cars; if the battery sits in the boot or under a seat, allow up to twice as long. Steps: 1) switch off and remove the key; 2) find the battery (bonnet, boot or under a seat); 3) undo the negative (−), then the positive (+); 4) remove the clamp and the old battery; 5) fit the new one facing the same way (positive on the left) to match the polarity; 6) connect the positive (+) and finally the negative (−). Before you start, check the car handbook: the manufacturer's procedure always comes first. Our full step-by-step guide is on the blog.

How long does the Odyssey ODP-AGM47-H5-L2 battery last?

As a rough estimate, the Odyssey ODP-AGM47-H5-L2 typically lasts 5 to 8 years in mild-climate car use with Start-Stop; it is a guide figure, not a guaranteed period. What weighs most: temperature (cold makes starts harder and intense heat evaporates the electrolyte), frequent short trips, the condition of the alternator and charging system, power draw while parked and maintenance, not forgetting the type of car and Start-Stop.

What size is this battery?

Length × width × height: 241x175x188 mm (L2 case). Height is measured to the top of the terminals. Measure your car's battery tray first; if the battery exceeds it by even a millimetre, the hold-down clamp may not close.

What polarity does the Odyssey ODP-AGM47-H5-L2 battery have?

Polarity of the Odyssey ODP-AGM47-H5-L2: positive on the left. If your current battery has its positive on the other side, this one is not suitable without longer cables or a reconfigured system (short-circuit risk). Seen from the front, terminals towards you, the positive (+) is the post with the red ring.

Does this battery fit my car?

Three routes: the "Compatible vehicles" tab on this page, with the vehicles verified by our technical team; your number plate in the finder, from which DGT/DVLA/KBA detect model and engine; and WhatsApp, with make, model, engine and year, during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). The ODP-AGM47-H5-L2 typically fits a wide range of European vehicles thanks to its standard DIN case format. If our table and the car handbook disagree, go with what the manufacturer says.

Which interchangeable batteries are there for this one?

Not just any technology will do: an EFB cannot be replaced with a conventional battery in Start-Stop cars. The "Equivalents" section further down lists the recommended alternatives. To replace the Odyssey ODP-AGM47-H5-L2 without modifications, the other battery must be identical in size (L2 case), polarity, Ah and CCA.

What advantages does the Odyssey ODP-AGM47-H5-L2 AGM battery offer over an EFB?

Hence it is recommended for advanced Start-Stop with regenerative braking, such as BMW EfficientDynamics, Mercedes Eco, Audi MHEV, Land Rover ECO or Volvo i-Stop, and it handles tilting, vibration and extreme temperatures better than an EFB. Many more charge/discharge cycles than a conventional battery and no leaks: that is what AGM technology brings, with the electrolyte absorbed in glass fibre. This ODP-AGM47-H5-L2 delivers 650 A cold cranking (EN).

Do I need to register the Odyssey ODP-AGM47-H5-L2 on the car after installation?

It is not strictly necessary on most cars, because the alternator detects the change and adapts the charge. The advisable step is to register it via OBD: the charging profile is optimum from the first minute and the battery lasts longer, especially on brands with sophisticated BMS (BMW, Mercedes, Audi, Volvo, Land Rover). Without registration there is no starting problem: the alternator adjusts the profile within a few days. Any garage with an OBD scanner can do it in a few minutes. If you prefer to do it yourself: VCDS / Carista (VAG), Bimmercode (BMW) or iCarsoft.
