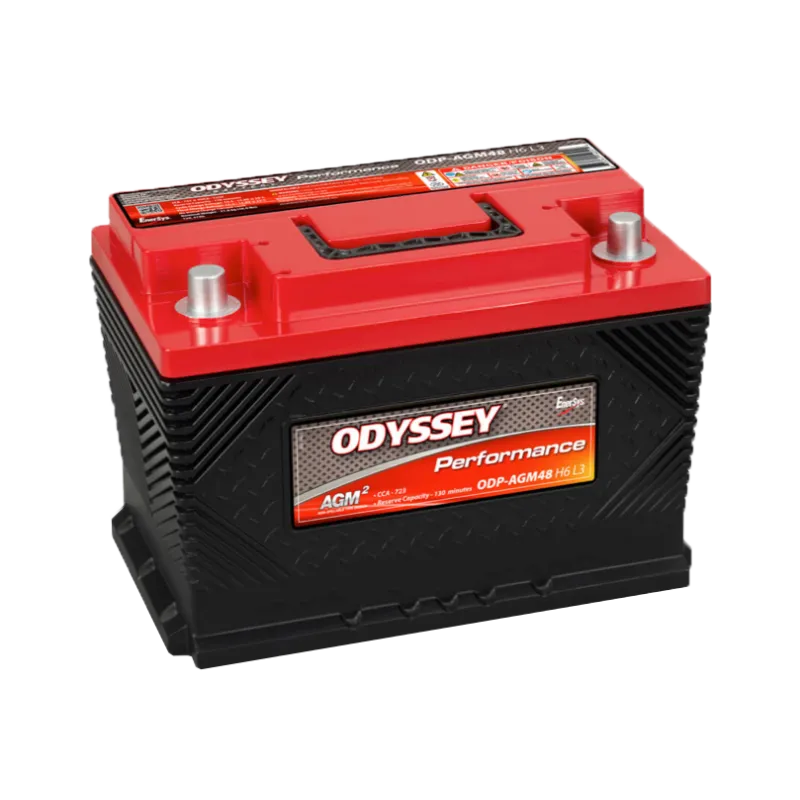

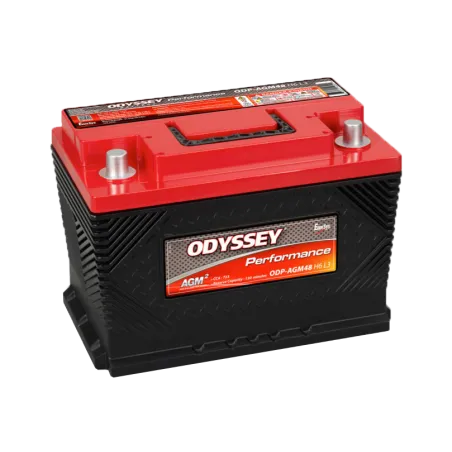

Odyssey ODP-AGM48-H6-L3 · Car battery 69Ah 720A AGM

Yes: the ODP-AGM48-H6-L3 from Odyssey uses AGM (Absorbent Glass Mat) technology, a sealed lead-acid battery whose electrolyte soaks a glass-fibre mat. It is the technology required by cars with advanced Start-Stop and regenerative braking. It withstands more cycles than a conventional battery and copes better with heat.

Yes, the AGM technology of the ODP-AGM48-H6-L3 is built for Start-Stop. AGM batteries support advanced Start-Stop and regenerative braking thanks to their higher cycle count. It works once fitted; on most modern cars, registering it via OBD is advisable so the alternator applies the optimum charging profile. The general recommendation is EFB for basic Start-Stop and AGM where there is regenerative braking (it handles more cycles), unless the car manufacturer says otherwise.

Tool: a 10 mm spanner. Time: 15-30 minutes on almost every car, and up to double if the battery is not under the bonnet but in the boot or under a seat. With the engine stopped and the key removed, always start with the negative (−) terminal, then the positive (+). Free the clamp, swap the battery without turning it round (this one has positive on the left) so the polarity stays the same, and reconnect in reverse: positive (+) first, negative (−) last. If the car has Start-Stop or BMS: a) the technology must match the original (AGM or EFB) or be higher, because a conventional battery would fail within months; b) undo the negative cable at its nut, leaving the IBS sensor in place; c) it is advisable to register the battery via OBD so the alternator applies the proper charging profile. Before you start, check the car handbook: the manufacturer's procedure always comes first. Our full step-by-step guide is on the blog.

There is no exact figure: for a battery such as the Odyssey ODP-AGM48-H6-L3 (AGM), a reasonable guide is 5 to 8 years in mild-climate car use with Start-Stop. It can vary considerably with usage (short or long journeys), temperature, the condition of the alternator and charging system, power drawn with the engine off and maintenance, plus the car itself and Start-Stop. Cold demands more at every start and intense heat evaporates the electrolyte.

Measure your car's battery tray first; if the battery exceeds it by even a millimetre, the hold-down clamp may not close. Length × width × height: 277x175x188 mm (L3 case). Height is measured to the top of the terminals.

It has the positive on the left (polarity). Put it in front of you, terminals towards you: the post with the red ring and the + sign is the positive. Compare it with the battery you are replacing: if it does not match, cables must be lengthened or the system reconfigured, with a risk of short circuit.

Not sure? Try your number plate in the finder (DGT/DVLA/KBA detect model and engine) or the "Compatible vehicles" tab, checked by our technical team; if your car is not there, send us make, model, engine and year on WhatsApp and we will reply during business hours (Mon–Fri 10:00–13:30 and 16:30–18:00 (Spanish time, CET)). If our table and the car handbook disagree, go with what the manufacturer says.

To replace the Odyssey ODP-AGM48-H6-L3 without modifications, the other battery must be identical in size (L3 case), polarity, Ah and CCA. The "Equivalents" section of this page gathers the recommended options with equivalent performance; remember that in Start-Stop cars an EFB should not be replaced with a conventional battery.

This ODP-AGM48-H6-L3 delivers 720 A cold cranking (EN). Many more charge/discharge cycles than a conventional battery and no leaks: that is what AGM technology brings, with the electrolyte absorbed in glass fibre. It is the recommended choice for advanced Start-Stop with regenerative braking (BMW EfficientDynamics, Mercedes Eco, Audi MHEV, Land Rover ECO, Volvo i-Stop) and copes better than an EFB with tilting, vibration and extreme temperatures.

It is not strictly necessary on most cars, because the alternator detects the change and adapts the charge. The advisable step is to register it via OBD: the charging profile is optimum from the first minute and the battery lasts longer, especially on brands with sophisticated BMS (BMW, Mercedes, Audi, Volvo, Land Rover). Without registration there is no starting problem: the alternator adjusts the profile within a few days. Any garage with an OBD scanner can do it in a few minutes. If you prefer to do it yourself: VCDS / Carista (VAG), Bimmercode (BMW) or iCarsoft.
