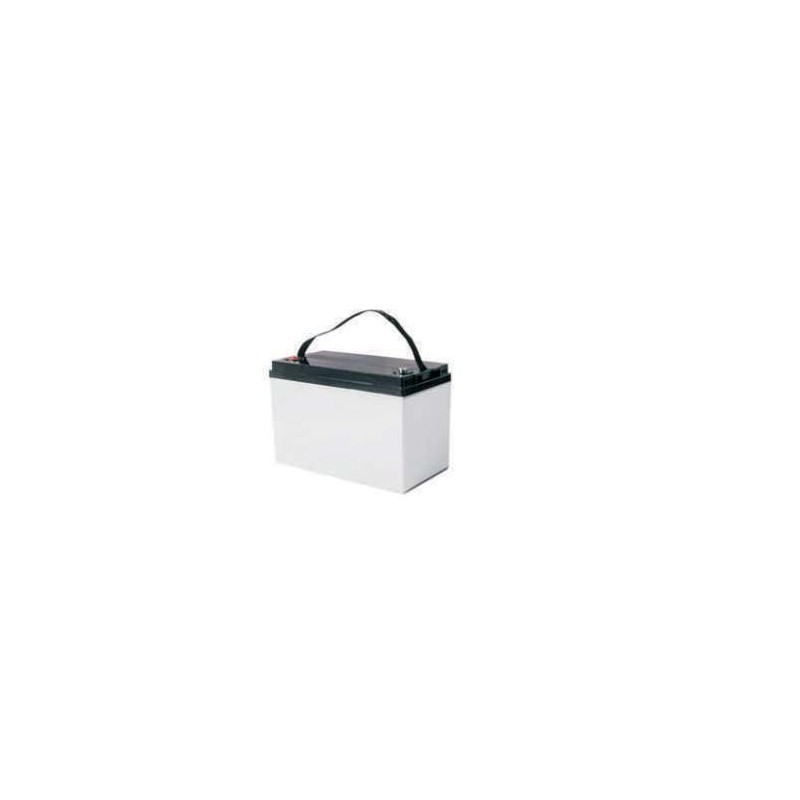

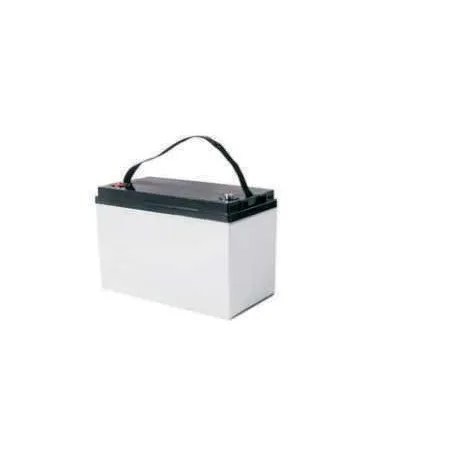

Ritar EV12-110 · Floor scrubber battery 12V 110Ah 700A AGM
Specifications
| Brand | RITAR |
|---|---|
| Part number | EV12-110 |
| Voltage (V) | 12 |
| Capacity (C20) | 110Ah (c20) |
| Capacity (C5) | 93.5Ah (c5) |
| Technology | AGM |
| Length | 328.00 mm |
| Width | 172.00 mm |
| Height | 220.00 mm |
€210.31
VAT included
Ritar EV12-110 12V 110Ah 700A is a traction battery for cleaning machines and aerial platforms, with thick plates for daily fleet use. 328×172×220 mm case, 30.5 kg.
Why this scrubber battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time

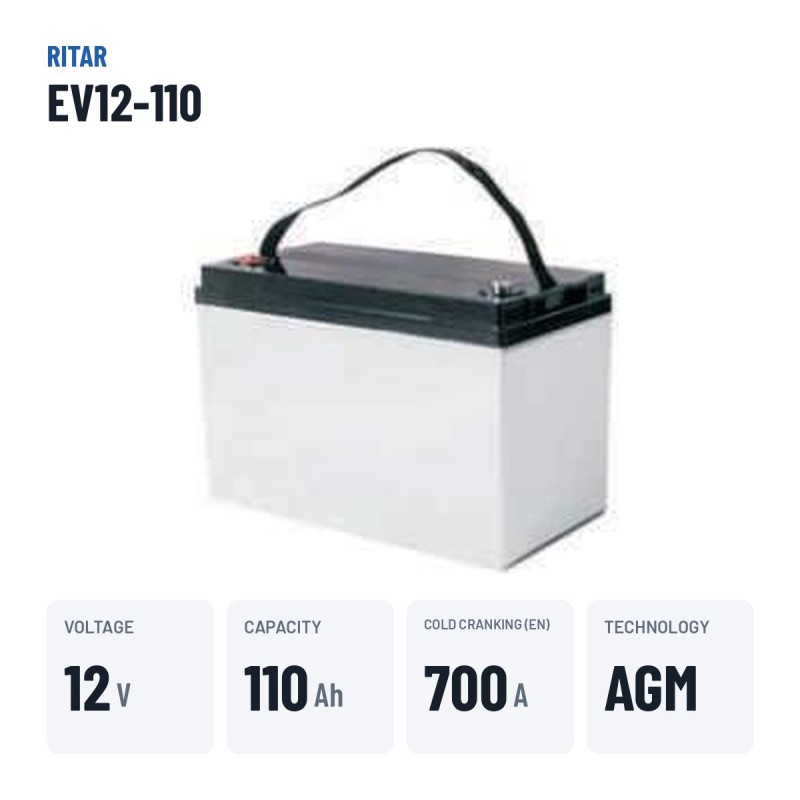

Voltage
12 V
Capacity
110 Ah
Cold cranking
700 A
Dimensions
328×172×220 mm
Technology
AGM
Weight
30,5 kg
Model
RITAR EV
Battery RITAR EV12-110 110Ah 700A 12V EV
Why choose a ritar battery?
Ritar batteries provide durability, high energy and have had a cadmium-free manufacturing process and environmentally friendly since Ritar adopted ecological technology and facilities (Eco-Friendly), to minimize the environmental impact.Know more about the Ritar brand
Ritar Power is a professional battery manufacturer that is quoted in Nasdaq and produces a wide range of batteries in agm, gel, lithium, etc. technologies.Today Ritar covers the manufacture of batteries, the battery charger, the phone screen, etc.and has become a large -scale business group.It is a high -tech company based in the Nanshan district, Shenzhen in China and has more than 2000 employees, which produce a complete range of AGM, gel, deep cycle, lead carbon, OPZV, opzs, acid batteriesof traction (DIN / BS) and lithium batteries for all types of industrial applications such as solar systems, UPS, telecommunications, data centers, rail traffic, motor vehicles, etc.Ritar factories are equipped with advanced automatic production lines and adopt advanced test measures, including a series of innovative production technologies that have obtained national patents.Each production stage is well planned and controlled to minimize the percentage of defects.Strictly 100% inspection made by IQC, IPQC, OQC.
The Ritar EV series
Ritar’s EV series is designed for the frequent deep discharge of electric vehicles: a patented deep-cycle active material formula, strong Pb-Ca-Sn cadmium-free grids, thick plates and a high-performance AGM separator. Over 300 cycles at 100 % depth of discharge. Sealed (VRLA) and maintenance-free, with self-discharge below 3 % per month. The whole series at Ritar EV batteries.
This model

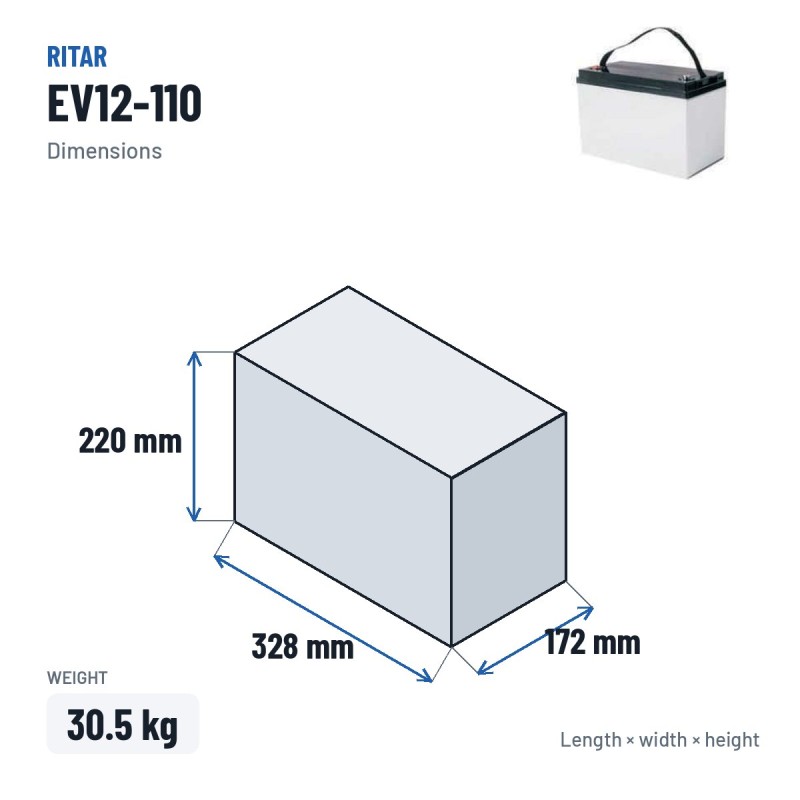

328×172×220 mm case, 30.5 kg. 12 V and 110 Ah, 700 A cold cranking (CCA) and a maximum discharge current of 1100 A for 5 seconds.

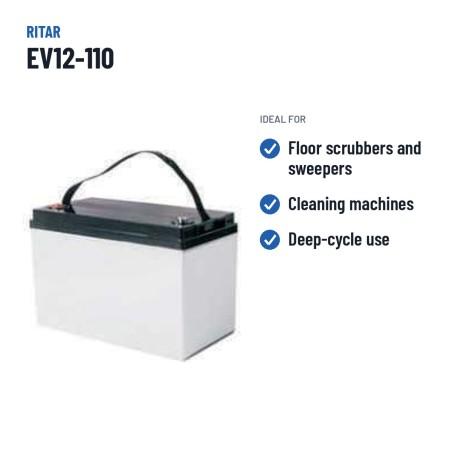

Ideal for
- Floor scrubber and sweeper
- Aerial work platform
- Marine
- Caravan and motorhome
- Electric vehicle

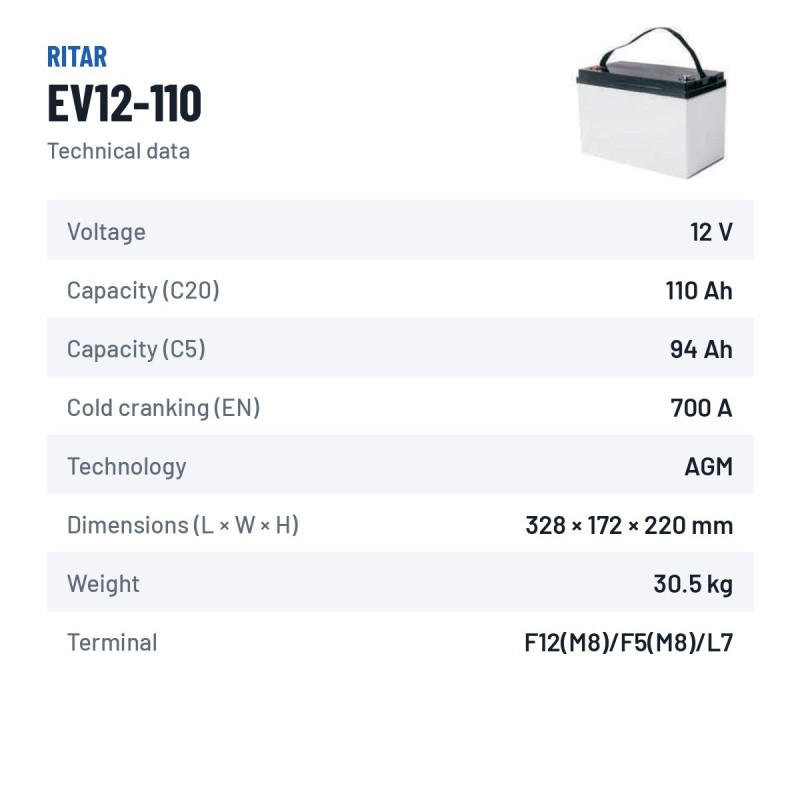

Technical data
| Brand | RITAR |
|---|---|
| Model | EV |
| Part no. | EV12-110 |
| Capacity | 110Ah |
| Voltage | 12V |
| Cold cranking (CCA) | 700A |
| Technology | AGM |
| Dimensions (mm) | 328x172x220 |
| Weight | 30.50 kg |
| Terminal type | BOLT-M8 |
| C20 capacity | 110 Ah |
| C10 capacity | 105 Ah |
| C5 capacity | 93.5 Ah |
| C3 capacity | 82.5 Ah |
| Internal resistance | 5.5 mΩ |
| Max. discharge (5 s) | 1100 A |
| Max. charging current | 33.0 A |
| Height without terminal | 215 mm |
| Terminal | F12(M8)/F5(M8)/L7 |
BCOM-RITAR-EV12-110
Data sheet
- Brand
- RITAR
- Reference
- EV12-110
- Model
- EV
- Voltage (V)
- 12
- Length
- 328.00 mm
- Width
- 172.00 mm
- Height
- 220.00 mm
- Weight
- 30.5 Kgs
- Technology
- AGM
- Terminal type
- M8
- Capacity (C20)
- 110Ah (c20)
- Capacity (C5)
- 93.5Ah (c5)
Specific References
- MPN
- EV12-110
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
How is the Ritar EV12-110 battery installed in the vehicle?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
How long does the Ritar EV12-110 battery last?
Expected lifespan of the Ritar EV12-110 is 4 to 7 years in regular use (depends on technology and climate). In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the EV12-110 model?
Dimensions (length × width × height) are 328×172×220 mm — also written as 328x172x220 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which interchangeable batteries are there for this one?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
