Ritar HT12-100 · Stationary UPS battery 105.8Ah AGM
Specifications
| Brand | RITAR |
|---|---|
| Part number | HT12-100 |
| Voltage (V) | 12 |
| Capacity (C20) | 105 8Ah (c20) |
| Capacity (C10) | 100Ah (c10) |
| Technology | AGM |
| Length | 407.00 mm |
| Width | 177.00 mm |
| Height | 225.00 mm |
Ritar HT12-100 12V 105Ah is a stationary battery for backup power systems: UPS, alarms, telecom and emergency lighting. Long float-life under permanent charge and instant response to mains outages with no noticeable voltage drop.
Why this stationary battery?
- Instant responsewhen the mains drop, no voltage dip
- Long life under 24/7 chargeoptimised for permanent service
- Compatible with your systemexisting UPS units and alarm control panels
Where it fits: the Ritar HT12-100 is one of our batteries for ups / ups, belongs to our Ritar batteries and by capacity it sits among our 105Ah batteries.

Stationary battery Ritar HT12-100 HT 105Ah 12V
Designed for UPS, alarms, telecoms and emergency lighting, the Ritar HT12-100 from the HT range offers 105 Ah with AGM technology on permanent float charge. It replaces the original battery without adaptation in UPS, alarm and emergency systems with a 407 × 177 × 225 mm format: same 105 Ah capacity.
In short: the Ritar HT12-100 (105 Ah, 407 × 177 × 225 mm). Verified equivalent alternatives: Ritar HT12-110 and Q-battery 12LS-120 M8.
- AGM technology: absorbed electrolyte, no spills, can be mounted at an angle.
- Long float life under permanent charge.
- Sealed and gas-free: suitable for cabinets and offices.
- Maintenance-free for its whole service life.
Dimensions, polarity and mounting
The Ritar HT12-100 is made in the 407 × 177 × 225 mm format and weighs 34 kg. It uses F5(M8) / F12(M8) terminals, the system that anchors and connects it in the vehicle. Checking the three dimensions and the terminal position before buying avoids the most common mistake when replacing a battery.
What the Ritar HT12-100 is for
The Ritar HT12-100 is designed for UPS, alarms, telecoms and emergency lighting: it sits on float charge and responds instantly to a mains failure. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 34 kg and F5(M8) / F12(M8) terminals.
The Ritar HT12-100: HT range and AGM technology
The HT is the Ritar range the HT12-100 belongs to: it shares the same construction and quality criteria with the rest of the series, and varies in capacity and format to suit each vehicle.
In an AGM battery the electrolyte is absorbed in glass-fibre separators: there is no free liquid, it cannot spill and it can be mounted at an angle. That construction lowers internal resistance, speeds up recharging and multiplies cycle life compared with a conventional battery.
What Ritar does differently
Ritar is one of the world's largest VRLA battery manufacturers. Its RA, RT, RL, HR and FT series equip UPS, telecoms and solar systems worldwide with very consistent quality. We guarantee that every Ritar arrives new, charged and with the manufacturer's full warranty.
Manufacturer's warranty
The Ritar HT12-100 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
How to make it last longer
Replace all the batteries in the set at once and avoid environments continuously above 25 °C. Check the float voltage of the UPS or charger: a voltage that is too high shortens the life of a sealed battery.
Delivery times and returns
Same-day dispatch from our warehouse for in-stock orders placed before 6:00 pm: 1 to 2 working days in mainland Spain and 1 to 3 working days in mainland Portugal, 1 to 5 days in the islands and the rest of Europe. Returns are accepted for 14 days if the battery has not been used (free collection on the Iberian mainland). You will receive tracking by email.

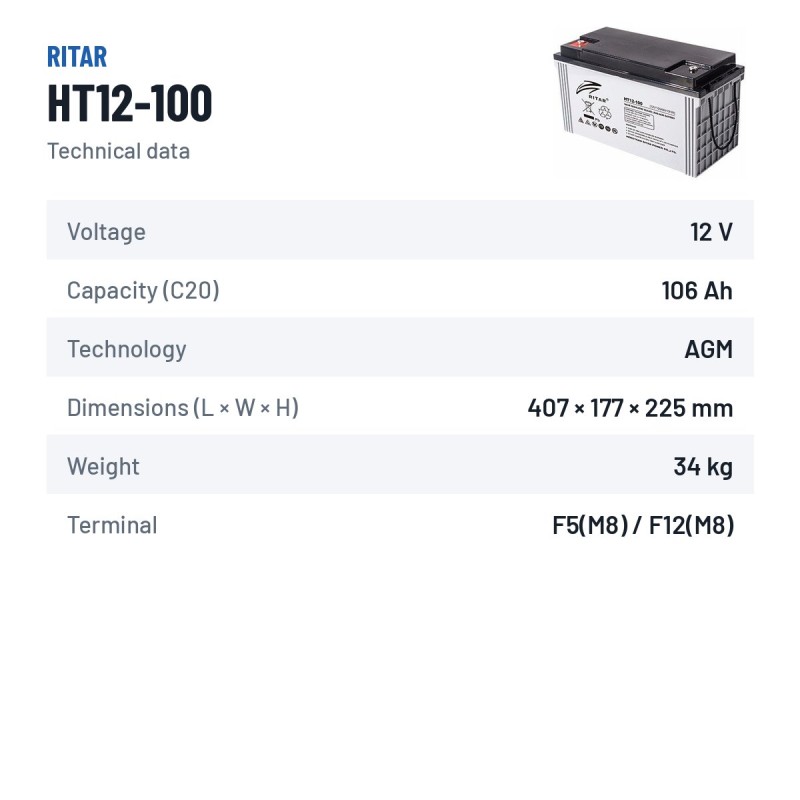

Data sheet
-
BrandRITAR
-
ReferenceHT12-100
-
ModelRITAR HT
-
Voltage (V)12
-
Length407.00 mm
-
Width177.00 mm
-
Height225.00 mm
-
Weight34.0 Kgs
-
TechnologyAGM
-
Terminal typeF5(M8) / F12(M8)
-
Capacity (C20)105 8Ah (c20)
-
Capacity (C10)100Ah (c10)
Specific References
-
MPNHT12-100
Ritar HT12-100: best-selling equivalent or higher-spec batteries
The Ritar HT12-100 is interchangeable with these equivalent references: HT12-110 (Ritar), BATTERY-12LS-120 M8 (Q-battery).
| Product | Specifications | Technology | Price | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ritar
HT12-100
This battery
|
12V 105Ah | AGM | 427,70 € | |||||||||||||||||||||
Ritar
HT12-110
Bigger sister |
12V 116Ah | AGM | 455,80 € +28,10 € | |||||||||||||||||||||
| ||||||||||||||||||||||||
| HT12-100 | HT12-110 | |
|---|---|---|
| Capacity | 105 Ah | 116 Ah |
| Cold cranking (EN) | — | — |
| Technology | AGM | AGM |
| Dimensions (mm) | 407 × 177 × 225 | 407 × 177 × 225 |
| Positive terminal | — | — |
| Price | 427,70 € | 455,80 € |
Q-battery
BATTERY-12LS-120 M8
Q-battery equivalent Ritar HT12-100 vs Q-battery BATTERY-12LS-120 M8
Q-battery equivalent · +57,25 €
The Q-battery alternative that fits where the HT12-100 goes, with the same polarity. Compared with the HT12-100 it has 21 Ah more. It costs 57,25 € more. A straight swap with nothing to adapt; the difference is the price and the brand you prefer.
| HT12-100 | BATTERY-12LS-120 M8 | |
|---|---|---|
| Capacity | 105 Ah | 126 Ah |
| Cold cranking (EN) | — | — |
| Technology | AGM | AGM |
| Dimensions (mm) | 407 × 177 × 225 | 409 × 176 × 222 |
| Positive terminal | — | — |
| Price | 427,70 € | 484,95 € |
Equivalences verified by our technical team: same dimensions, polarity, capacity and CCA. Official manufacturer warranty on every option.
Other 105Ah batteries: We stock 22 models of 105 Ah to compare by price, technology and cold cranking: see all 105Ah batteries. Same size (407 × 177 × 225 mm): batteries of 407 × 177 × 225 mm.
Recommended accessories
Frequently asked questions
Is the Ritar HT12-100 an AGM battery and what are the benefits of AGM?
Yes. AGM (Absorbent Glass Mat) technology, 105 Ah and 12 V: sealed lead-acid, with the electrolyte held in glass fibre. It tolerates heat better and handles more cycles than a conventional battery.
What are the dimensions of the Ritar HT12-100 battery?
Before buying, measure the space in your device: one extra millimetre can stop the hold-down clamp from closing. The Ritar HT12-100 takes up 407×177×225 mm (length, width and height, terminals included).
Ritar HT12-100 or Ritar HT12-110: which one to choose?
It is the bigger sister of the HT12-100 in the same Ritar range. Compared with the HT12-100 it has 11 Ah more. It costs 28,10 € more. More capacity means more runtime: worth it if your equipment takes the size and had that capacity or more; otherwise the HT12-100 does the job.
Ritar HT12-100 or Q-battery BATTERY-12LS-120 M8: which one to choose?
The Q-battery alternative that fits where the HT12-100 goes, with the same polarity. Compared with the HT12-100 it has 21 Ah more. It costs 57,25 € more. A straight swap with nothing to adapt; the difference is the price and the brand you prefer.
