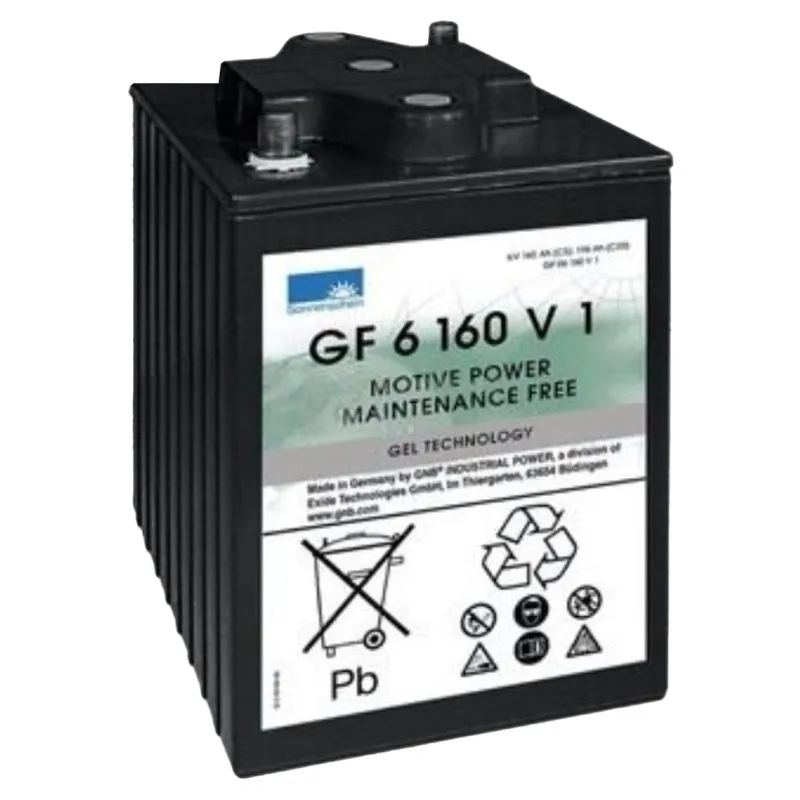

Sonnenschein GF06160V1 · Traction battery 6V 196Ah GEL

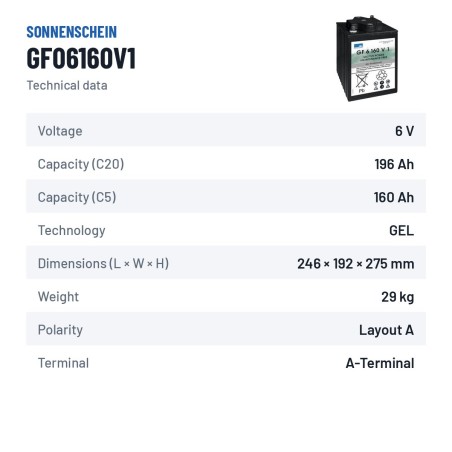

Specifications
| Brand | Sonnenschein |
|---|---|
| Part number | GF06160V1 |
| Voltage (V) | 6V |
| Capacity (C20) | 196Ah (c20) |
| Capacity | 196Ah |
| Technology | GEL |
| Weight | 29,00 |
| Terminal type | A-Terminal |
€424.30
VAT included
Sonnenschein GF06160V1 6V 196Ah is a traction battery for industrial electric vehicles: forklifts, pallet trucks, elevating platforms, cleaning machines (scrubbers) and golf buggies. Built for deep discharges and 8-hour continuous work cycles.
Why this traction battery?
- Industrial designbuilt for 8 hours of continuous daily work
- Deep discharges without damagefully recovers when recharged
- Long industrial lifespanpays back the investment over time

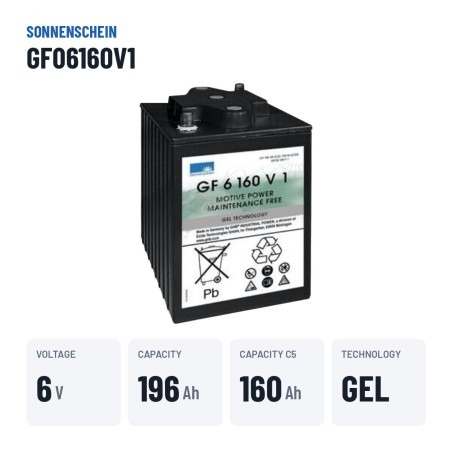

Voltage
6 V
Capacity
196 Ah
Dimensions
246×192×275 mm
Technology
Gel
Weight
29 kg
Model
GEL - GF -V Sonnenschein Traction range 700 cycles
Traction battery Sonnenschein GF06160V1 196Ah 6V
6VVoltage
196AhCapacity
29kgWeight
With 196 Ah with GEL technology, the Sonnenschein GF06160V1 supports continuous duty cycles in forklifts, pallet trucks, stackers and aerial work platforms. It replaces the original battery without adaptation in forklifts and pallet trucks with a 246 × 192 × 275 mm format: same 196 Ah capacity.
- High tolerance to vibration and industrial use.
- Long service life in fleets and warehouses.
- GEL technology: gelled electrolyte, fully sealed and maintenance-free.
- Built for 8-hour continuous duty cycles.
What the Sonnenschein GF06160V1 is for
Designed for forklifts, pallet trucks, stackers and aerial work platforms, the Sonnenschein GF06160V1 withstands the vibration and industrial use of a warehouse. Check that it matches your current battery in dimensions, terminals and hold-down: this reference has a weight of 29 kg and A-Terminal terminals.

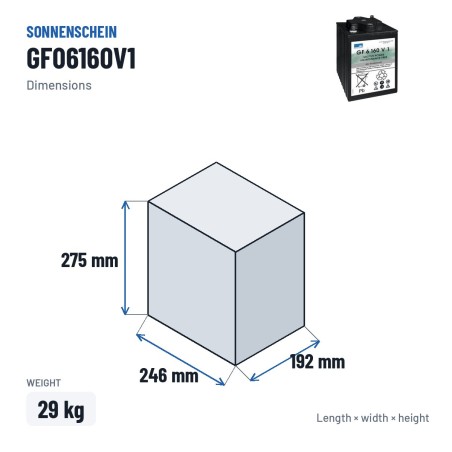

Size, terminals and hold-down of the Sonnenschein GF06160V1
In terms of format, the Sonnenschein GF06160V1 measures 246 × 192 × 275 mm (length × width × height) and weighs 29 kg. It uses A-Terminal terminals, the system that anchors and connects it in the vehicle. For a direct replacement, the current battery tray must accept these dimensions and the same terminal layout; otherwise adapters will be needed or the hold-down will change.
Technology inside the Sonnenschein GF06160V1
The GF06160V1 is one of the Sonnenschein references for this type of use; it shares the same manufacturing and quality-control criteria as the rest of the brand's catalogue.
A GEL battery is the choice when cycle resistance and safety matter most: no gases, no liquid and thousands of partial discharges in its lifetime.
What Sonnenschein does differently
Sonnenschein (EnerSys) invented the dryfit® GEL battery: the world reference in gel batteries for electric mobility, light traction and applications that demand safety and intensive cycling. We guarantee that every Sonnenschein arrives new, charged and with the manufacturer's full warranty.
Manufacturer's warranty
The Sonnenschein GF06160V1 comes with the manufacturer's official warranty against manufacturing defects. If it fails through a defect within the warranty period, we replace it at no cost to you.
How to make it last longer
Replace the complete set at once and watch the operating temperature in hot warehouses. Follow the manufacturer's charging regime and do not interrupt full charging cycles.
When you get it and how to return it
Order before 6:00 pm with stock available and it leaves today: mainland Spain and Portugal receive it in 24-48 working hours, the islands and the rest of the EU in 3 to 5 days. You have 14 days to return it if it has not been installed, with free collection on the mainland, and shipment tracking by email.
BATERIAS-SONNENSCHEIN-GF06160V1
Data sheet
- Weight
- 29,00
- Technology
- GEL
- Terminal type
- A-Terminal
- Capacity (C20)
- 196Ah (c20)
- Voltage (V)
- 6V
- Capacity
- 196Ah
Specific References
- MPN
- GF06160V1
Recommended accessories
How to change the battery
Guide to replace a cyclic battery (12V 4-30Ah) for UPS, mobility scooter, alarm or backup device. Estimated time 10-15 minutes. Important: discharge residual voltage before handling.
Step 1. Power off and unplug the device
Unplug the device (UPS, scooter, alarm) and leave it off for at least 30 seconds to discharge residual capacitor voltage. Work on an insulating surface.
Step 2. Locate the battery compartment
Usually under the seat (mobility scooter/wheelchair), in the rear module of the UPS, or behind a side panel with screws. Check the device manual for unusual models.
Step 3. Disconnect the negative (−) first
With insulated gloves, remove the negative (−) cable first. Some UPS have protection fuses — note their position before removing.
Step 4. Disconnect the positive (+) terminal
Repeat with the positive cable (red, marked +). Important: never let a terminal touch metal of the car while the other is still connected.
Step 5. Remove the old battery
Typical weight 1-15 kg depending on capacity. Many cyclic batteries are AGM/GEL — keep them upright. Do NOT invert the battery: even sealed, residue may exist.
Step 6. Fit the new battery
Same orientation and type (AGM, GEL or flooded). Polarity must match the device, not a chassis (this is not a car). Make sure terminals do not touch metal parts of the compartment.
Step 7. Connect the positive (+) first
On cyclic devices the order is reversed compared to cars: positive (+) first, negative (−) afterwards. Tighten without forcing — the plastic terminal housing of cyclic batteries damages easily.
Step 8. Initial charge before first use
Cyclic batteries ship at 60-80%. Before first use, connect the device charger for 8-12 hours (or use an AGM/GEL smart charger if available). This avoids short cycles and extends lifespan.
Frequently asked questions
Is the Sonnenschein GF06160V1 a GEL battery? What is GEL used for?
Yes, this model is a GEL battery: sealed lead-acid where the electrolyte is in gel form. It tolerates deep discharges very well and is ideal for cyclic use (solar, motorhomes, electric wheelchairs, motorcycles). Requires a GEL-specific smart charger — max charge voltage ~14.1 V (vs 14.4-14.7 V for AGM). Lifespan 6-10 years.
How do I fit the GF06160V1 model in my device?
In most devices it fits in 15-30 minutes with a 10 mm wrench; if the battery is under the seat or in the boot the time can double. See the step-by-step guide on this page. Quick summary: 1) switch off the engine and remove the key; 2) locate the original battery (engine bay, boot or under seat); 3) disconnect the negative (−) terminal first, then the positive (+); 4) loosen the hold-down clamp and remove the old battery; 5) fit the new one in the same orientation — match the polarity shown on the product sheet; 6) connect the positive (+) first, then the negative (−). On devices with Start-Stop or BMS, register the battery via OBD so the alternator applies the correct charging profile.
What is the service life of the GF06160V1 model?
Expected lifespan of the Sonnenschein GF06160V1 is 6 to 10 years in cyclic use (marine, caravan, solar) with controlled discharges. In cold regions it drops slightly due to cold-start stress; in very hot regions it also drops because of electrolyte evaporation. To extend its life: avoid deep discharges (headlights on with engine off), have the alternator checked yearly, and keep the battery clean and properly secured.
What are the measurements of the GF06160V1 model?
Dimensions (length × width × height) are 246×192×275 mm — also written as 246x192x275 mm — following the European DIN standard. Always measure the space in your device before buying: even one extra millimetre can prevent the hold-down clamp from closing. The height shown includes the terminals.
Which batteries are equivalent to the Sonnenschein GF06160V1?
Directly interchangeable batteries (same dimensions, same polarity, same Ah and CCA) are the OEM equivalents from leading brands: Bosch, Tudor, Exide and, depending on the model, Banner or Yuasa. Exact equivalence depends on technology — an EFB cannot be replaced with a conventional battery in Start-Stop devices. See the "Equivalents" section to view recommended options at the same performance level.
